This class is used to create or edit a Features::ShipDesign::StiffenerSystem feature. More...

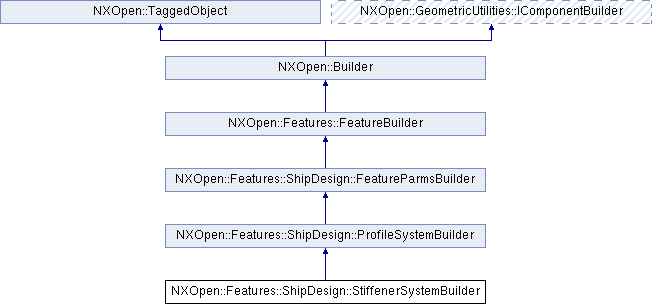

Inheritance diagram for NXOpen::Features::ShipDesign::StiffenerSystemBuilder:

Public Types
enum	EndCutTypes { EndCutTypesConnected, EndCutTypesFlangeFree, EndCutTypesSniped }
	Used to specify the type of end cut to be used at the extreme ends of the stiffener system. More...

enum	MeasureAlongModes { MeasureAlongModesAlongSurfaceLength, MeasureAlongModesNormaltoPlane, MeasureAlongModesAlongSurfaceChord }
	Used to specify how the spacing and offset is to be measured. More...

enum	OffsetSpacingModes { OffsetSpacingModesSingle, OffsetSpacingModesDouble }
	Used to specify if a single or double offset and spacing definition is to be used. More...

enum	OrientationMethods { OrientationMethodsFaceNormal, OrientationMethodsVector }
	Used to specify the type of reference to use for specifying the orientation of the stiffener system. More...

enum	PointMethods { PointMethodsPlanes, PointMethodsPoints }
	Used to specify whether points or planes are being used for the points definition. More...

enum	Types { TypesCurves, TypesPlanes, TypesOffsetPlanes, TypesPoints, TypesBySupport }
	Used to specify how the path of the stiffener system is defined. More...

Public Member Functions
bool	ApplyFlangeSetback ()
	Returns the flange set back option for stiffener by support, which indicates if the flange set back should be applied or not Created in NX9.0.0.

bool	ApplyWebSetback ()
	Returns the web set back option for stiffener by support, which indicates if the web set back should be applied or not Created in NX9.0.0.

double	ConnectAngle ()
	Returns the connect angle of stiffener by support in degrees, negative value is not allowed Created in NX9.0.0.

NXOpen::Features::ShipDesign::PlanePairBuilder *	CreatePlanePairBuilder ()
	Creates a Features::ShipDesign::PlanePairBuilder to add another pair of planes to the list.

NXOpen::Section *	Curves ()
	Returns the curves selected that define the path of the stiffener system.

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes	EndCutEnd ()
	Returns the end cut to use at the end of the complete stiffener system.

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes	EndCutStart ()
	Returns the end cut to use at the start of the complete stiffener system.

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::MeasureAlongModes	MeasureAlongMode ()
	Returns the method used to measure distances between planes.

NXOpen::Expression *	OffsetDistance ()
	Returns the distance from the OffsetPlane to generate the first plane.

NXOpen::Expression *	OffsetDistanceEnd ()
	Returns the distance from the OffsetPlane to generate the location at the end of the stiffener system.

NXOpen::Expression *	OffsetDistanceStart ()
	Returns the distance from the OffsetPlane to generate the location at the start of the stiffener system.

int	OffsetNumber ()
	Returns the number of offset planes to generate that define the path of the stiffener system.

NXOpen::Plane *	OffsetPlane ()
	Returns the first plane of the set of offset planes that define the path of the stiffener system.

NXOpen::Expression *	OffsetSpacing ()
	Returns the distance between generated planes.

NXOpen::Expression *	OffsetSpacingEnd ()
	Returns the distance between generated locations at the end of the stiffener system.

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModes	OffsetSpacingMode ()
	Returns the indication whether spacing of the offset planes is defined at each end of the stiffener system, or if a constant spacing is desired.

NXOpen::Expression *	OffsetSpacingStart ()
	Returns the distance between generated locations at the start of the stiffener system.

NXOpen::Expression *	OrientationAngle ()
	Returns the angle at which the stiffener system is placed relative to the reference.

NXOpen::Features::ShipDesign::OrientationDefinitionBuilder *	OrientationDefinitionBuilder ()
	Returns the builder used to define the orientation for the stiffener system.

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationMethods	OrientationMethod ()
	Returns the method used to define the reference for the orientation angle of stiffener system.

NXOpen::Direction *	OrientationVector ()
	Returns the vector specified for the orientation angle reference.

NXOpen::Features::ShipDesign::PlaneListBuilderList *	PlaneList ()
	Returns the list of defined planes that define the path of the stiffener system.

NXOpen::NXObjectList *	PlanePairList ()
	Returns the list of pairs of planes that generate points on the ship structure to define the path of the stiffener system.

NXOpen::SelectNXObjectList *	Planes ()
	Returns the planes selected that define the path of the stiffener system.

NXOpen::NXObjectList *	PointList ()
	Returns the list of selected or defined points that define the path of the stiffener system.

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::PointMethods	PointMethod ()
	Returns the method used to define the generated points on the ship structure to define the path of the stiffener system.

NXOpen::GeometricUtilities::ProjectionOptions *	ProjectionDirection ()
	Returns the direction used to project the stiffener path object Created in NX9.0.0.

bool	Reverse ()
	Returns the indication whether the direction of the stiffener flange should be reversed.

void	SetApplyFlangeSetback (bool applyFlangeSetback)
	Sets the flange set back option for stiffener by support, which indicates if the flange set back should be applied or not Created in NX9.0.0.

void	SetApplyWebSetback (bool applyWebSetback)
	Sets the web set back option for stiffener by support, which indicates if the web set back should be applied or not Created in NX9.0.0.

void	SetConnectAngle (double connectAngle)
	Sets the connect angle of stiffener by support in degrees, negative value is not allowed Created in NX9.0.0.

void	SetEndCutEnd (NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes endCutEnd)
	Sets the end cut to use at the end of the complete stiffener system.

void	SetEndCutStart (NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes endCutStart)
	Sets the end cut to use at the start of the complete stiffener system.

void	SetMeasureAlongMode (NXOpen::Features::ShipDesign::StiffenerSystemBuilder::MeasureAlongModes measureAlongMode)
	Sets the method used to measure distances between planes.

void	SetOffsetNumber (int number)
	Sets the number of offset planes to generate that define the path of the stiffener system.

void	SetOffsetPlane (NXOpen::Plane *offsetPlane)
	Sets the first plane of the set of offset planes that define the path of the stiffener system.

void	SetOffsetSpacingMode (NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModes offsetSpacingMode)
	Sets the indication whether spacing of the offset planes is defined at each end of the stiffener system, or if a constant spacing is desired.

void	SetOrientationMethod (NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationMethods orientationMethod)
	Sets the method used to define the reference for the orientation angle of stiffener system.

void	SetOrientationVector (NXOpen::Direction *orientationVector)
	Sets the vector specified for the orientation angle reference.

void	SetPointMethod (NXOpen::Features::ShipDesign::StiffenerSystemBuilder::PointMethods method)
	Sets the method used to define the generated points on the ship structure to define the path of the stiffener system.

void	SetReverse (bool reverse)
	Sets the indication whether the direction of the stiffener flange should be reversed.

void	SetSwitchSide (bool switchSide)
	Sets the indication whether the side of the ship structure should be switched.

void	SetType (NXOpen::Features::ShipDesign::StiffenerSystemBuilder::Types type)
	Sets the method used to define the path of the stiffener system.

NXOpen::SelectNXObjectList *	ShipStructure ()
	Returns the ship structure upon which to create the stiffener system.

NXOpen::Features::ShipDesign::StiffenerBySupportPathBuilder *	StiffenerBySupportPathData ()
	Returns the path data used to define the support information of the stiffener.

NXOpen::Features::ShipDesign::StiffenerStockBuilder *	StockData ()
	Returns the stock data used to define the stock information of the stiffener.

bool	SwitchSide ()
	Returns the indication whether the side of the ship structure should be switched.

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::Types	Type ()
	Returns the method used to define the path of the stiffener system.

NXOpen::Weld::CharacteristicsBuilder *	Weld ()
	Returns the builder used to specify the welding characteristics for the stiffener system.

Public Member Functions inherited from NXOpen::Features::ShipDesign::ProfileSystemBuilder
NXOpen::SelectNXObjectList *	Boundary1 ()
	Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the first end of the generated profile system.

NXOpen::Plane *	Boundary1Plane ()
	Returns the defined plane that will be used to trim the first end of the generated profile system.

NXOpen::SelectNXObjectList *	Boundary2 ()
	Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the second end of the generated profile system.

NXOpen::Plane *	Boundary2Plane ()
	Returns the defined plane that will be used to trim the second end of the generated profile system.

bool	BoundaryReverse ()
	Returns the indication if the side of a single boundary should be changed to the other side or not.

void	CreatePathCurves (std::vector< NXOpen::NXObject * > &curves)
	Creates path curves for all the paths of the profile system.

void	DeleteLastPathCurves ()
	Deletes the path curves returned from a call to GetLastPathCurves .

void	DeletePathCurves ()
	Deletes the path curves created from a call to CreatePathCurves .

NXOpen::SelectPointList *	FirstIntersectionPoints ()
	Returns the selected intersection points between the curves and the first boundary.

void	GetLastPathCurves (std::vector< NXOpen::NXObject * > &curves)
	Gets the path curves used by OrientationDefinitionBuilder .

NXOpen::SelectPointList *	SecondIntersectionPoints ()
	Returns the selected intersection points between the curves and the second boundary.

void	SetBoundary1Plane (NXOpen::Plane *boundary1Plane)
	Sets the defined plane that will be used to trim the first end of the generated profile system.

void	SetBoundary2Plane (NXOpen::Plane *boundary2Plane)
	Sets the defined plane that will be used to trim the second end of the generated profile system.

void	SetBoundaryOnePoints (const std::vector< NXOpen::Point3d > &points)
	Sets the selected intersection points for the first boundary.

void	SetBoundaryReverse (bool boundaryReverse)
	Sets the indication if the side of a single boundary should be changed to the other side or not.

void	SetBoundaryTwoPoints (const std::vector< NXOpen::Point3d > &points)
	Set the selected intersection points for the second boundary.

Public Member Functions inherited from NXOpen::Features::ShipDesign::FeatureParmsBuilder
double	AngleTolerance ()
	Returns the tolerance, in degrees, used to determine when angles are zero.

NXOpen::Features::ShipDesign::PlaneListBuilder *	CreatePlaneForList ()
	Create a Features::ShipDesign::PlaneListBuilder to add a defined plane to a list.

double	DistanceTolerance ()
	Returns the tolerance used to determine when distances are considered zero.

NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes	OrientationAngleRule ()
	Returns the angle rule to use when measuring angles.

void	SetAngleTolerance (double angleTolerance)
	Sets the tolerance, in degrees, used to determine when angles are zero.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the tolerance used to determine when distances are considered zero.

void	SetOrientationAngleRule (NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes angleRule)
	Sets the angle rule to use when measuring angles.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This class is used to create or edit a Features::ShipDesign::StiffenerSystem feature.

 <br> To create a new instance of this class, use @link Features::ShipCollection::CreateStiffenerSystemBuilder  Features::ShipCollection::CreateStiffenerSystemBuilder @endlink  <br>

Default values.

Property

Value

EndCutEnd

Connected

EndCutStart

Connected

MeasureAlongMode

AlongSurfaceLength

OffsetDistance.Value

0 (millimeters part), 0 (inches part)

OffsetDistanceEnd.Value

0 (millimeters part), 0 (inches part)

OffsetDistanceStart.Value

0 (millimeters part), 0 (inches part)

OffsetNumber

0

OffsetSpacing.Value

0 (millimeters part), 0 (inches part)

OffsetSpacingEnd.Value

0 (millimeters part), 0 (inches part)

OffsetSpacingMode

Single

OffsetSpacingStart.Value

0 (millimeters part), 0 (inches part)

OrientationAngle.Value

0 (millimeters part), 0 (inches part)

OrientationDefinitionBuilder.MeasureAngles

NormaltoCurve

OrientationDefinitionBuilder.ShowSurfaceAngles

0

OrientationDefinitionBuilder.ShowTwistRate

0

OrientationDefinitionBuilder.ShowWebAngles

0

OrientationMethod

FaceNormal

StiffenerBySupportPathData.LengthParams.Value

300 (millimeters part), 100 (inches part)

StiffenerBySupportPathData.OrientationBySupport

0

StockData.AnchorPoint

0

StockData.PlateHeight.Value

50 (millimeters part), 2 (inches part)

StockData.PlateStockData.KnuckleRatio

3.0

StockData.PlateStockData.KnuckleSmoothAngle

3.0

StockData.PlateStockData.MaterialOption

0

StockData.PlateStockData.OppositeThickness.Value

0 (millimeters part), 0 (inches part)

StockData.PlateStockData.RestrictThicknessToMaterial

true

StockData.PlateStockData.ThickenOption

SingleSided

StockData.PlateStockData.Thickness.Value

10 (millimeters part), 0.5 (inches part)

StockData.PlateStockData.ThicknessSourceOption

List

StockData.SectionType

Profile

Type

Curves

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes

Used to specify the type of end cut to be used at the extreme ends of the stiffener system.

Enumerator:

EndCutTypesConnected	connected
EndCutTypesFlangeFree	flange free
EndCutTypesSniped	sniped

enum NXOpen::Features::ShipDesign::StiffenerSystemBuilder::MeasureAlongModes

Used to specify how the spacing and offset is to be measured.

Enumerator:

MeasureAlongModesAlongSurfaceLength	along surface length
MeasureAlongModesNormaltoPlane	normalto plane
MeasureAlongModesAlongSurfaceChord	along surface chord

enum NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModes

Used to specify if a single or double offset and spacing definition is to be used.

Enumerator:

OffsetSpacingModesSingle	single
OffsetSpacingModesDouble	double

enum NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationMethods

Used to specify the type of reference to use for specifying the orientation of the stiffener system.

Enumerator:

OrientationMethodsFaceNormal	face normal
OrientationMethodsVector	vector

enum NXOpen::Features::ShipDesign::StiffenerSystemBuilder::PointMethods

Used to specify whether points or planes are being used for the points definition.

Enumerator:

PointMethodsPlanes	planes
PointMethodsPoints	points

enum NXOpen::Features::ShipDesign::StiffenerSystemBuilder::Types

Used to specify how the path of the stiffener system is defined.

Enumerator:

TypesCurves	curves
TypesPlanes	planes
TypesOffsetPlanes	offset planes
TypesPoints	points
TypesBySupport	by support

Member Function Documentation

bool NXOpen::Features::ShipDesign::StiffenerSystemBuilder::ApplyFlangeSetback ( )

Returns the flange set back option for stiffener by support, which indicates if the flange set back should be applied or not
Created in NX9.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::StiffenerSystemBuilder::ApplyWebSetback ( )

Returns the web set back option for stiffener by support, which indicates if the web set back should be applied or not
Created in NX9.0.0.

License requirements : None

double NXOpen::Features::ShipDesign::StiffenerSystemBuilder::ConnectAngle ( )

Returns the connect angle of stiffener by support in degrees, negative value is not allowed
Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PlanePairBuilder* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::CreatePlanePairBuilder ( )

Creates a Features::ShipDesign::PlanePairBuilder to add another pair of planes to the list.

Returns: Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

NXOpen::Section* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::Curves ( )

Returns the curves selected that define the path of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesCurves Features::ShipDesign::StiffenerSystemBuilder::TypesCurves@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutEnd ( )

Returns the end cut to use at the end of the complete stiffener system.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutStart ( )

Returns the end cut to use at the start of the complete stiffener system.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::MeasureAlongModes NXOpen::Features::ShipDesign::StiffenerSystemBuilder::MeasureAlongMode ( )

Returns the method used to measure distances between planes.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetDistance ( )

Returns the distance from the OffsetPlane to generate the first plane.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink
       and OffsetSpacing is @link Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesSingle Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesSingle@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetDistanceEnd ( )

Returns the distance from the OffsetPlane to generate the location at the end of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink
       and OffsetSpacing is @link Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesDouble Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesDouble@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetDistanceStart ( )

Returns the distance from the OffsetPlane to generate the location at the start of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink
       and OffsetSpacing is @link Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesDouble Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesDouble@endlink .

Created in NX8.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetNumber ( )

Returns the number of offset planes to generate that define the path of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Plane* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetPlane ( )

Returns the first plane of the set of offset planes that define the path of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacing ( )

Returns the distance between generated planes.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink
       and OffsetSpacing is @link Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesSingle Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesSingle@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingEnd ( )

Returns the distance between generated locations at the end of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink
       and OffsetSpacing is @link Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesDouble Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesDouble@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModes NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingMode ( )

Returns the indication whether spacing of the offset planes is defined at each end of the stiffener system, or if a constant spacing is desired.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingStart ( )

Returns the distance between generated locations at the start of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink
       and OffsetSpacing is @link Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesDouble Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModesDouble@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationAngle ( )

Returns the angle at which the stiffener system is placed relative to the reference.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::OrientationDefinitionBuilder* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationDefinitionBuilder ( )

Returns the builder used to define the orientation for the stiffener system.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationMethods NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationMethod ( )

Returns the method used to define the reference for the orientation angle of stiffener system.

Created in NX8.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationVector ( )

Returns the vector specified for the orientation angle reference.

       Only used when when Method is @link Features::ShipDesign::StiffenerSystemBuilder::OrientationMethodsVector Features::ShipDesign::StiffenerSystemBuilder::OrientationMethodsVector@endlink ..

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PlaneListBuilderList* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::PlaneList ( )

Returns the list of defined planes that define the path of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesPlanes@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::NXObjectList* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::PlanePairList ( )

Returns the list of pairs of planes that generate points on the ship structure to define the path of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesPoints Features::ShipDesign::StiffenerSystemBuilder::TypesPoints@endlink  and PointMethod is @link Features::ShipDesign::StiffenerSystemBuilder::PointMethodsPlanes Features::ShipDesign::StiffenerSystemBuilder::PointMethodsPlanes@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::Planes ( )

Returns the planes selected that define the path of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesPlanes@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::NXObjectList* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::PointList ( )

Returns the list of selected or defined points that define the path of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesPoints Features::ShipDesign::StiffenerSystemBuilder::TypesPoints@endlink  and PointMethod is @link Features::ShipDesign::StiffenerSystemBuilder::PointMethodsPoints Features::ShipDesign::StiffenerSystemBuilder::PointMethodsPoints@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::PointMethods NXOpen::Features::ShipDesign::StiffenerSystemBuilder::PointMethod ( )

Returns the method used to define the generated points on the ship structure to define the path of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesPoints Features::ShipDesign::StiffenerSystemBuilder::TypesPoints@endlink .

Created in NX8.0.0.

License requirements : None

NXOpen::GeometricUtilities::ProjectionOptions* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::ProjectionDirection ( )

Returns the direction used to project the stiffener path object
Created in NX9.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::StiffenerSystemBuilder::Reverse ( )

Returns the indication whether the direction of the stiffener flange should be reversed.

The default direction is based on the ship structure that the stiffener is being built upon.
Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetApplyFlangeSetback ( bool applyFlangeSetback )

Sets the flange set back option for stiffener by support, which indicates if the flange set back should be applied or not
Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

applyFlangeSetback applyflangesetback

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetApplyWebSetback ( bool applyWebSetback )

Sets the web set back option for stiffener by support, which indicates if the web set back should be applied or not
Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

applyWebSetback applywebsetback

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetConnectAngle ( double connectAngle )

Sets the connect angle of stiffener by support in degrees, negative value is not allowed
Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

connectAngle connectangle

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetEndCutEnd ( NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes endCutEnd )

Sets the end cut to use at the end of the complete stiffener system.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

endCutEnd endcutend

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetEndCutStart ( NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes endCutStart )

Sets the end cut to use at the start of the complete stiffener system.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

endCutStart endcutstart

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetMeasureAlongMode ( NXOpen::Features::ShipDesign::StiffenerSystemBuilder::MeasureAlongModes measureAlongMode )

Sets the method used to measure distances between planes.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink .

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

measureAlongMode measurealongmode

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetOffsetNumber ( int number )

Sets the number of offset planes to generate that define the path of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink .

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

number number

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetOffsetPlane ( NXOpen::Plane * offsetPlane )

Sets the first plane of the set of offset planes that define the path of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink .

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

offsetPlane offsetplane

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetOffsetSpacingMode ( NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OffsetSpacingModes offsetSpacingMode )

Sets the indication whether spacing of the offset planes is defined at each end of the stiffener system, or if a constant spacing is desired.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes Features::ShipDesign::StiffenerSystemBuilder::TypesOffsetPlanes@endlink .

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

offsetSpacingMode offsetspacingmode

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetOrientationMethod ( NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationMethods orientationMethod )

Sets the method used to define the reference for the orientation angle of stiffener system.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

orientationMethod orientationmethod

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetOrientationVector ( NXOpen::Direction * orientationVector )

Sets the vector specified for the orientation angle reference.

       Only used when when Method is @link Features::ShipDesign::StiffenerSystemBuilder::OrientationMethodsVector Features::ShipDesign::StiffenerSystemBuilder::OrientationMethodsVector@endlink ..

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

orientationVector orientationvector

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetPointMethod ( NXOpen::Features::ShipDesign::StiffenerSystemBuilder::PointMethods method )

Sets the method used to define the generated points on the ship structure to define the path of the stiffener system.

       Only used when Type is @link Features::ShipDesign::StiffenerSystemBuilder::TypesPoints Features::ShipDesign::StiffenerSystemBuilder::TypesPoints@endlink .

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

method method

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetReverse ( bool reverse )

Sets the indication whether the direction of the stiffener flange should be reversed.

The default direction is based on the ship structure that the stiffener is being built upon.
Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

reverse reverse

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetSwitchSide ( bool switchSide )

Sets the indication whether the side of the ship structure should be switched.

The default direction is based on the ship structure that the stiffener is being built upon.
Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

switchSide switchside

void NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SetType ( NXOpen::Features::ShipDesign::StiffenerSystemBuilder::Types type )

Sets the method used to define the path of the stiffener system.

       Four types are supported: curves, planes, offset planes, and points.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

type type

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::ShipStructure ( )

Returns the ship structure upon which to create the stiffener system.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerBySupportPathBuilder* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::StiffenerBySupportPathData ( )

Returns the path data used to define the support information of the stiffener.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerStockBuilder* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::StockData ( )

Returns the stock data used to define the stock information of the stiffener.

Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::StiffenerSystemBuilder::SwitchSide ( )

Returns the indication whether the side of the ship structure should be switched.

The default direction is based on the ship structure that the stiffener is being built upon.
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::Types NXOpen::Features::ShipDesign::StiffenerSystemBuilder::Type ( )

Returns the method used to define the path of the stiffener system.

       Four types are supported: curves, planes, offset planes, and points.

Created in NX8.0.0.

License requirements : None

NXOpen::Weld::CharacteristicsBuilder* NXOpen::Features::ShipDesign::StiffenerSystemBuilder::Weld ( )

Returns the builder used to specify the welding characteristics for the stiffener system.

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_StiffenerSystemBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
