Represents a section

Section consists of "chained_entity", a chain or a single entity of edge or curve. More...

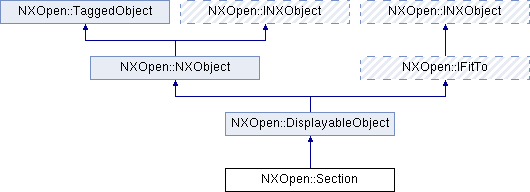

Inheritance diagram for NXOpen::Section:

Public Types
enum	AllowTypes { AllowTypesUninitialized, AllowTypesOnlyCurves, AllowTypesOnlyPoints, AllowTypesCurvesAndPoints }
	Defines entity types allowed. More...

enum	DeselectOption { DeselectOptionSectionBetweenIntersection, DeselectOptionCurveBetweenIntersection }
	Defines type of deselect option. More...

enum	Mode { ModeCreate, ModeEdit }
	Defines mode with respect to feature create or edit mode. More...

Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...

enum	ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
void	AddChainBetweenIntersectionPoints (const std::vector< NXOpen::SelectionIntentRule * > &rules, NXOpen::NXObject startConnector, const NXOpen::Point3d &startIntersectionPoint, NXOpen::NXObject endConnector, const NXOpen::Point3d &endIntersectionPoint, NXOpen::NXObject *seed, const NXOpen::Point3d &helpPoint, NXOpen::Section::Mode featureMode, bool chainWithinFeature)
	Adds a chain between given two intersection points to the section.

void	AddSmartPoint (NXOpen::Point *smartPt, double tol)
	Add smart point into section.

void	AddToSection (const std::vector< NXOpen::SelectionIntentRule * > &rules, NXOpen::NXObject seed, NXOpen::NXObject startConnector, NXOpen::NXObject *endConnector, const NXOpen::Point3d &helpPoint, NXOpen::Section::Mode featureMode)
	Adds selection intent rules to the section.

void	AddToSection (const std::vector< NXOpen::SelectionIntentRule * > &rules, NXOpen::NXObject seed, NXOpen::NXObject startConnector, NXOpen::NXObject *endConnector, const NXOpen::Point3d &helpPoint, NXOpen::Section::Mode featureMode, bool chainWithinFeature)
	Adds selection intent rules to the section with the option of restricting chaining and limit discovery to a single feature.

void	AlignDirectionOfLoop (const NXOpen::Point3d &point, const NXOpen::Vector3d &direction)
	Set the direction of a single loop of the section along the given vector.

void	AllowSelfIntersection (bool allowSelfIntersection)
	Allow self intersecting section or not.

double	AngleTolerance ()
	Returns the angle tolerance Created in NX3.0.0.

double	ChainingTolerance ()
	Returns the chaining tolerance Created in NX3.0.0.

void	CleanMappingData ()
	Cleans Mapping Data This method should be used to clean mapping data after mapping is done

void	Clear ()
	Clear the section of all its constituents Created in NX5.0.0.

NXOpen::Section *	CloneSection ()
	Clone section.

void	DeselectPortion (const NXOpen::Point3d &seedPoint, NXOpen::NXObject startLimit, NXOpen::NXObject endLimit, NXOpen::Section::DeselectOption deselectionType)
	Deselects Portion of the section depending on the option provided.

void	Destroy ()
	Destroy the section object Created in NX4.0.0.

double	DistanceTolerance ()
	Returns the distance tolerance Created in NX3.0.0.

void	EvaluateAndAskOutputEntities (std::vector< NXOpen::NXObject * > &refs)
	Recalculates section collection.

NXOpen::Section::AllowTypes	GetAllowedEntityTypes ()
	Get the Allowed Entity Types.

int	GetLoopIndex (NXOpen::NXObject *sectionElement)
	Returns the index of the section loop conatining the section element.

int	GetLoopIndex (const NXOpen::Point3d &pointSpecifyingLoop, double tolerance)
	Returns the index of the loop on which the given point lies.

bool	GetMultiComponent ()
	Gets the option set on Section for collection from multiple components.

bool	GetNonFeatureMode ()
	Gets the option set on Section for collection in non-feature mode.

void	GetOldOutputCurves (std::vector< NXOpen::NXObject * > &oldOutputs)
	Gives the old output curves of the section.

void	GetOutputCurves (std::vector< NXOpen::NXObject * > &outputs)
	Gives the output curves of the section.

void	GetSectionData (std::vector< NXOpen::SectionData * > &sectionData)
	Gets the section data Created in NX3.0.0.

void	GetStartAndDirection (NXOpen::ICurve *startElement, NXOpen::Point3d startPoint, NXOpen::Vector3d *direction)
	Gets the start element and the direction of the section.

void	GetStartAndDirectionOfLoop (int index, NXOpen::Point3d startPoint, NXOpen::Vector3d direction)
	Gets the start point and the direction of a specified single loop of the section.

void	MapSectionElements (NXOpen::NXObject oldWf, NXOpen::NXObject newWf)
	Maps old section curves to new section curves This method should be used to map old section curves to new section curves when some or all curves from section are removed and some or all new curves are added.

void	PrepareMappingData ()
	Prepares Mapping Data This method should be used to create mapping data if mapping is to be done Created in NX7.5.0.

void	RemoveMultipleCurves (const std::vector< NXOpen::ICurve * > &wfs, const std::vector< NXOpen::NXObject * > &startConnector, const std::vector< NXOpen::NXObject * > &endConnector, NXOpen::Section::Mode featureMode)
	Removes multiple section elements that are either curves/edges.

void	RemoveMultipleElements (const std::vector< NXOpen::ICurve * > &wfs, const std::vector< NXOpen::NXObject * > &startConnectors, const std::vector< NXOpen::NXObject * > &endConnectors, const std::vector< bool > &isCombinationsResultIntoOnlyOneCurvePerCombination, const std::vector< NXOpen::Point3d > &pointsOnCurvesToBeRemoved, const std::vector< NXOpen::Point * > &points, NXOpen::Section::Mode featureMode)
	Removes multiple section elements.

void	RemoveMultiplePoints (const std::vector< NXOpen::Point * > &points, NXOpen::Section::Mode featureMode)
	Removes multiple section elements that are points.

void	RemoveRules (const std::vector< NXOpen::SelectionIntentRule * > &rules, NXOpen::NXObject startConnector, NXOpen::NXObject endConnector, NXOpen::Section::Mode featureMode)
	Removes selection intent rules from the section.

void	RemoveRules (NXOpen::ICurve sectionElement, NXOpen::NXObject startConnector, NXOpen::NXObject *endConnector, NXOpen::Section::Mode featureMode)
	Removes all the selection intent rules related to the section element.

void	RemoveSingleSectionElement (NXOpen::ICurve sectionElement, NXOpen::NXObject startConnector, NXOpen::NXObject *endConnector, NXOpen::Section::Mode featureMode)
	Removes one section element curve.

void	RemoveSingleSectionElement (NXOpen::Point *sectionElement, NXOpen::Section::Mode featureMode)
	Removes one section element that is a point.

void	RemoveUnderlyingChain (const NXOpen::Point3d &pointSpecifyingChain, double tolerance, NXOpen::Section::Mode featureMode)
	Removes all the selection intent rules related to the chain on which the given point lies.

void	RemoveUnderlyingCurve (const NXOpen::Point3d &pointSpecifyingCurve, double tolerance, NXOpen::Section::Mode featureMode)
	Removes the single curve which is within tolerance to the given point, from the section.

void	ReverseDirection ()
	Reverse the section direction Created in NX4.0.0.

void	ReverseDirectionOfClosedLoop (int index)
	Reverse the loop direction of a closed loop while keeping the start curve same.

void	ReverseDirectionOfLoop (int index)
	Reverse the direction of of a specified single loop of the section.

void	SetAllowedEntityTypes (NXOpen::Section::AllowTypes allowedEntityTypes)
	Set the Allowed Entity Types.

void	SetAngleTolerance (double angleTolerance)
	Sets the angle tolerance Created in NX3.0.0.

void	SetChainingTolerance (double chainingTolerance)
	Sets the chaining tolerance Created in NX3.0.0.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the distance tolerance Created in NX3.0.0.

void	SetInterpart (bool interpart)
	Set inter-part state of section and make it empty.

void	SetMultiComponent ()
	Sets the true option on Section for collection from multiple components.

void	SetNonFeatureMode ()
	Sets the true option on Section for collection in non-feature mode.

void	SetStartAndDirection (NXOpen::ICurve *startElement, const NXOpen::Point3d &startPoint, const NXOpen::Vector3d &direction)
	Sets the start element and the direction of the section.

void	SetStartCurveOfClosedLoop (int index, const NXOpen::Point3d &pointOnStartCurve)
	Set the curve on which the specified point lies as the start curve of a specified single loop of the section.

void	SkipSorting (bool skipSorting)
	Sets the option to skip sorting the section loops or not.

Public Member Functions inherited from NXOpen::DisplayableObject
void	Blank ()
	Blanks the object.

int	Color ()
	Returns the color of the object.

void	Highlight ()
	Highlights the object.

bool	IsBlanked ()
	Returns the blank status of this object.

int	Layer ()
	Returns the layer that the object is in.

NXOpen::DisplayableObject::ObjectFont	LineFont ()
	Returns the line font of the object.

NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
	Returns the line width of the object.

NXOpen::Point3d	NameLocation ()
	Returns the location of the object's name.

void	RedisplayObject ()
	Redisplays the object in all views.

void	SetColor (int color)
	Sets the color of the object.

void	SetLayer (int layer)
	Sets the layer that the object is in.

void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the line font of the object.

void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
	Sets the line width of the object.

void	SetNameLocation (const NXOpen::Point3d &location)
	Sets the location of the object's name.

void	Unblank ()
	Unblanks the object.

void	Unhighlight ()
	Unhighlights the object.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents a section

Section consists of "chained_entity", a chain or a single entity of edge or curve.

The entire chain(or a single entity) may be used by the section or only a portion of the chain (or single entity) might be used. The portion of the chain (or single entity) that is used is defined by the "start_connector" and "end_connector".

start_connector: It represents the start of the portion of the chain (or single entity) that is used. If "start_connector" is null (Nothing), then the start point of the chained_entity along its "natural" direction is used.

start_connector_intersection_point: The point of intersection of the "chained_entity" and the "start_connector". This is used to determine what portion of the chain to use in case the "start_connector" intersects the "chained_entity" in multiple locations.

end_connector: It represents the end of the portion of the chain (or single entity) that is used.

end_connector_intersection_point: The point of intersection of the "chained_entity" and the "end_connector". This is used to determine what portion of the chain to use in case the "end_connector" intersects the "chained_entity" in multiple locations.

To create a new instance of this class, use SectionCollection::CreateSection

Created in NX3.0.0.

Member Enumeration Documentation

enum NXOpen::Section::AllowTypes

Defines entity types allowed.

Enumerator:

AllowTypesUninitialized	This is uninitialized state. Do not use this.
AllowTypesOnlyCurves	Allow only curves in section.
AllowTypesOnlyPoints	Allow only points in section.
AllowTypesCurvesAndPoints	Allow both points and curves in section.

enum NXOpen::Section::DeselectOption

Defines type of deselect option.

Enumerator:

DeselectOptionSectionBetweenIntersection	Potion of the loop between intersections will be deselected this may contain multiple chains.
DeselectOptionCurveBetweenIntersection	Portion of curve between intersection.

enum NXOpen::Section::Mode

Defines mode with respect to feature create or edit mode.

Enumerator:

ModeCreate	Feature is being created.
ModeEdit	Feature is being edited.

Member Function Documentation

void NXOpen::Section::AddChainBetweenIntersectionPoints	(	const std::vector< NXOpen::SelectionIntentRule * > &	rules,
		NXOpen::NXObject *	startConnector,
		const NXOpen::Point3d &	startIntersectionPoint,
		NXOpen::NXObject *	endConnector,
		const NXOpen::Point3d &	endIntersectionPoint,
		NXOpen::NXObject *	seed,
		const NXOpen::Point3d &	helpPoint,
		NXOpen::Section::Mode	featureMode,
		bool	chainWithinFeature
	)

Adds a chain between given two intersection points to the section.

Created in NX7.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

rules	Selection intent rules. To create selection intent rules see documentation of ScRuleFactory for more details.
startConnector	It represents the start of the portion of the chain (or single entity) that is used. If "startConnector" is NULL, then the start point of the chained entity along its "natural" direction is used. It can be point, curve or edge
startIntersectionPoint	The point where the start connector intersects with the chain.
endConnector	Represents the end of the portion of the chain (or single entity) that is used. It can be point, curve or edge
endIntersectionPoint	The point where the end connector intersects with the chain.
seed	Seed curve, edge or face
helpPoint	The point which is used to determine which portion of the chain to use for creating section.
featureMode	Feature create or edit mode.
chainWithinFeature	True if chaining and discovery of intersection limits is to be restricted to the feature of the seed. This is effective only when the seed belongs to a curve feature.

void NXOpen::Section::AddSmartPoint	(	NXOpen::Point *	smartPt,
		double	tol
	)

Add smart point into section.

<br>

This API is now deprecated. Please use ScRuleFactory::CreateRuleCurveDumb and Section::AddToSection instead.

Deprecated:: Deprecated in NX7.5.0. Please use ScRuleFactory::CreateRuleCurveDumb followed by Section::AddToSection instead.

Created in NX4.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

smartPt	Smart point tobe added into section.
tol	Tolerance.

void NXOpen::Section::AddToSection	(	const std::vector< NXOpen::SelectionIntentRule * > &	rules,
		NXOpen::NXObject *	seed,
		NXOpen::NXObject *	startConnector,
		NXOpen::NXObject *	endConnector,
		const NXOpen::Point3d &	helpPoint,
		NXOpen::Section::Mode	featureMode
	)

Adds selection intent rules to the section.

Created in NX4.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

rules	Selection intent rules. To create selection intent rules see documentation of ScRuleFactory for more details.
seed	Seed curve, edge or face
startConnector	It represents the start of the portion of the chain (or single entity) that is used. If "start_connector" is null (Nothing), then the start point of the chained_entity along its "natural" direction is used. It can be point, curve or edge
endConnector	It represents the end of the portion of the chain (or single entity) that is used. It can be point, curve or edge
helpPoint	This is used to determine which portion of the chain to use for creating section.
featureMode	Feature create or edit mode.

void NXOpen::Section::AddToSection	(	const std::vector< NXOpen::SelectionIntentRule * > &	rules,
		NXOpen::NXObject *	seed,
		NXOpen::NXObject *	startConnector,
		NXOpen::NXObject *	endConnector,
		const NXOpen::Point3d &	helpPoint,
		NXOpen::Section::Mode	featureMode,
		bool	chainWithinFeature
	)

Adds selection intent rules to the section with the option of restricting chaining and limit discovery to a single feature.

Created in NX5.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

rules	Selection intent rules. To create selection intent rules see documentation of ScRuleFactory for more details.
seed	Seed curve, edge or face
startConnector	It represents the start of the portion of the chain (or single entity) that is used. If "start_connector" is null (Nothing), then the start point of the chained_entity along its "natural" direction is used. It can be point, curve or edge
endConnector	It represents the end of the portion of the chain (or single entity) that is used. It can be point, curve or edge
helpPoint	This is used to determine which portion of the chain to use for creating section.
featureMode	Feature create or edit mode.
chainWithinFeature	True if chaining and discovery of intersection limits is to be restricted to the feature of the seed. This is effective only when the seed belongs to a curve feature.

void NXOpen::Section::AlignDirectionOfLoop	(	const NXOpen::Point3d &	point,
		const NXOpen::Vector3d &	direction
	)

Set the direction of a single loop of the section along the given vector.

Created in NX5.0.1.

License requirements : gateway ("UG GATEWAY")

Parameters

point	Any point on a the desired loop.
direction	Desired tangent direction of the loop at the point.

void NXOpen::Section::AllowSelfIntersection ( bool allowSelfIntersection )

Allow self intersecting section or not.

By default self intersection is allowed.
Created in NX4.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

allowSelfIntersection True if self-intersecting section is allowed else false

double NXOpen::Section::AngleTolerance ( )

Returns the angle tolerance
Created in NX3.0.0.

License requirements : gateway ("UG GATEWAY")

double NXOpen::Section::ChainingTolerance ( )

Returns the chaining tolerance
Created in NX3.0.0.

License requirements : gateway ("UG GATEWAY")

void NXOpen::Section::CleanMappingData ( )

Cleans Mapping Data
This method should be used to clean mapping data after mapping is done

Created in NX7.5.0.

License requirements : gateway ("UG GATEWAY")

void NXOpen::Section::Clear ( )

Clear the section of all its constituents
Created in NX5.0.0.

License requirements : gateway ("UG GATEWAY")

NXOpen::Section* NXOpen::Section::CloneSection ( )

Clone section.

Returns: the cloned section
Created in NX7.0.0.

License requirements : None

void NXOpen::Section::DeselectPortion	(	const NXOpen::Point3d &	seedPoint,
		NXOpen::NXObject *	startLimit,
		NXOpen::NXObject *	endLimit,
		NXOpen::Section::DeselectOption	deselectionType
	)

Deselects Portion of the section depending on the option provided.

<br>

This method should be used to deselect portion of the section.

Created in NX7.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

seedPoint	The seed point of deselection
startLimit	The element that is connected to the curve/edge near its start point.
endLimit	The element that is connected to the curve/edge near its end point.
deselectionType	The deselection type

void NXOpen::Section::Destroy ( )

Destroy the section object
Created in NX4.0.0.

License requirements : gateway ("UG GATEWAY")

double NXOpen::Section::DistanceTolerance ( )

Returns the distance tolerance
Created in NX3.0.0.

License requirements : gateway ("UG GATEWAY")

void NXOpen::Section::EvaluateAndAskOutputEntities ( std::vector< NXOpen::NXObject * > & refs )

Recalculates section collection.

<br>

This is JA API for recalculating the section collection and to get the section collection after recalculation.

Created in NX9.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

refs	The array of section elements.

NXOpen::Section::AllowTypes NXOpen::Section::GetAllowedEntityTypes ( )

Get the Allowed Entity Types.

<br>

Works only for UF_SC_CURVE_dumb_data_s and UF_SC_CURVE_feature_data_s

Returns: allowed entity types
Created in NX7.5.0.

License requirements : gateway ("UG GATEWAY")

int NXOpen::Section::GetLoopIndex ( NXOpen::NXObject * sectionElement )

Returns the index of the section loop conatining the section element.

   If the section element does not exist in the section or is part of
   more than one loops, this method will return an error.  @return  loop Index

Created in NX5.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

sectionElement an element that constructs the section

int NXOpen::Section::GetLoopIndex	(	const NXOpen::Point3d &	pointSpecifyingLoop,
		double	tolerance
	)

Returns the index of the loop on which the given point lies.

Returns: loop Index
Created in NX5.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

pointSpecifyingLoop	a point lying on the loop for which the loop index is being queried
tolerance	Tolerance for specifying point on loop.

bool NXOpen::Section::GetMultiComponent ( )

Gets the option set on Section for collection from multiple components.

<br>

A multi-component Section can have collection from multiple components i.e., multiple parts or multiple instances of same part or both.

Returns: Multi-component option set on Section
Created in NX9.0.0.

License requirements : None

bool NXOpen::Section::GetNonFeatureMode ( )

Gets the option set on Section for collection in non-feature mode.

<br>

A Section in non-feature mode does not reference the feature data of the part from which the collection is done.

Returns: Non-feature mode set on Section
Created in NX9.0.0.

License requirements : None

void NXOpen::Section::GetOldOutputCurves ( std::vector< NXOpen::NXObject * > & oldOutputs )

Gives the old output curves of the section.

<br>

This method returns an array of old section curves. They were created internally and are different from the parent curves used to build the section. These curves should not be modified or deleted, doing so may result in part corruption and session may become unstable.

Created in NX7.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

oldOutputs The array of old section elements.

void NXOpen::Section::GetOutputCurves ( std::vector< NXOpen::NXObject * > & outputs )

Gives the output curves of the section.

<br>

This method returns an array of existing section curves. They are created internally and are different from the parent curves used to build the section. These curves should not be modified or deleted, doing so may result in part corruption and session may become unstable.

Created in NX7.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

outputs The array of section elements.

void NXOpen::Section::GetSectionData ( std::vector< NXOpen::SectionData * > & sectionData )

Gets the section data
Created in NX3.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

sectionData Section data consists of selection intent rules, section elements, start and end connector.

void NXOpen::Section::GetStartAndDirection	(	NXOpen::ICurve **	startElement,
		NXOpen::Point3d *	startPoint,
		NXOpen::Vector3d *	direction
	)

Gets the start element and the direction of the section.

Created in NX3.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

startElement	The element, curve or edge, specifying the starting of the section. If the section is a loop, then the loop is started by start_element and the direction is followed the input direction. If the section is not a loop, then the section can be started by other element, but the direction of the section is defined by the start_element and direction.
startPoint	The origin of the vector that defines the direction of the section. This point has to be on the start_element.
direction	The direction of the vector defines the direction of the section.

void NXOpen::Section::GetStartAndDirectionOfLoop	(	int	index,
		NXOpen::Point3d *	startPoint,
		NXOpen::Vector3d *	direction
	)

Gets the start point and the direction of a specified single loop of the section.

Created in NX5.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

index	The index of the loop of the section for which start point and direction are being queried.
startPoint	The origin of the vector that defines the direction of the loop of the section specified by the index.
direction	The direction of the vector defines the direction of the loop of the section specified by the index.

void NXOpen::Section::MapSectionElements	(	NXOpen::NXObject *	oldWf,
		NXOpen::NXObject *	newWf
	)

Maps old section curves to new section curves
This method should be used to map old section curves to new section curves when some or all curves from section are removed and some or all new curves are added.

<br>
<br>

To find old section curves see documentation for Section::GetOldOutputCurves and to find current section curves see documentation for Section::GetOutputCurves

Created in NX7.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

oldWf	The old section curve which was removed and hence needs to be mapped.
newWf	The new section curve that would be mapped to the old section curve.

void NXOpen::Section::PrepareMappingData ( )

Prepares Mapping Data
This method should be used to create mapping data if mapping is to be done

Created in NX7.5.0.

License requirements : gateway ("UG GATEWAY")

void NXOpen::Section::RemoveMultipleCurves	(	const std::vector< NXOpen::ICurve * > &	wfs,
		const std::vector< NXOpen::NXObject * > &	startConnector,
		const std::vector< NXOpen::NXObject * > &	endConnector,
		NXOpen::Section::Mode	featureMode
	)

Removes multiple section elements that are either curves/edges.

<br>

This API is now deprecated. Please use Section::RemoveMultipleElements instead.

Deprecated:: Deprecated in NX8.5.0. Please use Section::RemoveMultipleElements instead.

Created in NX6.0.2.

License requirements : None

Parameters

wfs	The elements (curves/edges) that construct the section.
startConnector	The element that is connected to the curve/edge near its start point.
endConnector	The element that is connected to the curve/edge near its end point.
featureMode	Feature create or edit mode.

void NXOpen::Section::RemoveMultipleElements	(	const std::vector< NXOpen::ICurve * > &	wfs,
		const std::vector< NXOpen::NXObject * > &	startConnectors,
		const std::vector< NXOpen::NXObject * > &	endConnectors,
		const std::vector< bool > &	isCombinationsResultIntoOnlyOneCurvePerCombination,
		const std::vector< NXOpen::Point3d > &	pointsOnCurvesToBeRemoved,
		const std::vector< NXOpen::Point * > &	points,
		NXOpen::Section::Mode	featureMode
	)

Removes multiple section elements.

<br>

This method should be used to remove the multiple section elements from section when elements to be removed contains points, and some or all curves that can not be uniquely mapped with wireframe , start connector and end connector. For Such curves point laying on the curve should be specified

Created in NX6.0.2.

License requirements : gateway ("UG GATEWAY")

Parameters

wfs	The elements (curves/edges) that construct the section.
startConnectors	The element that is connected to the curve/edge near its start point.
endConnectors	The element that is connected to the curve/edge near its end point.
isCombinationsResultIntoOnlyOneCurvePerCombination	Whether the combination of input curve/edge, Start Connector end Connector produces unique combination (i.e. they map to single section element) or not.
pointsOnCurvesToBeRemoved	If Combination can not define curve to be deselected uniquely, then point which lies on the curve to be removed should be provided, otherwise point must be given as (0, 0, 0) for corresponding combination
points	The points that are part of section and to be removed from the section.
featureMode	Feature create or edit mode.

void NXOpen::Section::RemoveMultiplePoints	(	const std::vector< NXOpen::Point * > &	points,
		NXOpen::Section::Mode	featureMode
	)

Removes multiple section elements that are points.

<br>

This API is now deprecated. Please use Section::RemoveMultipleElements instead.

Deprecated:: Deprecated in NX8.5.0. Please use Section::RemoveMultipleElements instead.

Created in NX6.0.2.

License requirements : gateway ("UG GATEWAY")

Parameters

points	The points that construct the section.
featureMode	Feature create or edit mode.

void NXOpen::Section::RemoveRules	(	const std::vector< NXOpen::SelectionIntentRule * > &	rules,
		NXOpen::NXObject *	startConnector,
		NXOpen::NXObject *	endConnector,
		NXOpen::Section::Mode	featureMode
	)

Removes selection intent rules from the section.

<br>

To get selection intent rules of the section see documentation for Section::GetSectionData and SectionData::GetRules for more details.

Created in NX3.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

rules	Selection intent rules.
startConnector	It represents the start of the portion of the chain (or single entity) that is used. If "start_connector" is null (Nothing), then the start point of the chained_entity along its "natural" direction is used. It can be be point, curve or edge
endConnector	It represents the end of the portion of the chain (or single entity) that is used. It can be be point, curve or edge
featureMode	Feature create or edit mode

void NXOpen::Section::RemoveRules	(	NXOpen::ICurve *	sectionElement,
		NXOpen::NXObject *	startConnector,
		NXOpen::NXObject *	endConnector,
		NXOpen::Section::Mode	featureMode
	)

Removes all the selection intent rules related to the section element.

<br>

To get selection elements of the section, see documentation for Section::GetSectionData and SectionData::GetSectionElementsData for more details.

Created in NX4.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

sectionElement	The element that constructs the section
startConnector	The element that is connected to the section_element near its start_point
endConnector	The element that is connected to the section_element near its end_point
featureMode	Feature create or edit mode.

void NXOpen::Section::RemoveSingleSectionElement	(	NXOpen::ICurve *	sectionElement,
		NXOpen::NXObject *	startConnector,
		NXOpen::NXObject *	endConnector,
		NXOpen::Section::Mode	featureMode
	)

Removes one section element curve.

<br>

To get selection element see documentation for Section::GetSectionData and SectionData::GetSectionElementsData for more details.

Created in NX4.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

sectionElement	The element that constructs the section
startConnector	The element that is connected to the section_element near its start_point
endConnector	The element that is connected to the section_element near its end_point
featureMode	Feature create or edit mode

void NXOpen::Section::RemoveSingleSectionElement	(	NXOpen::Point *	sectionElement,
		NXOpen::Section::Mode	featureMode
	)

Removes one section element that is a point.

<br>

To get selection element see documentation for Section::GetSectionData and SectionData::GetSectionElementsData for more details.

Created in NX5.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

sectionElement	The point that constructs the section
featureMode	Feature create or edit mode

void NXOpen::Section::RemoveUnderlyingChain	(	const NXOpen::Point3d &	pointSpecifyingChain,
		double	tolerance,
		NXOpen::Section::Mode	featureMode
	)

Removes all the selection intent rules related to the chain on which the given point lies.

<br>

This method should be used in place of Section::RemoveRules when the part containing the section element is not loaded.

Created in NX5.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

pointSpecifyingChain	The point should lie on the chain that is to be removed.
tolerance	Tolerance for specifying point on chain.
featureMode	Feature create or edit mode.

void NXOpen::Section::RemoveUnderlyingCurve	(	const NXOpen::Point3d &	pointSpecifyingCurve,
		double	tolerance,
		NXOpen::Section::Mode	featureMode
	)

Removes the single curve which is within tolerance to the given point, from the section.

<br>

This method should be used in place of Section::RemoveSingleSectionElement in any of the conditions: when the part containing the section element is not loaded, when the combination of input curve, start connector and end connector maps to multiple section element, or when underlying parent is invalid.

Created in NX6.0.2.

License requirements : gateway ("UG GATEWAY")

Parameters

pointSpecifyingCurve	The point should lie on the curve that is to be removed.
tolerance	Tolerance for specifying point on curve.
featureMode	Feature create or edit mode.

void NXOpen::Section::ReverseDirection ( )

Reverse the section direction
Created in NX4.0.0.

License requirements : gateway ("UG GATEWAY")

void NXOpen::Section::ReverseDirectionOfClosedLoop ( int index )

Reverse the loop direction of a closed loop while keeping the start curve same.

   This API can only be used closed loops.

Created in NX5.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

index Index of the closed loop for which the direction is to be reversed.

void NXOpen::Section::ReverseDirectionOfLoop ( int index )

Reverse the direction of of a specified single loop of the section.

Created in NX5.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

index The index of the loop of the section that is to be reversed.

void NXOpen::Section::SetAllowedEntityTypes ( NXOpen::Section::AllowTypes allowedEntityTypes )

Set the Allowed Entity Types.

<br>

Works only for UF_SC_CURVE_dumb_data_s and UF_SC_CURVE_feature_data_s

Created in NX7.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

allowedEntityTypes Allowed entity types.

void NXOpen::Section::SetAngleTolerance ( double angleTolerance )

Sets the angle tolerance
Created in NX3.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

angleTolerance angle tolerance

void NXOpen::Section::SetChainingTolerance ( double chainingTolerance )

Sets the chaining tolerance
Created in NX3.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

chainingTolerance chaining tolerance

void NXOpen::Section::SetDistanceTolerance ( double distanceTolerance )

Sets the distance tolerance
Created in NX3.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

distanceTolerance distance tolerance

void NXOpen::Section::SetInterpart ( bool interpart )

Set inter-part state of section and make it empty.

<br>

This function sets the value of interpart flag on Section. Error will be raised while setting this option on Section in following conditions: (1) Multi-component option is already set on Section.

Created in NX6.0.0.

License requirements : None

Parameters

interpart True to set section interpart

void NXOpen::Section::SetMultiComponent ( )

Sets the true option on Section for collection from multiple components.

<br>

A multi-component Section can have collection from multiple components i.e., multiple parts or multiple instances of same part or both. This method should be used only if such collection is desired. Error will be raised while setting this option on Section in following conditions: (1) Inter-part option is already set on Section.

Created in NX9.0.0.

License requirements : None

void NXOpen::Section::SetNonFeatureMode ( )

Sets the true option on Section for collection in non-feature mode.

<br>

A Section in non-feature mode does not reference the feature data of the part from which the collection is done. The option should be set on an empty Section only. For a non-empty Section, setting this option will raise error in following conditions: (1) Section is referencing feature data and non-feature mode is set true. (2) Section is not referencing feature data and non-feature mode is set false.

Created in NX9.0.0.

License requirements : None

void NXOpen::Section::SetStartAndDirection	(	NXOpen::ICurve *	startElement,
		const NXOpen::Point3d &	startPoint,
		const NXOpen::Vector3d &	direction
	)

Sets the start element and the direction of the section.

Created in NX3.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

startElement	The element, curve or edge, specifying the starting of the section. If the section is a loop, then the loop is started by start_element and the direction is followed the input direction. If the section is not a loop, then the section can be started by other element, but the direction of the section is defined by the start_element and direction.
startPoint	The origin of the vector that defines the direction of the section. This point has to be on the start_element.
direction	The direction of the vector defines the direction of the section.

void NXOpen::Section::SetStartCurveOfClosedLoop	(	int	index,
		const NXOpen::Point3d &	pointOnStartCurve
	)

Set the curve on which the specified point lies as the start curve of a specified single loop of the section.

Created in NX5.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

index	Index of the loop for which the start curve is to be set.
pointOnStartCurve	Any point on a curve that is to be set as the start curve.

void NXOpen::Section::SkipSorting ( bool skipSorting )

Sets the option to skip sorting the section loops or not.

<br>

This method should be used rare scenarios. In normal situation this method should never be used. If sort option is set to true then it should be set to false after required operation is done. If sort option is set to true then section loops are not sorted and output will not be in order.

Created in NX8.0.0.

License requirements : gateway ("UG GATEWAY")

Parameters

skipSorting True to skip sorting of section loops else false

The documentation for this class was generated from the following file:

Section.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
