NXOpen::Expression Class Reference

Represents an expression. More...

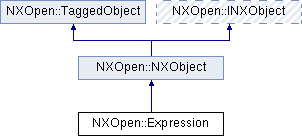

Inheritance diagram for NXOpen::Expression:

Public Types
enum	UnitsOption { UnitsOptionBase, UnitsOptionExpression }
	Indicates the units to use when getting an expression's value. More...
Public Types inherited from NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger,   AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference,   AttributeTypeAny = 100 }
	Specifies attribute type. More...
enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
bool	BooleanValue ()
	Returns the boolean value of the expression.
NXString	Description ()
	Returns the description of the expression.
void	EditComment (const NXString &newComment)
	Changes the comment.
void	EditComment (const char *newComment)
	Changes the comment.
NXString	Equation ()
	Returns the equation of the expression in the form: name = right_hand_side.
NXString	GetDescriptor ()
	Returns the descriptor for the expression, or NULL if there is no descriptor.
NXOpen::Features::Feature *	GetOwningFeature ()
	Returns the feature that created the supplied expression.
NXOpen::Features::Feature *	GetOwningRpoFeature ()
	Returns the feature whose rpo_transform created the supplied positioning dimension expression.
std::vector< NXOpen::Expression * >	GetReferencingExpressions ()
	Returns all the referencing expressions of the expression.
std::vector < NXOpen::Features::Feature * >	GetUsingFeatures ()
	Returns an array of the features that use the supplied expression.
double	GetValueUsingUnits (NXOpen::Expression::UnitsOption unitsOption)
	Get the value of the expression, in either base units or the expression's units.
int	IntegerValue ()
	Returns the integer value of the expression.
bool	IsGeometricExpression ()
	Returns whether the expression is a geometric expression.
bool	IsMeasurementExpression ()
	Returns whether the expression is owned by a measurement.
bool	IsNoEdit ()
	Returns whether the expression is edit locked.
bool	IsUserLocked ()
	Returns whether the expression is user locked.
NXOpen::Point3d	PointValue ()
	Returns the point value of the expression.
NXString	RightHandSide ()
	Returns the right hand side of the expression.
void	SetNoEdit (bool isNoEdit)
	Sets whether the expression is edit locked.
void	SetRightHandSide (const NXString &rightHandSide)
	设置表达式的右侧.
void	SetRightHandSide (const char *rightHandSide)
	Sets the right hand side of the expression.
void	SetUnits (NXOpen::Unit *unitType)
	Sets the units for the expression.
void	SetUserLocked (bool isLocked)
	Sets whether the expression is user locked.
void	SetValue (double expressionValue)
	Sets the value of the expression in base units.
NXString	StringValue ()
	Returns the string value of the expression.
NXString	Type ()
	Returns the type of the expression.
NXOpen::Unit *	Units ()
	Returns the units for the expression.
double	Value ()
	Returns the value of the expression in base units.
NXOpen::Vector3d	VectorValue ()
	Returns the vector value of the expression.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents an expression.

To create a new instance of this class, use ExpressionCollection::CreateWithUnits

Created in NX3.0.0.

Member Enumeration Documentation

enum NXOpen::Expression::UnitsOption

Indicates the units to use when getting an expression's value.

Enumerator:

UnitsOptionBase	Return expression value in base part units.
UnitsOptionExpression	Return expression value in expression units.

Member Function Documentation

bool NXOpen::Expression::BooleanValue

(

)

Returns the boolean value of the expression.

This must only be used on boolean expressions.
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Expression::Description

(

)

Returns the description of the expression.

Created in NX5.0.2.

License requirements : None

void NXOpen::Expression::EditComment

(

const NXString &

newComment

)

Changes the comment.

Created in NX4.0.0.

License requirements : None

Parameters

newComment

comment

void NXOpen::Expression::EditComment

(

const char *

newComment

)

Changes the comment.

Created in NX4.0.0.

License requirements : None

Parameters

newComment

comment

NXString NXOpen::Expression::Equation

(

)

Returns the equation of the expression in the form: name = right_hand_side.

Created in NX3.0.0.

License requirements : None

NXString NXOpen::Expression::GetDescriptor

(

)

Returns the descriptor for the expression, or NULL if there is no descriptor.

Currently, only feature expressions have descriptors.

Returns

Expression descriptor.
Created in NX4.0.0.

License requirements : None

NXOpen::Features::Feature* NXOpen::Expression::GetOwningFeature

(

)

Returns the feature that created the supplied expression.

<br> This is the feature that created it during feature creation.  For example,

the expression "p0 = x" is owned by feature "BLOCK(0)".

This works with both normal expressions and expressions created by the geometric expression feature.

Returns

owning feature or NULL
Created in NX4.0.0.

License requirements : None

NXOpen::Features::Feature* NXOpen::Expression::GetOwningRpoFeature

(

)

Returns the feature whose rpo_transform created the supplied positioning dimension expression.

<br> This is the feature that created it during positioning the feature.  For example,

the expression "p0 = x" is owned by the Transform of feature "Boss(2)".

This works with expressions created by the feature with rpo.

Returns

owning rpo feature or NULL
Created in NX7.5.0.

License requirements : None

std::vector<NXOpen::Expression *> NXOpen::Expression::GetReferencingExpressions

(

)

Returns all the referencing expressions of the expression.

Returns

Created in NX8.0.0.

License requirements : None

std::vector<NXOpen::Features::Feature *> NXOpen::Expression::GetUsingFeatures

(

)

Returns an array of the features that use the supplied expression.

Returns

array of features, or empty array
Created in NX4.0.0.

License requirements : None

double NXOpen::Expression::GetValueUsingUnits

(

NXOpen::Expression::UnitsOption

unitsOption

)

Get the value of the expression, in either base units or the expression's units.

This method must only be used on number expressions.

Returns

Created in NX4.0.0.

License requirements : None

Parameters

unitsOption

use base units or expression units

int NXOpen::Expression::IntegerValue

(

)

Returns the integer value of the expression.

This must only be used on integer expressions.
Created in NX6.0.0.

License requirements : None

bool NXOpen::Expression::IsGeometricExpression

(

)

Returns whether the expression is a geometric expression.

Created in NX4.0.0.

License requirements : None

bool NXOpen::Expression::IsMeasurementExpression

(

)

Returns whether the expression is owned by a measurement.

Created in NX5.0.0.

License requirements : None

bool NXOpen::Expression::IsNoEdit

(

)

Returns whether the expression is edit locked.

If this property is false, then the expression can be edited. (This is the default state for newly created expressions.) If this property is true, then the expression cannot be edited.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Expression::IsUserLocked

(

)

Returns whether the expression is user locked.

If this property is false, then the expression can be over-ridden from another part. (This is the default state for newly created expressions.) If this property is true, you are not allowed to over-ride it.

Note that if an expression is currently over-ridden, you cannot set its lock property. In this instance, an exception will be thrown.

Created in NX4.0.0.

License requirements : None

NXOpen::Point3d NXOpen::Expression::PointValue

(

)

Returns the point value of the expression.

This must only be used on point expressions.
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Expression::RightHandSide

(

)

Returns the right hand side of the expression.

<br> When setting the property, changes are not applied to the system until
   @link Update::DoUpdate Update::DoUpdate@endlink  is called  <br>

Created in NX3.0.0.

License requirements : None

void NXOpen::Expression::SetNoEdit

(

bool

isNoEdit

)

Sets whether the expression is edit locked.

If this property is false, then the expression can be edited. (This is the default state for newly created expressions.) If this property is true, then the expression cannot be edited.

Created in NX8.5.0.

License requirements : None

Parameters

isNoEdit

is no edit

void NXOpen::Expression::SetRightHandSide

(

const NXString &

rightHandSide

)

Sets the right hand side of the expression.

<br> When setting the property, changes are not applied to the system until
   @link Update::DoUpdate Update::DoUpdate@endlink  is called  <br>

Created in NX3.0.0.

License requirements : None

Parameters

rightHandSide

right hand side

void NXOpen::Expression::SetRightHandSide

(

const char *

rightHandSide

)

Sets the right hand side of the expression.

<br> When setting the property, changes are not applied to the system until
   @link Update::DoUpdate Update::DoUpdate@endlink  is called  <br>

Created in NX3.0.0.

License requirements : None

Parameters

rightHandSide

right hand side

void NXOpen::Expression::SetUnits

(

NXOpen::Unit *

unitType

)

Sets the units for the expression.

This must only be used on number expressions.
Created in NX5.0.0.

License requirements : None

Parameters

unitType

unit type

void NXOpen::Expression::SetUserLocked

(

bool

isLocked

)

Sets whether the expression is user locked.

If this property is false, then the expression can be over-ridden from another part. (This is the default state for newly created expressions.) If this property is true, you are not allowed to over-ride it.

Note that if an expression is currently over-ridden, you cannot set its lock property. In this instance, an exception will be thrown.

Created in NX4.0.0.

License requirements : None

Parameters

isLocked

is locked

void NXOpen::Expression::SetValue

(

double

expressionValue

)

Sets the value of the expression in base units.

This method must only be used on number expressions. When setting the value, any formula in the expression is replaced by a numeric value, even if the value is the same as the value that the formula evaluates to.
Created in NX6.0.1.

License requirements : None

Parameters

expressionValue

expressionvalue

NXString NXOpen::Expression::StringValue

(

)

Returns the string value of the expression.

This must only be used on string expressions.
Created in NX5.0.0.

License requirements : None

NXString NXOpen::Expression::Type

(

)

Returns the type of the expression.

Created in NX5.0.0.

License requirements : None

NXOpen::Unit* NXOpen::Expression::Units

(

)

Returns the units for the expression.

This must only be used on number expressions.
Created in NX4.0.0.

License requirements : None

double NXOpen::Expression::Value

(

)

Returns the value of the expression in base units.

This method must only be used on number expressions. When setting the value, any formula in the expression is replaced by a numeric value, even if the value is the same as the value that the formula evaluates to.
Created in NX3.0.0.

License requirements : None

NXOpen::Vector3d NXOpen::Expression::VectorValue

(

)

Returns the vector value of the expression.

This must only be used on vector expressions.
Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Expression.hxx
