This class is used to create or edit the information shared between all the Basic Design profile system features in the Ship Design application. More...

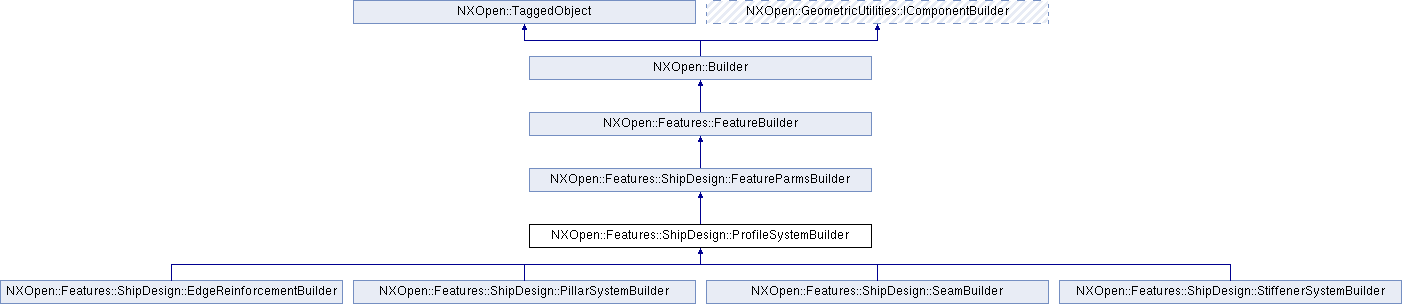

Inheritance diagram for NXOpen::Features::ShipDesign::ProfileSystemBuilder:

Public Member Functions
NXOpen::SelectNXObjectList *	Boundary1 ()
	Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the first end of the generated profile system.

NXOpen::Plane *	Boundary1Plane ()
	Returns the defined plane that will be used to trim the first end of the generated profile system.

NXOpen::SelectNXObjectList *	Boundary2 ()
	Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the second end of the generated profile system.

NXOpen::Plane *	Boundary2Plane ()
	Returns the defined plane that will be used to trim the second end of the generated profile system.

bool	BoundaryReverse ()
	Returns the indication if the side of a single boundary should be changed to the other side or not.

void	CreatePathCurves (std::vector< NXOpen::NXObject * > &curves)
	Creates path curves for all the paths of the profile system.

void	DeleteLastPathCurves ()
	Deletes the path curves returned from a call to GetLastPathCurves .

void	DeletePathCurves ()
	Deletes the path curves created from a call to CreatePathCurves .

NXOpen::SelectPointList *	FirstIntersectionPoints ()
	Returns the selected intersection points between the curves and the first boundary.

void	GetLastPathCurves (std::vector< NXOpen::NXObject * > &curves)
	Gets the path curves used by OrientationDefinitionBuilder .

NXOpen::SelectPointList *	SecondIntersectionPoints ()
	Returns the selected intersection points between the curves and the second boundary.

void	SetBoundary1Plane (NXOpen::Plane *boundary1Plane)
	Sets the defined plane that will be used to trim the first end of the generated profile system.

void	SetBoundary2Plane (NXOpen::Plane *boundary2Plane)
	Sets the defined plane that will be used to trim the second end of the generated profile system.

void	SetBoundaryOnePoints (const std::vector< NXOpen::Point3d > &points)
	Sets the selected intersection points for the first boundary.

void	SetBoundaryReverse (bool boundaryReverse)
	Sets the indication if the side of a single boundary should be changed to the other side or not.

void	SetBoundaryTwoPoints (const std::vector< NXOpen::Point3d > &points)
	Set the selected intersection points for the second boundary.

Public Member Functions inherited from NXOpen::Features::ShipDesign::FeatureParmsBuilder
double	AngleTolerance ()
	Returns the tolerance, in degrees, used to determine when angles are zero.

NXOpen::Features::ShipDesign::PlaneListBuilder *	CreatePlaneForList ()
	Create a Features::ShipDesign::PlaneListBuilder to add a defined plane to a list.

double	DistanceTolerance ()
	Returns the tolerance used to determine when distances are considered zero.

NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes	OrientationAngleRule ()
	Returns the angle rule to use when measuring angles.

void	SetAngleTolerance (double angleTolerance)
	Sets the tolerance, in degrees, used to determine when angles are zero.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the tolerance used to determine when distances are considered zero.

void	SetOrientationAngleRule (NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes angleRule)
	Sets the angle rule to use when measuring angles.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::Features::ShipDesign::FeatureParmsBuilder
enum	OrientationAngleRuleTypes { OrientationAngleRuleTypesRightHand, OrientationAngleRuleTypesShipOrientation }
	Settings to indicate how angles are to be measured. More...

Detailed Description

This class is used to create or edit the information shared between all the Basic Design profile system features in the Ship Design application.

Currently this includes the following features: Features::ShipDesign::StiffenerSystem , Features::ShipDesign::PillarSystem , and Features::ShipDesign::EdgeReinforcement .
To create a new instance of this class, use Features::ShipCollection::CreateProfileSystemBuilder

Created in NX8.0.0.

Member Function Documentation

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::ProfileSystemBuilder::Boundary1 ( )

Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the first end of the generated profile system.

Only one sheet body or one plane can be input.
Created in NX8.0.0.

License requirements : None

NXOpen::Plane* NXOpen::Features::ShipDesign::ProfileSystemBuilder::Boundary1Plane ( )

Returns the defined plane that will be used to trim the first end of the generated profile system.

Created in NX8.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::ProfileSystemBuilder::Boundary2 ( )

Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the second end of the generated profile system.

Only one sheet body or one plane can be input.
Created in NX8.0.0.

License requirements : None

NXOpen::Plane* NXOpen::Features::ShipDesign::ProfileSystemBuilder::Boundary2Plane ( )

Returns the defined plane that will be used to trim the second end of the generated profile system.

Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::ProfileSystemBuilder::BoundaryReverse ( )

Returns the indication if the side of a single boundary should be changed to the other side or not.

       By default the side that is on the same side as the sheet body or plane normal is chosen.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::ProfileSystemBuilder::CreatePathCurves ( std::vector< NXOpen::NXObject * > & curves )

Creates path curves for all the paths of the profile system.

Created in NX9.0.0.

License requirements : None

Parameters

curves The curves defining all the paths of the profiles that are being created.

void NXOpen::Features::ShipDesign::ProfileSystemBuilder::DeleteLastPathCurves ( )

Deletes the path curves returned from a call to GetLastPathCurves .

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::ProfileSystemBuilder::DeletePathCurves ( )

Deletes the path curves created from a call to CreatePathCurves .

Created in NX9.0.0.

License requirements : None

NXOpen::SelectPointList* NXOpen::Features::ShipDesign::ProfileSystemBuilder::FirstIntersectionPoints ( )

Returns the selected intersection points between the curves and the first boundary.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::ShipDesign::ProfileSystemBuilder::GetLastPathCurves ( std::vector< NXOpen::NXObject * > & curves )

Gets the path curves used by OrientationDefinitionBuilder .

Created in NX9.0.0.

License requirements : None

Parameters

curves The curves to be used for profile orientation.

NXOpen::SelectPointList* NXOpen::Features::ShipDesign::ProfileSystemBuilder::SecondIntersectionPoints ( )

Returns the selected intersection points between the curves and the second boundary.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::ShipDesign::ProfileSystemBuilder::SetBoundary1Plane ( NXOpen::Plane * boundary1Plane )

Sets the defined plane that will be used to trim the first end of the generated profile system.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

boundary1Plane boundary1plane

void NXOpen::Features::ShipDesign::ProfileSystemBuilder::SetBoundary2Plane ( NXOpen::Plane * boundary2Plane )

Sets the defined plane that will be used to trim the second end of the generated profile system.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

boundary2Plane boundary2plane

void NXOpen::Features::ShipDesign::ProfileSystemBuilder::SetBoundaryOnePoints ( const std::vector< NXOpen::Point3d > & points )

Sets the selected intersection points for the first boundary.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

points The selected intersection points for boundary one.

void NXOpen::Features::ShipDesign::ProfileSystemBuilder::SetBoundaryReverse ( bool boundaryReverse )

Sets the indication if the side of a single boundary should be changed to the other side or not.

       By default the side that is on the same side as the sheet body or plane normal is chosen.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

boundaryReverse boundaryreverse

void NXOpen::Features::ShipDesign::ProfileSystemBuilder::SetBoundaryTwoPoints ( const std::vector< NXOpen::Point3d > & points )

Set the selected intersection points for the second boundary.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

points The selected intersection points for boundary two.

The documentation for this class was generated from the following file:

Features_ShipDesign_ProfileSystemBuilder.hxx
