This class defines the top level object for use in definining the orientation of stiffeners and edge reinforcements. More...

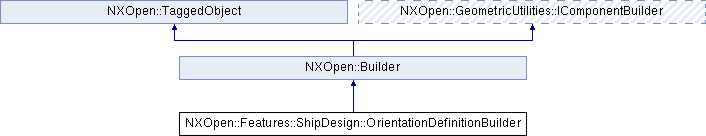

Inheritance diagram for NXOpen::Features::ShipDesign::OrientationDefinitionBuilder:

Public Types
enum	MeasureAngleTypes { MeasureAngleTypesNormaltoCurve, MeasureAngleTypesOrthogonal }
	Settings to indicate how angles are measured in all orientation objects. More...

enum	PlacementSideTypes { PlacementSideTypesSameAsNormal, PlacementSideTypesOppositeNormal }
	Settings to indicate which side of the placement faces the stiffener is to be placed. More...

Public Member Functions
double	AngleTolerance ()
	Returns the angle tolerance used in the orientation objects to determine if vectors are parallel.

NXOpen::Features::ShipDesign::OrientationRegionItemBuilder *	CreateNewRegion (NXOpen::NXObject *regionPoint)
	Creates a new region on the landing curve to allow you to change the orientation for this area of the landing curve.

void	CreatePathCurve (const std::vector< NXOpen::NXObject * > &curves)
	Sets the landing curve that is being processed into the builder.

void	CreateRegionsAtFrames (std::vector< NXOpen::Features::ShipDesign::OrientationRegionItemBuilder * > &regions)
	Will create new regions at each frame.

void	DeleteRegion (NXOpen::Features::ShipDesign::OrientationRegionItemBuilder *region)
	Deletes a previously created region.

double	DistanceTolerance ()
	Returns the distance tolerance used in the orientation objects to determine if locations are coincident.

NXOpen::Features::ShipDesign::OrientationRegionItemBuilder *	GetNextRegion (NXOpen::Features::ShipDesign::OrientationRegionItemBuilder *region)
	Gets the next region to the current one.

NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::MeasureAngleTypes	MeasureAngles ()
	Returns the method in which to measure angles in the orientation objects.

NXOpen::SelectNXObject *	NewRegionPoint ()
	Returns the new region point or datum that will be used for the boundary of the new region.

NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::PlacementSideTypes	PlacementSide ()
	Returns the side of the placement faces the stiffener is to be placed upon.

NXOpen::Features::ShipDesign::OrientationRegionItemBuilder *	RegionItemData ()
	Returns the regionItem builder.

NXOpen::Features::ShipDesign::OrientationRegionItemBuilderList *	RegionList ()
	Returns the list containing all the defined regions.

void	SetAnglesNormal (const std::vector< NXOpen::Features::ShipDesign::OrientationRegionItemBuilder * > &regions)
	Will set all angle values of input regions so that web is normal to surface.

void	SetAngleTolerance (double tolerance)
	Sets the angle tolerance used in the orientation objects to determine if vectors are parallel.

void	SetDistanceTolerance (double tolerance)
	Sets the distance tolerance used in the orientation objects to determine if locations are coincident.

void	SetMeasureAngles (NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::MeasureAngleTypes measureAngles)
	Sets the method in which to measure angles in the orientation objects.

void	SetPlacementFaces (const std::vector< NXOpen::DisplayableObject * > &faces)
	Sets the faces or datum that are being processed into the builder.

void	SetPlacementSide (NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::PlacementSideTypes placementSide)
	Sets the side of the placement faces the stiffener is to be placed upon.

void	SetShowSurfaceAngles (bool showSurfaceAngles)
	Sets the indication if the surface angles analysis display is on or off.

void	SetShowTwistRate (bool showTwistRate)
	Sets the indication if the twist rate analysis display is on or off.

void	SetShowWebAngles (bool showWebAngles)
	Sets the indication if the web angle analysis display is on or off.

bool	ShowSurfaceAngles ()
	Returns the indication if the surface angles analysis display is on or off.

bool	ShowTwistRate ()
	Returns the indication if the twist rate analysis display is on or off.

bool	ShowWebAngles ()
	Returns the indication if the web angle analysis display is on or off.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This class defines the top level object for use in definining the orientation of stiffeners and edge reinforcements.

This object allows you to define regions of a profile and allows you to define a different method of orientation for each region.
To create a new instance of this class, use Features::ShipCollection::CreateOrientationDefinitionBuilder
Default values.

Property

Value

MeasureAngles

NormaltoCurve

ShowSurfaceAngles

0

ShowTwistRate

0

ShowWebAngles

0

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::MeasureAngleTypes

Settings to indicate how angles are measured in all orientation objects.

Enumerator:

MeasureAngleTypesNormaltoCurve	Angles are measured in a plane normal to the landing curve.
MeasureAngleTypesOrthogonal	Angles are measured in an orthogonal plane closest to the normal of the landing curve.

enum NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::PlacementSideTypes

Settings to indicate which side of the placement faces the stiffener is to be placed.

Enumerator:

PlacementSideTypesSameAsNormal	The stiffener will be placed on the positive normal side of the placement faces.
PlacementSideTypesOppositeNormal	The stiffener will be placed on the negative normal side of the placement faces.

Member Function Documentation

double NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::AngleTolerance ( )

Returns the angle tolerance used in the orientation objects to determine if vectors are parallel.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::OrientationRegionItemBuilder* NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::CreateNewRegion ( NXOpen::NXObject * regionPoint )

Creates a new region on the landing curve to allow you to change the orientation for this area of the landing curve.

Returns: Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

regionPoint New region boundary point

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::CreatePathCurve ( const std::vector< NXOpen::NXObject * > & curves )

Sets the landing curve that is being processed into the builder.

If regions have already been defined the closest point on this new curve to the region boundaries will be used for the new region boundaries when the boundary has been defined by a specified point otherwise the boundary definition will be reevaluated for this new curve and the boundary set appropriately.
Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

curves The curves defining the path of the profile that is being oriented.

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::CreateRegionsAtFrames ( std::vector< NXOpen::Features::ShipDesign::OrientationRegionItemBuilder * > & regions )

Will create new regions at each frame.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

regions The regions created.

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::DeleteRegion ( NXOpen::Features::ShipDesign::OrientationRegionItemBuilder * region )

Deletes a previously created region.

The deleted region will be combined with the previous region.
Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

region region

double NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::DistanceTolerance ( )

Returns the distance tolerance used in the orientation objects to determine if locations are coincident.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::OrientationRegionItemBuilder* NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::GetNextRegion ( NXOpen::Features::ShipDesign::OrientationRegionItemBuilder * region )

Gets the next region to the current one.

Returns: Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

region region

NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::MeasureAngleTypes NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::MeasureAngles ( )

Returns the method in which to measure angles in the orientation objects.

Created in NX9.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::NewRegionPoint ( )

Returns the new region point or datum that will be used for the boundary of the new region.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::PlacementSideTypes NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::PlacementSide ( )

Returns the side of the placement faces the stiffener is to be placed upon.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::OrientationRegionItemBuilder* NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::RegionItemData ( )

Returns the regionItem builder.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::OrientationRegionItemBuilderList* NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::RegionList ( )

Returns the list containing all the defined regions.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::SetAnglesNormal ( const std::vector< NXOpen::Features::ShipDesign::OrientationRegionItemBuilder * > & regions )

Will set all angle values of input regions so that web is normal to surface.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

regions The regions to process.

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::SetAngleTolerance ( double tolerance )

Sets the angle tolerance used in the orientation objects to determine if vectors are parallel.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

tolerance tolerance

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::SetDistanceTolerance ( double tolerance )

Sets the distance tolerance used in the orientation objects to determine if locations are coincident.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

tolerance tolerance

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::SetMeasureAngles ( NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::MeasureAngleTypes measureAngles )

Sets the method in which to measure angles in the orientation objects.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

measureAngles measureangles

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::SetPlacementFaces ( const std::vector< NXOpen::DisplayableObject * > & faces )

Sets the faces or datum that are being processed into the builder.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

faces The faces/datums defining the placement of the profile that is being oriented.

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::SetPlacementSide ( NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::PlacementSideTypes placementSide )

Sets the side of the placement faces the stiffener is to be placed upon.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

placementSide placementside

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::SetShowSurfaceAngles ( bool showSurfaceAngles )

Sets the indication if the surface angles analysis display is on or off.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

showSurfaceAngles showsurfaceangles

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::SetShowTwistRate ( bool showTwistRate )

Sets the indication if the twist rate analysis display is on or off.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

showTwistRate showtwistrate

void NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::SetShowWebAngles ( bool showWebAngles )

Sets the indication if the web angle analysis display is on or off.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

showWebAngles showwebangles

bool NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::ShowSurfaceAngles ( )

Returns the indication if the surface angles analysis display is on or off.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::ShowTwistRate ( )

Returns the indication if the twist rate analysis display is on or off.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::OrientationDefinitionBuilder::ShowWebAngles ( )

Returns the indication if the web angle analysis display is on or off.

Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_OrientationDefinitionBuilder.hxx
