This class is used to place a plane into a list. More...
Public Member Functions | |
| NXOpen::Plane * | Plane () |
| Returns the plane defined. | |
| void | SetPlane (NXOpen::Plane *plane1) |
| Sets the plane defined. | |
| void | SetValid (bool valid) |
| Sets the indication if the defined plane is valid or not. | |
| bool | Valid () |
| Returns the indication if the defined plane is valid or not. | |

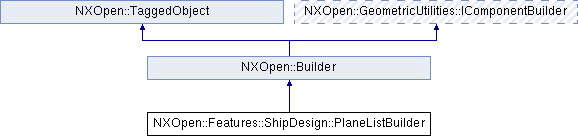

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
This class is used to place a plane into a list.
<br> To create a new instance of this class, use @link Features::ShipDesign::FeatureParmsBuilder::CreatePlaneForList Features::ShipDesign::FeatureParmsBuilder::CreatePlaneForList @endlink <br>
Created in NX8.0.0.
Member Function Documentation
| NXOpen::Plane* NXOpen::Features::ShipDesign::PlaneListBuilder::Plane | ( | ) |
Returns the plane defined.
Created in NX8.0.0.
License requirements : None
| void NXOpen::Features::ShipDesign::PlaneListBuilder::SetPlane | ( | NXOpen::Plane * | plane1 | ) |
Sets the plane defined.
Created in NX8.0.0.
License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")
- Parameters
-
plane1 plane1
| void NXOpen::Features::ShipDesign::PlaneListBuilder::SetValid | ( | bool | valid | ) |
Sets the indication if the defined plane is valid or not.
Created in NX8.0.0.
License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")
- Parameters
-
valid valid
| bool NXOpen::Features::ShipDesign::PlaneListBuilder::Valid | ( | ) |
Returns the indication if the defined plane is valid or not.
Created in NX8.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Features_ShipDesign_PlaneListBuilder.hxx
