This class is used to create or edit the information shared among all Ship Design features. More...

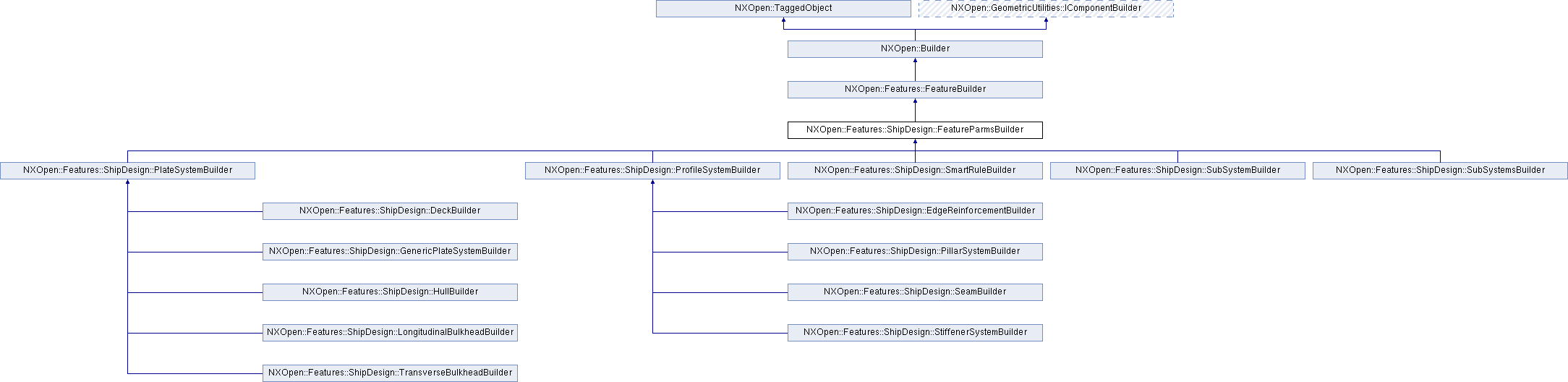

Inheritance diagram for NXOpen::Features::ShipDesign::FeatureParmsBuilder:

Public Types
enum	OrientationAngleRuleTypes { OrientationAngleRuleTypesRightHand, OrientationAngleRuleTypesShipOrientation }
	Settings to indicate how angles are to be measured. More...

Public Member Functions
double	AngleTolerance ()
	Returns the tolerance, in degrees, used to determine when angles are zero.

NXOpen::Features::ShipDesign::PlaneListBuilder *	CreatePlaneForList ()
	Create a Features::ShipDesign::PlaneListBuilder to add a defined plane to a list.

double	DistanceTolerance ()
	Returns the tolerance used to determine when distances are considered zero.

NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes	OrientationAngleRule ()
	Returns the angle rule to use when measuring angles.

void	SetAngleTolerance (double angleTolerance)
	Sets the tolerance, in degrees, used to determine when angles are zero.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the tolerance used to determine when distances are considered zero.

void	SetOrientationAngleRule (NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes angleRule)
	Sets the angle rule to use when measuring angles.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This class is used to create or edit the information shared among all Ship Design features.

Currently only Basic Design features are utilizing this class.
Cannot create directly.

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes

Settings to indicate how angles are to be measured.

Enumerator:

OrientationAngleRuleTypesRightHand	Angles are measured based on a right hand rule.
OrientationAngleRuleTypesShipOrientation	Angles are measured based on location and orientation in the ship.

Member Function Documentation

double NXOpen::Features::ShipDesign::FeatureParmsBuilder::AngleTolerance ( )

Returns the tolerance, in degrees, used to determine when angles are zero.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PlaneListBuilder* NXOpen::Features::ShipDesign::FeatureParmsBuilder::CreatePlaneForList ( )

Create a Features::ShipDesign::PlaneListBuilder to add a defined plane to a list.

Returns: Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

double NXOpen::Features::ShipDesign::FeatureParmsBuilder::DistanceTolerance ( )

Returns the tolerance used to determine when distances are considered zero.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRule ( )

Returns the angle rule to use when measuring angles.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::FeatureParmsBuilder::SetAngleTolerance ( double angleTolerance )

Sets the tolerance, in degrees, used to determine when angles are zero.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

angleTolerance angletolerance

void NXOpen::Features::ShipDesign::FeatureParmsBuilder::SetDistanceTolerance ( double distanceTolerance )

Sets the tolerance used to determine when distances are considered zero.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

distanceTolerance distancetolerance

void NXOpen::Features::ShipDesign::FeatureParmsBuilder::SetOrientationAngleRule ( NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes angleRule )

Sets the angle rule to use when measuring angles.

Created in NX9.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

angleRule anglerule

The documentation for this class was generated from the following file:

Features_ShipDesign_FeatureParmsBuilder.hxx
