A Features::ShipDesign::SeamBuilder used to create or edit a ship design Features::ShipDesign::Seam feature. More...

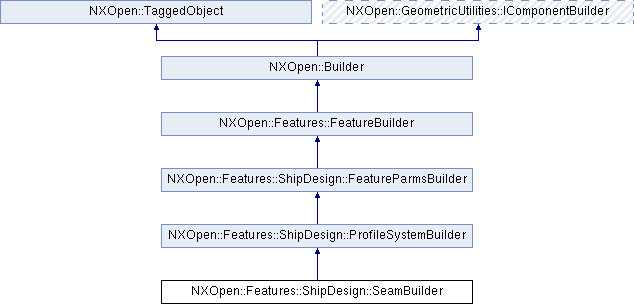

Inheritance diagram for NXOpen::Features::ShipDesign::SeamBuilder:

Public Types
enum	DefinitionMethods { DefinitionMethodsCurvesPlanesShip, DefinitionMethodsEquallySpaced, DefinitionMethodsRectangular }
	Used to indicate the method being used to define the seam locations. More...

enum	StaggerShiftAlongMethods { StaggerShiftAlongMethodsLength, StaggerShiftAlongMethodsWidth }
	Used to indicate the method being used to define which direction the seam stagger will shift along. More...

enum	Types { TypesScantling, TypesErection, TypesStraking, TypesIntersection }
	Used to indicate the type of seam that is being created. More...

Public Member Functions
NXOpen::Features::ShipDesign::BuiltUpOffsetBuilder *	BuiltUpOffset ()
	Returns the built-up offset data.

NXOpen::Section *	DefinitionCurves ()
	Returns the curves selected or sketched that will be projected onto the ship structure to create the seam.

NXOpen::Section *	DefinitionEquallySpacedCurve1 ()
	Returns the first curve that will be used as a boundary for the equally spaced seams.

NXOpen::Section *	DefinitionEquallySpacedCurve2 ()
	Returns the second curve that will be used as a boundary for the equally spaced seams.

NXOpen::Expression *	DefinitionEquallySpacedNumber ()
	Returns the number of seams to create between the two boundary curves selected.

NXOpen::Features::ShipDesign::PlaneListBuilderList *	DefinitionEquallySpacedPlaneList ()
	Returns the list of planes defined that will be used to specify key points to create the seam.

NXOpen::Features::ShipDesign::SeamBuilder::DefinitionMethods	DefinitionMethod ()
	Returns the method used to define the seam locations.

NXOpen::SelectNXObjectList *	DefinitionObjects ()
	Returns the sheet bodies or curves representing ship structure, that will be intersected with or projected onto the ship structure to create the seam.

NXOpen::Features::ShipDesign::PlaneListBuilderList *	DefinitionPlaneList ()
	Returns the list of planes defined that will be intersected with the ship structure to create the seam.

NXOpen::GeometricUtilities::ProjectionOptions *	DefinitionProjectionDirection ()
	Returns the direction to project curves to the ship structure to define seams.

NXOpen::Point *	DefinitionRectangularCorner ()
	Returns the starting corner of the rectangular grid that defines the seams.

NXOpen::Expression *	DefinitionRectangularLength ()
	Returns the size of each rectangle of the grid in the length direction.

NXOpen::Direction *	DefinitionRectangularLengthDirection ()
	Returns the length direction of the rectangular grid that defines the seams.

NXOpen::Plane *	DefinitionRectangularPlane ()
	Returns the plane of the rectangular grid that defines the seams.

NXOpen::Expression *	DefinitionRectangularWidth ()
	Returns the size of each rectangle of the grid perpendicular to the length direction.

bool	ErectionSplitSystem ()
	Returns the indication if the erection seams should split the system by default.

bool	IntersectionSplitSystem ()
	Returns the indication if the intersection seams should split the system by default.

bool	ScantlingSplitSystem ()
	Returns the indication if the scantling seams should split the system by default.

void	SetDefinitionMethod (NXOpen::Features::ShipDesign::SeamBuilder::DefinitionMethods definitionMethod)
	Sets the method used to define the seam locations.

void	SetDefinitionRectangularCorner (NXOpen::Point *definitionRectangularCorner)
	Sets the starting corner of the rectangular grid that defines the seams.

void	SetDefinitionRectangularLengthDirection (NXOpen::Direction *definitionRectangularLengthDirection)
	Sets the length direction of the rectangular grid that defines the seams.

void	SetDefinitionRectangularPlane (NXOpen::Plane *definitionRectangularPlane)
	Sets the plane of the rectangular grid that defines the seams.

void	SetErectionSplitSystem (bool splitSystem)
	Sets the indication if the erection seams should split the system by default.

void	SetIntersectionSplitSystem (bool splitSystem)
	Sets the indication if the intersection seams should split the system by default.

void	SetScantlingSplitSystem (bool splitSystem)
	Sets the indication if the scantling seams should split the system by default.

void	SetStaggerShiftAlongMethod (NXOpen::Features::ShipDesign::SeamBuilder::StaggerShiftAlongMethods staggerShiftAlongMethod)
	Sets the method used to define the seam stagger shift along method.

void	SetStrakingSplitSystem (bool splitSystem)
	Sets the indication if the straking seams should split the system by default.

void	SetType (NXOpen::Features::ShipDesign::SeamBuilder::Types type)
	Sets the type of seam being created.

NXOpen::SelectNXObjectList *	ShipStructure ()
	Returns the ship structure upon which seams will be created.

NXOpen::NXObjectList *	StaggerDistanceList ()
	Returns the list of stagger distances defined the shift distance to create the seam.

NXOpen::Features::ShipDesign::SeamBuilder::StaggerShiftAlongMethods	StaggerShiftAlongMethod ()
	Returns the method used to define the seam stagger shift along method.

bool	StrakingSplitSystem ()
	Returns the indication if the straking seams should split the system by default.

NXOpen::Features::ShipDesign::SeamBuilder::Types	Type ()
	Returns the type of seam being created.

NXOpen::Weld::CharacteristicsBuilder *	WeldingCharacteristics ()
	Returns the welding characteristics that will be attached to each seam created.

Public Member Functions inherited from NXOpen::Features::ShipDesign::ProfileSystemBuilder
NXOpen::SelectNXObjectList *	Boundary1 ()
	Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the first end of the generated profile system.

NXOpen::Plane *	Boundary1Plane ()
	Returns the defined plane that will be used to trim the first end of the generated profile system.

NXOpen::SelectNXObjectList *	Boundary2 ()
	Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the second end of the generated profile system.

NXOpen::Plane *	Boundary2Plane ()
	Returns the defined plane that will be used to trim the second end of the generated profile system.

bool	BoundaryReverse ()
	Returns the indication if the side of a single boundary should be changed to the other side or not.

void	CreatePathCurves (std::vector< NXOpen::NXObject * > &curves)
	Creates path curves for all the paths of the profile system.

void	DeleteLastPathCurves ()
	Deletes the path curves returned from a call to GetLastPathCurves .

void	DeletePathCurves ()
	Deletes the path curves created from a call to CreatePathCurves .

NXOpen::SelectPointList *	FirstIntersectionPoints ()
	Returns the selected intersection points between the curves and the first boundary.

void	GetLastPathCurves (std::vector< NXOpen::NXObject * > &curves)
	Gets the path curves used by OrientationDefinitionBuilder .

NXOpen::SelectPointList *	SecondIntersectionPoints ()
	Returns the selected intersection points between the curves and the second boundary.

void	SetBoundary1Plane (NXOpen::Plane *boundary1Plane)
	Sets the defined plane that will be used to trim the first end of the generated profile system.

void	SetBoundary2Plane (NXOpen::Plane *boundary2Plane)
	Sets the defined plane that will be used to trim the second end of the generated profile system.

void	SetBoundaryOnePoints (const std::vector< NXOpen::Point3d > &points)
	Sets the selected intersection points for the first boundary.

void	SetBoundaryReverse (bool boundaryReverse)
	Sets the indication if the side of a single boundary should be changed to the other side or not.

void	SetBoundaryTwoPoints (const std::vector< NXOpen::Point3d > &points)
	Set the selected intersection points for the second boundary.

Public Member Functions inherited from NXOpen::Features::ShipDesign::FeatureParmsBuilder
double	AngleTolerance ()
	Returns the tolerance, in degrees, used to determine when angles are zero.

NXOpen::Features::ShipDesign::PlaneListBuilder *	CreatePlaneForList ()
	Create a Features::ShipDesign::PlaneListBuilder to add a defined plane to a list.

double	DistanceTolerance ()
	Returns the tolerance used to determine when distances are considered zero.

NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes	OrientationAngleRule ()
	Returns the angle rule to use when measuring angles.

void	SetAngleTolerance (double angleTolerance)
	Sets the tolerance, in degrees, used to determine when angles are zero.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the tolerance used to determine when distances are considered zero.

void	SetOrientationAngleRule (NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes angleRule)
	Sets the angle rule to use when measuring angles.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

A Features::ShipDesign::SeamBuilder used to create or edit a ship design Features::ShipDesign::Seam feature.

 <br> To create a new instance of this class, use @link Features::ShipCollection::CreateSeamBuilder  Features::ShipCollection::CreateSeamBuilder @endlink  <br>

Default values.

Property

Value

BuiltUpOffset.FlangeAngle.Value

0

BuiltUpOffset.FlangeOffset.Value

0 (millimeters part), 0 (inches part)

BuiltUpOffset.WebAngle.Value

0

BuiltUpOffset.WebOffset.Value

0 (millimeters part), 0 (inches part)

DefinitionEquallySpacedNumber.Value

1

DefinitionMethod

CurvesPlanesShip

DefinitionRectangularLength.Value

20000 (millimeters part), 800 (inches part)

DefinitionRectangularWidth.Value

10000 (millimeters part), 400 (inches part)

ErectionSplitSystem

0

IntersectionSplitSystem

1

ScantlingSplitSystem

1

StaggerShiftAlongMethod

Length

StrakingSplitSystem

0

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::SeamBuilder::DefinitionMethods

Used to indicate the method being used to define the seam locations.

Not valid for Features::ShipDesign::SeamBuilder::TypesIntersection .

Enumerator:

DefinitionMethodsCurvesPlanesShip

Can use curves, planes or other ship structure to define the seam location.

The intersection or projection of the selected data with the ship structure defines the seam location.

DefinitionMethodsEquallySpaced

Create a specified number of seams equidistant between two selected curves.

DefinitionMethodsRectangular

Create a rectangular pattern of seams based on an origin, direction, and size of rectangles.

enum NXOpen::Features::ShipDesign::SeamBuilder::StaggerShiftAlongMethods

Used to indicate the method being used to define which direction the seam stagger will shift along.

Enumerator:

StaggerShiftAlongMethodsLength	the stagger will shift along the length direction.
StaggerShiftAlongMethodsWidth	the stagger will shift along the width direction.

enum NXOpen::Features::ShipDesign::SeamBuilder::Types

Used to indicate the type of seam that is being created.

Enumerator:

TypesScantling	Scantling seam, will allow for changing stock across the seam.
TypesErection	Erection seam, used to define manufacturing block boundaries. Will allow for changing stock across the seam.
TypesStraking	Straking seam, used to split up structure into manufacturable size pieces. Cannot change stock across this seam.
TypesIntersection	Intersection seam, used to split structure at other structure locations. Will allow for changing stock across the seam.

Member Function Documentation

NXOpen::Features::ShipDesign::BuiltUpOffsetBuilder* NXOpen::Features::ShipDesign::SeamBuilder::BuiltUpOffset ( )

Returns the built-up offset data.

Created in NX9.0.0.

License requirements : None

NXOpen::Section* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionCurves ( )

Returns the curves selected or sketched that will be projected onto the ship structure to create the seam.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsCurvesPlanesShip .
Created in NX8.0.0.

License requirements : None

NXOpen::Section* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionEquallySpacedCurve1 ( )

Returns the first curve that will be used as a boundary for the equally spaced seams.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsEquallySpaced .
Created in NX8.0.0.

License requirements : None

NXOpen::Section* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionEquallySpacedCurve2 ( )

Returns the second curve that will be used as a boundary for the equally spaced seams.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsEquallySpaced .
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionEquallySpacedNumber ( )

Returns the number of seams to create between the two boundary curves selected.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsEquallySpaced .
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PlaneListBuilderList* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionEquallySpacedPlaneList ( )

Returns the list of planes defined that will be used to specify key points to create the seam.

Only valid when DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsEquallySpaced .
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::SeamBuilder::DefinitionMethods NXOpen::Features::ShipDesign::SeamBuilder::DefinitionMethod ( )

Returns the method used to define the seam locations.

Created in NX8.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionObjects ( )

Returns the sheet bodies or curves representing ship structure, that will be intersected with or projected onto the ship structure to create the seam.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PlaneListBuilderList* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionPlaneList ( )

Returns the list of planes defined that will be intersected with the ship structure to create the seam.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsCurvesPlanesShip .
Created in NX8.0.0.

License requirements : None

NXOpen::GeometricUtilities::ProjectionOptions* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionProjectionDirection ( )

Returns the direction to project curves to the ship structure to define seams.

Created in NX8.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionRectangularCorner ( )

Returns the starting corner of the rectangular grid that defines the seams.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsRectangular .
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionRectangularLength ( )

Returns the size of each rectangle of the grid in the length direction.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsRectangular .
Created in NX8.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionRectangularLengthDirection ( )

Returns the length direction of the rectangular grid that defines the seams.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsRectangular .
Created in NX8.0.0.

License requirements : None

NXOpen::Plane* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionRectangularPlane ( )

Returns the plane of the rectangular grid that defines the seams.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsRectangular .
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::SeamBuilder::DefinitionRectangularWidth ( )

Returns the size of each rectangle of the grid perpendicular to the length direction.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsRectangular .
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::SeamBuilder::ErectionSplitSystem ( )

Returns the indication if the erection seams should split the system by default.

           True indicates that the erection seams will split the system by default.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::ShipDesign::SeamBuilder::IntersectionSplitSystem ( )

Returns the indication if the intersection seams should split the system by default.

           True indicates that the intersection seams will split the system by default.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::ShipDesign::SeamBuilder::ScantlingSplitSystem ( )

Returns the indication if the scantling seams should split the system by default.

           True indicates that the scantling seams will split the system by default.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::ShipDesign::SeamBuilder::SetDefinitionMethod ( NXOpen::Features::ShipDesign::SeamBuilder::DefinitionMethods definitionMethod )

Sets the method used to define the seam locations.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

definitionMethod definitionmethod

void NXOpen::Features::ShipDesign::SeamBuilder::SetDefinitionRectangularCorner ( NXOpen::Point * definitionRectangularCorner )

Sets the starting corner of the rectangular grid that defines the seams.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsRectangular .
Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

definitionRectangularCorner definitionrectangularcorner

void NXOpen::Features::ShipDesign::SeamBuilder::SetDefinitionRectangularLengthDirection ( NXOpen::Direction * definitionRectangularLengthDirection )

Sets the length direction of the rectangular grid that defines the seams.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsRectangular .
Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

definitionRectangularLengthDirection definitionrectangularlengthdirection

void NXOpen::Features::ShipDesign::SeamBuilder::SetDefinitionRectangularPlane ( NXOpen::Plane * definitionRectangularPlane )

Sets the plane of the rectangular grid that defines the seams.

Only valid when Type is not Features::ShipDesign::SeamBuilder::TypesIntersection and DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsRectangular .
Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

definitionRectangularPlane definitionrectangularplane

void NXOpen::Features::ShipDesign::SeamBuilder::SetErectionSplitSystem ( bool splitSystem )

Sets the indication if the erection seams should split the system by default.

           True indicates that the erection seams will split the system by default.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

splitSystem splitsystem

void NXOpen::Features::ShipDesign::SeamBuilder::SetIntersectionSplitSystem ( bool splitSystem )

Sets the indication if the intersection seams should split the system by default.

           True indicates that the intersection seams will split the system by default.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

splitSystem splitsystem

void NXOpen::Features::ShipDesign::SeamBuilder::SetScantlingSplitSystem ( bool splitSystem )

Sets the indication if the scantling seams should split the system by default.

           True indicates that the scantling seams will split the system by default.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

splitSystem splitsystem

void NXOpen::Features::ShipDesign::SeamBuilder::SetStaggerShiftAlongMethod ( NXOpen::Features::ShipDesign::SeamBuilder::StaggerShiftAlongMethods staggerShiftAlongMethod )

Sets the method used to define the seam stagger shift along method.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

staggerShiftAlongMethod staggershiftalongmethod

void NXOpen::Features::ShipDesign::SeamBuilder::SetStrakingSplitSystem ( bool splitSystem )

Sets the indication if the straking seams should split the system by default.

           True indicates that the straking seams will split the system by default.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

splitSystem splitsystem

void NXOpen::Features::ShipDesign::SeamBuilder::SetType ( NXOpen::Features::ShipDesign::SeamBuilder::Types type )

Sets the type of seam being created.

Scantling, Erection, Straking or Intersection. Scantling seams indicate divisions in ship structure where differing stock definitions are needed. Erection seams indicate divisions in ship structure at manufacturing block boundaries. Straking seams indicate divisions in ship structure to make it a manufacturable size. Intersection seams indicate divisions in ship structure where other structure intersects the given structure. Although Scantling seam is the name given to seams that allow for changing stock definitions, all seam types except straking seams allow for a change in the stock definition.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

type type

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::SeamBuilder::ShipStructure ( )

Returns the ship structure upon which seams will be created.

Created in NX8.0.0.

License requirements : None

NXOpen::NXObjectList* NXOpen::Features::ShipDesign::SeamBuilder::StaggerDistanceList ( )

Returns the list of stagger distances defined the shift distance to create the seam.

Only valid when DefinitionMethod is Features::ShipDesign::SeamBuilder::DefinitionMethodsRectangular .
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::SeamBuilder::StaggerShiftAlongMethods NXOpen::Features::ShipDesign::SeamBuilder::StaggerShiftAlongMethod ( )

Returns the method used to define the seam stagger shift along method.

Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::SeamBuilder::StrakingSplitSystem ( )

Returns the indication if the straking seams should split the system by default.

           True indicates that the straking seams will split the system by default.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::ShipDesign::SeamBuilder::Types NXOpen::Features::ShipDesign::SeamBuilder::Type ( )

Returns the type of seam being created.

Scantling, Erection, Straking or Intersection. Scantling seams indicate divisions in ship structure where differing stock definitions are needed. Erection seams indicate divisions in ship structure at manufacturing block boundaries. Straking seams indicate divisions in ship structure to make it a manufacturable size. Intersection seams indicate divisions in ship structure where other structure intersects the given structure. Although Scantling seam is the name given to seams that allow for changing stock definitions, all seam types except straking seams allow for a change in the stock definition.

Created in NX8.0.0.

License requirements : None

NXOpen::Weld::CharacteristicsBuilder* NXOpen::Features::ShipDesign::SeamBuilder::WeldingCharacteristics ( )

Returns the welding characteristics that will be attached to each seam created.

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_SeamBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
