This class is used to edit the Sub System Definition of a Features::ShipDesign::SubSystems feature. More...

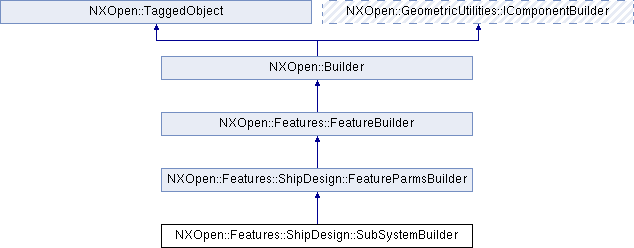

Inheritance diagram for NXOpen::Features::ShipDesign::SubSystemBuilder:

Public Member Functions
NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes	EndCutEnd ()
	Returns the end cut to use at the end of the stiffener sub system.

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes	EndCutStart ()
	Returns the end cut to use at the start of the stiffener sub system.

NXOpen::Expression *	Offset ()
	Returns the offset to apply to the plate sub system mold face to produce the desired mold face.

NXOpen::Expression *	OrientationAngle ()
	Returns the angle at which the stiffener system is placed relative to the reference.

NXOpen::SelectCurve *	OrientationLinePillar ()
	Returns the line specified for the pillar system angle reference.

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationMethods	OrientationMethod ()
	Returns the method used to define the reference for the orientation angle of stiffener system.

NXOpen::Direction *	OrientationVector ()
	Returns the vector specified for the orientation angle reference.

NXOpen::Features::ShipDesign::SteelFeatureSpreadsheetBuilder *	PillarStockData ()
	Returns the pillar sub system stock data.

NXOpen::Features::ShipDesign::PlateStockBuilder *	PlateStockData ()
	Returns the plate sub system stock data.

NXOpen::Features::ShipDesign::StiffenerStockBuilder *	ProfileStockData ()
	Returns the profile sub system stock data.

bool	Reverse ()
	Returns the indication whether the direction of the flange should be reversed on this stiffener sub system.

void	SetEndCutEnd (NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes endCutEnd)
	Sets the end cut to use at the end of the stiffener sub system.

void	SetEndCutStart (NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes endCutStart)
	Sets the end cut to use at the start of the stiffener sub system.

void	SetOrientationMethod (NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationMethods orientationMethod)
	Sets the method used to define the reference for the orientation angle of stiffener system.

void	SetOrientationVector (NXOpen::Direction *orientationVector)
	Sets the vector specified for the orientation angle reference.

void	SetReverse (bool reverse)
	Sets the indication whether the direction of the flange should be reversed on this stiffener sub system.

NXOpen::SelectNXObjectList *	SubSystem ()
	Returns the faces or curves that make up the sub system.

Public Member Functions inherited from NXOpen::Features::ShipDesign::FeatureParmsBuilder
double	AngleTolerance ()
	Returns the tolerance, in degrees, used to determine when angles are zero.

NXOpen::Features::ShipDesign::PlaneListBuilder *	CreatePlaneForList ()
	Create a Features::ShipDesign::PlaneListBuilder to add a defined plane to a list.

double	DistanceTolerance ()
	Returns the tolerance used to determine when distances are considered zero.

NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes	OrientationAngleRule ()
	Returns the angle rule to use when measuring angles.

void	SetAngleTolerance (double angleTolerance)
	Sets the tolerance, in degrees, used to determine when angles are zero.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the tolerance used to determine when distances are considered zero.

void	SetOrientationAngleRule (NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes angleRule)
	Sets the angle rule to use when measuring angles.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::Features::ShipDesign::FeatureParmsBuilder
enum	OrientationAngleRuleTypes { OrientationAngleRuleTypesRightHand, OrientationAngleRuleTypesShipOrientation }
	Settings to indicate how angles are to be measured. More...

Detailed Description

This class is used to edit the Sub System Definition of a Features::ShipDesign::SubSystems feature.

 <br> No creator since only created along with Features.ShipDesign.SubSystemsBuilder  <br>

Default values.

Property

Value

PlateStockData.KnuckleRatio

3.0

PlateStockData.KnuckleSmoothAngle

3.0

PlateStockData.MaterialOption

0

PlateStockData.OppositeThickness.Value

0 (millimeters part), 0 (inches part)

PlateStockData.RestrictThicknessToMaterial

true

PlateStockData.ThickenOption

SingleSided

PlateStockData.Thickness.Value

10 (millimeters part), 0.5 (inches part)

PlateStockData.ThicknessSourceOption

List

ProfileStockData.AnchorPoint

0

ProfileStockData.PlateHeight.Value

50 (millimeters part), 2 (inches part)

ProfileStockData.SectionType

Profile

Created in NX8.0.0.

Member Function Documentation

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes NXOpen::Features::ShipDesign::SubSystemBuilder::EndCutEnd ( )

Returns the end cut to use at the end of the stiffener sub system.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes NXOpen::Features::ShipDesign::SubSystemBuilder::EndCutStart ( )

Returns the end cut to use at the start of the stiffener sub system.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::SubSystemBuilder::Offset ( )

Returns the offset to apply to the plate sub system mold face to produce the desired mold face.

The offset is applied in the thickness direction specified.
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::SubSystemBuilder::OrientationAngle ( )

Returns the angle at which the stiffener system is placed relative to the reference.

Created in NX8.0.0.

License requirements : None

NXOpen::SelectCurve* NXOpen::Features::ShipDesign::SubSystemBuilder::OrientationLinePillar ( )

Returns the line specified for the pillar system angle reference.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationMethods NXOpen::Features::ShipDesign::SubSystemBuilder::OrientationMethod ( )

Returns the method used to define the reference for the orientation angle of stiffener system.

Created in NX8.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::ShipDesign::SubSystemBuilder::OrientationVector ( )

Returns the vector specified for the orientation angle reference.

       Only used when when Method is @link Features::ShipDesign::StiffenerSystemBuilder::OrientationMethodsVector Features::ShipDesign::StiffenerSystemBuilder::OrientationMethodsVector@endlink ..

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::SteelFeatureSpreadsheetBuilder* NXOpen::Features::ShipDesign::SubSystemBuilder::PillarStockData ( )

Returns the pillar sub system stock data.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PlateStockBuilder* NXOpen::Features::ShipDesign::SubSystemBuilder::PlateStockData ( )

Returns the plate sub system stock data.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StiffenerStockBuilder* NXOpen::Features::ShipDesign::SubSystemBuilder::ProfileStockData ( )

Returns the profile sub system stock data.

Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::SubSystemBuilder::Reverse ( )

Returns the indication whether the direction of the flange should be reversed on this stiffener sub system.

The default direction is based on the ship structure that the stiffener is being built upon.
Created in NX8.5.0.

License requirements : None

void NXOpen::Features::ShipDesign::SubSystemBuilder::SetEndCutEnd ( NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes endCutEnd )

Sets the end cut to use at the end of the stiffener sub system.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

endCutEnd endcutend

void NXOpen::Features::ShipDesign::SubSystemBuilder::SetEndCutStart ( NXOpen::Features::ShipDesign::StiffenerSystemBuilder::EndCutTypes endCutStart )

Sets the end cut to use at the start of the stiffener sub system.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

endCutStart endcutstart

void NXOpen::Features::ShipDesign::SubSystemBuilder::SetOrientationMethod ( NXOpen::Features::ShipDesign::StiffenerSystemBuilder::OrientationMethods orientationMethod )

Sets the method used to define the reference for the orientation angle of stiffener system.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

orientationMethod orientationmethod

void NXOpen::Features::ShipDesign::SubSystemBuilder::SetOrientationVector ( NXOpen::Direction * orientationVector )

Sets the vector specified for the orientation angle reference.

       Only used when when Method is @link Features::ShipDesign::StiffenerSystemBuilder::OrientationMethodsVector Features::ShipDesign::StiffenerSystemBuilder::OrientationMethodsVector@endlink ..

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

orientationVector orientationvector

void NXOpen::Features::ShipDesign::SubSystemBuilder::SetReverse ( bool reverse )

Sets the indication whether the direction of the flange should be reversed on this stiffener sub system.

The default direction is based on the ship structure that the stiffener is being built upon.
Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

reverse reverse

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::SubSystemBuilder::SubSystem ( )

Returns the faces or curves that make up the sub system.

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_SubSystemBuilder.hxx
