This builder allows you to define the stock information for plate system features in ship design. More...

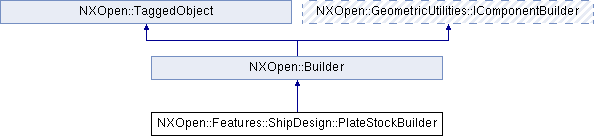

Inheritance diagram for NXOpen::Features::ShipDesign::PlateStockBuilder:

Public Types
enum	ThickenOptions { ThickenOptionsSingleSided, ThickenOptionsTwoSided, ThickenOptionsSymmetric }
	Settings to indicate how to apply the thickness to the mold face or offset mold face . More...

enum	ThicknessSourceOptions { ThicknessSourceOptionsFile, ThicknessSourceOptionsList }
	Settings to indicate where the material thickness source resides. More...

Public Member Functions
double	KnuckleRatio ()
	Returns the knuckle ratio, which is used to calcuate the knuckle bend radius by multiplying the plate thickness by the ratio.

double	KnuckleSmoothAngle ()
	Returns the knuckle smooth angle, which is used to determine whether a edge is knuckle edge or not.

NXOpen::Expression *	MassDensity ()
	Returns the material mass density.

NXString	MaterialGradeName ()
	Returns the material grade name.

int	MaterialGradeOption ()
	Returns the material grade option.

NXString	MaterialName ()
	Returns the material name.

int	MaterialOption ()
	Returns the material option.

NXOpen::Expression *	OppositeThickness ()
	Returns the opposite thickness.

bool	RestrictThicknessToMaterial ()
	Returns the flag that indicates if thickness specification should be restricted to that defined in the material data base.

void	SetKnuckleRatio (double knuckleRatio)
	Sets the knuckle ratio, which is used to calcuate the knuckle bend radius by multiplying the plate thickness by the ratio.

void	SetKnuckleSmoothAngle (double knuckleSmoothAngle)
	Sets the knuckle smooth angle, which is used to determine whether a edge is knuckle edge or not.

void	SetMaterialGradeName (const NXString &materiaGradelName)
	Sets the material grade name.

void	SetMaterialGradeName (const char *materiaGradelName)
	Sets the material grade name.

void	SetMaterialGradeOption (int materialGradeOption)
	Sets the material grade option.

void	SetMaterialName (const NXString &materialName)
	Sets the material name.

void	SetMaterialName (const char *materialName)
	Sets the material name.

void	SetMaterialOption (int materialOption)
	Sets the material option.

void	SetRestrictThicknessToMaterial (bool restrictThicknessToMaterial)
	Sets the flag that indicates if thickness specification should be restricted to that defined in the material data base.

void	SetThickenOption (NXOpen::Features::ShipDesign::PlateStockBuilder::ThickenOptions thickenOption)
	Sets the thicken option.

void	SetThicknessOption (int thicknessOption)
	Sets the thickness option.

void	SetThicknessSourceOption (NXOpen::Features::ShipDesign::PlateStockBuilder::ThicknessSourceOptions thicknessSourceOption)
	Sets the thickness source option.

NXOpen::Features::ShipDesign::PlateStockBuilder::ThickenOptions	ThickenOption ()
	Returns the thicken option.

NXOpen::Expression *	Thickness ()
	Returns the thickness.

int	ThicknessOption ()
	Returns the thickness option.

NXOpen::Features::ShipDesign::PlateStockBuilder::ThicknessSourceOptions	ThicknessSourceOption ()
	Returns the thickness source option.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This builder allows you to define the stock information for plate system features in ship design.

    It represents @link Features::ShipDesign::PlateStockBuilder Features::ShipDesign::PlateStockBuilder@endlink   <br> This class is sub-object of another builder, and cannot be directly instantiated.  <br>

Default values.

Property

Value

KnuckleRatio

3.0

KnuckleSmoothAngle

3.0

MaterialOption

0

OppositeThickness.Value

0 (millimeters part), 0 (inches part)

RestrictThicknessToMaterial

true

ThickenOption

SingleSided

Thickness.Value

10 (millimeters part), 0.5 (inches part)

ThicknessSourceOption

List

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::PlateStockBuilder::ThickenOptions

Settings to indicate how to apply the thickness to the mold face or offset mold face .

The front side of the offset mold face is defined by the client class using PlateStockBuilder .

Enumerator:

ThickenOptionsSingleSided	Thickness is applied to only the front side of the offset mold face.
ThickenOptionsTwoSided	The opposite thickness is applied to the back side of the offset mold face, thickness minus the opposite thickness is applied to the front side of the offset mold face.
ThickenOptionsSymmetric	Half of the thickness is applied to back and front sides of the offset mold face.

enum NXOpen::Features::ShipDesign::PlateStockBuilder::ThicknessSourceOptions

Settings to indicate where the material thickness source resides.

Enumerator:

ThicknessSourceOptionsFile	The thickness is defined by a table of standard thicknesses for different material and material grades in CSV file.
ThicknessSourceOptionsList	The thickness is defined by a list of standard thicknesses for different material and material grades.

Member Function Documentation

double NXOpen::Features::ShipDesign::PlateStockBuilder::KnuckleRatio ( )

Returns the knuckle ratio, which is used to calcuate the knuckle bend radius by multiplying the plate thickness by the ratio.

Created in NX9.0.0.

License requirements : None

double NXOpen::Features::ShipDesign::PlateStockBuilder::KnuckleSmoothAngle ( )

Returns the knuckle smooth angle, which is used to determine whether a edge is knuckle edge or not.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PlateStockBuilder::MassDensity ( )

Returns the material mass density.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::PlateStockBuilder::MaterialGradeName ( )

Returns the material grade name.

Created in NX8.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::PlateStockBuilder::MaterialGradeOption ( )

Returns the material grade option.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::PlateStockBuilder::MaterialName ( )

Returns the material name.

Created in NX8.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::PlateStockBuilder::MaterialOption ( )

Returns the material option.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PlateStockBuilder::OppositeThickness ( )

Returns the opposite thickness.

Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::PlateStockBuilder::RestrictThicknessToMaterial ( )

Returns the flag that indicates if thickness specification should be restricted to that defined in the material data base.

        true indicates it should be restricted, false indicates it is not restricted.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetKnuckleRatio ( double knuckleRatio )

Sets the knuckle ratio, which is used to calcuate the knuckle bend radius by multiplying the plate thickness by the ratio.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

knuckleRatio knuckleratio

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetKnuckleSmoothAngle ( double knuckleSmoothAngle )

Sets the knuckle smooth angle, which is used to determine whether a edge is knuckle edge or not.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

knuckleSmoothAngle knucklesmoothangle

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetMaterialGradeName ( const NXString & materiaGradelName )

Sets the material grade name.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

materiaGradelName materiagradelname

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetMaterialGradeName ( const char * materiaGradelName )

Sets the material grade name.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

materiaGradelName materiagradelname

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetMaterialGradeOption ( int materialGradeOption )

Sets the material grade option.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

materialGradeOption materialgradeoption

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetMaterialName ( const NXString & materialName )

Sets the material name.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

materialName materialname

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetMaterialName ( const char * materialName )

Sets the material name.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

materialName materialname

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetMaterialOption ( int materialOption )

Sets the material option.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

materialOption materialoption

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetRestrictThicknessToMaterial ( bool restrictThicknessToMaterial )

Sets the flag that indicates if thickness specification should be restricted to that defined in the material data base.

        true indicates it should be restricted, false indicates it is not restricted.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

restrictThicknessToMaterial restrictthicknesstomaterial

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetThickenOption ( NXOpen::Features::ShipDesign::PlateStockBuilder::ThickenOptions thickenOption )

Sets the thicken option.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

thickenOption thickenoption

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetThicknessOption ( int thicknessOption )

Sets the thickness option.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

thicknessOption thicknessoption

void NXOpen::Features::ShipDesign::PlateStockBuilder::SetThicknessSourceOption ( NXOpen::Features::ShipDesign::PlateStockBuilder::ThicknessSourceOptions thicknessSourceOption )

Sets the thickness source option.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

thicknessSourceOption thicknesssourceoption

NXOpen::Features::ShipDesign::PlateStockBuilder::ThickenOptions NXOpen::Features::ShipDesign::PlateStockBuilder::ThickenOption ( )

Returns the thicken option.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PlateStockBuilder::Thickness ( )

Returns the thickness.

Created in NX8.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::PlateStockBuilder::ThicknessOption ( )

Returns the thickness option.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PlateStockBuilder::ThicknessSourceOptions NXOpen::Features::ShipDesign::PlateStockBuilder::ThicknessSourceOption ( )

Returns the thickness source option.

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_PlateStockBuilder.hxx
