NXOpen::CAE::SimPart Class Reference

Represents an NX part of type .sim. More...

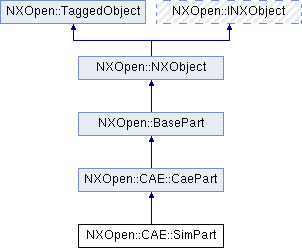

Inheritance diagram for NXOpen::CAE::SimPart:

Classes
struct	ImportErrorCodes
	Contains list of error codes for import of each entity type. More...
struct	ImportOptions
	Contains information about which entities to be imported. More...

Public Member Functions
NXOpen::CAE::CaePart *	FemPart ()
	Returns the fem part associated with the sim part.
void	FinalizeCreation (NXOpen::CAE::CaePart *femPart, std::vector< NXString > &description)
	Finalizes the creation of the sim part file.
void	FinalizeCreation (NXOpen::CAE::CaePart *femPart, int femLayerOpt, std::vector< NXString > &description)
	Finalizes the creation of the sim part file.
NXOpen::CAE::SimPart::ImportErrorCodes	ImportSim (const NXString &fileName, const NXString &prependString, const NXOpen::CAE::SimPart::ImportOptions &selOptions, const std::vector< NXOpen::CAE::FEModelOccurrence * > &selectedFemoccs)
	Imports selected entities from the source sim into the current (target) sim.
NXOpen::CAE::SimPart::ImportErrorCodes	ImportSim (const char *fileName, const char *prependString, const NXOpen::CAE::SimPart::ImportOptions &selOptions, const std::vector< NXOpen::CAE::FEModelOccurrence * > &selectedFemoccs)
	Imports selected entities from the source sim into the current (target) sim.
NXOpen::CAE::SimSimulation *	Simulation ()
	Returns the CAE::SimSimulation object Created in NX4.0.0.
Public Member Functions inherited from NXOpen::CAE::CaePart
NXOpen::CAE::CaeGroupCollection *	CaeGroups ()
	Returns the CAE Group collection belonging to this Part Created in NX3.0.0.
NXOpen::CAE::ModelDisplayBuilder *	CreateModelDisplayBuilder ()
	Creates a builder for model display controls command.
NXOpen::CAE::SolverAppendOption *	CreateSolverAppendOption ()
	Returns a solver append option object for importing the solver specific data into an existing CAE::FemPart or CAE::SimPart .
void	DeleteSolverAppendOption (NXOpen::CAE::SolverAppendOption *appendOption)
	Deletes a solver append option object for importing the solver specific data into an existing CAE::FemPart or CAE::SimPart .
NXOpen::CAE::ModelCheck::ElementQualitySettingCollection *	ElementQualitySettings ()
	Returns the element quality settings collection belonging to this CAE Part Created in NX8.5.0.
void	ExportJt (const NXString &fileName)
	Exports JT file.
void	ExportJt (const char *fileName)
	Exports JT file.
void	ExportSimulation (const NXString &solverName, NXOpen::CAE::CaeDataContainer *propertyList)
	Exports the Simulation data for a CAE::CaePart .
void	ExportSimulation (const char *solverName, NXOpen::CAE::CaeDataContainer *propertyList)
	Exports the Simulation data for a CAE::CaePart .
void	GetDescription (std::vector< NXString > &description)
	Gets the description assoicated with the Cae part.
void	ImportExistingSimulation (const NXString &solverName, NXOpen::CAE::CaeDataContainer *propertyList)
	Imports the solver specific data into an existing CAE::FemPart or CAE::SimPart .
void	ImportExistingSimulation (const char *solverName, NXOpen::CAE::CaeDataContainer *propertyList)
	Imports the solver specific data into an existing CAE::FemPart or CAE::SimPart .
NXOpen::CAE::MeshControlDisplayManager *	MeshControlDisplayMgr ()
	Returns the mesh control display manager belonging to this IFem Created in NX3.0.0.
NXOpen::CAE::ModelCheckManager *	ModelCheckMgr ()
	Returns the select element manager belonging to this IFem Created in NX3.0.0.
NXOpen::CAE::ModelingObjectPropertyTableCollection *	ModelingObjectPropertyTables ()
	Returns the modeling object property table collection belonging to this CAE Part Created in NX3.0.0.
NXOpen::CAE::BeamSectionOffsetOptions *	NewBeamSectionOffsetOptions ()
	Creates a CAE::BeamSectionOffsetOptions .
NXOpen::CAE::BeamSectionOptions *	NewBeamSectionOptions ()
	Creates a CAE::BeamSectionOptions .
NXOpen::CAE::BeamSectionOrientationOptions *	NewBeamSectionOrientationOptions ()
	Creates a CAE::BeamSectionOrientationOptions .
NXOpen::CAE::MaterialOptions *	NewMaterialOptions ()
	Creates a CAE::MaterialOptions .
NXOpen::CAE::NodeElementInfoManager *	NodeElementInfoMgr ()
	Returns the node element info manager belonging to this IFem Created in NX3.0.0.
NXOpen::CAE::PhysicalPropertyTableCollection *	PhysicalPropertyTables ()
	Returns the physical property table collection belonging to this CAE Part Created in NX3.0.0.
NXOpen::CAE::SelectElementsManager *	SelectElementMgr ()
	Returns the select element manager belonging to this IFem Created in NX3.0.0.
void	SetDescription (std::vector< NXString > &description)
	Sets the description assoicated with the Cae part.
NXOpen::CAE::ShowHideManager *	ShowHideMgr ()
	Returns the show hide manager belonging to the part Created in NX3.0.0.
NXOpen::CAE::SmartSelectionManager *	SmartSelectionMgr ()
	Returns the smart selection manager belonging to this part Created in NX3.0.0.
Public Member Functions inherited from NXOpen::BasePart
NXOpen::GeometricAnalysis::AnalysisManager *	AnalysisManager ()
	Returns the GeometricAnalysisManager for part Created in NX5.0.0.
NXOpen::ArcCollection *	Arcs ()
	Returns the ArcCollection instance belonging to this part Created in NX3.0.0.
NXOpen::Assemblies::ProductOutlineManager *	Assemblies ()
	Returns the NXOpen::Assemblies::ProductOutlineManager belonging to this session Created in NX6.0.0.
NXOpen::Assemblies::AssemblyManager *	AssemblyManager ()
	Returns the NXOpen::Assemblies::AssemblyManager belonging to this session Created in NX6.0.0.
void	AssignPermanentName (const NXString &newFileName)
	Saves a temporary part with the given name.
void	AssignPermanentName (const char *newFileName)
	Saves a temporary part with the given name.
NXOpen::AxisCollection *	Axes ()
	Returns the AxisCollection instance belonging to this part Created in NX3.0.0.
NXOpen::Features::BaseFeatureCollection *	BaseFeatures ()
	Returns the FeatureCollection instance belonging to this part Created in NX3.0.0.
NXOpen::Display::CameraCollection *	Cameras ()
	Returns the Display.CameraCollection instance belonging to this part Created in NX3.0.0.
NXOpen::CAM::CAMFeatureCollection *	CAMFeatures ()
	Returns the CAMFeatureCollection instance belonging to this part Created in NX7.5.0.
void	Close (NXOpen::BasePart::CloseWholeTree wholeTree, NXOpen::BasePart::CloseModified closeModified, NXOpen::PartCloseResponses *responses)
	Closes an open part.
NXOpen::ColorManager *	Colors ()
	Manages the standard NX colors Created in NX3.0.0.
void	CompleteStructure ()
	Make additions necessary to complete the incomplete assembly structure of the input part Created in NX4.0.0.
NXOpen::Assemblies::ComponentAssembly *	ComponentAssembly ()
	Returns the component assembly.
NXOpen::CoordinateSystemCollection *	CoordinateSystems ()
	Returns the CoordinateSystemCollection instance belonging to this part Created in NX3.0.0.
NXOpen::Display::DynamicSectionBuilder *	CreateDynamicSectionBuilder (bool loadFromView)
	Creates a Display::DynamicSectionBuilder The base part must be a displayable part, otherwise an exception will be thrown.
NXOpen::EffectivityConditionBuilder *	CreateEffectivityConditionBuilder (NXOpen::CollaborativeDesign *cd, const NXString &effectivityFormula)
	Creates a EffectivityConditionBuilder.
NXOpen::EffectivityConditionBuilder *	CreateEffectivityConditionBuilder (NXOpen::CollaborativeDesign *cd, const char *effectivityFormula)
	Creates a EffectivityConditionBuilder.
NXOpen::EffectivityConditionBuilder *	CreateEffectivityConditionBuilder (NXOpen::CollaborativeDesign *cd, const NXString &validationBasisFormula, const NXString &effectivityFormula)
	Creates a EffectivityConditionBuilder with initializing validation basis formula.
NXOpen::EffectivityConditionBuilder *	CreateEffectivityConditionBuilder (NXOpen::CollaborativeDesign *cd, const char *validationBasisFormula, const char *effectivityFormula)
	Creates a EffectivityConditionBuilder with initializing validation basis formula.
NXOpen::Display::FacetSettingsBuilder *	CreateFacetSettingsBuilder ()
	Creates a builder for the Facet Settings dialog.
NXOpen::GroupBuilder *	CreateGatewayGroupBuilder (NXOpen::Group *group)
	Creates a Groups builder.
NXOpen::Display::PerspectiveOptionsBuilder *	CreatePerspectiveOptionsBuilder ()
	Creates a builder for the Perspective Options dialog.
NXOpen::ReferenceSet *	CreateReferenceSet ()
	Creates a ReferenceSet object.
NXOpen::CurveCollection *	Curves ()
	Returns the CurveCollection instance belonging to this part Created in NX3.0.0.
NXOpen::DatumCollection *	Datums ()
	Returns the DatumCollection instance belonging to this part Created in NX3.0.0.
NXOpen::Display::DecalCollection *	Decals ()
	Returns the Display.DecalCollection instance belonging to this part Created in NX3.0.0.
void	DeleteReferenceSet (NXOpen::ReferenceSet *referenceSetObject)
	Deletes a ReferenceSet object Created in NX6.0.0.
NXOpen::Optimization::DesignStudyCollection *	DesignStudy ()
	Returns the design study instance belonging to this part Created in NX3.0.0.
NXOpen::DirectionCollection *	Directions ()
	Returns the DirectionCollection instance belonging to this part Created in NX3.0.0.
NXOpen::Display::DynamicSectionCollection *	DynamicSections ()
	Returns the Display.DynamicSectionCollection instance belonging to this part Created in NX6.0.0.
NXOpen::EllipseCollection *	Ellipses ()
	Returns the EllipseCollection instance belonging to this part Created in NX3.0.0.
NXOpen::ExpressionCollection *	Expressions ()
	Returns the ExpressionCollection instance belonging to this part Created in NX3.0.0.
NXOpen::Fields::FieldManager *	FieldManager ()
	Returns the field main.
NXOpen::FontCollection *	Fonts ()
	Returns the FontCollection instance belonging to this part Created in NX3.0.0.
NXString	FullPath ()
	Returns the full path of the part.
NXOpen::CAE::FunctionCollection *	Functions ()
	Returns the CAE.FunctionCollection for this part Created in NX5.0.0.
std::vector < NXOpen::ReferenceSet * >	GetAllReferenceSets ()
	Get all the ReferenceSet objects in this part.
NXOpen::BasePart::CollaborativeContentType	GetCollaborativeContentType ()
	The collaborative content type of this part.
std::vector < NXOpen::BasePart::HistoryEventInformation >	GetHistoryInformation ()
	Get history of part.
NXOpen::BasePart::IncompleteStatus	GetIncompleteStatus ()
	Inquire whether the provided part is flagged as being incomplete.
NXString	GetMakeUniqueName ()
	Gets the Unique name on a part for the Make Unique operation.
void	GetPreviewImage (int *width, int *height, std::vector< int > &pixels)
	Get the preview image This will return the graphic preview image of the part (when available).
NXOpen::BasePart::TransientStatus	GetTransientStatus ()
	Inquire whether the provided part is flagged as being transient.
NXOpen::Display::GridCollection *	Grids ()
	Returns the Display.GridCollection instance belonging to this part Created in NX6.0.0.
NXOpen::HyperbolaCollection *	Hyperbolas ()
	Returns the HyperbolaCollection instance belonging to this part Created in NX3.0.0.
NXOpen::Gateway::ImageCaptureManager *	ImageCaptureManager ()
	Returns the Gateway.ImageCaptureManager instance belonging to this part Created in NX7.5.0.
NXOpen::Display::ImageCollection *	Images ()
	Returns the Display.ImageCollection instance belonging to this part Created in NX9.0.0.
NXOpen::Display::ImageDataCollection *	ImagesData ()
	Returns the Display.ImageDataCollection instance belonging to this part Created in NX9.0.0.
NXOpen::InfiniteLineCollection *	InfiniteLines ()
	Returns the InfiniteLineCollection instance belonging to this part Created in NX7.5.0.
bool	IsFullyLoaded ()
	Returns the load status of a part.
bool	IsReadOnly ()
	Returns the read-only status of a part.
NXOpen::Layer::CategoryCollection *	LayerCategories ()
	Returns a collection of layer categories Created in NX3.0.0.
NXOpen::Layer::LayerManager *	Layers ()
	Returns the LayerManager for this part Created in NX3.0.0.
NXOpen::LayoutCollection *	Layouts ()
	Returns the LayoutCollection instance belonging to this part Created in NX3.0.0.
NXString	Leaf ()
	Returns the leaf name of the part.
NXOpen::LightCollection *	Lights ()
	Returns the LightCollection instance belonging to this part Created in NX3.0.0.
NXOpen::LineCollection *	Lines ()
	Returns the LineCollection instance belonging to this part Created in NX3.0.0.
NXOpen::PartLoadStatus *	LoadFeatureDataForSelection ()
	Ensure that feature data is loaded for a part.
NXOpen::PartLoadStatus *	LoadFully ()
	Ensures that this part is fully loaded.
NXOpen::PartLoadStatus *	LoadThisPartFully ()
	Ensures that this part is fully loaded.
NXOpen::MaterialManager *	MaterialManager ()
	Returns the Material Manager belonging to this Part Created in NX3.0.0.
NXOpen::MeasureManager *	MeasureManager ()
	Returns the measure manager for this part Created in NX3.0.0.
NXOpen::ModelingViewCollection *	ModelingViews ()
	Returns the ModelingViewCollection instance belonging to this part Created in NX3.0.0.
NXOpen::NXMatrixCollection *	NXMatrices ()
	Returns the NXMatrixCollection instance belonging to this part Created in NX3.0.0.
NXOpen::OffsetCollection *	Offsets ()
	Returns the OffsetCollection instance belonging to this part Created in NX3.0.0.
NXOpen::Optimization::OptimizationCollection *	Optimization ()
	Returns the optimization instance belonging to this part Created in NX3.0.0.
NXOpen::ParabolaCollection *	Parabolas ()
	Returns the ParabolaCollection instance belonging to this part Created in NX3.0.0.
NXOpen::BasePart::PartPreview	PartPreviewMode ()
	Returns the preview mode Created in NX3.0.0.
NXOpen::BasePart::Units	PartUnits ()
	Returns the units of the part file.
NXOpen::PDM::PdmPart *	PDMPart ()
	Returns the instance of the PDM.PdmPart class Created in NX3.0.0.
NXOpen::PlaneCollection *	Planes ()
	Return a collection of Planes Created in NX3.0.0.
NXOpen::PlotManager *	PlotManager ()
	Returns the PlotManager instance belonging to this part Created in NX3.0.0.
NXOpen::PointCollection *	Points ()
	Returns the PointCollection instance belonging to this part Created in NX3.0.0.
NXOpen::Preferences::PartPreferences *	Preferences ()
	Returns the PartPreferences instance belonging to this part Created in NX3.0.0.
NXOpen::PropertiesManager *	PropertiesManager ()
	Returns the PropertiesManager instance belonging to this part Created in NX8.0.0.
void	RegenerateDisplayFacets (bool regenerateChildren)
	Regenerates display specific cached facets in the part.
void	ReinstateTransience ()
	Reinstate the transient status to the formerly transient input part Created in NX4.0.0.
void	RemoveTransience ()
	Remove the transient status from the input part Created in NX4.0.0.
NXOpen::BasePart *	Reopen (NXOpen::BasePart::CloseWholeTree wholeTree, NXOpen::BasePart::CloseModified closeModified, NXOpen::PartCloseResponses *responses, NXOpen::PartReopenReport **reopenReport)
	Reopens a loaded part.
NXOpen::BasePart *	ReopenAs (const NXString &fileName, NXOpen::BasePart::CloseModified closeModified, NXOpen::PartCloseResponses *responses, NXOpen::PartReopenReport **reopenReport)
	Reopens a loaded part.
NXOpen::BasePart *	ReopenAs (const char *fileName, NXOpen::BasePart::CloseModified closeModified, NXOpen::PartCloseResponses *responses, NXOpen::PartReopenReport **reopenReport)
	Reopens a loaded part.
NXOpen::Validate::RequirementCheckCollection *	RequirementChecks ()
	Returns the RequirementCheckCollection instance belonging to this part Created in NX8.5.0.
NXOpen::Validate::RequirementCollection *	Requirements ()
	Returns the RequirementCollection instance belonging to this part Created in NX8.5.0.
void	ReverseBlankAll ()
	Reverse blank all the objects in the part.
NXOpen::RuleManager *	RuleManager ()
	Returns the rule manager for this part Created in NX3.0.0.
NXOpen::PartSaveStatus *	Save (NXOpen::BasePart::SaveComponents saveComponentParts, NXOpen::BasePart::CloseAfterSave close)
	Saves the part whether it is modified or not.
NXOpen::PartSaveStatus *	SaveAs (const NXString &newFileName)
	Creates copy of target part.
NXOpen::PartSaveStatus *	SaveAs (const char *newFileName)
	Creates copy of target part.
void	SaveBookmark (const NXString &fileName, NXOpen::BasePart::BookmarkOption option)
	Saves a bookmark file.
void	SaveBookmark (const char *fileName, NXOpen::BasePart::BookmarkOption option)
	Saves a bookmark file.
bool	SaveDisplayFacets ()
	Returns whether display quality facets are saved in the part file Created in NX9.0.0.
NXOpen::PartSaveOptions *	SaveOptions ()
	Returns the PartSaveOptions instance belonging to this part Created in NX3.0.0.
NXOpen::ScalarCollection *	Scalars ()
	Returns the ScalarCollection instance belonging to this part Created in NX3.0.0.
NXOpen::ScCollectorCollection *	ScCollectors ()
	Returns the ScCollectorCollection instance belonging to this part Created in NX3.0.0.
NXOpen::SectionCollection *	Sections ()
	Returns the SectionCollection instance belonging to this part Created in NX3.0.0.
NXOpen::Display::SelPrefCollection *	SelPref ()
	Returns the Display.SelPrefCollection instance belonging to this part Created in NX3.0.0.
void	SetMakeUniqueName (const NXString &newUniqueName)
	Sets the unique name on part for the Make Unique operation Created in NX8.0.0.
void	SetMakeUniqueName (const char *newUniqueName)
	Sets the unique name on part for the Make Unique operation Created in NX8.0.0.
void	SetPartPreviewMode (NXOpen::BasePart::PartPreview mode)
	Sets the preview mode Created in NX3.0.0.
void	SetSaveDisplayFacets (bool saveDisplayFacets)
	Sets whether display quality facets are saved in the part file Created in NX9.0.0.
void	SetUniqueIdentifier (const NXString &identifier)
	Sets the unique identifier for this part used to determine whether parts can be quietly substituted during part open.
void	SetUniqueIdentifier (const char *identifier)
	Sets the unique identifier for this part used to determine whether parts can be quietly substituted during part open.
NXOpen::Display::TrueShadingCollection *	SHEDObjs ()
	Returns the Display.TrueShadingCollection instance belonging to this part Created in NX3.0.0.
NXOpen::SplineCollection *	Splines ()
	Returns the SplineCollection instance belonging to this part Created in NX5.0.0.
NXOpen::Display::TrueStudioCollection *	TrueStudioObjs ()
	Returns the Display.TrueStudioCollection instance belonging to this part Created in NX8.0.0.
NXString	UniqueIdentifier ()
	Returns the unique identifier for this part used to determine whether parts can be quietly substituted during part open.
NXOpen::UnitCollection *	UnitCollection ()
	Returns a collection of Units Created in NX3.0.0.
NXOpen::UserDefinedObjects::UserDefinedObjectManager *	UserDefinedObjectManager ()
	Returns the UserDefinedObjects::UserDefinedObjectManager belonging to this session Created in NX3.0.0.
NXOpen::ValidationCollection *	Validations ()
	Returns the validation for this part Created in NX3.0.0.
NXOpen::ViewCollection *	Views ()
	Returns the ViewCollection instance belonging to this part Created in NX3.0.0.
NXOpen::WCS *	WCS ()
	Returns the WCS instance belonging to this part Created in NX3.0.0.
NXOpen::XformCollection *	Xforms ()
	Returns the XformCollection instance belonging to this part Created in NX3.0.0.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::BasePart
enum	BookmarkOption {   BookmarkOptionAll, BookmarkOptionComponentGroupsLoadOptions, BookmarkOptionComponentGroupsOnly, BookmarkOptionAllPlusDisplay,   BookmarkOptionComponentGroupsLoadOptionsPlusDisplay, BookmarkOptionComponentGroupsOnlyPlusDisplay, BookmarkOptionDisplayOnly }
	Controls the information written to a bookmark file. More...
enum	CloseAfterSave { CloseAfterSaveFalse, CloseAfterSaveTrue }
	Used to specify whether a part should be closed after it is saved. More...
enum	CloseModified { CloseModifiedUseResponses, CloseModifiedCloseModified, CloseModifiedDontCloseModified }
	Indicates how part close should handle component parts when they are modified. More...
enum	CloseWholeTree { CloseWholeTreeFalse, CloseWholeTreeTrue }
	Used to specify whether or not to close a part's components during a close operation. More...
enum	CollaborativeContentType { CollaborativeContentTypeWorkset, CollaborativeContentTypeSubset, CollaborativeContentTypeShapeDesignElement, CollaborativeContentTypeNotAssigned }
	Represents the collaborative content type corresponding to this part. More...
enum	PartPreview { PartPreviewNone, PartPreviewOnSave, PartPreviewOnDemand }
	Specifies the preview mode of the part file. More...
enum	SaveComponents { SaveComponentsFalse, SaveComponentsTrue }
	Used to specify whether a part's components should be saved (if modified) when the part is saved. More...
enum	Units { UnitsInches, UnitsMillimeters }
	The units of the part file. More...

Detailed Description

Represents an NX part of type .sim.

Use the PartCollection class to load or create a part.

Created in NX4.0.0.

Member Function Documentation

NXOpen::CAE::CaePart* NXOpen::CAE::SimPart::FemPart

(

)

Returns the fem part associated with the sim part.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimPart::FinalizeCreation	(	NXOpen::CAE::CaePart *	femPart,
		std::vector< NXString > &	description
	)

Finalizes the creation of the sim part file.

       This method should be called immediately after
       creating the sim part file.
       This method should be called only once for
       each sim part file. The second call to the
       method will raise an error.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

femPart	the fem part file CAE::FemPart
description	description NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::SimPart::FinalizeCreation	(	NXOpen::CAE::CaePart *	femPart,
		int	femLayerOpt,
		std::vector< NXString > &	description
	)

Finalizes the creation of the sim part file.

       This method should be called immediately after
       creating the sim part file.
       This method should be called only once for
       each sim part file. The second call to the
       method will raise an error.

Created in NX6.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

femPart	the fem part file CAE::FemPart
femLayerOpt	layer option. -1 = USE_ORIGINAL, 0 = USE_WORK
description	description NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimPart::ImportErrorCodes NXOpen::CAE::SimPart::ImportSim	(	const NXString &	fileName,
		const NXString &	prependString,
		const NXOpen::CAE::SimPart::ImportOptions &	selOptions,
		const std::vector< NXOpen::CAE::FEModelOccurrence * > &	selectedFemoccs
	)

Imports selected entities from the source sim into the current (target) sim.

   The FeModelOccurrence of the target sim onto which the user needs to import needs to be
   passed in. The input will be an array of FeModelOccurrences, if user wants
   to import the same source sim onto multiple FeModelOccurrences of the target sim.  @return  list of generated error codes during import

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

fileName	name of the source simulation file NOTE: The full Unicode character set is not supported for this parameter.
prependString	string to prepend imported simulation entity names, can be NULL or empty NOTE: The full Unicode character set is not supported for this parameter.
selOptions	options indicating the types of entities to be imported
selectedFemoccs	Array of FeModelOccurrences to import onto CAE::FEModelOccurrence

NXOpen::CAE::SimPart::ImportErrorCodes NXOpen::CAE::SimPart::ImportSim	(	const char *	fileName,
		const char *	prependString,
		const NXOpen::CAE::SimPart::ImportOptions &	selOptions,
		const std::vector< NXOpen::CAE::FEModelOccurrence * > &	selectedFemoccs
	)

Imports selected entities from the source sim into the current (target) sim.

   The FeModelOccurrence of the target sim onto which the user needs to import needs to be
   passed in. The input will be an array of FeModelOccurrences, if user wants
   to import the same source sim onto multiple FeModelOccurrences of the target sim.  @return  list of generated error codes during import

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

fileName	name of the source simulation file NOTE: The full Unicode character set is not supported for this parameter.
prependString	string to prepend imported simulation entity names, can be NULL or empty NOTE: The full Unicode character set is not supported for this parameter.
selOptions	options indicating the types of entities to be imported
selectedFemoccs	Array of FeModelOccurrences to import onto CAE::FEModelOccurrence

NXOpen::CAE::SimSimulation* NXOpen::CAE::SimPart::Simulation

(

)

Returns the CAE::SimSimulation object
Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

---

The documentation for this class was generated from the following file:

• CAE_SimPart.hxx
