This is the root object in a .sim file. More...

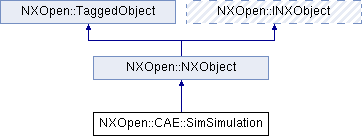

Inheritance diagram for NXOpen::CAE::SimSimulation:

Public Member Functions
NXOpen::CAE::SimSolution *	ActiveSolution ()
	Returns the active solution.

void	AddBc (NXOpen::CAE::SimBC bc, NXOpen::CAE::SimSolution solution, NXOpen::CAE::SimSolutionStep *solutionStep)
	Adds the boundary condition to the step in the solution passed.

NXOpen::CAE::CaeDOFSetCollection *	CaeDOFSets ()
	Returns the CAE DOFSet collection belonging to this sim part Created in NX7.5.0.

NXOpen::CAE::CaeRegionCollection *	CaeRegions ()
	Returns the CAE region collection belonging to this sim part Created in NX7.5.0.

NXOpen::CAE::SimSolution *	CloneSolution (NXOpen::CAE::SimSolution *oldSolution, const NXString &suggestedName)
	Clone the solution.

NXOpen::CAE::SimSolution *	CloneSolution (NXOpen::CAE::SimSolution oldSolution, const char suggestedName)
	Clone the solution.

NXOpen::CAE::SimConditionSeqMgr *	ConditionSeqManager ()
	Returns the Condition Sequence Manager Created in NX9.0.0.

NXOpen::CAE::SimConstraintCollection *	Constraints ()
	Returns the constraint collection belonging to this sim part Created in NX3.0.0.

NXOpen::CAE::CorrelManager *	CorrelManager ()
	Returns the correl manager belonging to this sim part Created in NX3.0.0.

NXOpen::CAE::AutoBCBuilder *	CreateAutoBcBuilder (const NXString &pcBCDescName, const NXString &pcRecipeName)
	Creates a CAE::AutoBCBuilder.

NXOpen::CAE::AutoBCBuilder *	CreateAutoBcBuilder (const char pcBCDescName, const char pcRecipeName)
	Creates a CAE::AutoBCBuilder.

NXOpen::CAE::AutoPairsBuilder *	CreateAutoPairsBuilder (const NXString &pcBCDescName)
	Creates a CAE::AutoPairsBuilder.

NXOpen::CAE::AutoPairsBuilder *	CreateAutoPairsBuilder (const char *pcBCDescName)
	Creates a CAE::AutoPairsBuilder.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForBc (NXOpen::CAE::SimBC *bc)
	Creates a BC builder for the BC passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForConstraintDescriptor (const NXString &bcDescName, const NXString &bcName)
	Creates a BC builder for the constraint descriptor passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForConstraintDescriptor (const char bcDescName, const char bcName)
	Creates a BC builder for the constraint descriptor passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForConstraintDescriptor (const NXString &bcDescName, const NXString &bcName, int label)
	Creates a BC builder for the constraint descriptor passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForConstraintDescriptor (const char bcDescName, const char bcName, int label)
	Creates a BC builder for the constraint descriptor passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForLoadDescriptor (const NXString &bcDescName, const NXString &bcName)
	Creates a BC builder for the load descriptor passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForLoadDescriptor (const char bcDescName, const char bcName)
	Creates a BC builder for the load descriptor passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForLoadDescriptor (const NXString &bcDescName, const NXString &bcName, int label)
	Creates a BC builder for the load descriptor passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForLoadDescriptor (const char bcDescName, const char bcName, int label)
	Creates a BC builder for the load descriptor passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForSimulationObjectDescriptor (const NXString &bcDescName, const NXString &bcName)
	Creates a BC builder for the simulation object descriptor passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForSimulationObjectDescriptor (const char bcDescName, const char bcName)
	Creates a BC builder for the simulation object descriptor passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForSimulationObjectDescriptor (const NXString &bcDescName, const NXString &bcName, int label)
	Creates a BC builder for the simulation object descriptor passed.

NXOpen::CAE::SimBCBuilder *	CreateBcBuilderForSimulationObjectDescriptor (const char bcDescName, const char bcName, int label)
	Creates a BC builder for the simulation object descriptor passed.

NXOpen::CAE::CaeRegionBuilder *	CreateCaeRegionBuilder (const NXString &pcRegionDescName, NXOpen::CAE::CaeRegion *tRegion)
	Creates a CAE::CaeRegionBuilder.

NXOpen::CAE::CaeRegionBuilder *	CreateCaeRegionBuilder (const char pcRegionDescName, NXOpen::CAE::CaeRegion tRegion)
	Creates a CAE::CaeRegionBuilder.

NXOpen::CAE::LaminateMetaSolBuilder *	CreateLaminateMetaSolBuilder (NXOpen::CAE::LaminateMetaSol *tMetaSol)
	Creates a CAE::LaminateMetaSolBuilder.

NXOpen::CAE::LaminateQuickPostReportBuilder *	CreateLaminateQuickPostReportBuilder (NXOpen::CAE::LaminateQuickPostReport *tSpec)
	Creates a CAE::LaminateQuickPostReportBuilder.

NXOpen::CAE::SimMotionLoadsBuilder *	CreateMotionLoadsBuilder ()
	Creates a CAE::SimMotionLoadsBuilder.

NXOpen::CAE::SimMotionLoadsListItemBuilder *	CreateMotionLoadsListItemBuilder ()
	Creates a CAE::SimMotionLoadsListItemBuilder.

NXOpen::CAE::SimBcPlotContoursBuilder *	CreateSimBcPlotContoursBuilder ()
	Creates a CAE::SimBcPlotContoursBuilder.

NXOpen::CAE::SimBcXyPlotBuilder *	CreateSimBcXyPlotBuilder ()
	Creates a CAE::SimBcXyPlotBuilder.

NXOpen::CAE::SimSolution *	CreateSolution (const NXString &solverType, const NXString &analysisType, const NXString &solutionType, const NXString &name)
	Creates a solution.

NXOpen::CAE::SimSolution *	CreateSolution (const char solverType, const char analysisType, const char solutionType, const char name)
	Creates a solution.

NXOpen::CAE::SimSolution *	CreateSolution (NXOpen::CAE::SimConditionSequence *conditionSeqeunce, const NXString &solverType, const NXString &analysisType, const NXString &solutionType, const NXString &name)
	Creates a solution from a condition sequence.

NXOpen::CAE::SimSolution *	CreateSolution (NXOpen::CAE::SimConditionSequence conditionSeqeunce, const char solverType, const char analysisType, const char solutionType, const char *name)
	Creates a solution from a condition sequence.

NXOpen::CAE::SimSolution *	CreateSolution (NXOpen::CAE::SimConditionSequence *conditionSeqeunce, int numSteps, const NXString &solverType, const NXString &analysisType, const NXString &solutionType, const NXString &name)
	Creates a solution from a condition sequence and number of integration steps.

NXOpen::CAE::SimSolution *	CreateSolution (NXOpen::CAE::SimConditionSequence conditionSeqeunce, int numSteps, const char solverType, const char analysisType, const char solutionType, const char *name)
	Creates a solution from a condition sequence and number of integration steps.

NXOpen::CAE::SimSolution *	CreateSolution (NXOpen::CAE::SimConditionSequence conditionSeqeunce, double stepSize, NXOpen::Unit stepUnit, const NXString &solverType, const NXString &analysisType, const NXString &solutionType, const NXString &name)
	Creates a solution from a condition sequence and integration step size.

NXOpen::CAE::SimSolution *	CreateSolution (NXOpen::CAE::SimConditionSequence conditionSeqeunce, double stepSize, NXOpen::Unit stepUnit, const char solverType, const char analysisType, const char solutionType, const char name)
	Creates a solution from a condition sequence and integration step size.

NXOpen::CAE::SimSolutionStep *	CreateSolutionStep (NXOpen::CAE::SimSolution *solution, int stepType, const NXString &name)
	Creates a step and add to the solution.

NXOpen::CAE::SimSolutionStep *	CreateSolutionStep (NXOpen::CAE::SimSolution solution, int stepType, const char name)
	Creates a step and add to the solution.

void	DeleteSolution (NXOpen::CAE::SimSolution *solution)
	Delete the solution.

NXOpen::CAE::DurabilityManager *	DurabilityManager ()
	Returns the durability manager belonging to this sim part Created in NX7.5.0.

NXOpen::CAE::FEModelOccurrence *	Femodel ()
	Returns the femodeloccurrence CAE::FEModelOccurrence assoicated with the simulation object.

NXOpen::CAE::LaminateManager *	LaminateManager ()
	Returns the laminate manager belonging to this sim part Created in NX8.0.0.

NXOpen::CAE::SimLbcFolderCollection *	LbcFolders ()
	Returns the CAE SimLbcFolder collection belonging to this sim part Created in NX9.0.0.

NXOpen::CAE::SimLoadCollection *	Loads ()
	Returns the load collection belonging to this sim part Created in NX3.0.0.

NXOpen::CAE::Optimization::DAOOptimizationManager *	OptimizationManager ()
	Returns the Design and Analysis optimization manager belonging to this sim part Created in NX8.0.0.

NXOpen::CAE::ResponseSimulation::Manager *	ResponseSimulationManager ()
	Returns the response simulation manager belonging to this sim part Created in NX3.0.0.

NXOpen::CAE::ResultMeasureCollection *	ResultMeasures ()
	Returns the CAE ResultMeasure collection belonging to this sim part Created in NX8.0.0.

void	SetActiveSolution (NXOpen::CAE::SimSolution *activeSolution)
	Sets the active solution.

NXOpen::CAE::SimSimulationObjectCollection *	SimulationObjects ()
	Returns the simulation object collection belonging to this sim part Created in NX3.0.0.

NXOpen::CAE::SimRecipeCollection *	SimulationRecipes ()
	Returns the simulation recipe collection belonging to this sim part Created in NX3.0.0.

NXOpen::CAE::SimSolutionCollection *	Solutions ()
	Returns the CAE Solution collection belonging to this sim part Created in NX7.5.0.

NXOpen::CAE::Optimization::TBSOptimizationManager *	TBSOptimizationManager ()
	Returns the optimization manager belonging to this sim part Created in NX8.0.0.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Detailed Description

This is the root object in a .sim file.

Only one instance of this class will exist in each fem part file

To obtain an instance of this class, use CAE::SimPart::Simulation

Created in NX4.0.0.

Member Function Documentation

NXOpen::CAE::SimSolution* NXOpen::CAE::SimSimulation::ActiveSolution ( )

Returns the active solution.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSimulation::AddBc	(	NXOpen::CAE::SimBC *	bc,
		NXOpen::CAE::SimSolution *	solution,
		NXOpen::CAE::SimSolutionStep *	solutionStep
	)

Adds the boundary condition to the step in the solution passed.

       If solution is NULL then the boundary condition is added to the active solution
       If step is NULL then the boundary condition is added to the active step

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bc	bc object
solution	solution
solutionStep	solution step

NXOpen::CAE::CaeDOFSetCollection* NXOpen::CAE::SimSimulation::CaeDOFSets ( )

Returns the CAE DOFSet collection belonging to this sim part
Created in NX7.5.0.

NXOpen::CAE::CaeRegionCollection* NXOpen::CAE::SimSimulation::CaeRegions ( )

Returns the CAE region collection belonging to this sim part
Created in NX7.5.0.

NXOpen::CAE::SimSolution* NXOpen::CAE::SimSimulation::CloneSolution	(	NXOpen::CAE::SimSolution *	oldSolution,
		const NXString &	suggestedName
	)

Clone the solution.

     @return  the  newly created @link CAE::SimSolution CAE::SimSolution@endlink

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

oldSolution	the CAE::SimSolution to be cloned
suggestedName	name to use instead of default name (may be NULL) NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimSolution* NXOpen::CAE::SimSimulation::CloneSolution	(	NXOpen::CAE::SimSolution *	oldSolution,
		const char *	suggestedName
	)

Clone the solution.

     @return  the  newly created @link CAE::SimSolution CAE::SimSolution@endlink

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

oldSolution	the CAE::SimSolution to be cloned
suggestedName	name to use instead of default name (may be NULL) NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimConditionSeqMgr* NXOpen::CAE::SimSimulation::ConditionSeqManager ( )

Returns the Condition Sequence Manager
Created in NX9.0.0.

License requirements : None

NXOpen::CAE::SimConstraintCollection* NXOpen::CAE::SimSimulation::Constraints ( )

Returns the constraint collection belonging to this sim part
Created in NX3.0.0.

NXOpen::CAE::CorrelManager* NXOpen::CAE::SimSimulation::CorrelManager ( )

Returns the correl manager belonging to this sim part
Created in NX3.0.0.

NXOpen::CAE::AutoBCBuilder* NXOpen::CAE::SimSimulation::CreateAutoBcBuilder	(	const NXString &	pcBCDescName,
		const NXString &	pcRecipeName
	)

Creates a CAE::AutoBCBuilder.

Returns: The AutoBCBuilder object
Created in NX6.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

pcBCDescName	The neutral name of the LBCDescriptor. NOTE: The full Unicode character set is not supported for this parameter.
pcRecipeName	The name of the AutoBCRecipe NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::AutoBCBuilder* NXOpen::CAE::SimSimulation::CreateAutoBcBuilder	(	const char *	pcBCDescName,
		const char *	pcRecipeName
	)

Creates a CAE::AutoBCBuilder.

Returns: The AutoBCBuilder object
Created in NX6.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

pcBCDescName	The neutral name of the LBCDescriptor. NOTE: The full Unicode character set is not supported for this parameter.
pcRecipeName	The name of the AutoBCRecipe NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::AutoPairsBuilder* NXOpen::CAE::SimSimulation::CreateAutoPairsBuilder ( const NXString & pcBCDescName )

Creates a CAE::AutoPairsBuilder.

Returns: The AutoPairsBuilder object
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

pcBCDescName The neutral name of the AutoPairsDescriptor.
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::AutoPairsBuilder* NXOpen::CAE::SimSimulation::CreateAutoPairsBuilder ( const char * pcBCDescName )

Creates a CAE::AutoPairsBuilder.

Returns: The AutoPairsBuilder object
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

pcBCDescName The neutral name of the AutoPairsDescriptor.
NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForBc ( NXOpen::CAE::SimBC * bc )

Creates a BC builder for the BC passed.

     @return  bc builder

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bc bc object

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForConstraintDescriptor	(	const NXString &	bcDescName,
		const NXString &	bcName
	)

Creates a BC builder for the constraint descriptor passed.

     @return  bc builder

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the constraint descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the constraint to be created NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForConstraintDescriptor	(	const char *	bcDescName,
		const char *	bcName
	)

Creates a BC builder for the constraint descriptor passed.

     @return  bc builder

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the constraint descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the constraint to be created NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForConstraintDescriptor	(	const NXString &	bcDescName,
		const NXString &	bcName,
		int	label
	)

Creates a BC builder for the constraint descriptor passed.

     @return  bc builder

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the constraint descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the constraint to be created NOTE: The full Unicode character set is not supported for this parameter.
label	constraint label

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForConstraintDescriptor	(	const char *	bcDescName,
		const char *	bcName,
		int	label
	)

Creates a BC builder for the constraint descriptor passed.

     @return  bc builder

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the constraint descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the constraint to be created NOTE: The full Unicode character set is not supported for this parameter.
label	constraint label

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForLoadDescriptor	(	const NXString &	bcDescName,
		const NXString &	bcName
	)

Creates a BC builder for the load descriptor passed.

     @return  bc builder

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the load descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the load to be created NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForLoadDescriptor	(	const char *	bcDescName,
		const char *	bcName
	)

Creates a BC builder for the load descriptor passed.

     @return  bc builder

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the load descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the load to be created NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForLoadDescriptor	(	const NXString &	bcDescName,
		const NXString &	bcName,
		int	label
	)

Creates a BC builder for the load descriptor passed.

     @return  bc builder

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the load descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the load to be created NOTE: The full Unicode character set is not supported for this parameter.
label	load label

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForLoadDescriptor	(	const char *	bcDescName,
		const char *	bcName,
		int	label
	)

Creates a BC builder for the load descriptor passed.

     @return  bc builder

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the load descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the load to be created NOTE: The full Unicode character set is not supported for this parameter.
label	load label

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForSimulationObjectDescriptor	(	const NXString &	bcDescName,
		const NXString &	bcName
	)

Creates a BC builder for the simulation object descriptor passed.

     @return  bc builder

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the simulation object descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the simulation object to be created NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForSimulationObjectDescriptor	(	const char *	bcDescName,
		const char *	bcName
	)

Creates a BC builder for the simulation object descriptor passed.

     @return  bc builder

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the simulation object descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the simulation object to be created NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForSimulationObjectDescriptor	(	const NXString &	bcDescName,
		const NXString &	bcName,
		int	label
	)

Creates a BC builder for the simulation object descriptor passed.

     @return  bc builder

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the simulation object descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the simulation object to be created NOTE: The full Unicode character set is not supported for this parameter.
label	simulation object label

NXOpen::CAE::SimBCBuilder* NXOpen::CAE::SimSimulation::CreateBcBuilderForSimulationObjectDescriptor	(	const char *	bcDescName,
		const char *	bcName,
		int	label
	)

Creates a BC builder for the simulation object descriptor passed.

     @return  bc builder

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bcDescName	name of the simulation object descriptor NOTE: The full Unicode character set is not supported for this parameter.
bcName	name of the simulation object to be created NOTE: The full Unicode character set is not supported for this parameter.
label	simulation object label

NXOpen::CAE::CaeRegionBuilder* NXOpen::CAE::SimSimulation::CreateCaeRegionBuilder	(	const NXString &	pcRegionDescName,
		NXOpen::CAE::CaeRegion *	tRegion
	)

Creates a CAE::CaeRegionBuilder.

Returns: The RegionBuilder object
Created in NX7.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

pcRegionDescName	The neutral name of the region descriptor. NOTE: The full Unicode character set is not supported for this parameter.
tRegion	The region if we are editing it, or NULL if we are creating a new one

NXOpen::CAE::CaeRegionBuilder* NXOpen::CAE::SimSimulation::CreateCaeRegionBuilder	(	const char *	pcRegionDescName,
		NXOpen::CAE::CaeRegion *	tRegion
	)

Creates a CAE::CaeRegionBuilder.

Returns: The RegionBuilder object
Created in NX7.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

pcRegionDescName	The neutral name of the region descriptor. NOTE: The full Unicode character set is not supported for this parameter.
tRegion	The region if we are editing it, or NULL if we are creating a new one

NXOpen::CAE::LaminateMetaSolBuilder* NXOpen::CAE::SimSimulation::CreateLaminateMetaSolBuilder ( NXOpen::CAE::LaminateMetaSol * tMetaSol )

Creates a CAE::LaminateMetaSolBuilder.

Returns: the LaminateMetaSolBuilder object

Deprecated:: Deprecated in NX8.0.0. Create the post report with CAE::LaminatePostReportCollection::CreateLaminatePostReportBuilder and the graphical report with CAE::LaminatePostReportCollection::CreateLaminateGraphicalReportBuilder .

Created in NX6.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

tMetaSol The meta solution

NXOpen::CAE::LaminateQuickPostReportBuilder* NXOpen::CAE::SimSimulation::CreateLaminateQuickPostReportBuilder ( NXOpen::CAE::LaminateQuickPostReport * tSpec )

Creates a CAE::LaminateQuickPostReportBuilder.

Returns

Deprecated:: Deprecated in NX8.0.0. Create the post report with CAE::LaminatePostReportCollection::CreateLaminatePostReportBuilder and the graphical report with CAE::LaminatePostReportCollection::CreateLaminateQuickReportBuilder .

Created in NX7.5.0.

License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")

Parameters

tSpec the quick post summary report

NXOpen::CAE::SimMotionLoadsBuilder* NXOpen::CAE::SimSimulation::CreateMotionLoadsBuilder ( )

Creates a CAE::SimMotionLoadsBuilder.

Returns: The SimMotionLoadsBuilder object
Created in NX5.0.1.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::SimMotionLoadsListItemBuilder* NXOpen::CAE::SimSimulation::CreateMotionLoadsListItemBuilder ( )

Creates a CAE::SimMotionLoadsListItemBuilder.

Returns: The SimMotionLoadsListItemBuilder object
Created in NX5.0.1.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::SimBcPlotContoursBuilder* NXOpen::CAE::SimSimulation::CreateSimBcPlotContoursBuilder ( )

Creates a CAE::SimBcPlotContoursBuilder.

Returns: The SimBcPlotContoursBuilder object
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::CAE::SimBcXyPlotBuilder* NXOpen::CAE::SimSimulation::CreateSimBcXyPlotBuilder ( )

Creates a CAE::SimBcXyPlotBuilder.

Returns: The SimBcXyPlotBuilder object
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::CAE::SimSolution* NXOpen::CAE::SimSimulation::CreateSolution	(	const NXString &	solverType,
		const NXString &	analysisType,
		const NXString &	solutionType,
		const NXString &	name
	)

Creates a solution.

     @return  the created @link CAE::SimSolution CAE::SimSolution@endlink

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

solverType	name of the solver NOTE: The full Unicode character set is not supported for this parameter.
analysisType	name of the analysis type NOTE: The full Unicode character set is not supported for this parameter.
solutionType	name of the solution type NOTE: The full Unicode character set is not supported for this parameter.
name	name of the solution to be created

NXOpen::CAE::SimSolution* NXOpen::CAE::SimSimulation::CreateSolution	(	const char *	solverType,
		const char *	analysisType,
		const char *	solutionType,
		const char *	name
	)

Creates a solution.

     @return  the created @link CAE::SimSolution CAE::SimSolution@endlink

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

solverType	name of the solver NOTE: The full Unicode character set is not supported for this parameter.
analysisType	name of the analysis type NOTE: The full Unicode character set is not supported for this parameter.
solutionType	name of the solution type NOTE: The full Unicode character set is not supported for this parameter.
name	name of the solution to be created

NXOpen::CAE::SimSolution* NXOpen::CAE::SimSimulation::CreateSolution	(	NXOpen::CAE::SimConditionSequence *	conditionSeqeunce,
		const NXString &	solverType,
		const NXString &	analysisType,
		const NXString &	solutionType,
		const NXString &	name
	)

Creates a solution from a condition sequence.

     @return  the created @link CAE::SimSolution CAE::SimSolution@endlink

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

conditionSeqeunce	create solution from CAE::SimConditionSequence
solverType	name of the solver NOTE: The full Unicode character set is not supported for this parameter.
analysisType	name of the analysis type NOTE: The full Unicode character set is not supported for this parameter.
solutionType	name of the solution type NOTE: The full Unicode character set is not supported for this parameter.
name	name of the solution to be created

NXOpen::CAE::SimSolution* NXOpen::CAE::SimSimulation::CreateSolution	(	NXOpen::CAE::SimConditionSequence *	conditionSeqeunce,
		const char *	solverType,
		const char *	analysisType,
		const char *	solutionType,
		const char *	name
	)

Creates a solution from a condition sequence.

     @return  the created @link CAE::SimSolution CAE::SimSolution@endlink

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

conditionSeqeunce	create solution from CAE::SimConditionSequence
solverType	name of the solver NOTE: The full Unicode character set is not supported for this parameter.
analysisType	name of the analysis type NOTE: The full Unicode character set is not supported for this parameter.
solutionType	name of the solution type NOTE: The full Unicode character set is not supported for this parameter.
name	name of the solution to be created

NXOpen::CAE::SimSolution* NXOpen::CAE::SimSimulation::CreateSolution	(	NXOpen::CAE::SimConditionSequence *	conditionSeqeunce,
		int	numSteps,
		const NXString &	solverType,
		const NXString &	analysisType,
		const NXString &	solutionType,
		const NXString &	name
	)

Creates a solution from a condition sequence and number of integration steps.

     @return  the created @link CAE::SimSolution CAE::SimSolution@endlink

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

conditionSeqeunce	create solution from CAE::SimConditionSequence
numSteps	number of integration steps
solverType	name of the solver NOTE: The full Unicode character set is not supported for this parameter.
analysisType	name of the analysis type NOTE: The full Unicode character set is not supported for this parameter.
solutionType	name of the solution type NOTE: The full Unicode character set is not supported for this parameter.
name	name of the solution to be created

NXOpen::CAE::SimSolution* NXOpen::CAE::SimSimulation::CreateSolution	(	NXOpen::CAE::SimConditionSequence *	conditionSeqeunce,
		int	numSteps,
		const char *	solverType,
		const char *	analysisType,
		const char *	solutionType,
		const char *	name
	)

Creates a solution from a condition sequence and number of integration steps.

     @return  the created @link CAE::SimSolution CAE::SimSolution@endlink

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

conditionSeqeunce	create solution from CAE::SimConditionSequence
numSteps	number of integration steps
solverType	name of the solver NOTE: The full Unicode character set is not supported for this parameter.
analysisType	name of the analysis type NOTE: The full Unicode character set is not supported for this parameter.
solutionType	name of the solution type NOTE: The full Unicode character set is not supported for this parameter.
name	name of the solution to be created

NXOpen::CAE::SimSolution* NXOpen::CAE::SimSimulation::CreateSolution	(	NXOpen::CAE::SimConditionSequence *	conditionSeqeunce,
		double	stepSize,
		NXOpen::Unit *	stepUnit,
		const NXString &	solverType,
		const NXString &	analysisType,
		const NXString &	solutionType,
		const NXString &	name
	)

Creates a solution from a condition sequence and integration step size.

     @return  the created @link CAE::SimSolution CAE::SimSolution@endlink

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

conditionSeqeunce	create solution from CAE::SimConditionSequence
stepSize	size of integration steps
stepUnit	step size Unit
solverType	name of the solver NOTE: The full Unicode character set is not supported for this parameter.
analysisType	name of the analysis type NOTE: The full Unicode character set is not supported for this parameter.
solutionType	name of the solution type NOTE: The full Unicode character set is not supported for this parameter.
name	name of the solution to be created

NXOpen::CAE::SimSolution* NXOpen::CAE::SimSimulation::CreateSolution	(	NXOpen::CAE::SimConditionSequence *	conditionSeqeunce,
		double	stepSize,
		NXOpen::Unit *	stepUnit,
		const char *	solverType,
		const char *	analysisType,
		const char *	solutionType,
		const char *	name
	)

Creates a solution from a condition sequence and integration step size.

     @return  the created @link CAE::SimSolution CAE::SimSolution@endlink

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

conditionSeqeunce	create solution from CAE::SimConditionSequence
stepSize	size of integration steps
stepUnit	step size Unit
solverType	name of the solver NOTE: The full Unicode character set is not supported for this parameter.
analysisType	name of the analysis type NOTE: The full Unicode character set is not supported for this parameter.
solutionType	name of the solution type NOTE: The full Unicode character set is not supported for this parameter.
name	name of the solution to be created

NXOpen::CAE::SimSolutionStep* NXOpen::CAE::SimSimulation::CreateSolutionStep	(	NXOpen::CAE::SimSolution *	solution,
		int	stepType,
		const NXString &	name
	)

Creates a step and add to the solution.

     @return  step @link CAE::SimSolutionStep CAE::SimSolutionStep@endlink  to be added

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

solution	the solution to which the step will be added, if a NULL is passed the current active solution will be used
stepType	index of the step type
name	name of the step

NXOpen::CAE::SimSolutionStep* NXOpen::CAE::SimSimulation::CreateSolutionStep	(	NXOpen::CAE::SimSolution *	solution,
		int	stepType,
		const char *	name
	)

Creates a step and add to the solution.

     @return  step @link CAE::SimSolutionStep CAE::SimSolutionStep@endlink  to be added

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

solution	the solution to which the step will be added, if a NULL is passed the current active solution will be used
stepType	index of the step type
name	name of the step

void NXOpen::CAE::SimSimulation::DeleteSolution ( NXOpen::CAE::SimSolution * solution )

Delete the solution.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

solution the CAE::SimSolution to be deleted

NXOpen::CAE::DurabilityManager* NXOpen::CAE::SimSimulation::DurabilityManager ( )

Returns the durability manager belonging to this sim part
Created in NX7.5.0.

NXOpen::CAE::FEModelOccurrence* NXOpen::CAE::SimSimulation::Femodel ( )

Returns the femodeloccurrence CAE::FEModelOccurrence assoicated with the simulation object.

Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::LaminateManager* NXOpen::CAE::SimSimulation::LaminateManager ( )

Returns the laminate manager belonging to this sim part
Created in NX8.0.0.

NXOpen::CAE::SimLbcFolderCollection* NXOpen::CAE::SimSimulation::LbcFolders ( )

Returns the CAE SimLbcFolder collection belonging to this sim part
Created in NX9.0.0.

NXOpen::CAE::SimLoadCollection* NXOpen::CAE::SimSimulation::Loads ( )

Returns the load collection belonging to this sim part
Created in NX3.0.0.

NXOpen::CAE::Optimization::DAOOptimizationManager* NXOpen::CAE::SimSimulation::OptimizationManager ( )

Returns the Design and Analysis optimization manager belonging to this sim part
Created in NX8.0.0.

NXOpen::CAE::ResponseSimulation::Manager* NXOpen::CAE::SimSimulation::ResponseSimulationManager ( )

Returns the response simulation manager belonging to this sim part
Created in NX3.0.0.

NXOpen::CAE::ResultMeasureCollection* NXOpen::CAE::SimSimulation::ResultMeasures ( )

Returns the CAE ResultMeasure collection belonging to this sim part
Created in NX8.0.0.

void NXOpen::CAE::SimSimulation::SetActiveSolution ( NXOpen::CAE::SimSolution * activeSolution )

Sets the active solution.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

activeSolution the active solution CAE::SimSolution

NXOpen::CAE::SimSimulationObjectCollection* NXOpen::CAE::SimSimulation::SimulationObjects ( )

Returns the simulation object collection belonging to this sim part
Created in NX3.0.0.

NXOpen::CAE::SimRecipeCollection* NXOpen::CAE::SimSimulation::SimulationRecipes ( )

Returns the simulation recipe collection belonging to this sim part
Created in NX3.0.0.

NXOpen::CAE::SimSolutionCollection* NXOpen::CAE::SimSimulation::Solutions ( )

Returns the CAE Solution collection belonging to this sim part
Created in NX7.5.0.

NXOpen::CAE::Optimization::TBSOptimizationManager* NXOpen::CAE::SimSimulation::TBSOptimizationManager ( )

Returns the optimization manager belonging to this sim part
Created in NX8.0.0.

The documentation for this class was generated from the following file:

CAE_SimSimulation.hxx

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation
