Represents a solution in the .sim files. More...

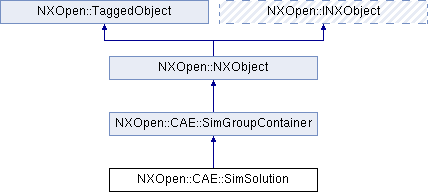

Inheritance diagram for NXOpen::CAE::SimSolution:

Public Types
enum	SetupCheckOption { SetupCheckOptionDoNotCheck, SetupCheckOptionCheckAndStopAtFirstError, SetupCheckOptionCompleteCheckAndOutputErrors }
	Model Setup Check Options. More...

enum	SolveOption { SolveOptionSolve, SolveOptionWriteSolverInputFile, SolveOptionSolveInputFile, SolveOptionWriteEditAndSolveInputFile, SolveOptionEditSolverInputFile }
	Solve Options. More...

Public Member Functions
NXOpen::CAE::SimSolutionStep *	ActiveStep ()
	Returns the active step Created in NX4.0.0.

void	AddBc (NXOpen::CAE::SimBC *bc)
	Add the bc to the solution Only the BC that not under the folder can be added to solution.

void	AddFolder (NXOpen::CAE::SimLbcFolder *folder)
	Add the folder to the solution Only the folder not under other folder can be added to solution.

void	AddStep (NXOpen::CAE::SimSolutionStep *step)
	Adds a step to the solution.

int	AllowedStepTypeCount ()
	Returns the count of allowable step types.

NXString	AnalysisType ()
	Returns the analysis type.

void	ApplySolverLanguageExportOptions (NXOpen::CAE::CaeDataContainer *propertyList)
	Stores the solver language export options to the specified solution.

NXOpen::CAE::CompanionResultCollection *	CompanionResults ()
	Returns the CAE Companion Results collection belonging to this Solution Created in NX7.5.0.

int	ConflictingConstraintsCount ()
	Returns the number of conflicting constraint pairs in this solution Created in NX8.0.0.

NXOpen::CAE::CorrelAlignmentBuilder *	CreateAlignmentBuilder ()
	Creates the builder object for test and imported solution alignment dialog.

NXOpen::CAE::ConstraintResolutionBuilder *	CreateConstraintResolutionBuilder (NXOpen::CAE::SimGroupContainer tStep, NXOpen::CAE::SimConstraint tConstraint1, NXOpen::CAE::SimConstraint *tConstraint2)
	Creates a constraint resolution builder for this input pair of constraints.

NXOpen::CAE::SimSolutionStep *	CreateStep (int stepType, const NXString &stepName)
	Creates a step and add to the solution.

NXOpen::CAE::SimSolutionStep *	CreateStep (int stepType, const char *stepName)
	Creates a step and add to the solution.

NXOpen::CAE::SimSolutionStep *	CreateStep (int stepType, bool makeActive, const NXString &stepName)
	Creates a step, adds it to the solution and optionally makes it the Active Step.

NXOpen::CAE::SimSolutionStep *	CreateStep (int stepType, bool makeActive, const char *stepName)
	Creates a step, adds it to the solution and optionally makes it the Active Step.

void	DeleteStep (NXOpen::CAE::SimSolutionStep *step)
	Removes a step from the solution.

std::vector< NXOpen::CAE::SimBC * >	GetBcs ()
	Gets all the BCs in this solution.

void	GetConflictingConstraintPairByIndex (int index, NXOpen::CAE::SimConstraint tConstrain1, NXOpen::CAE::SimConstraint tConstrain2, bool *ignored)
	Returns the nth conflicting constraint pair, where the index is between 0 and CAE::SimSolution::ConflictingConstraintsCount - 1 Created in NX8.0.0.

std::vector < NXOpen::CAE::SimLbcFolder * >	GetFolders ()
	Gets all the root folders in this solution.

NXString	GetManagedResultFile ()
	Get the managed result file name.

void	GetResultFile (NXString resultfiledir, NXString resfilename)
	Get the result file directory and result file name Created in NX8.5.0.

void	GetResultFileUnits (std::vector< NXOpen::Unit * > &units)
	Get basic 6 units which are stored with solution used for loading the result file Created in NX8.5.0.

NXOpen::CAE::SimSolutionStep *	GetStepByIndex (int stepIndex)
	Returns the step at the index passed.

std::vector< NXOpen::CAE::SimBC * >	GetUnfolderedBcs ()
	Gets all the unfoldered BCs in this solution.

NXOpen::CAE::PropertyTable *	PropertyTable ()
	Returns the property table associated with the solution object Created in NX4.0.0.

void	RemoveAllConstraints ()
	Remove all constraints from the solution.

void	RemoveAllLoads ()
	Remove all loads from the solution.

void	RemoveAllSimulationObjects ()
	Remove all simulation objects from the solution.

void	RemoveBc (NXOpen::CAE::SimBC *bc)
	Remove the bc from the solution Only the BC that not under the folder can be remove from solution.

void	RemoveFolder (NXOpen::CAE::SimLbcFolder *folder)
	Remove the folder from the solution Only the folder not under other folder can be removed from solution.

void	Rename (const NXString &name, bool renameResults)
	Rename Solution and optionally rename associated results files Created in NX6.0.2.

void	Rename (const char *name, bool renameResults)
	Rename Solution and optionally rename associated results files Created in NX6.0.2.

void	ResolveConstraintConflicts ()
	Runs the Assisted Conflict Check Mechanism for all constraints CAE::SimConstraint in an active solution CAE::SimSolution and/or in an active step CAE::SimSolutionStep , generating new constraints CAE::SimConstraint if there is any conflcit between the constraints.

void	SetActiveStep (NXOpen::CAE::SimSolutionStep *activeStep)
	Sets the active step Created in NX4.0.0.

void	SetFemValidInPost (bool valid)
	Specify whether NX Post should group entities based on node and element groups and meshes in the pre-processing model Created in NX8.5.0.

void	SetInferredResultFile ()
	Clear previously specified result file location Created in NX8.5.0.

void	SetInferredResultFileUnits ()
	Clears previously specified result file units Created in NX8.5.0.

void	SetLocalResultFile (const NXString &dirpath, const NXString &filename)
	Specify local result file Created in NX8.5.0.

void	SetLocalResultFile (const char dirpath, const char filename)
	Specify local result file Created in NX8.5.0.

void	SetManagedResultFile (const NXString &file)
	Specify managed result file Created in NX8.5.0.

void	SetManagedResultFile (const char *file)
	Specify managed result file Created in NX8.5.0.

void	SetResultFileUnits (const std::vector< NXOpen::Unit * > &units)
	Set result file units Created in NX8.5.0.

void	SetTimePropsFromConditionSequence (NXOpen::CAE::SimConditionSequence *conditionSeqeunce)
	Set the time properties for this solution based on the given condition sequences Created in NX9.0.0.

void	SetTimePropsFromConditionSequence (NXOpen::CAE::SimConditionSequence *conditionSeqeunce, int numSteps)
	Set the time properties for this solution based on the given condition sequences and number of integration steps.

void	SetTimePropsFromConditionSequence (NXOpen::CAE::SimConditionSequence conditionSeqeunce, double stepSize, NXOpen::Unit stepUnit)
	Set the time properties for this solution based on the given condition sequences and integration step size.

NXString	SolutionType ()
	Returns the solution type.

void	Solve (NXOpen::CAE::SimSolution::SolveOption solveOption, NXOpen::CAE::SimSolution::SetupCheckOption setupCheckOption)
	Solves the solution.

NXOpen::CAE::PropertyTable *	SolverOptionsPropertyTable ()
	Returns the property table associated with the solution's solver options Created in NX6.0.2.

NXString	SolverType ()
	Returns the solver type.

int	StepCount ()
	Returns the number of steps.

Public Member Functions inherited from NXOpen::CAE::SimGroupContainer
NXOpen::CAE::SimConstraintGroup *	CreateConstraintGroup ()
	Creates a constraint group for a solution or solution step.

NXOpen::CAE::SimLoadGroup *	CreateLoadGroup ()
	Creates a load group for a solution or solution step.

NXOpen::CAE::SimSimulationObjectGroup *	CreateSimulationObjectGroup ()
	Creates a simulation object group for a solution or solution step.

void	DeleteGroup (NXOpen::CAE::SimBcGroup *lbGroup)
	Deletes a BC group from this group container.

int	GetGroupCount ()
	Returns the number of groups in this container.

std::vector < NXOpen::CAE::SimBcGroup * >	GetGroups ()
	Gets the BC groups in this group container.

bool	IsConstraintGroupAllowed ()
	Returns a value indicating whether a constraint group is allowed for this group container.

bool	IsLoadGroupAllowed ()
	Returns a value indicating whether a load group is allowed for this group container.

bool	IsSimulationObjectGroupAllowed ()
	Returns a value indicating whether a simulation object group is allowed for this group container.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents a solution in the .sim files.

   For more information, refer to the Solver language documentation
   in the <a href="../opencae/Solvers.html"> Solver language documentation </a>.

<br> To create a new instance of this class, use @link CAE::SimSimulation::CreateSolution  CAE::SimSimulation::CreateSolution @endlink  <br>

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::SimSolution::SetupCheckOption

Model Setup Check Options.

Enumerator:

SetupCheckOptionDoNotCheck	do perform any set up checks
SetupCheckOptionCheckAndStopAtFirstError	perform set up checks but stop at first error
SetupCheckOptionCompleteCheckAndOutputErrors	perform all set up checks and report all errors

enum NXOpen::CAE::SimSolution::SolveOption

Solve Options.

Enumerator:

SolveOptionSolve	write solver input file and launch solve
SolveOptionWriteSolverInputFile	write solver input file only
SolveOptionSolveInputFile	launch solve with existing solver input file
SolveOptionWriteEditAndSolveInputFile	write solver input file, allow edit and then launch solve
SolveOptionEditSolverInputFile	edit existing solver input file

Member Function Documentation

NXOpen::CAE::SimSolutionStep* NXOpen::CAE::SimSolution::ActiveStep ( )

Returns the active step
Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::AddBc ( NXOpen::CAE::SimBC * bc )

Add the bc to the solution Only the BC that not under the folder can be added to solution.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bc	the bc to be added

void NXOpen::CAE::SimSolution::AddFolder ( NXOpen::CAE::SimLbcFolder * folder )

Add the folder to the solution Only the folder not under other folder can be added to solution.

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

folder the folder to be added

void NXOpen::CAE::SimSolution::AddStep ( NXOpen::CAE::SimSolutionStep * step )

Adds a step to the solution.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

step	solution step to be added

int NXOpen::CAE::SimSolution::AllowedStepTypeCount ( )

Returns the count of allowable step types.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXString NXOpen::CAE::SimSolution::AnalysisType ( )

Returns the analysis type.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::ApplySolverLanguageExportOptions ( NXOpen::CAE::CaeDataContainer * propertyList )

Stores the solver language export options to the specified solution.

Created in NX8.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

propertyList the export option parameters. See CAE::CaeSession::GetDataContainer .

NXOpen::CAE::CompanionResultCollection* NXOpen::CAE::SimSolution::CompanionResults ( )

Returns the CAE Companion Results collection belonging to this Solution
Created in NX7.5.0.

int NXOpen::CAE::SimSolution::ConflictingConstraintsCount ( )

Returns the number of conflicting constraint pairs in this solution
Created in NX8.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::CorrelAlignmentBuilder* NXOpen::CAE::SimSolution::CreateAlignmentBuilder ( )

Creates the builder object for test and imported solution alignment dialog.

Returns: Created in NX7.5.0.

License requirements : nx_correl_base ("FE Correlation")

NXOpen::CAE::ConstraintResolutionBuilder* NXOpen::CAE::SimSolution::CreateConstraintResolutionBuilder	(	NXOpen::CAE::SimGroupContainer *	tStep,
		NXOpen::CAE::SimConstraint *	tConstraint1,
		NXOpen::CAE::SimConstraint *	tConstraint2
	)

Creates a constraint resolution builder for this input pair of constraints.

Returns: Created in NX8.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

tStep	solution step. can be same as solution
tConstraint1	first constraint in conflict
tConstraint2	second constraint in conflict

NXOpen::CAE::SimSolutionStep* NXOpen::CAE::SimSolution::CreateStep	(	int	stepType,
		const NXString &	stepName
	)

Creates a step and add to the solution.

     @return  step @link CAE::SimSolutionStep CAE::SimSolutionStep@endlink  to be added

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

stepType	index of the step type
stepName	name of the step NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimSolutionStep* NXOpen::CAE::SimSolution::CreateStep	(	int	stepType,
		const char *	stepName
	)

Creates a step and add to the solution.

     @return  step @link CAE::SimSolutionStep CAE::SimSolutionStep@endlink  to be added

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

stepType	index of the step type
stepName	name of the step NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimSolutionStep* NXOpen::CAE::SimSolution::CreateStep	(	int	stepType,
		bool	makeActive,
		const NXString &	stepName
	)

Creates a step, adds it to the solution and optionally makes it the Active Step.

Making it the active step will also make the Solution active if it is not already.

Returns: step CAE::SimSolutionStep to be added
Created in NX8.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

stepType	index of the step type
makeActive	if true the step will be made the active step
stepName	name of the step NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::SimSolutionStep* NXOpen::CAE::SimSolution::CreateStep	(	int	stepType,
		bool	makeActive,
		const char *	stepName
	)

Creates a step, adds it to the solution and optionally makes it the Active Step.

Making it the active step will also make the Solution active if it is not already.

Returns: step CAE::SimSolutionStep to be added
Created in NX8.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

stepType	index of the step type
makeActive	if true the step will be made the active step
stepName	name of the step NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::SimSolution::DeleteStep ( NXOpen::CAE::SimSolutionStep * step )

Removes a step from the solution.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

step	step CAE::SimSolutionStep to be added

std::vector<NXOpen::CAE::SimBC *> NXOpen::CAE::SimSolution::GetBcs ( )

Gets all the BCs in this solution.

     @return  Resultant bcs

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::GetConflictingConstraintPairByIndex	(	int	index,
		NXOpen::CAE::SimConstraint **	tConstrain1,
		NXOpen::CAE::SimConstraint **	tConstrain2,
		bool *	ignored
	)

Returns the nth conflicting constraint pair, where the index is between 0 and CAE::SimSolution::ConflictingConstraintsCount - 1
Created in NX8.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

index	index of the conflicting constraint pair, which is between 0 and CAE::SimSolution::ConflictingConstraintsCount - 1
tConstrain1	constraint1 for this constraint pair
tConstrain2	constraint2 for this constraint pair
ignored	indicates that this conflict pair was previously resolved using the CAE::ConstraintResolutionBuilder::RuleIgnoreConflict

std::vector<NXOpen::CAE::SimLbcFolder *> NXOpen::CAE::SimSolution::GetFolders ( )

Gets all the root folders in this solution.

     @return  Resultant bcs

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXString NXOpen::CAE::SimSolution::GetManagedResultFile ( )

Get the managed result file name.

Returns: managed result file name
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::GetResultFile	(	NXString *	resultfiledir,
		NXString *	resfilename
	)

Get the result file directory and result file name
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

resultfiledir	directly path where result file is stored
resfilename	result file name

void NXOpen::CAE::SimSolution::GetResultFileUnits ( std::vector< NXOpen::Unit * > & units )

Get basic 6 units which are stored with solution used for loading the result file
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

units 6 basic units used to define the quantities in result file in order of mass, length, time, temperature, angle, and thermal energy

NXOpen::CAE::SimSolutionStep* NXOpen::CAE::SimSolution::GetStepByIndex ( int stepIndex )

Returns the step at the index passed.

     @return  step @link CAE::SimSolutionStep CAE::SimSolutionStep@endlink  at the index

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

stepIndex index of the step

std::vector<NXOpen::CAE::SimBC *> NXOpen::CAE::SimSolution::GetUnfolderedBcs ( )

Gets all the unfoldered BCs in this solution.

     @return  Resultant bcs

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::PropertyTable* NXOpen::CAE::SimSolution::PropertyTable ( )

Returns the property table associated with the solution object
Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::RemoveAllConstraints ( )

Remove all constraints from the solution.

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::RemoveAllLoads ( )

Remove all loads from the solution.

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::RemoveAllSimulationObjects ( )

Remove all simulation objects from the solution.

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::RemoveBc ( NXOpen::CAE::SimBC * bc )

Remove the bc from the solution Only the BC that not under the folder can be remove from solution.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

bc	the bc to be removed

void NXOpen::CAE::SimSolution::RemoveFolder ( NXOpen::CAE::SimLbcFolder * folder )

Remove the folder from the solution Only the folder not under other folder can be removed from solution.

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

folder the folder to be removed

void NXOpen::CAE::SimSolution::Rename	(	const NXString &	name,
		bool	renameResults
	)

Rename Solution and optionally rename associated results files
Created in NX6.0.2.

License requirements : None

Parameters

name	new solution name NOTE: The full Unicode character set is not supported for this parameter.
renameResults	true if you what associated results files to be renamed as well

void NXOpen::CAE::SimSolution::Rename	(	const char *	name,
		bool	renameResults
	)

Rename Solution and optionally rename associated results files
Created in NX6.0.2.

License requirements : None

Parameters

name	new solution name NOTE: The full Unicode character set is not supported for this parameter.
renameResults	true if you what associated results files to be renamed as well

void NXOpen::CAE::SimSolution::ResolveConstraintConflicts ( )

Runs the Assisted Conflict Check Mechanism for all constraints CAE::SimConstraint in an active solution CAE::SimSolution and/or in an active step CAE::SimSolutionStep , generating new constraints CAE::SimConstraint if there is any conflcit between the constraints.

Created in NX6.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::SetActiveStep ( NXOpen::CAE::SimSolutionStep * activeStep )

Sets the active step
Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

activeStep active step CAE::SimSolutionStep

void NXOpen::CAE::SimSolution::SetFemValidInPost ( bool valid )

Specify whether NX Post should group entities based on node and element groups and meshes in the pre-processing model
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

valid valid or not

void NXOpen::CAE::SimSolution::SetInferredResultFile ( )

Clear previously specified result file location
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::SetInferredResultFileUnits ( )

Clears previously specified result file units
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::SetLocalResultFile	(	const NXString &	dirpath,
		const NXString &	filename
	)

Specify local result file
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

dirpath	directory name NOTE: The full Unicode character set is not supported for this parameter.
filename	file name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::SimSolution::SetLocalResultFile	(	const char *	dirpath,
		const char *	filename
	)

Specify local result file
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

dirpath	directory name NOTE: The full Unicode character set is not supported for this parameter.
filename	file name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::SimSolution::SetManagedResultFile ( const NXString & file )

Specify managed result file
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

file	file name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::SimSolution::SetManagedResultFile ( const char * file )

Specify managed result file
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

file	file name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::SimSolution::SetResultFileUnits ( const std::vector< NXOpen::Unit * > & units )

Set result file units
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

units 6 units for mass, length, time, temperature, angle, and thermal energy

void NXOpen::CAE::SimSolution::SetTimePropsFromConditionSequence ( NXOpen::CAE::SimConditionSequence * conditionSeqeunce )

Set the time properties for this solution based on the given condition sequences
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

conditionSeqeunce populate solution time properties from CAE::SimConditionSequence

void NXOpen::CAE::SimSolution::SetTimePropsFromConditionSequence	(	NXOpen::CAE::SimConditionSequence *	conditionSeqeunce,
		int	numSteps
	)

Set the time properties for this solution based on the given condition sequences and number of integration steps.

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

conditionSeqeunce	populate solution time properties from CAE::SimConditionSequence
numSteps	number of integration steps

void NXOpen::CAE::SimSolution::SetTimePropsFromConditionSequence	(	NXOpen::CAE::SimConditionSequence *	conditionSeqeunce,
		double	stepSize,
		NXOpen::Unit *	stepUnit
	)

Set the time properties for this solution based on the given condition sequences and integration step size.

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

conditionSeqeunce	populate solution time properties from CAE::SimConditionSequence
stepSize	size of integration steps
stepUnit	step size Unit

NXString NXOpen::CAE::SimSolution::SolutionType ( )

Returns the solution type.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SimSolution::Solve	(	NXOpen::CAE::SimSolution::SolveOption	solveOption,
		NXOpen::CAE::SimSolution::SetupCheckOption	setupCheckOption
	)

Solves the solution.

Created in NX6.0.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

solveOption	solve option
setupCheckOption	setup check option

NXOpen::CAE::PropertyTable* NXOpen::CAE::SimSolution::SolverOptionsPropertyTable ( )

Returns the property table associated with the solution's solver options
Created in NX6.0.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXString NXOpen::CAE::SimSolution::SolverType ( )

Returns the solver type.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

int NXOpen::CAE::SimSolution::StepCount ( )

Returns the number of steps.

Created in NX4.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

The documentation for this class was generated from the following file:

CAE_SimSolution.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
