This builder is used to control the alignment parameters of a CAE::CorrelSolution
To create a new instance of this class, use CAE::SimSolution::CreateAlignmentBuilder

Created in NX6.0.1. More...

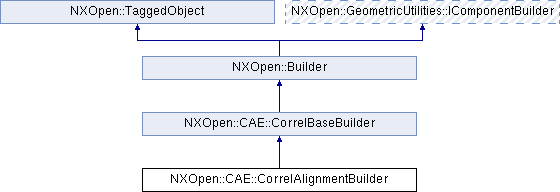

Inheritance diagram for NXOpen::CAE::CorrelAlignmentBuilder:

Classes
struct	ReferencePt
	Specifies the data for the selected reference points. More...

Public Types
enum	ScalingChoice { ScalingChoiceFromSecondAxis, ScalingChoiceSpecify }
	the way the scaling factor is computed More...

Public Member Functions
NXOpen::CAE::CorrelAlignmentBuilder::ReferencePt	GetReferencePt1 ()
	Gets the reference common origin point.

NXOpen::CAE::CorrelAlignmentBuilder::ReferencePt	GetReferencePt2 ()
	Gets the reference first axis origin point.

NXOpen::CAE::CorrelAlignmentBuilder::ReferencePt	GetReferencePt3 ()
	Gets the reference second axis point.

bool	SaveXmlTransform ()
	Returns the save xml transform Created in NX9.0.0.

NXOpen::CAE::CorrelAlignmentBuilder::ScalingChoice	ScalingType ()
	Returns the scaling type Created in NX6.0.1.

double	ScalingValue ()
	Returns the scaling value Created in NX6.0.1.

void	SetReferencePt1 (const NXOpen::CAE::CorrelAlignmentBuilder::ReferencePt &referencePt1)
	Sets the reference common origin point Created in NX6.0.2.

void	SetReferencePt2 (const NXOpen::CAE::CorrelAlignmentBuilder::ReferencePt &referencePt2)
	Sets the reference first axis origin point Created in NX6.0.2.

void	SetReferencePt3 (const NXOpen::CAE::CorrelAlignmentBuilder::ReferencePt &referencePt3)
	Sets the reference second axis point Created in NX6.0.2.

void	SetSaveXmlTransform (bool saveXmlTransform)
	Sets the save xml transform Created in NX9.0.0.

void	SetScalingType (NXOpen::CAE::CorrelAlignmentBuilder::ScalingChoice scalingType)
	Sets the scaling type Created in NX6.0.1.

void	SetScalingValue (double scalingValue)
	Sets the scaling value Created in NX6.0.1.

void	SetWrkPt1 (NXOpen::Point *wrkPt1)
	Sets the working common origin point Created in NX6.0.1.

void	SetWrkPt2 (NXOpen::Point *wrkPt2)
	Sets the working first axis origin point Created in NX6.0.1.

void	SetWrkPt3 (NXOpen::Point *wrkPt3)
	Sets the working second axis point Created in NX6.0.1.

NXOpen::Point *	WrkPt1 ()
	Returns the working common origin point Created in NX6.0.1.

NXOpen::Point *	WrkPt2 ()
	Returns the working first axis origin point Created in NX6.0.1.

NXOpen::Point *	WrkPt3 ()
	Returns the working second axis point Created in NX6.0.1.

Detailed Description

This builder is used to control the alignment parameters of a CAE::CorrelSolution
To create a new instance of this class, use CAE::SimSolution::CreateAlignmentBuilder

Created in NX6.0.1.

Member Enumeration Documentation

enum NXOpen::CAE::CorrelAlignmentBuilder::ScalingChoice

the way the scaling factor is computed

Enumerator:

ScalingChoiceFromSecondAxis	Computed from the lenght of the second axis.
ScalingChoiceSpecify	User specified scaling factor.

Member Function Documentation

NXOpen::CAE::CorrelAlignmentBuilder::ReferencePt NXOpen::CAE::CorrelAlignmentBuilder::GetReferencePt1 ( )

Gets the reference common origin point.

Returns: Created in NX6.0.2.

License requirements : None

NXOpen::CAE::CorrelAlignmentBuilder::ReferencePt NXOpen::CAE::CorrelAlignmentBuilder::GetReferencePt2 ( )

Gets the reference first axis origin point.

Returns: Created in NX6.0.2.

License requirements : None

NXOpen::CAE::CorrelAlignmentBuilder::ReferencePt NXOpen::CAE::CorrelAlignmentBuilder::GetReferencePt3 ( )

Gets the reference second axis point.

Returns: Created in NX6.0.2.

License requirements : None

bool NXOpen::CAE::CorrelAlignmentBuilder::SaveXmlTransform ( )

Returns the save xml transform
Created in NX9.0.0.

License requirements : None

NXOpen::CAE::CorrelAlignmentBuilder::ScalingChoice NXOpen::CAE::CorrelAlignmentBuilder::ScalingType ( )

Returns the scaling type
Created in NX6.0.1.

License requirements : None

double NXOpen::CAE::CorrelAlignmentBuilder::ScalingValue ( )

Returns the scaling value
Created in NX6.0.1.

License requirements : None

void NXOpen::CAE::CorrelAlignmentBuilder::SetReferencePt1 ( const NXOpen::CAE::CorrelAlignmentBuilder::ReferencePt & referencePt1 )

Sets the reference common origin point
Created in NX6.0.2.
