This class provides access to the append option setting for importing solver specific data into existing Fem/Sim. More...

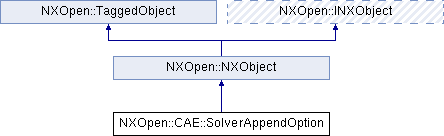

Inheritance diagram for NXOpen::CAE::SolverAppendOption:

Public Types
enum	ImportBehaviorOption { ImportBehaviorOptionAppendModel, ImportBehaviorOptionMergeWithExisting }
	Options to control how the imported input file is to be combined with the existing model. More...

enum	MergeOption { MergeOptionUseExisting, MergeOptionModifyExisting, MergeOptionAppendNew }
	Options to control how entities are merge with existing model. More...

enum	SolutionOption { SolutionOptionDontCreate, SolutionOptionCreateNew }
	Options to control if a solution is created during merge. More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
int	CoordinateSystemOffset ()
	Returns the coordinate system offset Created in NX7.5.2.

bool	DoAppendMerge ()
	Returns the append merge option

int	ElementOffset ()
	Returns the element offset Created in NX7.5.2.

int	GetHighestCoordinateSystemLabel ()
	Gets the highest coordinate system label from the work Fem/Sim.

int	GetHighestElementLabel ()
	Gets the highest element label from the work Fem/Sim.

int	GetHighestNodeLabel ()
	Gets the highest node label from the work Fem/Sim.

int	GetHighestOthersLabel ()
	Gets the highest label for all other entities from the work Fem/Sim.

int	GetHighestPhysicalPropertyLabel ()
	Gets the highest physical property label from the work Fem/Sim.

NXOpen::CAE::SolverAppendOption::ImportBehaviorOption	ImportBehavior ()
	Returns the import behavior choice Created in NX9.0.0.

NXOpen::CAE::SolverAppendOption::MergeOption	MaterialMergeOption ()
	Returns the material merge choice Created in NX9.0.0.

NXOpen::CAE::SolverAppendOption::MergeOption	NodeMergeOption ()
	Returns the node merge choice Created in NX9.0.0.

int	NodeOffset ()
	Returns the node offset Created in NX7.5.2.

int	OthersOffset ()
	Returns the offset for all other entities Created in NX7.5.2.

int	PhysicalPropertyOffset ()
	Returns the physical property offset Created in NX7.5.2.

NXOpen::CAE::SolverAppendOption::MergeOption	PptMergeOption ()
	Returns the physical property merge choice Created in NX9.0.0.

void	SetCoordinateSystemOffset (int csOffset)
	Sets the coordinate system offset Created in NX7.5.2.

void	SetDoAppendMerge (bool doMerge)
	Sets the append merge option

void	SetElementOffset (int elemOffset)
	Sets the element offset Created in NX7.5.2.

void	SetImportBehavior (NXOpen::CAE::SolverAppendOption::ImportBehaviorOption behaviorOption)
	Sets the import behavior choice Created in NX9.0.0.

void	SetMaterialMergeOption (NXOpen::CAE::SolverAppendOption::MergeOption mergeChoice)
	Sets the material merge choice Created in NX9.0.0.

void	SetNodeMergeOption (NXOpen::CAE::SolverAppendOption::MergeOption mergeChoice)
	Sets the node merge choice Created in NX9.0.0.

void	SetNodeOffset (int nodeOffset)
	Sets the node offset Created in NX7.5.2.

void	SetOthersOffset (int othersOffset)
	Sets the offset for all other entities Created in NX7.5.2.

void	SetPhysicalPropertyOffset (int physicalPropertyOffset)
	Sets the physical property offset Created in NX7.5.2.

void	SetPptMergeOption (NXOpen::CAE::SolverAppendOption::MergeOption mergeChoice)
	Sets the physical property merge choice Created in NX9.0.0.

void	SetSolutionMergeOption (NXOpen::CAE::SolverAppendOption::SolutionOption mergeChoice)
	Sets the solution merge choice Created in NX9.0.0.

void	SetSolverName (const NXString &solverName)
	Sets the solver name Created in NX7.5.2.

void	SetSolverName (const char *solverName)
	Sets the solver name Created in NX7.5.2.

NXOpen::CAE::SolverAppendOption::SolutionOption	SolutionMergeOption ()
	Returns the solution merge choice Created in NX9.0.0.

NXString	SolverName ()
	Returns the solver name Created in NX7.5.2.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

This class provides access to the append option setting for importing solver specific data into existing Fem/Sim.

Not support KF.

Created in NX7.5.2.

Member Enumeration Documentation

enum NXOpen::CAE::SolverAppendOption::ImportBehaviorOption

Options to control how the imported input file is to be combined with the existing model.

Enumerator:

ImportBehaviorOptionAppendModel	append model
ImportBehaviorOptionMergeWithExisting	merge with existing

enum NXOpen::CAE::SolverAppendOption::MergeOption

Options to control how entities are merge with existing model.

Enumerator:

MergeOptionUseExisting	use existing
MergeOptionModifyExisting	modify existing
MergeOptionAppendNew	append new

enum NXOpen::CAE::SolverAppendOption::SolutionOption

Options to control if a solution is created during merge.

Enumerator:

SolutionOptionDontCreate	dont create
SolutionOptionCreateNew	create new

Member Function Documentation

int NXOpen::CAE::SolverAppendOption::CoordinateSystemOffset ( )

Returns the coordinate system offset
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

bool NXOpen::CAE::SolverAppendOption::DoAppendMerge ( )

Returns the append merge option

Deprecated:: Deprecated in NX9.0.0.

Use CAE::SolverAppendOption::ImportBehavior instead.

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

int NXOpen::CAE::SolverAppendOption::ElementOffset ( )

Returns the element offset
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

int NXOpen::CAE::SolverAppendOption::GetHighestCoordinateSystemLabel ( )

Gets the highest coordinate system label from the work Fem/Sim.

Returns: the highest coordinate system label
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

int NXOpen::CAE::SolverAppendOption::GetHighestElementLabel ( )

Gets the highest element label from the work Fem/Sim.

Returns: the highest element label
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

int NXOpen::CAE::SolverAppendOption::GetHighestNodeLabel ( )

Gets the highest node label from the work Fem/Sim.

Returns: the highest node label
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

int NXOpen::CAE::SolverAppendOption::GetHighestOthersLabel ( )

Gets the highest label for all other entities from the work Fem/Sim.

Returns: the highest label for all other entities
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

int NXOpen::CAE::SolverAppendOption::GetHighestPhysicalPropertyLabel ( )

Gets the highest physical property label from the work Fem/Sim.

Returns: the highest physical property label
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::SolverAppendOption::ImportBehaviorOption NXOpen::CAE::SolverAppendOption::ImportBehavior ( )

Returns the import behavior choice
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::SolverAppendOption::MergeOption NXOpen::CAE::SolverAppendOption::MaterialMergeOption ( )

Returns the material merge choice
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::SolverAppendOption::MergeOption NXOpen::CAE::SolverAppendOption::NodeMergeOption ( )

Returns the node merge choice
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

int NXOpen::CAE::SolverAppendOption::NodeOffset ( )

Returns the node offset
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

int NXOpen::CAE::SolverAppendOption::OthersOffset ( )

Returns the offset for all other entities
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

int NXOpen::CAE::SolverAppendOption::PhysicalPropertyOffset ( )

Returns the physical property offset
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::SolverAppendOption::MergeOption NXOpen::CAE::SolverAppendOption::PptMergeOption ( )

Returns the physical property merge choice
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::SolverAppendOption::SetCoordinateSystemOffset ( int csOffset )

Sets the coordinate system offset
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

csOffset the coordinate system offset

void NXOpen::CAE::SolverAppendOption::SetDoAppendMerge ( bool doMerge )

Sets the append merge option

Deprecated:: Deprecated in NX9.0.0.

Use CAE::SolverAppendOption::SetImportBehavior instead.

Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

doMerge true if new entities should be merged with existing model

void NXOpen::CAE::SolverAppendOption::SetElementOffset ( int elemOffset )

Sets the element offset
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

elemOffset the element offset

void NXOpen::CAE::SolverAppendOption::SetImportBehavior ( NXOpen::CAE::SolverAppendOption::ImportBehaviorOption behaviorOption )

Sets the import behavior choice
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

behaviorOption how the input file should be imported

void NXOpen::CAE::SolverAppendOption::SetMaterialMergeOption ( NXOpen::CAE::SolverAppendOption::MergeOption mergeChoice )

Sets the material merge choice
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

mergeChoice type of merging to perform for materials

void NXOpen::CAE::SolverAppendOption::SetNodeMergeOption ( NXOpen::CAE::SolverAppendOption::MergeOption mergeChoice )

Sets the node merge choice
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

mergeChoice type of merging to perform for nodes

void NXOpen::CAE::SolverAppendOption::SetNodeOffset ( int nodeOffset )

Sets the node offset
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

nodeOffset the node offset

void NXOpen::CAE::SolverAppendOption::SetOthersOffset ( int othersOffset )

Sets the offset for all other entities
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

othersOffset the offset for all other entities

void NXOpen::CAE::SolverAppendOption::SetPhysicalPropertyOffset ( int physicalPropertyOffset )

Sets the physical property offset
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

physicalPropertyOffset the physical property offset

void NXOpen::CAE::SolverAppendOption::SetPptMergeOption ( NXOpen::CAE::SolverAppendOption::MergeOption mergeChoice )

Sets the physical property merge choice
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

mergeChoice type of merging to perform for ppts

void NXOpen::CAE::SolverAppendOption::SetSolutionMergeOption ( NXOpen::CAE::SolverAppendOption::SolutionOption mergeChoice )

Sets the solution merge choice
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

mergeChoice type of merging to perform for solutions

void NXOpen::CAE::SolverAppendOption::SetSolverName ( const NXString & solverName )

Sets the solver name
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

solverName the solver name to indicate what type of data is being imported

void NXOpen::CAE::SolverAppendOption::SetSolverName ( const char * solverName )

Sets the solver name
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

solverName the solver name to indicate what type of data is being imported

NXOpen::CAE::SolverAppendOption::SolutionOption NXOpen::CAE::SolverAppendOption::SolutionMergeOption ( )

Returns the solution merge choice
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXString NXOpen::CAE::SolverAppendOption::SolverName ( )

Returns the solver name
Created in NX7.5.2.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

The documentation for this class was generated from the following file:

CAE_SolverAppendOption.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
