Represents the manager class of the Fields. More...

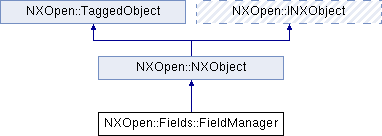

Inheritance diagram for NXOpen::Fields::FieldManager:

Public Member Functions
NXOpen::Fields::FieldVariable *	CreateDependentVariable (NXOpen::Fields::Field ownerField, NXOpen::Fields::NameVariable nameVariable, NXOpen::Unit *unitType)
	Create a dependent variable to be added to the field.

NXOpen::Fields::DisplayPropertiesBuilder *	CreateDisplayPropertiesBuilder (const std::vector< NXOpen::Fields::Field * > &fieldArray)
	Creates a Fields::DisplayPropertiesBuilder.

NXOpen::Fields::ExportData *	CreateExportData ()
	Creates a Fields.ExportData.

NXOpen::Fields::FieldExpression *	CreateFieldExpression (const NXString &fieldExpString, NXOpen::Unit *unitType)
	Creates a system Fields::FieldExpression object.

NXOpen::Fields::FieldExpression *	CreateFieldExpression (const char fieldExpString, NXOpen::Unit unitType)
	Creates a system Fields::FieldExpression object.

NXOpen::Fields::FieldExpression *	CreateFieldExpression (const NXString &fieldExpString, NXOpen::Unit unitType, const std::vector< NXOpen::Fields::FieldVariable > &indepVarArray)
	Creates a system Fields::FieldExpression object with independent variables.

NXOpen::Fields::FieldExpression *	CreateFieldExpression (const char fieldExpString, NXOpen::Unit unitType, const std::vector< NXOpen::Fields::FieldVariable * > &indepVarArray)
	Creates a system Fields::FieldExpression object with independent variables.

NXOpen::Fields::FieldFormula *	CreateFieldFormula (const NXString &fieldName, const std::vector< NXOpen::Fields::FieldVariable * > &indepVarArray, const std::vector< NXOpen::Fields::FieldExpression * > &depExpArray)
	Creates a Fields::FieldFormula object with dependent Fields::FieldExpression .

NXOpen::Fields::FieldFormula *	CreateFieldFormula (const char fieldName, const std::vector< NXOpen::Fields::FieldVariable > &indepVarArray, const std::vector< NXOpen::Fields::FieldExpression * > &depExpArray)
	Creates a Fields::FieldFormula object with dependent Fields::FieldExpression .

NXOpen::Fields::FieldLink *	CreateFieldLink (const NXString &fieldName, NXOpen::Fields::Field *fieldToLink)
	Creates a Fields::FieldLink .

NXOpen::Fields::FieldLink *	CreateFieldLink (const char fieldName, NXOpen::Fields::Field fieldToLink)
	Creates a Fields::FieldLink .

NXOpen::Fields::FieldLinksTable *	CreateFieldLinksTable (const NXString &fieldName, const std::vector< NXOpen::Fields::FieldVariable * > &indepVarArray, const std::vector< NXOpen::Fields::FieldVariable * > &depVarArray, const std::vector< double > &datapoints, const std::vector< NXOpen::Fields::Field * > &linkFieldsArray)
	Creates a Fields::FieldLinksTable object with dependent and independent variables Fields::FieldVariable .

NXOpen::Fields::FieldLinksTable *	CreateFieldLinksTable (const char fieldName, const std::vector< NXOpen::Fields::FieldVariable > &indepVarArray, const std::vector< NXOpen::Fields::FieldVariable * > &depVarArray, const std::vector< double > &datapoints, const std::vector< NXOpen::Fields::Field * > &linkFieldsArray)
	Creates a Fields::FieldLinksTable object with dependent and independent variables Fields::FieldVariable .

NXOpen::Fields::FieldTable *	CreateFieldTable (const NXString &fieldName, const std::vector< NXOpen::Fields::FieldVariable * > &indepVarArray, const std::vector< NXOpen::Fields::FieldVariable * > &depVarArray, const std::vector< double > &datapoints)
	Creates a Fields::FieldTable object with dependent and independent variables Fields::FieldVariable .

NXOpen::Fields::FieldTable *	CreateFieldTable (const char fieldName, const std::vector< NXOpen::Fields::FieldVariable > &indepVarArray, const std::vector< NXOpen::Fields::FieldVariable * > &depVarArray, const std::vector< double > &datapoints)
	Creates a Fields::FieldTable object with dependent and independent variables Fields::FieldVariable .

NXOpen::Fields::FieldTable *	CreateFieldTableFromData (const NXString &fieldNamePrefix, NXOpen::Unit ivarUnit, NXOpen::Unit dvarUnit, NXOpen::Fields::FieldVariable::ValueType dvarType, const std::vector< double > &datapoints)
	Creates a Fields::FieldTable object with dependent and independent variables Fields::FieldVariable .

NXOpen::Fields::FieldTable *	CreateFieldTableFromData (const char fieldNamePrefix, NXOpen::Unit ivarUnit, NXOpen::Unit *dvarUnit, NXOpen::Fields::FieldVariable::ValueType dvarType, const std::vector< double > &datapoints)
	Creates a Fields::FieldTable object with dependent and independent variables Fields::FieldVariable .

NXOpen::Fields::FieldWrapper *	CreateFieldWrapper (NXOpen::Fields::Field *field)
	Create a field wrapper backed up by a field.

NXOpen::Fields::ImportData *	CreateImportData ()
	Creates a Fields.ImportData.

NXOpen::Fields::FieldVariable *	CreateIndependentVariable (NXOpen::Fields::Field ownerField, NXOpen::Fields::NameVariable nameVariable, NXOpen::Unit *unitType, bool minValueSet, bool minValueInclusive, double minValue, bool maxValueSet, bool maxValueInclusive, double maxValue, bool numPtsSet, int numPts, bool defaultValueSet, double defaultValue)
	Create an independent variable to be added to the field.

NXOpen::Fields::PathObjects *	CreatePathObjects ()
	Creates a Fields::PathObjects.

NXOpen::Fields::ScalarFieldWrapper *	CreateScalarFieldWrapperWithExpression (NXOpen::Expression *expression)
	Create a field wrapper backed by a scalar expression.

NXOpen::Fields::ScalarFieldWrapper *	CreateScalarFieldWrapperWithField (NXOpen::Fields::Field *field, double scaleFactor)
	Create a scalar field wrapper backed up by a scaled scalar field.

NXOpen::Fields::SpatialMapBuilder *	CreateSpatialMapBuilder (NXOpen::Fields::SpatialMap *spatialmap)
	Creates a Fields::SpatialMapBuilder.

NXOpen::Fields::FieldExpression *	CreateSubFieldExpression (NXOpen::Fields::FieldVariable *depVar)
	Creates a system Fields::FieldExpression object with independent variables.

NXOpen::Fields::VectorFieldWrapper *	CreateVectorFieldWrapperWithExpressions (const std::vector< NXOpen::Expression * > &expressions)
	Create a vector field wrapper backed by three scalar expressions.

NXOpen::Fields::VectorFieldWrapper *	CreateVectorFieldWrapperWithField (NXOpen::Fields::Field *field, const std::vector< double > &scaleFactors)
	Create a vector field wrapper backed up by a scaled vector field.

NXOpen::Fields::Field *	DeleteField (NXOpen::Fields::Field *field)
	Deletes the specified Fields::Field object; if the object cannot be deleted it is returned.

NXOpen::Fields::FieldDomainCollection *	Domains ()
	Returns a collection of Units Created in NX3.0.0.

void	EditDependentVariable (NXOpen::Fields::FieldVariable depVar, const NXString &varName, NXOpen::Unit unitType)
	Edit dependent variable.

void	EditDependentVariable (NXOpen::Fields::FieldVariable depVar, const char varName, NXOpen::Unit *unitType)
	Edit dependent variable.

void	EditIndependentVariable (NXOpen::Fields::FieldVariable indepVar, const NXString &varName, NXOpen::Unit unitType, bool minValueSet, bool minValueInclusive, double minValue, bool maxValueSet, bool maxValueInclusive, double maxValue, bool numPtsSet, int numPts, bool defaultValueSet, double defaultValue)
	Edit an independent variable.

void	EditIndependentVariable (NXOpen::Fields::FieldVariable indepVar, const char varName, NXOpen::Unit *unitType, bool minValueSet, bool minValueInclusive, double minValue, bool maxValueSet, bool maxValueInclusive, double maxValue, bool numPtsSet, int numPts, bool defaultValueSet, double defaultValue)
	Edit an independent variable.

void	ExportFields (NXOpen::Fields::ExportData *exportData)
	Exports fields to a text file as defined by export_data parameter Created in NX6.0.0.

NXOpen::Fields::NameVariable *	GetNameVariable (const NXString &variableName, const NXString &measureName)
	Locate an existing, or create a new Fields::NameVariable object.

NXOpen::Fields::NameVariable *	GetNameVariable (const char variableName, const char measureName)
	Locate an existing, or create a new Fields::NameVariable object.

int	GetValidFieldId ()
	Get the next available ID for Fields::Field object.

void	ImportFields (NXOpen::Fields::ImportData *importData)
	Imports fields from a text file as defined by import_data parameter Created in NX6.0.0.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Detailed Description

Represents the manager class of the Fields.

<br> This manager class gives access to all the fields @link Fields::Field Fields::Field@endlink  within a part,

as well as the collection of domains Fields::FieldDomain .

It also provides creation methods for the various builders of fields and related classes.

Created in NX4.0.0.

Member Function Documentation

NXOpen::Fields::FieldVariable* NXOpen::Fields::FieldManager::CreateDependentVariable	(	NXOpen::Fields::Field *	ownerField,
		NXOpen::Fields::NameVariable *	nameVariable,
		NXOpen::Unit *	unitType
	)

Create a dependent variable to be added to the field.

     @return  dependent variable created and associated to the field

Created in NX6.0.2.

License requirements : None

Parameters

ownerField	owner field
nameVariable	existing name variable
unitType	unit of the dependent variable

NXOpen::Fields::DisplayPropertiesBuilder* NXOpen::Fields::FieldManager::CreateDisplayPropertiesBuilder ( const std::vector< NXOpen::Fields::Field * > & fieldArray )

Creates a Fields::DisplayPropertiesBuilder.

Returns: Created in NX6.0.1.

License requirements : None

Parameters

fieldArray fields to edit display properties

NXOpen::Fields::ExportData* NXOpen::Fields::FieldManager::CreateExportData ( )

Creates a Fields.ExportData.

Returns: the export data created
Created in NX6.0.0.

License requirements : None

NXOpen::Fields::FieldExpression* NXOpen::Fields::FieldManager::CreateFieldExpression	(	const NXString &	fieldExpString,
		NXOpen::Unit *	unitType
	)

Creates a system Fields::FieldExpression object.

Specifies the new expression string.
This method is deprecated; field expressions are children of Fields::FieldFormula and should not be created independently.

Returns: field
Created in NX4.0.0.

License requirements : None

Parameters

fieldExpString	expression string to be associated with the field NOTE: The full Unicode character set is not supported for this parameter.
unitType	unit of the field

NXOpen::Fields::FieldExpression* NXOpen::Fields::FieldManager::CreateFieldExpression	(	const char *	fieldExpString,
		NXOpen::Unit *	unitType
	)

Creates a system Fields::FieldExpression object.

Specifies the new expression string.
This method is deprecated; field expressions are children of Fields::FieldFormula and should not be created independently.

Returns: field
Created in NX4.0.0.

License requirements : None

Parameters

fieldExpString	expression string to be associated with the field NOTE: The full Unicode character set is not supported for this parameter.
unitType	unit of the field

NXOpen::Fields::FieldExpression* NXOpen::Fields::FieldManager::CreateFieldExpression	(	const NXString &	fieldExpString,
		NXOpen::Unit *	unitType,
		const std::vector< NXOpen::Fields::FieldVariable * > &	indepVarArray
	)

Creates a system Fields::FieldExpression object with independent variables.

       Specifies the new expression string.
        <br> This method is deprecated; field expressions are children of
       @link Fields::FieldFormula Fields::FieldFormula@endlink  and should not be created independently. <br>
     @return  field

Created in NX4.0.0.

License requirements : None

Parameters

fieldExpString	expression string to be associated with the field NOTE: The full Unicode character set is not supported for this parameter.
unitType	unit of the field
indepVarArray	independent variables to be associated with the field

NXOpen::Fields::FieldExpression* NXOpen::Fields::FieldManager::CreateFieldExpression	(	const char *	fieldExpString,
		NXOpen::Unit *	unitType,
		const std::vector< NXOpen::Fields::FieldVariable * > &	indepVarArray
	)

Creates a system Fields::FieldExpression object with independent variables.

       Specifies the new expression string.
        <br> This method is deprecated; field expressions are children of
       @link Fields::FieldFormula Fields::FieldFormula@endlink  and should not be created independently. <br>
     @return  field

Created in NX4.0.0.

License requirements : None

Parameters

fieldExpString	expression string to be associated with the field NOTE: The full Unicode character set is not supported for this parameter.
unitType	unit of the field
indepVarArray	independent variables to be associated with the field

NXOpen::Fields::FieldFormula* NXOpen::Fields::FieldManager::CreateFieldFormula	(	const NXString &	fieldName,
		const std::vector< NXOpen::Fields::FieldVariable * > &	indepVarArray,
		const std::vector< NXOpen::Fields::FieldExpression * > &	depExpArray
	)

Creates a Fields::FieldFormula object with dependent Fields::FieldExpression .

     @return  field

Created in NX6.0.0.

License requirements : None

Parameters

fieldName	field name NOTE: The full Unicode character set is not supported for this parameter.
indepVarArray	independent variables to be associated with the field
depExpArray	dependent expression fields to be associated with the formula field

NXOpen::Fields::FieldFormula* NXOpen::Fields::FieldManager::CreateFieldFormula	(	const char *	fieldName,
		const std::vector< NXOpen::Fields::FieldVariable * > &	indepVarArray,
		const std::vector< NXOpen::Fields::FieldExpression * > &	depExpArray
	)

Creates a Fields::FieldFormula object with dependent Fields::FieldExpression .

     @return  field

Created in NX6.0.0.

License requirements : None

Parameters

fieldName	field name NOTE: The full Unicode character set is not supported for this parameter.
indepVarArray	independent variables to be associated with the field
depExpArray	dependent expression fields to be associated with the formula field

NXOpen::Fields::FieldLink* NXOpen::Fields::FieldManager::CreateFieldLink	(	const NXString &	fieldName,
		NXOpen::Fields::Field *	fieldToLink
	)

Creates a Fields::FieldLink .

     @return  field

Created in NX6.0.0.

License requirements : None

Parameters

fieldName	field name NOTE: The full Unicode character set is not supported for this parameter.
fieldToLink	field to link

NXOpen::Fields::FieldLink* NXOpen::Fields::FieldManager::CreateFieldLink	(	const char *	fieldName,
		NXOpen::Fields::Field *	fieldToLink
	)

Creates a Fields::FieldLink .

     @return  field

Created in NX6.0.0.

License requirements : None

Parameters

fieldName	field name NOTE: The full Unicode character set is not supported for this parameter.
fieldToLink	field to link

NXOpen::Fields::FieldLinksTable* NXOpen::Fields::FieldManager::CreateFieldLinksTable	(	const NXString &	fieldName,
		const std::vector< NXOpen::Fields::FieldVariable * > &	indepVarArray,
		const std::vector< NXOpen::Fields::FieldVariable * > &	depVarArray,
		const std::vector< double > &	datapoints,
		const std::vector< NXOpen::Fields::Field * > &	linkFieldsArray
	)

Creates a Fields::FieldLinksTable object with dependent and independent variables Fields::FieldVariable .

     @return  links table field

Created in NX9.0.0.

License requirements : None

Parameters

fieldName	field name NOTE: The full Unicode character set is not supported for this parameter.
indepVarArray	independent variables to be associated with the field
depVarArray	dependent variables of this and all linked fields
datapoints	row based array of double values representing the first independent variable; the number of points should equal the number of rows.
linkFieldsArray	row based array of link field values representing the table; the number of fields should equal the number of rows.

NXOpen::Fields::FieldLinksTable* NXOpen::Fields::FieldManager::CreateFieldLinksTable	(	const char *	fieldName,
		const std::vector< NXOpen::Fields::FieldVariable * > &	indepVarArray,
		const std::vector< NXOpen::Fields::FieldVariable * > &	depVarArray,
		const std::vector< double > &	datapoints,
		const std::vector< NXOpen::Fields::Field * > &	linkFieldsArray
	)

Creates a Fields::FieldLinksTable object with dependent and independent variables Fields::FieldVariable .

     @return  links table field

Created in NX9.0.0.

License requirements : None

Parameters

fieldName	field name NOTE: The full Unicode character set is not supported for this parameter.
indepVarArray	independent variables to be associated with the field
depVarArray	dependent variables of this and all linked fields
datapoints	row based array of double values representing the first independent variable; the number of points should equal the number of rows.
linkFieldsArray	row based array of link field values representing the table; the number of fields should equal the number of rows.

NXOpen::Fields::FieldTable* NXOpen::Fields::FieldManager::CreateFieldTable	(	const NXString &	fieldName,
		const std::vector< NXOpen::Fields::FieldVariable * > &	indepVarArray,
		const std::vector< NXOpen::Fields::FieldVariable * > &	depVarArray,
		const std::vector< double > &	datapoints
	)

Creates a Fields::FieldTable object with dependent and independent variables Fields::FieldVariable .

     @return  field

Created in NX6.0.0.

License requirements : None

Parameters

fieldName	field name NOTE: The full Unicode character set is not supported for this parameter.
indepVarArray	independent variables to be associated with the table field
depVarArray	dependent variables to be associated with the table field
datapoints	row based array of double values representing the table; then number of points should equal the number of independent variables * the number of dependent variables * the number of rows.

NXOpen::Fields::FieldTable* NXOpen::Fields::FieldManager::CreateFieldTable	(	const char *	fieldName,
		const std::vector< NXOpen::Fields::FieldVariable * > &	indepVarArray,
		const std::vector< NXOpen::Fields::FieldVariable * > &	depVarArray,
		const std::vector< double > &	datapoints
	)

Creates a Fields::FieldTable object with dependent and independent variables Fields::FieldVariable .

     @return  field

Created in NX6.0.0.

License requirements : None

Parameters

fieldName	field name NOTE: The full Unicode character set is not supported for this parameter.
indepVarArray	independent variables to be associated with the table field
depVarArray	dependent variables to be associated with the table field
datapoints	row based array of double values representing the table; then number of points should equal the number of independent variables * the number of dependent variables * the number of rows.

NXOpen::Fields::FieldTable* NXOpen::Fields::FieldManager::CreateFieldTableFromData	(	const NXString &	fieldNamePrefix,
		NXOpen::Unit *	ivarUnit,
		NXOpen::Unit *	dvarUnit,
		NXOpen::Fields::FieldVariable::ValueType	dvarType,
		const std::vector< double > &	datapoints
	)

Creates a Fields::FieldTable object with dependent and independent variables Fields::FieldVariable .

This will create a 2 dimensional table, with the option to specify the value type for the dependent variable.

Returns: field
Created in NX7.5.2.

License requirements : None

Parameters

fieldNamePrefix	field name prefix; e.g. "AFU Record"; field will have a unique generated name begining with this string NOTE: The full Unicode character set is not supported for this parameter.
ivarUnit	unit of the independent variable
dvarUnit	unit of the dependent variable
dvarType	dependent variable type (real/imaginary/complex...)
datapoints	row based array of double values representing the table; then number of points should equal the number of independent variables * the number of dependent variables * the number of rows.

NXOpen::Fields::FieldTable* NXOpen::Fields::FieldManager::CreateFieldTableFromData	(	const char *	fieldNamePrefix,
		NXOpen::Unit *	ivarUnit,
		NXOpen::Unit *	dvarUnit,
		NXOpen::Fields::FieldVariable::ValueType	dvarType,
		const std::vector< double > &	datapoints
	)

Creates a Fields::FieldTable object with dependent and independent variables Fields::FieldVariable .

This will create a 2 dimensional table, with the option to specify the value type for the dependent variable.

Returns: field
Created in NX7.5.2.

License requirements : None

Parameters

fieldNamePrefix	field name prefix; e.g. "AFU Record"; field will have a unique generated name begining with this string NOTE: The full Unicode character set is not supported for this parameter.
ivarUnit	unit of the independent variable
dvarUnit	unit of the dependent variable
dvarType	dependent variable type (real/imaginary/complex...)
datapoints	row based array of double values representing the table; then number of points should equal the number of independent variables * the number of dependent variables * the number of rows.

NXOpen::Fields::FieldWrapper* NXOpen::Fields::FieldManager::CreateFieldWrapper ( NXOpen::Fields::Field * field )

Create a field wrapper backed up by a field.

Returns: scalar field wrapper created and associated to the field
Created in NX6.0.0.

License requirements : None

Parameters

field an existing field that will be this wrapper's value

NXOpen::Fields::ImportData* NXOpen::Fields::FieldManager::CreateImportData ( )

Creates a Fields.ImportData.

Returns: the import data created
Created in NX6.0.0.

License requirements : None

NXOpen::Fields::FieldVariable* NXOpen::Fields::FieldManager::CreateIndependentVariable	(	NXOpen::Fields::Field *	ownerField,
		NXOpen::Fields::NameVariable *	nameVariable,
		NXOpen::Unit *	unitType,
		bool	minValueSet,
		bool	minValueInclusive,
		double	minValue,
		bool	maxValueSet,
		bool	maxValueInclusive,
		double	maxValue,
		bool	numPtsSet,
		int	numPts,
		bool	defaultValueSet,
		double	defaultValue
	)

Create an independent variable to be added to the field.

     @return  independent variable created and associated to the field

Created in NX6.0.2.

License requirements : None

Parameters

ownerField	owner field
nameVariable	existing name variable
unitType	unit of the independent variable
minValueSet	logical value whether minimum value set
minValueInclusive	minimum value is itself included in range
minValue	minimum value of the variable range
maxValueSet	logical value whether maximum value set
maxValueInclusive	maximum value is itself included in range
maxValue	maximum value of the variable range
numPtsSet	logical value whether num_pts set
numPts	num_pts of the variable range
defaultValueSet	logical value whether default value set
defaultValue	default value of the variable range

NXOpen::Fields::PathObjects* NXOpen::Fields::FieldManager::CreatePathObjects ( )

Creates a Fields::PathObjects.

Returns: Created in NX6.0.1.

License requirements : None

NXOpen::Fields::ScalarFieldWrapper* NXOpen::Fields::FieldManager::CreateScalarFieldWrapperWithExpression ( NXOpen::Expression * expression )

Create a field wrapper backed by a scalar expression.

Returns: scalar field wrapper created and associated to the expression
Created in NX6.0.0.

License requirements : None

Parameters

expression an existing expression that will be this wrapper's value

NXOpen::Fields::ScalarFieldWrapper* NXOpen::Fields::FieldManager::CreateScalarFieldWrapperWithField	(	NXOpen::Fields::Field *	field,
		double	scaleFactor
	)

Create a scalar field wrapper backed up by a scaled scalar field.

Returns: scalar field wrapper created and associated to the field
Created in NX6.0.0.

License requirements : None

Parameters

field	an existing field that will be this wrapper's value
scaleFactor	the field will be multiplied by this scale factor when being evaluated

NXOpen::Fields::SpatialMapBuilder* NXOpen::Fields::FieldManager::CreateSpatialMapBuilder ( NXOpen::Fields::SpatialMap * spatialmap )

Creates a Fields::SpatialMapBuilder.

Returns: Created in NX6.0.0.

License requirements : None

Parameters

spatialmap Existing SpatialMap to edit; NULL to create

NXOpen::Fields::FieldExpression* NXOpen::Fields::FieldManager::CreateSubFieldExpression ( NXOpen::Fields::FieldVariable * depVar )

Creates a system Fields::FieldExpression object with independent variables.

       Specifies the new expression string.
        <br> This method is used to create sub expression fields for a
       @link Fields::FieldFormula Fields::FieldFormula@endlink . <br>
     @return  field

Created in NX6.0.0.

License requirements : None

Parameters

depVar dependent variables to be associated with the field

NXOpen::Fields::VectorFieldWrapper* NXOpen::Fields::FieldManager::CreateVectorFieldWrapperWithExpressions ( const std::vector< NXOpen::Expression * > & expressions )

Create a vector field wrapper backed by three scalar expressions.

Returns: scalar field wrapper created and associated to the expression
Created in NX6.0.0.

License requirements : None

Parameters

expressions existing expressions that will be this wrapper's value

NXOpen::Fields::VectorFieldWrapper* NXOpen::Fields::FieldManager::CreateVectorFieldWrapperWithField	(	NXOpen::Fields::Field *	field,
		const std::vector< double > &	scaleFactors
	)

Create a vector field wrapper backed up by a scaled vector field.

Returns: vector field wrapper created and associated to the field
Created in NX6.0.0.

License requirements : None

Parameters

field	an existing field that will be this wrapper's value
scaleFactors	the field will be multiplied by this scale factor when being evaluated

NXOpen::Fields::Field* NXOpen::Fields::FieldManager::DeleteField ( NXOpen::Fields::Field * field )

Deletes the specified Fields::Field object; if the object cannot be deleted it is returned.

     @return  If the field cannot be deleted, it is returned; if the field is deleted, this will be NULL

Created in NX6.0.0.

License requirements : None

Parameters

field field to delete

NXOpen::Fields::FieldDomainCollection* NXOpen::Fields::FieldManager::Domains ( )

Returns a collection of Units
Created in NX3.0.0.

void NXOpen::Fields::FieldManager::EditDependentVariable	(	NXOpen::Fields::FieldVariable *	depVar,
		const NXString &	varName,
		NXOpen::Unit *	unitType
	)

Edit dependent variable.

Created in NX6.0.0.

License requirements : None

Parameters

depVar	dep variable to edit
varName	new name for variable, or NULL to skip updating name NOTE: The full Unicode character set is not supported for this parameter.
unitType	new unit of the dependent variable

void NXOpen::Fields::FieldManager::EditDependentVariable	(	NXOpen::Fields::FieldVariable *	depVar,
		const char *	varName,
		NXOpen::Unit *	unitType
	)

Edit dependent variable.

Created in NX6.0.0.

License requirements : None

Parameters

depVar	dep variable to edit
varName	new name for variable, or NULL to skip updating name NOTE: The full Unicode character set is not supported for this parameter.
unitType	new unit of the dependent variable

void NXOpen::Fields::FieldManager::EditIndependentVariable	(	NXOpen::Fields::FieldVariable *	indepVar,
		const NXString &	varName,
		NXOpen::Unit *	unitType,
		bool	minValueSet,
		bool	minValueInclusive,
		double	minValue,
		bool	maxValueSet,
		bool	maxValueInclusive,
		double	maxValue,
		bool	numPtsSet,
		int	numPts,
		bool	defaultValueSet,
		double	defaultValue
	)

Edit an independent variable.

Created in NX6.0.0.

License requirements : None

Parameters

indepVar	indep var to edit
varName	name of the independent variable to be created NOTE: The full Unicode character set is not supported for this parameter.
unitType	unit of the independent variable
minValueSet	logical value whether minimum value set
minValueInclusive	minimum value is itself included in range
minValue	minimum value of the variable range
maxValueSet	logical value whether maximum value set
maxValueInclusive	maximum value is itself included in range
maxValue	maximum value of the variable range
numPtsSet	logical value whether num_pts set
numPts	num_pts of the variable range
defaultValueSet	logical value whether default value set
defaultValue	default value of the variable range

void NXOpen::Fields::FieldManager::EditIndependentVariable	(	NXOpen::Fields::FieldVariable *	indepVar,
		const char *	varName,
		NXOpen::Unit *	unitType,
		bool	minValueSet,
		bool	minValueInclusive,
		double	minValue,
		bool	maxValueSet,
		bool	maxValueInclusive,
		double	maxValue,
		bool	numPtsSet,
		int	numPts,
		bool	defaultValueSet,
		double	defaultValue
	)

Edit an independent variable.

Created in NX6.0.0.

License requirements : None

Parameters

indepVar	indep var to edit
varName	name of the independent variable to be created NOTE: The full Unicode character set is not supported for this parameter.
unitType	unit of the independent variable
minValueSet	logical value whether minimum value set
minValueInclusive	minimum value is itself included in range
minValue	minimum value of the variable range
maxValueSet	logical value whether maximum value set
maxValueInclusive	maximum value is itself included in range
maxValue	maximum value of the variable range
numPtsSet	logical value whether num_pts set
numPts	num_pts of the variable range
defaultValueSet	logical value whether default value set
defaultValue	default value of the variable range

void NXOpen::Fields::FieldManager::ExportFields ( NXOpen::Fields::ExportData * exportData )

Exports fields to a text file as defined by export_data parameter
Created in NX6.0.0.

License requirements : None

Parameters

exportData Export data

NXOpen::Fields::NameVariable* NXOpen::Fields::FieldManager::GetNameVariable	(	const NXString &	variableName,
		const NXString &	measureName
	)

Locate an existing, or create a new Fields::NameVariable object.

Returns: name variable with the specified measure and name
Created in NX6.0.2.

License requirements : None

Parameters

variableName	alphanumeric string; if it matches an existing name variable, the measures must also match NOTE: The full Unicode character set is not supported for this parameter.
measureName	must match an existing measure name, or "Unitless" NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::Fields::NameVariable* NXOpen::Fields::FieldManager::GetNameVariable	(	const char *	variableName,
		const char *	measureName
	)

Locate an existing, or create a new Fields::NameVariable object.

Returns: name variable with the specified measure and name
Created in NX6.0.2.

License requirements : None

Parameters

variableName	alphanumeric string; if it matches an existing name variable, the measures must also match NOTE: The full Unicode character set is not supported for this parameter.
measureName	must match an existing measure name, or "Unitless" NOTE: The full Unicode character set is not supported for this parameter.

int NXOpen::Fields::FieldManager::GetValidFieldId ( )

Get the next available ID for Fields::Field object.

Returns: valid id
Created in NX9.0.0.

License requirements : None

void NXOpen::Fields::FieldManager::ImportFields ( NXOpen::Fields::ImportData * importData )

Imports fields from a text file as defined by import_data parameter
Created in NX6.0.0.

License requirements : None

Parameters

importData Import data
