Represents the Field Table class. More...

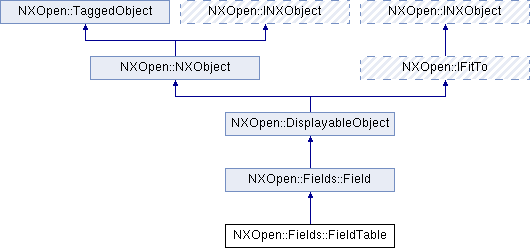

Inheritance diagram for NXOpen::Fields::FieldTable:

Public Types
enum	InterpolationEnum { InterpolationEnumNone, InterpolationEnumLinear1d, InterpolationEnumNearestNeighbor1d, InterpolationEnumInverseDistanceWeighting1d, InterpolationEnumDelaunay2dFast, InterpolationEnumDelaunay2dMedium, InterpolationEnumDelaunay2dAccurate, InterpolationEnumNearestNeighbor2d, InterpolationEnumRenkaShepard2d, InterpolationEnumInverseDistanceWeighting2d, InterpolationEnumDelaunay3dFast, InterpolationEnumDelaunay3dMedium, InterpolationEnumDelaunay3dAccurate, InterpolationEnumNearestNeighbor3d, InterpolationEnumRenkaShepard3d, InterpolationEnumInverseDistanceWeighting3d, InterpolationEnumNearestNeighborNd, InterpolationEnumRenkaShepardNd, InterpolationEnumInverseDistanceWeightingNd }
	Interpolation type This enumeration has been deprecated use Fields::FieldEvaluator::InterpolationEnum instead. More...

enum	LoadFileOption { LoadFileOptionAppend, LoadFileOptionReplace }
	Load file options. More...

Public Member Functions
double	AnnTolerance ()
	Returns the approximate nearest neighbor (ANN) interpolation tolerance.

bool	Discontinuities ()
	Returns a flag specifying if the table has discontinuites Created in NX9.0.0.

void	EditFieldTable (const std::vector< NXOpen::Fields::FieldVariable * > &indepVarArray, const std::vector< NXOpen::Fields::FieldVariable * > &depVarArray, const std::vector< double > &datapoints)
	Edit the table field.

std::vector< double >	GetData (NXOpen::Fields::FieldVariable *variable)
	Returns the values for the given Fields::FieldVariable in this Fields::FieldTable .

void	GetIdwOptions (NXOpen::Fields::FieldEvaluator::InverseDistanceWeightingEnum nearestOption, double nearestFraction)
	Get the inverse distance weighting (IDW) interpolation options Created in NX8.5.0.

double	IndependentValueDivisor ()
	Returns the linear interpolation divisor for field independent value, the zero value represents no divisor used Created in NX9.0.0.

bool	IndependentValueDivisorOption ()
	Returns a value indicating whether to set the linear interpolation divisor for field independent value Created in NX9.0.0.

double	IndependentValueShift ()
	Returns the linear interpolation shift for field independent value Created in NX9.0.0.

bool	IndependentValueShiftOption ()
	Returns a value indicating whether to set the linear interpolation shift for field independent value Created in NX9.0.0.

NXOpen::Fields::FieldEvaluator::InterpolationEnum	InterpolationMethod ()
	Returns the interpolation method used when this table data is evaluated.

NXOpen::Fields::FieldEvaluator::LinearLogOptionEnum	LinearLogOption ()
	Returns the linear/log option used when this table data is evaluated using the linear 1d interpolator.

void	LoadFromFile (const NXString &filename, NXOpen::Fields::FieldTable::LoadFileOption loadFileOption)
	Populate the table from a file replacing or appending data Created in NX6.0.1.

void	LoadFromFile (const char *filename, NXOpen::Fields::FieldTable::LoadFileOption loadFileOption)
	Populate the table from a file replacing or appending data Created in NX6.0.1.

bool	PersistentInterpolator ()
	Returns a flag specifying if interpolator is persistent between session.

void	SetAnnTolerance (double annTolerance)
	Sets the approximate nearest neighbor (ANN) interpolation tolerance.

void	SetIdwOptions (NXOpen::Fields::FieldEvaluator::InverseDistanceWeightingEnum nearestOption, double nearestFraction)
	Set the inverse distance weighting (IDW) interpolation options Created in NX8.5.0.

void	SetIndependentValueDivisor (double divisor)
	Sets the linear interpolation divisor for field independent value, the zero value represents no divisor used Created in NX9.0.0.

void	SetIndependentValueDivisorOption (bool divisorOption)
	Sets a value indicating whether to set the linear interpolation divisor for field independent value Created in NX9.0.0.

void	SetIndependentValueShift (double shift)
	Sets the linear interpolation shift for field independent value Created in NX9.0.0.

void	SetIndependentValueShiftOption (bool shiftOption)
	Sets a value indicating whether to set the linear interpolation shift for field independent value Created in NX9.0.0.

void	SetInterpolation (int interpolationMethod)
	Specified interpolation method, this method was deprecated in NX7.5.2.

void	SetInterpolationMethod (NXOpen::Fields::FieldEvaluator::InterpolationEnum interpolationMethod)
	Sets the interpolation method used when this table data is evaluated.

void	SetLinearLogOption (NXOpen::Fields::FieldEvaluator::LinearLogOptionEnum linearOption)
	Sets the linear/log option used when this table data is evaluated using the linear 1d interpolator.

void	SetPersistentInterpolator (bool persistentInterpolator)
	Sets a flag specifying if interpolator is persistent between session.

void	SetValuesOutsideTableInterpolation (NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum interpolationMethod)
	Sets the outside table values interpolation method for standard linear interpolation Created in NX9.0.0.

NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum	ValuesOutsideTableInterpolation ()
	Returns the outside table values interpolation method for standard linear interpolation Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Fields::Field
void	CopyAsTableToPart (NXOpen::BasePart *targetPart)
	Create a new table field from this field (regardless of type).

void	CopyToPart (NXOpen::BasePart *targetPart)
	Copy the field to the target part.

NXOpen::Fields::Field *	CreateCopyInPart (NXOpen::BasePart *targetPart)
	Copy the field to the target part.

NXOpen::Fields::FieldTable *	CreateTableInPart (NXOpen::BasePart *targetPart)
	Create a new table field from this field (regardless of type).

void	Delete ()
	Delete this field; destroys the field and removes all references to it.

std::vector < NXOpen::Fields::FieldVariable * >	GetDependentVariables ()
	Returns the dependent variables for this Fields::Field.

std::vector< NXString >	GetDescription ()
	Returns the description of the field.

NXOpen::Fields::FieldEvaluator *	GetFieldEvaluator ()
	Returns a field evaluator which can be used to evaluate this field.

int	GetIdLabel ()
	Returns the ID/Label of the field.

std::vector < NXOpen::Fields::FieldVariable * >	GetIndependentVariables ()
	Returns the independent variables for this Fields::Field.

NXOpen::Fields::SpatialMap *	GetSpatialMap ()
	Returns the spatial map for the formula field if one exists.

bool	IsLocked ()
	Returns a value that indicates whether this field is locked against edits.

bool	IsUserField ()
	Returns a value that indicates whether this field is a user created/managed field.

void	Rename (const NXString &newName)
	Update the name of the field.

void	Rename (const char *newName)
	Update the name of the field.

void	SetDescription (std::vector< NXString > &lines)
	Update the description of the field.

void	SetIdLabel (int idLabel)
	Update the ID/Label of the field.

void	SetSpatialMap (NXOpen::Fields::SpatialMap *overrideMap)
	Set the spatial map for the formula field.

void	XYGraph (NXOpen::Fields::FieldVariable indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray)
	Creates displayed graphs of the Field's specified independent variable versus all the Field's dependent variables.

void	XYGraph (NXOpen::Fields::FieldVariable indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray, int viewIndex, bool overlay)
	Plots or overlays graphs of the Field's specified independent variable versus all the Field's dependent variables.

void	XYGraph (NXOpen::Fields::FieldVariable indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray, int windowDevice, int viewIndex, bool overlay)
	Plots or overlays graphs of the Field's specified independent variable versus all the Field's dependent variables.

Public Member Functions inherited from NXOpen::DisplayableObject
void	Blank ()
	Blanks the object.

int	Color ()
	Returns the color of the object.

void	Highlight ()
	Highlights the object.

bool	IsBlanked ()
	Returns the blank status of this object.

int	Layer ()
	Returns the layer that the object is in.

NXOpen::DisplayableObject::ObjectFont	LineFont ()
	Returns the line font of the object.

NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
	Returns the line width of the object.

NXOpen::Point3d	NameLocation ()
	Returns the location of the object's name.

void	RedisplayObject ()
	Redisplays the object in all views.

void	SetColor (int color)
	Sets the color of the object.

void	SetLayer (int layer)
	Sets the layer that the object is in.

void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the line font of the object.

void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
	Sets the line width of the object.

void	SetNameLocation (const NXOpen::Point3d &location)
	Sets the location of the object's name.

void	Unblank ()
	Unblanks the object.

void	Unhighlight ()
	Unhighlights the object.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents the Field Table class.

<br> A field (see @link Fields::Field Fields::Field@endlink ) defined in terms of tabular data involving

one or more look-up independent columns and one or more dependent variables (see Fields::FieldVariable ) which depend on the look-up columns.

To obtain a instance of this class use Fields::FieldManager .

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Fields::FieldTable::InterpolationEnum

Interpolation type This enumeration has been deprecated use Fields::FieldEvaluator::InterpolationEnum instead.

Deprecated:: Deprecated in NX7.5.2. Use Fields::FieldEvaluator::InterpolationEnum instead.

Enumerator:

InterpolationEnumNone	No interpolation method; table can only be used as a lookup.
InterpolationEnumLinear1d	Standard linear interpolation between bounding points.
InterpolationEnumNearestNeighbor1d	Locates the nearest point and returns its value.
InterpolationEnumInverseDistanceWeighting1d	Sum of the weighted value of all points, based on the inverse of the distance.
InterpolationEnumDelaunay2dFast	Triangulates the independent values and uses the bounding triangle, sacrifices accuracy for speed.
InterpolationEnumDelaunay2dMedium	Triangulates the independent values and uses the bounding triangle, compromise between accuracy and speed.
InterpolationEnumDelaunay2dAccurate	Triangulates the independent values and uses the bounding triangle, sacrifices speed for accuracy.
InterpolationEnumNearestNeighbor2d	Locates the nearest point in a plane and returns its value.
InterpolationEnumRenkaShepard2d	Refined inverse distance weighting in 2D space.
InterpolationEnumInverseDistanceWeighting2d	Sum of the weighted value of all points in 2D space, based on the inverse of the distance.
InterpolationEnumDelaunay3dFast	Creates Tetrahedrals using the independent values and uses the bounding tetrahedron, sacrifices accuracy for speed.
InterpolationEnumDelaunay3dMedium	Creates Tetrahedrals using the independent values and uses the bounding tetrahedron, compromise between accuracy and speed.
InterpolationEnumDelaunay3dAccurate	Creates Tetrahedrals using the independent values and uses the bounding tetrahedron, sacrifices speed for accuracy.
InterpolationEnumNearestNeighbor3d	Locates the nearest point in space and returns its value.
InterpolationEnumRenkaShepard3d	Refined inverse distance weighting in 3D space.
InterpolationEnumInverseDistanceWeighting3d	Sum of the weighted value of all points in 3D space, based on the inverse of the distance.
InterpolationEnumNearestNeighborNd	Locates the nearest point in N dimensional space and returns its value.
InterpolationEnumRenkaShepardNd	Refined inverse distance weighting in N dimensional space.
InterpolationEnumInverseDistanceWeightingNd	Sum of the weighted value of all points in N dimensional, based on the inverse of the distance.

enum NXOpen::Fields::FieldTable::LoadFileOption

Load file options.

Enumerator:

LoadFileOptionAppend	Append data to the table removing duplicates.
LoadFileOptionReplace	Replace data removing duplicates.

Member Function Documentation

double NXOpen::Fields::FieldTable::AnnTolerance ( )

Returns the approximate nearest neighbor (ANN) interpolation tolerance.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Fields::FieldTable::Discontinuities ( )

Returns a flag specifying if the table has discontinuites
Created in NX9.0.0.

License requirements : None

void NXOpen::Fields::FieldTable::EditFieldTable	(	const std::vector< NXOpen::Fields::FieldVariable * > &	indepVarArray,
		const std::vector< NXOpen::Fields::FieldVariable * > &	depVarArray,
		const std::vector< double > &	datapoints
	)

Edit the table field.

Specifies the new array of Fields::FieldVariable s for independent and dependent variables, as well as the new double values.

Created in NX6.0.0.

License requirements : None

Parameters

indepVarArray	independent variables to be associated with the field
depVarArray	dependent expression fields to be associated with the formula field
datapoints	row based array of double values representing the table; then number of points should equal the number of independent variables * the number of dependent variables * the number of rows.

std::vector<double> NXOpen::Fields::FieldTable::GetData ( NXOpen::Fields::FieldVariable * variable )

Returns the values for the given Fields::FieldVariable in this Fields::FieldTable .

       The input @link Fields::FieldVariable Fields::FieldVariable@endlink  should be retrieved from the field using
       @link Fields::Field::GetIndependentVariables Fields::Field::GetIndependentVariables@endlink  or @link Fields::Field::GetDependentVariables Fields::Field::GetDependentVariables@endlink .
       The values are in the same @link Unit Unit@endlink  as specified on the @link Fields::FieldVariable Fields::FieldVariable@endlink .
    @return  the row values for this variable

Created in NX7.5.4.

License requirements : None

Parameters

variable variable whose table values are to be returned

void NXOpen::Fields::FieldTable::GetIdwOptions	(	NXOpen::Fields::FieldEvaluator::InverseDistanceWeightingEnum *	nearestOption,
		double *	nearestFraction
	)

Get the inverse distance weighting (IDW) interpolation options
Created in NX8.5.0.

License requirements : None

Parameters

nearestOption	nearest option
nearestFraction	fraction

double NXOpen::Fields::FieldTable::IndependentValueDivisor ( )

Returns the linear interpolation divisor for field independent value, the zero value represents no divisor used
Created in NX9.0.0.

License requirements : None

bool NXOpen::Fields::FieldTable::IndependentValueDivisorOption ( )

Returns a value indicating whether to set the linear interpolation divisor for field independent value
Created in NX9.0.0.

License requirements : None

double NXOpen::Fields::FieldTable::IndependentValueShift ( )

Returns the linear interpolation shift for field independent value
Created in NX9.0.0.

License requirements : None

bool NXOpen::Fields::FieldTable::IndependentValueShiftOption ( )

Returns a value indicating whether to set the linear interpolation shift for field independent value
Created in NX9.0.0.

License requirements : None

NXOpen::Fields::FieldEvaluator::InterpolationEnum NXOpen::Fields::FieldTable::InterpolationMethod ( )

Returns the interpolation method used when this table data is evaluated.

Created in NX7.5.2.

License requirements : None

NXOpen::Fields::FieldEvaluator::LinearLogOptionEnum NXOpen::Fields::FieldTable::LinearLogOption ( )

Returns the linear/log option used when this table data is evaluated using the linear 1d interpolator.

Created in NX9.0.0.

License requirements : None

void NXOpen::Fields::FieldTable::LoadFromFile	(	const NXString &	filename,
		NXOpen::Fields::FieldTable::LoadFileOption	loadFileOption
	)

Populate the table from a file replacing or appending data
Created in NX6.0.1.

License requirements : None

Parameters

filename	file to read rows from NOTE: The full Unicode character set is not supported for this parameter.
loadFileOption	append or replace

void NXOpen::Fields::FieldTable::LoadFromFile	(	const char *	filename,
		NXOpen::Fields::FieldTable::LoadFileOption	loadFileOption
	)

Populate the table from a file replacing or appending data
Created in NX6.0.1.

License requirements : None

Parameters

filename	file to read rows from NOTE: The full Unicode character set is not supported for this parameter.
loadFileOption	append or replace

bool NXOpen::Fields::FieldTable::PersistentInterpolator ( )

Returns a flag specifying if interpolator is persistent between session.

Created in NX8.5.0.

License requirements : None

void NXOpen::Fields::FieldTable::SetAnnTolerance ( double annTolerance )

Sets the approximate nearest neighbor (ANN) interpolation tolerance.

Created in NX8.5.0.

License requirements : None

Parameters

annTolerance approximate nearest neighbor (ANN) interpolation tolerance

void NXOpen::Fields::FieldTable::SetIdwOptions	(	NXOpen::Fields::FieldEvaluator::InverseDistanceWeightingEnum	nearestOption,
		double	nearestFraction
	)

Set the inverse distance weighting (IDW) interpolation options
Created in NX8.5.0.

License requirements : None

Parameters

nearestOption	nearest option
nearestFraction	fraction

void NXOpen::Fields::FieldTable::SetIndependentValueDivisor ( double divisor )

Sets the linear interpolation divisor for field independent value, the zero value represents no divisor used
Created in NX9.0.0.

License requirements : None

Parameters

divisor the interpolation divisor for independent value

void NXOpen::Fields::FieldTable::SetIndependentValueDivisorOption ( bool divisorOption )

Sets a value indicating whether to set the linear interpolation divisor for field independent value
Created in NX9.0.0.

License requirements : None

Parameters

divisorOption the interpolation divisor flag for independent value

void NXOpen::Fields::FieldTable::SetIndependentValueShift ( double shift )

Sets the linear interpolation shift for field independent value
Created in NX9.0.0.

License requirements : None

Parameters

shift the interpolation shift for independent value

void NXOpen::Fields::FieldTable::SetIndependentValueShiftOption ( bool shiftOption )

Sets a value indicating whether to set the linear interpolation shift for field independent value
Created in NX9.0.0.

License requirements : None

Parameters

shiftOption the interpolation shift flag for independent value

void NXOpen::Fields::FieldTable::SetInterpolation ( int interpolationMethod )

Specified interpolation method, this method was deprecated in NX7.5.2.

Deprecated:: Deprecated in NX7.5.2. Use Fields::FieldTable::InterpolationMethod and Fields::FieldTable::SetInterpolationMethod instead.

Created in NX6.0.0.

License requirements : None

Parameters

interpolationMethod specified interpolation method; Fields::FieldTable interpolation enum values for builtin methods.

void NXOpen::Fields::FieldTable::SetInterpolationMethod ( NXOpen::Fields::FieldEvaluator::InterpolationEnum interpolationMethod )

Sets the interpolation method used when this table data is evaluated.

Created in NX7.5.2.

License requirements : None

Parameters

interpolationMethod the interpolation method

void NXOpen::Fields::FieldTable::SetLinearLogOption ( NXOpen::Fields::FieldEvaluator::LinearLogOptionEnum linearOption )

Sets the linear/log option used when this table data is evaluated using the linear 1d interpolator.

Created in NX9.0.0.

License requirements : None

Parameters

linearOption the log option

void NXOpen::Fields::FieldTable::SetPersistentInterpolator ( bool persistentInterpolator )

Sets a flag specifying if interpolator is persistent between session.

Created in NX8.5.0.

License requirements : None

Parameters

persistentInterpolator persistent interpolator indicator

void NXOpen::Fields::FieldTable::SetValuesOutsideTableInterpolation ( NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum interpolationMethod )

Sets the outside table values interpolation method for standard linear interpolation
Created in NX9.0.0.

License requirements : None

Parameters

interpolationMethod the outside table values interpolation method

NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum NXOpen::Fields::FieldTable::ValuesOutsideTableInterpolation ( )

Returns the outside table values interpolation method for standard linear interpolation
Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Fields_FieldTable.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
