Represents a Dynamic Section Builder used for creating sections. More...

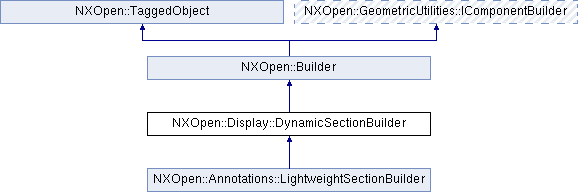

Inheritance diagram for NXOpen::Display::DynamicSectionBuilder:

Public Member Functions
void	AlternatePlane ()
	Cycle through planes that are 90 degrees aligned to the current section plane.

NXOpen::NXColor *	CapColor ()
	Returns the cap color.

NXOpen::Display::DynamicSectionTypes::CapColorOption	CapColorOption ()
	Returns the cap color option Created in NX5.0.0.

NXOpen::Display::DynamicSectionTypes::Clip	ClipType ()
	Returns the clip type Created in NX5.0.0.

NXOpen::DatumPlane *	CreateDatumPlane ()
	Creates a datum plane from the active section plane.

NXOpen::Display::DynamicSectionTypes::CoordinateSystem	CsysType ()
	Returns the coordinate system used for creating section plane along X, Y or Z principal planes.

NXOpen::NXColor *	CurveColor ()
	Returns the curve color.

NXOpen::Display::DynamicSectionTypes::CurveColorOption	CurveColorOption ()
	Returns the curve color option Created in NX5.0.0.

bool	DeferCurveUpdate ()
	Returns the defer curve update property.

void	EditView (NXOpen::ModelingView *view)
	Edits the section object in the modeling view.

void	GetActivePlane (NXOpen::Display::DynamicSectionTypes::Axis planeAxis, NXOpen::Display::DynamicSectionTypes::ActivePlane activePlane)
	Gets the active plane in the section.

NXOpen::Display::PlaneGridBuilder *	GetGridSettings ()
	Creates a grid settings builder from the active section plane.

NXString	GetName ()
	Gets the section name.

NXOpen::Vector3d	GetNormal ()
	Gets the normal of the section plane.

double	GetOffset ()
	Gets the the plane offset.

void	GetOffsetLimits (double minimumOffset, double maximumOffset)
	Gets minimum and maximum offset limits.

NXOpen::Point3d	GetOrigin ()
	Gets the section origin.

double	GetPlaneThickness ()
	Gets the thickness between active plane pair.

double	GetRotationAngle (NXOpen::Display::DynamicSectionTypes::Axis rotationAxis)
	Gets rotation angle for specified axis.

NXOpen::Matrix3x3	GetRotationMatrix ()
	Gets the section rotation matrix.

NXOpen::NXColor *	InterferenceColor ()
	Returns the interference color.

bool	IsAssociativitySupported ()
	Determines if an associative section plane is supported.

NXOpen::Display::LayerSettingsBuilder *	LayerSettings ()
	Returns the layer settings builder.

bool	LoadAllIntersecting (NXOpen::PartLoadStatus **loadStatus)
	Loads all components that intersect the current section plane.

bool	LoadNearIntersecting (NXOpen::PartLoadStatus **loadStatus)
	Loads components that intersect the current section plane and are near the section plane origin.

bool	LockPlanes ()
	Returns the lock planes flag.

int	NumberInSeries ()
	Returns the number of requested section planes in the current section series.

void	OffsetOriginInPlane (double xOffset, double yOffset)
	Offsets section origin within current section plane.

void	PlaneX ()
	Creates a plane along X direction.

void	PlaneY ()
	Creates a plane along Y direction.

void	PlaneZ ()
	Creates a plane along Z direction.

void	RestoreView ()
	Restores the section to the saved section in the view database.

void	ReverseDirection ()
	Reverses the plane direction.

bool	ReverseSeries ()
	Returns the reverse series flag Created in NX6.0.0.

void	SaveCurves (const NXString &groupName)
	Creates curves by intersecting all clipping planes of the section with all visible bodies in the scene and adds them to the group created with the specified name.

void	SaveCurves (const char *groupName)
	Creates curves by intersecting all clipping planes of the section with all visible bodies in the scene and adds them to the group created with the specified name.

double	SeriesSpacing ()
	Returns the section plane spacing in the current section series.

void	SetActivePlane (NXOpen::Display::DynamicSectionTypes::Axis planeAxis, NXOpen::Display::DynamicSectionTypes::ActivePlane activePlane)
	Sets the active plane in the section.

void	SetAssociativePlane (NXOpen::Plane *planeTag)
	Makes dynamic section associative to the specified plane The plane must be a smart plane; otherwise an error will be reported.

void	SetCapColor (NXOpen::NXColor *capColor)
	Sets the cap color.

void	SetCapColorOption (NXOpen::Display::DynamicSectionTypes::CapColorOption capColorOption)
	Sets the cap color option Created in NX5.0.0.

void	SetClipType (NXOpen::Display::DynamicSectionTypes::Clip clipType)
	Sets the clip type Created in NX5.0.0.

void	SetCsysType (NXOpen::Display::DynamicSectionTypes::CoordinateSystem csys)
	Sets the coordinate system used for creating section plane along X, Y or Z principal planes.

void	SetCurveColor (NXOpen::NXColor *curveColor)
	Sets the curve color.

void	SetCurveColorOption (NXOpen::Display::DynamicSectionTypes::CurveColorOption curveColorOption)
	Sets the curve color option Created in NX5.0.0.

void	SetDefaultPlane ()
	Set current section plane to its default definition.

void	SetDefaults ()
	Set current section to the default values.

void	SetDeferCurveUpdate (bool deferCurveUpdate)
	Sets the defer curve update property.

void	SetInterferenceColor (NXOpen::NXColor *interferenceColor)
	Sets the interference color.

void	SetLockPlanes (bool lockPlanes)
	Sets the lock planes flag.

bool	SetName (const NXString &sectionName)
	Sets the section name.

bool	SetName (const char *sectionName)
	Sets the section name.

void	SetNormal (const NXOpen::Vector3d &normal)
	Sets the normal of the section plane Section offset and rotation matrix are updated.

void	SetNumberInSeries (int numberSectionsRequested)
	Sets the number of requested section planes in the current section series.

void	SetOffset (double offset)
	Sets the the plane offset.

void	SetOffsetByPoint (const NXOpen::Point3d &point)
	This method offsets the active clipping plane such that the plane passes through the specified point.

void	SetOrigin (const NXOpen::Point3d &origin)
	Sets the section origin.

void	SetPlane (const NXOpen::Point3d &axisOrigin, const NXOpen::Point3d &origin, const NXOpen::Matrix3x3 &rotationMatrix)
	Sets a section plane to be the specified plane The plane is created at the specified origin with the specified rotation matrix.

void	SetPlaneThickness (double planeThickness)
	Sets the thickness between active plane pair.

void	SetReverseSeries (bool reverseSeries)
	Sets the reverse series flag Created in NX6.0.0.

void	SetRotationAngle (NXOpen::Display::DynamicSectionTypes::Axis rotationAxis, double angle)
	Rotates the section about specified axis by the specified angle.

void	SetRotationMatrix (NXOpen::Display::DynamicSectionTypes::Axis rotationAxis, const NXOpen::Matrix3x3 &rotationMatrix)
	Sets the section rotation matrix Specify Display::DynamicSectionTypes::AxisNone if the axis about which rotation was performed is not known.

void	SetSeriesSpacing (double sectionSpacing)
	Sets the section plane spacing in the current section series.

void	SetShowCap (bool showCap)
	Sets the cap on off flag Created in NX5.0.0.

void	SetShowClip (bool showClip)
	Sets the clip on off flag Created in NX5.0.0.

void	SetShowCurves (bool showCurves)
	Sets the curve on off flag.

void	SetShowGrid (bool showGrid)
	Sets the show grid display flag Created in NX6.0.0.

void	SetShowInterference (bool showInterference)
	Sets the interference on off flag.

void	SetShowViewer (bool showViewer)
	Sets the 2D viewer display flag Created in NX6.0.0.

void	SetType (NXOpen::Display::DynamicSectionTypes::Type type)
	Sets the section type Created in NX5.0.0.

void	SetView (NXOpen::ModelingView *view)
	Sets the modeling view in which section object edits are being done.

bool	ShowCap ()
	Returns the cap on off flag Created in NX5.0.0.

bool	ShowClip ()
	Returns the clip on off flag Created in NX5.0.0.

bool	ShowCurves ()
	Returns the curve on off flag.

bool	ShowGrid ()
	Returns the show grid display flag Created in NX6.0.0.

bool	ShowInterference ()
	Returns the interference on off flag.

void	ShowSectionCurves (bool showCurves)
	Shows the section curves in the view associated with the builder.

bool	ShowViewer ()
	Returns the 2D viewer display flag Created in NX6.0.0.

NXOpen::Display::DynamicSectionTypes::Type	Type ()
	Returns the section type Created in NX5.0.0.

NXOpen::ModelingView *	View ()
	Returns the modeling view in which section object edits are being done.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Dynamic Section Builder used for creating sections.

     <br>
    The dynamic sectioning is performed on a displayable part that is
    displayed in the modeling work view.It is possible to specify the view
    after creating the builder. However, the specified view must be
    modeling work view. This operation is meant to be performed in an
    interactive mode with visual feedback.
     <br>

     <br> <b>Builder Creation:</b> <br>

     <br>
    The dynamic section builder can be used to create new dynamic
    section objects OR to edit an existing section object.

    See @link Display::DynamicSectionCollection::CreateSectionBuilder Display::DynamicSectionCollection::CreateSectionBuilder@endlink

    When a view is specified during the builder creation, the dynamic
    section object will be activated in the view. When the dynamic
    section object is activated in the view, view clipping and
    capping is enabled. However, it is not necessary to specify the
    view.
     <br>

     <br>
    There are three different types of sections that are currently
    being supported.
     <br>

     <br>
    <ul>
        <li>One Plane Section</li>
        <li>Two Parallel Planes Section</li>
        <li>Box Section</li>
    </ul>
     <br>

     <br>
    User can switch between these types at any time.
     <br>

     <br>
    <b>Assembly and Modeling Operations</b>
     <br>

     <br>
    <ul>
        <li>Create section curves by intersecting all clipping planes
            with all bodies in the scene</li>
        <li>Create a datum plane from the active section plane.</li>
        <li>Load components that are near or intersecting with the active
            section plane.</li>
    </ul>
     <br>

     <br>
    All the APIs accept geometric data such as plane origin, plane normal
    in the absolute coordinate system.
     <br>

     <br>
    <b>Saving changes</b>
     <br>

     <br>
    @link Builder::Commit Builder::Commit@endlink  method will activate the section
    object in the modeling view. It returns the dynamic section object tag.
     <br>

     <br>
    <b>Section Plane Families:</b>
     <br>

     <br>
    An important issue with dynamic sectioning is the ability to easily
    define a group of related cross-section planes. A group of related
    cross-section planes will be known as a <tt>Plane Family</tt>. An
    important idea in understanding a plane family is the concept of a
    defining or a <tt>Base Plane</tt>. The base plane of the plane family
    is the starting point (i.e. plane) for the plane family. All planes
    in the family are related by an offset to the base plane. There are
    two types of plane families:
     <br>

     <br>
    <ul>
        <li>Linear</li>
        <li>Axi-Symmetric</li>
    </ul>
     <br>

     <br>
    <tt>Linear Plane Family</tt>
     <br>

     <br>
    A linear plane family is defined by an infinite group of parallel
    planes. All of the planes in a linear family are parallel to its
    base plane (i.e. along the base plane normal at some linear offset
    value). This is illustrated below with a base plane and three
    parallel planes to it that are members of the plane family.
     <br>

     <br>
    Base Plane
     <br>
     @code
    |   |   |   |
    |   |   |   |
    |   |   |   | ==\> Nomal to all planes.
    |   |   |   |
    |   |   |   |
     @endcode

     <br>
    <tt>Axi-Symmetric Plane Family</tt>
     <br>

     <br>
    An axi-symmetric plane family is defined by rotating the base plane about
    one of the three primary axes. There are an infinite number of planes in
    an axi-symmetric plane family similar to a linear plane family. This is
    illustrated below with a base plane and three planes rotated about the
    z-axis.
     <br>

     @code


            \   |   /
             \  |  /
              \ | /
               \|/____  Base Plane
     @endcode

     <br> <b>Switching between plane families</b>
     <br>

     <br>
    Methods defining a new linear family
     <br>

     <br>
    <ul>
        <li>@link Display::DynamicSectionBuilder::AlternatePlane Display::DynamicSectionBuilder::AlternatePlane@endlink </li>
        <li>@link Display::DynamicSectionBuilder::PlaneX Display::DynamicSectionBuilder::PlaneX@endlink </li>
        <li>@link Display::DynamicSectionBuilder::PlaneY Display::DynamicSectionBuilder::PlaneY@endlink </li>
        <li>@link Display::DynamicSectionBuilder::PlaneZ Display::DynamicSectionBuilder::PlaneZ@endlink </li>
        <li>@link Display::DynamicSectionBuilder::SetNormal Display::DynamicSectionBuilder::SetNormal@endlink </li>
        <li>@link Display::DynamicSectionBuilder::SetOffset Display::DynamicSectionBuilder::SetOffset@endlink </li>
        <li>@link Display::DynamicSectionBuilder::SetOffsetByPoint Display::DynamicSectionBuilder::SetOffsetByPoint@endlink </li>
        <li>@link Display::DynamicSectionBuilder::SetOrigin Display::DynamicSectionBuilder::SetOrigin@endlink </li>
        <li>@link Display::DynamicSectionBuilder::SetPlane Display::DynamicSectionBuilder::SetPlane@endlink </li>
    </ul>
     <br>

     <br>
    Following methods define a new axi-symmetric family
     <br>

     <br>
    <ul>
        <li>@link Display::DynamicSectionBuilder::SetRotationAngle Display::DynamicSectionBuilder::SetRotationAngle@endlink </li>
        <li>@link Display::DynamicSectionBuilder::SetRotationMatrix Display::DynamicSectionBuilder::SetRotationMatrix@endlink </li>
    </ul>
     <br>

     <br>
    <b>Transition between plane families</b>
     <br>

     <br> When a method defining a new linear family is invoked, then if
     <br>
     <br>
    <ul>
        <li>the current plane is in a linear family, it will stay in the family.</li>
        <li>the current plane is in a axi-symmetric family, it becomes the base
            plane of the linear family.</li>
    </ul>
     <br>

     <br> The same thing happens when a method defining a new axi-symmetric plane
    is invoked.
     <br>

     <br>
    <b>Examples:</b>
     <br>

     <br> <tt>1. Linear Family</tt>
     <br>

     <br>
    Goal: User wants to create a series of sections along X axis.
     <br>

     <br>
    API sequence:
     <br>

     @code
    planeX  - Create a plane with base plane at X = 0
                  See Display.DynamicSectionBuilder.PlaneX
    SetOffset( 50 ) - Plane at X = 50
    SetOffset( 100 ) - Plane at X = 100
    SetOffset( 0 ) - Plane at X = 0
     @endcode

     <br> <tt>2. Axi-symmetric Family</tt>
     <br>

     <br>
    Goal: User wants to create a series of sections by planes rotated
          around X axis of the section plane.
     <br>

     <br>
    API sequence:
     <br>
     @code
    SetRotation( X, 45 ) - The current plane becomes base plane. Then
                           the plane rotated around X axis by 45
                           degrees.
    SetRotation( X, 90 ) - Plane rotated around X axis by 90 degrees.
    SetRotation( X, 90 ) - Plane rotated around X axis by 0 degrees.
                           Back to original position.
     @endcode

Default values.

Property

Value

CapColorOption

Any

ClipType

Section

CurveColorOption

Any

LayerSettings.LayerOption

Work

LockPlanes

true

ShowCap

true

ShowClip

true

ShowCurves (deprecated)

false

ShowGrid

false

ShowInterference

false

ShowViewer

false

Type

OnePlane

Created in NX5.0.0.

Member Function Documentation

void NXOpen::Display::DynamicSectionBuilder::AlternatePlane ( )

Cycle through planes that are 90 degrees aligned to the current section plane.

       For example, for a XY plane with normal along positive Z axis, invoking
       this method will cycle through the planes in the following order.
        @code
       - YZ plane with normal along X axis
       - XZ plane with normal along Y axis
       - XY plane with normal along Z axis
        @endcode

       The section offset and rotation matrix are updated.

Created in NX5.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Display::DynamicSectionBuilder::CapColor ( )

Returns the cap color.

Used when cap color type is Display::DynamicSectionTypes::CapColorOptionAny

Created in NX5.0.0.

License requirements : None

NXOpen::Display::DynamicSectionTypes::CapColorOption NXOpen::Display::DynamicSectionBuilder::CapColorOption ( )

Returns the cap color option
Created in NX5.0.0.

License requirements : None

NXOpen::Display::DynamicSectionTypes::Clip NXOpen::Display::DynamicSectionBuilder::ClipType ( )

Returns the clip type
Created in NX5.0.0.

License requirements : None

NXOpen::DatumPlane* NXOpen::Display::DynamicSectionBuilder::CreateDatumPlane ( )

Creates a datum plane from the active section plane.

Returns: Datum plane
Created in NX5.0.0.

License requirements : None

NXOpen::Display::DynamicSectionTypes::CoordinateSystem NXOpen::Display::DynamicSectionBuilder::CsysType ( )

Returns the coordinate system used for creating section plane along X, Y or Z principal planes.

Created in NX5.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Display::DynamicSectionBuilder::CurveColor ( )

Returns the curve color.

Used when the curve color option is set to Display::DynamicSectionTypes::CurveColorOptionAny .

Created in NX5.0.0.

License requirements : None

NXOpen::Display::DynamicSectionTypes::CurveColorOption NXOpen::Display::DynamicSectionBuilder::CurveColorOption ( )

Returns the curve color option
Created in NX5.0.0.

License requirements : None

bool NXOpen::Display::DynamicSectionBuilder::DeferCurveUpdate ( )

Returns the defer curve update property.

This property can be used to reduce number of curve updates when performing a series of attribute changes on the dynamic section. After the changes are done, undefer the curve update. Undeferring will update the curves, if and only if, curve update is required based on the applied changes.

Created in NX8.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::EditView ( NXOpen::ModelingView * view )

Edits the section object in the modeling view.

        <br>
       The view being edited must be the modeling view. This is provided
       to handle scenarios when the working view is changed when sectioning
       is in progress. It is the responsibility of user to save pending
       changes using @link Builder::Commit Builder::Commit@endlink  method. Otherwise,
       any existing changes will be lost.
        <br>

Created in NX6.0.0.

License requirements : None

Parameters

view	Modeling view

void NXOpen::Display::DynamicSectionBuilder::GetActivePlane	(	NXOpen::Display::DynamicSectionTypes::Axis *	planeAxis,
		NXOpen::Display::DynamicSectionTypes::ActivePlane *	activePlane
	)

Gets the active plane in the section.

See Display::DynamicSectionBuilder::SetActivePlane for details.

Created in NX5.0.0.

License requirements : None

Parameters

planeAxis	planeaxis
activePlane	activeplane

NXOpen::Display::PlaneGridBuilder* NXOpen::Display::DynamicSectionBuilder::GetGridSettings ( )

Creates a grid settings builder from the active section plane.

Returns: Created in NX6.0.0.

License requirements : None

NXString NXOpen::Display::DynamicSectionBuilder::GetName ( )

Gets the section name.

Caller is expected to free the memory.

Returns: Created in NX6.0.0.

License requirements : None

NXOpen::Vector3d NXOpen::Display::DynamicSectionBuilder::GetNormal ( )

Gets the normal of the section plane.

Returns: Section plane normal
Created in NX5.0.0.

License requirements : None

double NXOpen::Display::DynamicSectionBuilder::GetOffset ( )

Gets the the plane offset.

Returns: Created in NX5.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::GetOffsetLimits	(	double *	minimumOffset,
		double *	maximumOffset
	)

Gets minimum and maximum offset limits.

        <br>
       Offset limits are dependent on the active section plane. They
       are determined based on the model bounding box and location
       of the active section plane.
        <br>
        <br>
       @link Display::DynamicSectionBuilder::SetOffset Display::DynamicSectionBuilder::SetOffset@endlink
       can specify offset outside the offset limits. In that case the
       offset limits are extended to include the specified offset.
        <br>

Created in NX5.0.0.

License requirements : None

Parameters

minimumOffset	Minimum offset
maximumOffset	Minimum offset

NXOpen::Point3d NXOpen::Display::DynamicSectionBuilder::GetOrigin ( )

Gets the section origin.

Returns: Section origin
Created in NX5.0.0.

License requirements : None

double NXOpen::Display::DynamicSectionBuilder::GetPlaneThickness ( )

Gets the thickness between active plane pair.

This is valid when the section contains more than one clipping plane. When the section planes are locked, setting thickness will not alter the current thickness.

Returns: Created in NX5.0.0.

License requirements : None

double NXOpen::Display::DynamicSectionBuilder::GetRotationAngle ( NXOpen::Display::DynamicSectionTypes::Axis rotationAxis )

Gets rotation angle for specified axis.

Returns: Rotation angle in degrees
Created in NX5.0.0.

License requirements : None

Parameters

rotationAxis rotationaxis

NXOpen::Matrix3x3 NXOpen::Display::DynamicSectionBuilder::GetRotationMatrix ( )

Gets the section rotation matrix.

Returns: Rotation matrix
Created in NX5.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Display::DynamicSectionBuilder::InterferenceColor ( )

Returns the interference color.

Created in NX5.0.0.

License requirements : None

bool NXOpen::Display::DynamicSectionBuilder::IsAssociativitySupported ( )

Determines if an associative section plane is supported.

    @return

Created in NX9.0.0.

License requirements : None

NXOpen::Display::LayerSettingsBuilder* NXOpen::Display::DynamicSectionBuilder::LayerSettings ( )

Returns the layer settings builder.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Display::DynamicSectionBuilder::LoadAllIntersecting ( NXOpen::PartLoadStatus ** loadStatus )

Loads all components that intersect the current section plane.

Errors are reported by the part load status. Caller is expected to destroy the memory used by load status object.

Returns: New component loaded flag
Created in NX5.0.0.

License requirements : adv_assemblies ("ADVANCED ASSEMBLIES")

Parameters

loadStatus Errors occurred during loading of parts.

bool NXOpen::Display::DynamicSectionBuilder::LoadNearIntersecting ( NXOpen::PartLoadStatus ** loadStatus )

Loads components that intersect the current section plane and are near the section plane origin.

The distance used for which components are "near" the section plane origin is determined internally. Errors are reported by the part load status. Caller is expected to destroy the memory used by load status object.

Returns: New component loaded flag
Created in NX5.0.0.

License requirements : adv_assemblies ("ADVANCED ASSEMBLIES")

Parameters

loadStatus Errors occurred during loading of parts.

bool NXOpen::Display::DynamicSectionBuilder::LockPlanes ( )

Returns the lock planes flag.

The planes can be locked in case of Two Parallel Planes and Box Section. When locked the planes will move together.

Created in NX5.0.0.

License requirements : None

int NXOpen::Display::DynamicSectionBuilder::NumberInSeries ( )

Returns the number of requested section planes in the current section series.

Created in NX6.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::OffsetOriginInPlane	(	double	xOffset,
		double	yOffset
	)

Offsets section origin within current section plane.

        <br>
       The section is moved to new location along in the section plane.
       The offsets are w.r.t. current origin along the X and Y
       axis of the section plane respectively.   <br>

Created in NX5.0.0.

License requirements : None

Parameters

xOffset	Delta X from the current position
yOffset	Delta Y from the current position

void NXOpen::Display::DynamicSectionBuilder::PlaneX ( )

Creates a plane along X direction.

        <br>
       The plane is created with the base plane at the origin with normal
       along X axis of the coordinate system
       @link Display::DynamicSectionBuilder::CsysType Display::DynamicSectionBuilder::CsysType @endlink and @link Display::DynamicSectionBuilder::SetCsysType Display::DynamicSectionBuilder::SetCsysType @endlink .
        <br>
        <br>
       The location of the plane depends on the bounding box of all
       parts displayed in the view. The plane is positioned at the center
       of the bounding box.
        <br>
        <br>
       Section offset and rotation matrix are updated.
        <br>
        <br>
       Section thickness is recomputed based on the bounding box.
        <br>

Created in NX5.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::PlaneY ( )

Creates a plane along Y direction.

        <br>
       The plane is created with the base plane at the origin with normal
       along Y axis of the coordinate system
       @link Display::DynamicSectionBuilder::CsysType Display::DynamicSectionBuilder::CsysType @endlink and @link Display::DynamicSectionBuilder::SetCsysType Display::DynamicSectionBuilder::SetCsysType @endlink .
        <br>
        <br>
       The location of the plane depends on the bounding box of all
       parts displayed in the view. The plane is positioned at the center
       of the bounding box.
        <br>
        <br>
       Section offset and rotation matrix are updated.
        <br>
        <br>
       Section thickness is recomputed based on the bounding box.
        <br>

Created in NX5.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::PlaneZ ( )

Creates a plane along Z direction.

        <br>
       The plane is created with the base plane at the origin with normal
       along Z axis of the coordinate system
       @link Display::DynamicSectionBuilder::CsysType Display::DynamicSectionBuilder::CsysType @endlink and @link Display::DynamicSectionBuilder::SetCsysType Display::DynamicSectionBuilder::SetCsysType @endlink .
        <br>
        <br>
       The location of the plane depends on the bounding box of all
       parts displayed in the view. The plane is positioned at the center
       of the bounding box.
        <br>
        <br>
       Section offset and rotation matrix are updated.
        <br>
        <br>
       Section thickness is recomputed based on the bounding box.
        <br>

Created in NX5.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::RestoreView ( )

Restores the section to the saved section in the view database.

Created in NX5.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::ReverseDirection ( )

Reverses the plane direction.

This will flip the side of the model being clipped.
Section rotation matrix is updated.

Created in NX5.0.0.

License requirements : None

bool NXOpen::Display::DynamicSectionBuilder::ReverseSeries ( )

Returns the reverse series flag
Created in NX6.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::SaveCurves ( const NXString & groupName )

Creates curves by intersecting all clipping planes of the section with all visible bodies in the scene and adds them to the group created with the specified name.

The group is displayed in the part navigator. If the customer default "Load Solids/Sheets when Saving Section Curves" is enabled, then this will load exact solid/sheet bodies for the visible lightweight bodies intersecting the clipping planes. This may increase the time and memory used by the operation, but will ensure exact section curves.

Created in NX5.0.0.

License requirements : None

Parameters

groupName Name of the group containing curves
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Display::DynamicSectionBuilder::SaveCurves ( const char * groupName )

Creates curves by intersecting all clipping planes of the section with all visible bodies in the scene and adds them to the group created with the specified name.

The group is displayed in the part navigator. If the customer default "Load Solids/Sheets when Saving Section Curves" is enabled, then this will load exact solid/sheet bodies for the visible lightweight bodies intersecting the clipping planes. This may increase the time and memory used by the operation, but will ensure exact section curves.

Created in NX5.0.0.

License requirements : None

Parameters

groupName Name of the group containing curves
NOTE: The full Unicode character set is not supported for this parameter.

double NXOpen::Display::DynamicSectionBuilder::SeriesSpacing ( )

Returns the section plane spacing in the current section series.

Created in NX6.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::SetActivePlane	(	NXOpen::Display::DynamicSectionTypes::Axis	planeAxis,
		NXOpen::Display::DynamicSectionTypes::ActivePlane	activePlane
	)

Sets the active plane in the section.

        <br>
       Single Plane:
        <br>
        <br>
           There is no secondary plane. Only primary plane exists.
        <br>

        <br>
       Two Parallel Plane Section:
        <br>
        <br>
           @link Display::DynamicSectionTypes::AxisZ Display::DynamicSectionTypes::AxisZ@endlink  is the
           active axis and primary/secondary plane can be activated.
        <br>
        <br>
       Box Section:
        <br>
        <br>
           The active plane pair can be selected by specifying the planeAxis
           Given an axis, the primary/secondary planes can be activated.
        <br>
        <br>
           E.g. To activate primary plane along the local X axis use
                @link Display::DynamicSectionTypes::AxisX Display::DynamicSectionTypes::AxisX@endlink  and
                @link Display::DynamicSectionTypes::ActivePlanePrimary Display::DynamicSectionTypes::ActivePlanePrimary@endlink .
        <br>

Created in NX5.0.0.

License requirements : None

Parameters

planeAxis	planeaxis
activePlane	activeplane

void NXOpen::Display::DynamicSectionBuilder::SetAssociativePlane ( NXOpen::Plane * planeTag )

Makes dynamic section associative to the specified plane The plane must be a smart plane; otherwise an error will be reported.

        <br>
       Associative plane can be specified only if the builder supports associativity (see @link Display::DynamicSectionBuilder::IsAssociativitySupported Display::DynamicSectionBuilder::IsAssociativitySupported@endlink ).
        <br>

Created in NX9.0.0.

License requirements : None

Parameters

planeTag Tag of the plane

void NXOpen::Display::DynamicSectionBuilder::SetCapColor ( NXOpen::NXColor * capColor )

Sets the cap color.

Used when cap color type is Display::DynamicSectionTypes::CapColorOptionAny

Created in NX5.0.0.

License requirements : None

Parameters

capColor capcolor

void NXOpen::Display::DynamicSectionBuilder::SetCapColorOption ( NXOpen::Display::DynamicSectionTypes::CapColorOption capColorOption )

Sets the cap color option
Created in NX5.0.0.

License requirements : None

Parameters

capColorOption capcoloroption

void NXOpen::Display::DynamicSectionBuilder::SetClipType ( NXOpen::Display::DynamicSectionTypes::Clip clipType )

Sets the clip type
Created in NX5.0.0.

License requirements : None

Parameters

clipType cliptype

void NXOpen::Display::DynamicSectionBuilder::SetCsysType ( NXOpen::Display::DynamicSectionTypes::CoordinateSystem csys )

Sets the coordinate system used for creating section plane along X, Y or Z principal planes.

Created in NX5.0.0.

License requirements : None

Parameters

csys csys

void NXOpen::Display::DynamicSectionBuilder::SetCurveColor ( NXOpen::NXColor * curveColor )

Sets the curve color.

Used when the curve color option is set to Display::DynamicSectionTypes::CurveColorOptionAny .

Created in NX5.0.0.

License requirements : None

Parameters

curveColor curvecolor

void NXOpen::Display::DynamicSectionBuilder::SetCurveColorOption ( NXOpen::Display::DynamicSectionTypes::CurveColorOption curveColorOption )

Sets the curve color option
Created in NX5.0.0.

License requirements : None

Parameters

curveColorOption curvecoloroption

void NXOpen::Display::DynamicSectionBuilder::SetDefaultPlane ( )

Set current section plane to its default definition.

This will only modify section plane geometry.

Created in NX5.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::SetDefaults ( )

Set current section to the default values.

This will modify all section geometry as well as section attributes.

Created in NX5.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::SetDeferCurveUpdate ( bool deferCurveUpdate )

Sets the defer curve update property.

This property can be used to reduce number of curve updates when performing a series of attribute changes on the dynamic section. After the changes are done, undefer the curve update. Undeferring will update the curves, if and only if, curve update is required based on the applied changes.

Created in NX8.0.0.

License requirements : None

Parameters

deferCurveUpdate defercurveupdate

void NXOpen::Display::DynamicSectionBuilder::SetInterferenceColor ( NXOpen::NXColor * interferenceColor )

Sets the interference color.

Created in NX5.0.0.

License requirements : None

Parameters

interferenceColor interferencecolor

void NXOpen::Display::DynamicSectionBuilder::SetLockPlanes ( bool lockPlanes )

Sets the lock planes flag.

The planes can be locked in case of Two Parallel Planes and Box Section. When locked the planes will move together.

Created in NX5.0.0.

License requirements : None

Parameters

lockPlanes lockplanes

bool NXOpen::Display::DynamicSectionBuilder::SetName ( const NXString & sectionName )

Sets the section name.

        <br>
       The specified name will be validated. A section is expected to have a
       unique name in a part. The name may be modified to make it unique within
       the part.
        <br>
     @return  If specified name was modified to
                                        ensure uniqueness

Created in NX6.0.0.

License requirements : None

Parameters

sectionName Section name

bool NXOpen::Display::DynamicSectionBuilder::SetName ( const char * sectionName )

Sets the section name.

        <br>
       The specified name will be validated. A section is expected to have a
       unique name in a part. The name may be modified to make it unique within
       the part.
        <br>
     @return  If specified name was modified to
                                        ensure uniqueness

Created in NX6.0.0.

License requirements : None

Parameters

sectionName Section name

void NXOpen::Display::DynamicSectionBuilder::SetNormal ( const NXOpen::Vector3d & normal )

Sets the normal of the section plane
Section offset and rotation matrix are updated.

        <br>

Created in NX5.0.0.

License requirements : None

Parameters

normal Section plane normal

void NXOpen::Display::DynamicSectionBuilder::SetNumberInSeries ( int numberSectionsRequested )

Sets the number of requested section planes in the current section series.

Created in NX6.0.0.

License requirements : None

Parameters

numberSectionsRequested Number of section requested (>= 1).

void NXOpen::Display::DynamicSectionBuilder::SetOffset ( double offset )

Sets the the plane offset.

When there are more than one clipping planes in the section, the active clipping plane will be not be allowed to cross-over the non-active clipping plane.
If Display::DynamicSectionBuilder::LockPlanes and Display::DynamicSectionBuilder::SetLockPlanes is off, section thickness is updated.

Created in NX5.0.0.

License requirements : None

Parameters

offset Offset

void NXOpen::Display::DynamicSectionBuilder::SetOffsetByPoint ( const NXOpen::Point3d & point )

This method offsets the active clipping plane such that the plane passes through the specified point.

When there are more than one clipping planes in the section, the active clipping plane will be not be allowed to cross-over the non-active clipping plane.
See Display::DynamicSectionBuilder::SetOffset

Created in NX5.0.0.

License requirements : None

Parameters

point Point in absolute coordinate system.

void NXOpen::Display::DynamicSectionBuilder::SetOrigin ( const NXOpen::Point3d & origin )

Sets the section origin.

        <br>
       The section is moved to new location. It obeys the lock flag
       @link Display::DynamicSectionBuilder::LockPlanes Display::DynamicSectionBuilder::LockPlanes @endlink and @link Display::DynamicSectionBuilder::SetLockPlanes Display::DynamicSectionBuilder::SetLockPlanes @endlink .
       if it is a multiple plane section.
        <br>
       Section offset is updated.

Created in NX5.0.0.

License requirements : None

Parameters

origin Section origin

void NXOpen::Display::DynamicSectionBuilder::SetPlane	(	const NXOpen::Point3d &	axisOrigin,
		const NXOpen::Point3d &	origin,
		const NXOpen::Matrix3x3 &	rotationMatrix
	)

Sets a section plane to be the specified plane The plane is created at the specified origin with the specified rotation matrix.

The axis origin can be same as the plane origin. To defind a linear plane family from the absolute origin, define axis origin as {0, 0, 0}. The section offset will reflect the distance of the plane from the axis origin.
Section offset and rotation matrix are updated.

Created in NX5.0.0.

License requirements : None

Parameters

axisOrigin	Axis origin
origin	Plane origin.
rotationMatrix	Rotation matrix

void NXOpen::Display::DynamicSectionBuilder::SetPlaneThickness ( double planeThickness )

Sets the thickness between active plane pair.

This property is only available when the section contains more than one clipping plane. When the section planes are locked, setting thickness will not alter the current thickness.

Created in NX5.0.0.

License requirements : None

Parameters

planeThickness Active plane thickness

void NXOpen::Display::DynamicSectionBuilder::SetReverseSeries ( bool reverseSeries )

Sets the reverse series flag
Created in NX6.0.0.

License requirements : None

Parameters

reverseSeries reverseseries

void NXOpen::Display::DynamicSectionBuilder::SetRotationAngle	(	NXOpen::Display::DynamicSectionTypes::Axis	rotationAxis,
		double	angle
	)

Rotates the section about specified axis by the specified angle.

       If a rotation already exists about the specified axis, then
       the section is rotated such that the total rotation angle is
       set to the specified angle. Rotation about only one axis is
       active at a time.
        @code
       1. Create plane with normal along Z.

       2. Display.DynamicSectionBuilder.SetRotationAngle( X, 30 )
          Rotates plane around X axis by 30 degrees

       3. Display.DynamicSectionBuilder.SetRotationAngle( X, 45 )
          Incremental rotation of 45 - 30 = 15 degrees.
        @endcode
        <br>
       Section offset and rotation matrix are updated.
        <br>

Created in NX5.0.0.

License requirements : None

Parameters

rotationAxis	rotationaxis
angle	Rotation angle in degrees

void NXOpen::Display::DynamicSectionBuilder::SetRotationMatrix	(	NXOpen::Display::DynamicSectionTypes::Axis	rotationAxis,
		const NXOpen::Matrix3x3 &	rotationMatrix
	)

Sets the section rotation matrix
Specify Display::DynamicSectionTypes::AxisNone if the axis about which rotation was performed is not known.

        <br>
        <br>
       Section offset and rotation matrix are updated.
        <br>

Created in NX5.0.0.

License requirements : None

Parameters

rotationAxis	rotationaxis
rotationMatrix	Rotation matrix

void NXOpen::Display::DynamicSectionBuilder::SetSeriesSpacing ( double sectionSpacing )

Sets the section plane spacing in the current section series.

Created in NX6.0.0.

License requirements : None

Parameters

sectionSpacing Distance between sections (>= 0.02).

void NXOpen::Display::DynamicSectionBuilder::SetShowCap ( bool showCap )

Sets the cap on off flag
Created in NX5.0.0.

License requirements : None

Parameters

showCap showcap

void NXOpen::Display::DynamicSectionBuilder::SetShowClip ( bool showClip )

Sets the clip on off flag
Created in NX5.0.0.

License requirements : None

Parameters

showClip showclip

void NXOpen::Display::DynamicSectionBuilder::SetShowCurves ( bool showCurves )

Sets the curve on off flag.

        <br>
       When the dynamic section object is visible in the view, the
       curves from the section object are shown in that view.
        <br>

Deprecated:: Deprecated in NX6.0.0. Use ModelingView::SetDynamicSectionVisible instead.

Created in NX5.0.0.

License requirements : None

Parameters

showCurves showcurves

void NXOpen::Display::DynamicSectionBuilder::SetShowGrid ( bool showGrid )

Sets the show grid display flag
Created in NX6.0.0.

License requirements : None

Parameters

showGrid showgrid

void NXOpen::Display::DynamicSectionBuilder::SetShowInterference ( bool showInterference )

Sets the interference on off flag.

Created in NX5.0.0.

License requirements : None

Parameters

showInterference showinterference

void NXOpen::Display::DynamicSectionBuilder::SetShowViewer ( bool showViewer )

Sets the 2D viewer display flag
Created in NX6.0.0.

License requirements : None

Parameters

showViewer showviewer

void NXOpen::Display::DynamicSectionBuilder::SetType ( NXOpen::Display::DynamicSectionTypes::Type type )

Sets the section type
Created in NX5.0.0.

License requirements : None

Parameters

type type

void NXOpen::Display::DynamicSectionBuilder::SetView ( NXOpen::ModelingView * view )

Sets the modeling view in which section object edits are being done.

        <br>
       @link Display::DynamicSectionBuilder::SetView Display::DynamicSectionBuilder::SetView@endlink  method is
       present for legacy reasons.

       Use @link Display::DynamicSectionBuilder::EditView Display::DynamicSectionBuilder::EditView@endlink  instead.
        <br>

Created in NX5.0.0.

License requirements : None

Parameters

view	Modeling view

bool NXOpen::Display::DynamicSectionBuilder::ShowCap ( )

Returns the cap on off flag
Created in NX5.0.0.

License requirements : None

bool NXOpen::Display::DynamicSectionBuilder::ShowClip ( )

Returns the clip on off flag
Created in NX5.0.0.

License requirements : None

bool NXOpen::Display::DynamicSectionBuilder::ShowCurves ( )

Returns the curve on off flag.

        <br>
       When the dynamic section object is visible in the view, the
       curves from the section object are shown in that view.
        <br>

Deprecated:: Deprecated in NX6.0.0. Use ModelingView::IsDynamicSectionVisible instead.

Created in NX5.0.0.

License requirements : None

bool NXOpen::Display::DynamicSectionBuilder::ShowGrid ( )

Returns the show grid display flag
Created in NX6.0.0.

License requirements : None

bool NXOpen::Display::DynamicSectionBuilder::ShowInterference ( )

Returns the interference on off flag.

Created in NX5.0.0.

License requirements : None

void NXOpen::Display::DynamicSectionBuilder::ShowSectionCurves ( bool showCurves )

Shows the section curves in the view associated with the builder.

       If no view is associated with the builder, then the curves are
       Shown in the current work view.

Created in NX7.5.0.

License requirements : None

Parameters

showCurves showcurves

bool NXOpen::Display::DynamicSectionBuilder::ShowViewer ( )

Returns the 2D viewer display flag
Created in NX6.0.0.

License requirements : None

NXOpen::Display::DynamicSectionTypes::Type NXOpen::Display::DynamicSectionBuilder::Type ( )

Returns the section type
Created in NX5.0.0.

License requirements : None

NXOpen::ModelingView* NXOpen::Display::DynamicSectionBuilder::View ( )

Returns the modeling view in which section object edits are being done.

        <br>
       @link Display::DynamicSectionBuilder::SetView Display::DynamicSectionBuilder::SetView@endlink  method is
       present for legacy reasons.

       Use @link Display::DynamicSectionBuilder::EditView Display::DynamicSectionBuilder::EditView@endlink  instead.
        <br>

Created in NX5.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Display_DynamicSectionBuilder.hxx

Public Member Functions

Detailed Description

Member Function Documentation
