Represents the builder for adding a bounded grid Display::PlaneGrid to a plane. More...

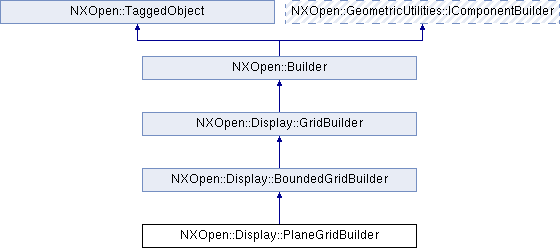

Inheritance diagram for NXOpen::Display::PlaneGridBuilder:
Public Member Functions | |
| NXOpen::Plane * | Plane () |
| Returns the plane Created in NX6.0.0. | |
| void | SetPlane (NXOpen::Plane *plane) |
| Sets the plane Created in NX6.0.0. | |
 Public Member Functions inherited from NXOpen::Display::BoundedGridBuilder | |
| bool | Associative () |
| Returns the associative Created in NX6.0.0. | |
| bool | GetCornerPoints (NXOpen::Point3d *point1, NXOpen::Point3d *point2, NXOpen::Point3d *point3, NXOpen::Point3d *point4) |
| Gets corner points of the grid. | |
| NXOpen::Display::BoundedGridBuilder::LabelReferenceType | LabelReference () |
| Returns the label reference Created in NX6.0.0. | |
| NXOpen::Point3d | LocalOrigin () |
| Returns the local origin Created in NX6.0.0. | |
| void | SaveCurves (const NXString &groupName) |
| Creates curves by intersecting the bounded grid with all bodies in the part of the grid object. | |
| void | SaveCurves (const char *groupName) |
| Creates curves by intersecting the bounded grid with all bodies in the part of the grid object. | |
| NXOpen::Display::SectionCurveSettingsBuilder * | SectionCurveSettings () |
| Returns the curve settings builder Created in NX6.0.0. | |
| void | SetAssociative (bool associative) |
| Sets the associative Created in NX6.0.0. | |
| bool | SetCornerPoints (const NXOpen::Point3d &point1, const NXOpen::Point3d &point2, const NXOpen::Point3d &point3, const NXOpen::Point3d &point4) |
| Sets corner points of the grid. | |
| void | SetLabelReference (NXOpen::Display::BoundedGridBuilder::LabelReferenceType labelReference) |
| Sets the label reference Created in NX6.0.0. | |
| void | SetLocalOrigin (const NXOpen::Point3d &localOrigin) |
| Sets the local origin Created in NX6.0.0. | |
| void | SetShowLabel (NXOpen::Display::BoundedGridBuilder::ShowLabelType showLabelType) |
| Sets the show labels Created in NX6.0.0. | |
| NXOpen::Display::BoundedGridBuilder::ShowLabelType | ShowLabel () |
| Returns the show labels Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::Display::GridBuilder | |
| void | InheritSettings (NXOpen::Display::Grid *grid) |
| Inherits the settings from the specified grid. | |
| NXOpen::NXColor * | LineColor () |
| Returns the line color Created in NX6.0.0. | |
| double | MajorLineSpacing () |
| Returns the major line spacing Created in NX6.0.0. | |
| NXOpen::Display::GridBuilder::LineStyleType | MajorLineStyle () |
| Returns the major line style Created in NX6.0.0. | |
| NXOpen::Display::GridBuilder::LineWeightType | MajorLineWeight () |
| Returns the major line weight Created in NX6.0.0. | |
| int | MinorLinesPerMajor () |
| Returns the minor lines per major Created in NX6.0.0. | |
| NXOpen::Display::GridBuilder::LineStyleType | MinorLineStyle () |
| Returns the minor line style Created in NX6.0.0. | |
| NXOpen::Display::GridBuilder::LineWeightType | MinorLineWeight () |
| Returns the minor line weight Created in NX6.0.0. | |
| void | SetLineColor (NXOpen::NXColor *lineColor) |
| Sets the line color Created in NX6.0.0. | |
| void | SetMajorLineSpacing (double majorLineSpacing) |
| Sets the major line spacing Created in NX6.0.0. | |
| void | SetMajorLineStyle (NXOpen::Display::GridBuilder::LineStyleType majorLineStyle) |
| Sets the major line style Created in NX6.0.0. | |
| void | SetMajorLineWeight (NXOpen::Display::GridBuilder::LineWeightType majorLineWeight) |
| Sets the major line weight Created in NX6.0.0. | |
| void | SetMinorLinesPerMajor (int minorLinesPerMajor) |
| Sets the minor lines per major Created in NX6.0.0. | |
| void | SetMinorLineStyle (NXOpen::Display::GridBuilder::LineStyleType minorLineStyle) |
| Sets the minor line style Created in NX6.0.0. | |
| void | SetMinorLineWeight (NXOpen::Display::GridBuilder::LineWeightType minorLineWeight) |
| Sets the minor line weight Created in NX6.0.0. | |
| void | SetShow (bool show) |
| Sets the show Created in NX6.0.0. | |
| void | SetShowMajorLines (bool showMajorLines) |
| Sets the show major lines Created in NX6.0.0. | |
| void | SetShowOnTop (bool showOnTop) |
| Sets the show on top Created in NX6.0.0. | |
| void | SetSnapPointsPerMinor (int snapPointsPerMinor) |
| Sets the snap points per minor Created in NX6.0.0. | |
| void | SetSnapToGrid (bool snapToGrid) |
| Sets the snap to grid Created in NX6.0.0. | |
| bool | Show () |
| Returns the show Created in NX6.0.0. | |
| bool | ShowMajorLines () |
| Returns the show major lines Created in NX6.0.0. | |
| bool | ShowOnTop () |
| Returns the show on top Created in NX6.0.0. | |
| int | SnapPointsPerMinor () |
| Returns the snap points per minor Created in NX6.0.0. | |
| bool | SnapToGrid () |
| Returns the snap to grid Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::Display::BoundedGridBuilder | |
| enum | LabelReferenceType { LabelReferenceTypeLocal, LabelReferenceTypeWcs, LabelReferenceTypeAbsolute } |
| Specifies label reference. More... | |
| enum | ShowLabelType { ShowLabelTypeAlways, ShowLabelTypeParalleltoView, ShowLabelTypeNone } |
| Specifies label option to be used for grid label display. More... | |
Detailed Description
Represents the builder for adding a bounded grid Display::PlaneGrid to a plane.
<br> To create a new instance of this class, use @link Display::GridCollection::CreatePlaneGridBuilder Display::GridCollection::CreatePlaneGridBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
Associative |
1 |
|
LabelReference |
Local |
|
MajorLineSpacing |
100 (millimeters part), 1 (inches part) |
|
MajorLineStyle |
Solid |
|
MajorLineWeight |
Normal |
|
MinorLineStyle |
Dashed |
|
MinorLineWeight |
Thin |
|
MinorLinesPerMajor |
1 |
|
Show |
1 |
|
ShowLabel |
Always |
|
ShowMajorLines |
1 |
|
ShowOnTop |
0 |
|
SnapPointsPerMinor |
1 |
|
SnapToGrid |
0 |
Created in NX6.0.0.
Member Function Documentation
| NXOpen::Plane* NXOpen::Display::PlaneGridBuilder::Plane | ( | ) |
Returns the plane
Created in NX6.0.0.
License requirements : None
| void NXOpen::Display::PlaneGridBuilder::SetPlane | ( | NXOpen::Plane * | plane | ) |
Sets the plane
Created in NX6.0.0.
License requirements : None
- Parameters
-
plane plane
The documentation for this class was generated from the following file:
- Display_PlaneGridBuilder.hxx
