NXOpen::Display::BoundedGridBuilder Class Reference

Represents the builder for creating a bounded grid Display::BoundedGrid . More...

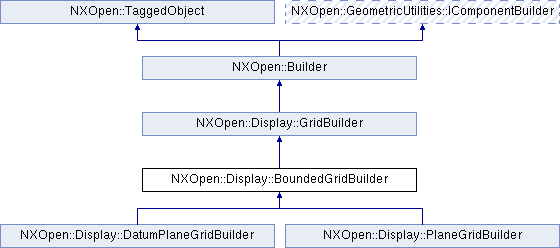

Inheritance diagram for NXOpen::Display::BoundedGridBuilder:

Public Types
enum	LabelReferenceType { LabelReferenceTypeLocal, LabelReferenceTypeWcs, LabelReferenceTypeAbsolute }
	Specifies label reference. More...
enum	ShowLabelType { ShowLabelTypeAlways, ShowLabelTypeParalleltoView, ShowLabelTypeNone }
	Specifies label option to be used for grid label display. More...
Public Types inherited from NXOpen::Display::GridBuilder
enum	LineStyleType {   LineStyleTypeSolid, LineStyleTypeDashed, LineStyleTypePhantom, LineStyleTypeCenterline,   LineStyleTypeDotted, LineStyleTypeLongdash, LineStyleTypeDotdash }
	Specifies line style to be used for major and minor lines of the grid. More...
enum	LineWeightType { LineWeightTypeThin, LineWeightTypeNormal, LineWeightTypeThick }
	Specifies line weight to be used for major and minor lines of the grid. More...

Public Member Functions
bool	Associative ()
	Returns the associative Created in NX6.0.0.
bool	GetCornerPoints (NXOpen::Point3d *point1, NXOpen::Point3d *point2, NXOpen::Point3d *point3, NXOpen::Point3d *point4)
	Gets corner points of the grid.
NXOpen::Display::BoundedGridBuilder::LabelReferenceType	LabelReference ()
	Returns the label reference Created in NX6.0.0.
NXOpen::Point3d	LocalOrigin ()
	Returns the local origin Created in NX6.0.0.
void	SaveCurves (const NXString &groupName)
	Creates curves by intersecting the bounded grid with all bodies in the part of the grid object.
void	SaveCurves (const char *groupName)
	Creates curves by intersecting the bounded grid with all bodies in the part of the grid object.
NXOpen::Display::SectionCurveSettingsBuilder *	SectionCurveSettings ()
	Returns the curve settings builder Created in NX6.0.0.
void	SetAssociative (bool associative)
	Sets the associative Created in NX6.0.0.
bool	SetCornerPoints (const NXOpen::Point3d &point1, const NXOpen::Point3d &point2, const NXOpen::Point3d &point3, const NXOpen::Point3d &point4)
	Sets corner points of the grid.
void	SetLabelReference (NXOpen::Display::BoundedGridBuilder::LabelReferenceType labelReference)
	Sets the label reference Created in NX6.0.0.
void	SetLocalOrigin (const NXOpen::Point3d &localOrigin)
	Sets the local origin Created in NX6.0.0.
void	SetShowLabel (NXOpen::Display::BoundedGridBuilder::ShowLabelType showLabelType)
	Sets the show labels Created in NX6.0.0.
NXOpen::Display::BoundedGridBuilder::ShowLabelType	ShowLabel ()
	Returns the show labels Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Display::GridBuilder
void	InheritSettings (NXOpen::Display::Grid *grid)
	Inherits the settings from the specified grid.
NXOpen::NXColor *	LineColor ()
	Returns the line color Created in NX6.0.0.
double	MajorLineSpacing ()
	Returns the major line spacing Created in NX6.0.0.
NXOpen::Display::GridBuilder::LineStyleType	MajorLineStyle ()
	Returns the major line style Created in NX6.0.0.
NXOpen::Display::GridBuilder::LineWeightType	MajorLineWeight ()
	Returns the major line weight Created in NX6.0.0.
int	MinorLinesPerMajor ()
	Returns the minor lines per major Created in NX6.0.0.
NXOpen::Display::GridBuilder::LineStyleType	MinorLineStyle ()
	Returns the minor line style Created in NX6.0.0.
NXOpen::Display::GridBuilder::LineWeightType	MinorLineWeight ()
	Returns the minor line weight Created in NX6.0.0.
void	SetLineColor (NXOpen::NXColor *lineColor)
	Sets the line color Created in NX6.0.0.
void	SetMajorLineSpacing (double majorLineSpacing)
	Sets the major line spacing Created in NX6.0.0.
void	SetMajorLineStyle (NXOpen::Display::GridBuilder::LineStyleType majorLineStyle)
	Sets the major line style Created in NX6.0.0.
void	SetMajorLineWeight (NXOpen::Display::GridBuilder::LineWeightType majorLineWeight)
	Sets the major line weight Created in NX6.0.0.
void	SetMinorLinesPerMajor (int minorLinesPerMajor)
	Sets the minor lines per major Created in NX6.0.0.
void	SetMinorLineStyle (NXOpen::Display::GridBuilder::LineStyleType minorLineStyle)
	Sets the minor line style Created in NX6.0.0.
void	SetMinorLineWeight (NXOpen::Display::GridBuilder::LineWeightType minorLineWeight)
	Sets the minor line weight Created in NX6.0.0.
void	SetShow (bool show)
	Sets the show Created in NX6.0.0.
void	SetShowMajorLines (bool showMajorLines)
	Sets the show major lines Created in NX6.0.0.
void	SetShowOnTop (bool showOnTop)
	Sets the show on top Created in NX6.0.0.
void	SetSnapPointsPerMinor (int snapPointsPerMinor)
	Sets the snap points per minor Created in NX6.0.0.
void	SetSnapToGrid (bool snapToGrid)
	Sets the snap to grid Created in NX6.0.0.
bool	Show ()
	Returns the show Created in NX6.0.0.
bool	ShowMajorLines ()
	Returns the show major lines Created in NX6.0.0.
bool	ShowOnTop ()
	Returns the show on top Created in NX6.0.0.
int	SnapPointsPerMinor ()
	Returns the snap points per minor Created in NX6.0.0.
bool	SnapToGrid ()
	Returns the snap to grid Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the builder for creating a bounded grid Display::BoundedGrid .

  <br> This is an abstract class, and cannot be instantiated.  <br>

Default values.

Property	Value
SectionCurveSettings.ColorOption	Any
SectionCurveSettings.Show	false

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Display::BoundedGridBuilder::LabelReferenceType

Specifies label reference.

Enumerator:

LabelReferenceTypeLocal	Use local grid origin to determine grid line offset labels.
LabelReferenceTypeWcs	Use projection of WCS origin on the grid plane to determine grid line offset labels.
LabelReferenceTypeAbsolute	Use projection of absolute origin on the grid plane to determine grid line offset labels.

enum NXOpen::Display::BoundedGridBuilder::ShowLabelType

Specifies label option to be used for grid label display.

Enumerator:

ShowLabelTypeAlways	Always show label.
ShowLabelTypeParalleltoView	Show labels when grid orientation is aligned with the view orientation.
ShowLabelTypeNone	Never show labels.

Member Function Documentation

bool NXOpen::Display::BoundedGridBuilder::Associative

(

)

Returns the associative
Created in NX6.0.0.

License requirements : None

bool NXOpen::Display::BoundedGridBuilder::GetCornerPoints	(	NXOpen::Point3d *	point1,
		NXOpen::Point3d *	point2,
		NXOpen::Point3d *	point3,
		NXOpen::Point3d *	point4
	)

Gets corner points of the grid.

Returns

Flag indicating whether the corner points are valid
Created in NX6.0.0.

License requirements : None

Parameters

point1	First corner point
point2	Second corner point
point3	Third corner point
point4	Fourth corner point

NXOpen::Display::BoundedGridBuilder::LabelReferenceType NXOpen::Display::BoundedGridBuilder::LabelReference

(

)

Returns the label reference
Created in NX6.0.0.

License requirements : None

NXOpen::Point3d NXOpen::Display::BoundedGridBuilder::LocalOrigin

(

)

Returns the local origin
Created in NX6.0.0.

License requirements : None

void NXOpen::Display::BoundedGridBuilder::SaveCurves

(

const NXString &

groupName

)

Creates curves by intersecting the bounded grid with all bodies in the part of the grid object.

The bodies that are visible in the work view are intersected. The curves are added to the group created with the specified name. The group is displayed in the part navigator. The curves are created in the work part. These curves are not associated with the grid. These are just snapshot curves that can be used for modeling purposes. If the customer default "Load Solids/Sheets when Saving Section Curves" is enabled, the Save Copy of Section Curves command in the datum plane grid dialog will cause solid/sheet bodies to be loaded into memory for any visible lightweight bodies on the section plane. This may increase the time and memory used by the operation, but will ensure fully accurate section curves.

Created in NX6.0.0.

License requirements : None

Parameters

groupName

Name of the group containing curves. If NULL, a default name will be used. NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Display::BoundedGridBuilder::SaveCurves

(

const char *

groupName

)

Creates curves by intersecting the bounded grid with all bodies in the part of the grid object.

The bodies that are visible in the work view are intersected. The curves are added to the group created with the specified name. The group is displayed in the part navigator. The curves are created in the work part. These curves are not associated with the grid. These are just snapshot curves that can be used for modeling purposes. If the customer default "Load Solids/Sheets when Saving Section Curves" is enabled, the Save Copy of Section Curves command in the datum plane grid dialog will cause solid/sheet bodies to be loaded into memory for any visible lightweight bodies on the section plane. This may increase the time and memory used by the operation, but will ensure fully accurate section curves.

Created in NX6.0.0.

License requirements : None

Parameters

groupName

Name of the group containing curves. If NULL, a default name will be used. NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::Display::SectionCurveSettingsBuilder* NXOpen::Display::BoundedGridBuilder::SectionCurveSettings

(

)

Returns the curve settings builder
Created in NX6.0.0.

License requirements : None

void NXOpen::Display::BoundedGridBuilder::SetAssociative

(

bool

associative

)

Sets the associative
Created in NX6.0.0.

License requirements : None

Parameters

associative

associative

bool NXOpen::Display::BoundedGridBuilder::SetCornerPoints	(	const NXOpen::Point3d &	point1,
		const NXOpen::Point3d &	point2,
		const NXOpen::Point3d &	point3,
		const NXOpen::Point3d &	point4
	)

Sets corner points of the grid.

Returns

Flag indicating whether the corner points are valid
Created in NX6.0.0.

License requirements : None

Parameters

point1	First corner point
point2	Second corner point
point3	Third corner point
point4	Fourth corner point

void NXOpen::Display::BoundedGridBuilder::SetLabelReference

(

NXOpen::Display::BoundedGridBuilder::LabelReferenceType

labelReference

)

Sets the label reference
Created in NX6.0.0.

License requirements : None

Parameters

labelReference

labelreference

void NXOpen::Display::BoundedGridBuilder::SetLocalOrigin

(

const NXOpen::Point3d &

localOrigin

)

Sets the local origin
Created in NX6.0.0.

License requirements : None

Parameters

localOrigin

Label origin

void NXOpen::Display::BoundedGridBuilder::SetShowLabel

(

NXOpen::Display::BoundedGridBuilder::ShowLabelType

showLabelType

)

Sets the show labels
Created in NX6.0.0.

License requirements : None

Parameters

showLabelType

showlabeltype

NXOpen::Display::BoundedGridBuilder::ShowLabelType NXOpen::Display::BoundedGridBuilder::ShowLabel

(

)

Returns the show labels
Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Display_BoundedGridBuilder.hxx
