This is a manager to the CAE::ResponseSimulation::LcrResultsEvaluationSetting class. More...

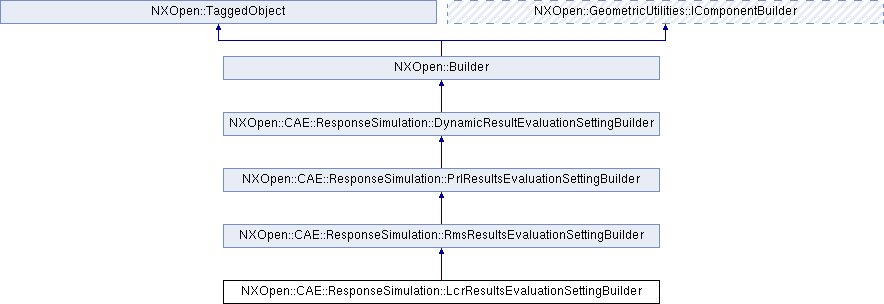

Inheritance diagram for NXOpen::CAE::ResponseSimulation::LcrResultsEvaluationSettingBuilder:
Public Member Functions | |
| double | CrossingLevel () |
| Returns the crossing level | |
| NXOpen::Expression * | CrossingLevelExpression () |
| Returns the crossing level expression Created in NX8.5.0. | |
| void | SetCrossingLevel (double crossingLevel) |
| Sets the crossing level | |
 Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::RmsResultsEvaluationSettingBuilder | |
| NXOpen::CAE::ResponseSimulation::RmsLcrEvaluationMethod | EvaluationMethod () |
| Returns the evaluation method for RMS Created in NX8.5.0. | |
| void | SetEvaluationMethod (NXOpen::CAE::ResponseSimulation::RmsLcrEvaluationMethod evaluationMethod) |
| Sets the evaluation method for RMS Created in NX8.5.0. | |
| void | SetUserDefinedDirection (NXOpen::Direction *userDefinedDirection) |
| Sets the user defined direction | |
| void | SetUsingUserDefinedDirection (bool usingUserDefinedDirection) |
| Sets the option of using user defined direction | |
| NXOpen::Direction * | UserDefinedDirection () |
| Returns the user defined direction | |
| bool | UsingUserDefinedDirection () |
| Returns the option of using user defined direction | |
| Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder | |
| NXOpen::CAE::ResponseSimulation::CoordinateSystem | CoordinateSystem () |
| Returns the coordinate system. | |
| std::vector < NXOpen::CAE::ResponseSimulation::DirectionDataComponent > | GetDataComponents () |
| Returns the direction data components. | |
| std::vector < NXOpen::CAE::FEElement * > | GetOutputElements () |
| Returns the destination elements. | |
| std::vector < NXOpen::CAE::FENode * > | GetOutputNodes () |
| Returns the destination nodes. | |
| NXOpen::CAE::FENode * | ObservationNode () |
| Returns the relative node.Only available when result type is CAE::ResponseSimulation::EvaluationResultTypeDisplacement , CAE::ResponseSimulation::EvaluationResultTypeAcceleration , CAE::ResponseSimulation::EvaluationResultTypeElementForce. | |
| bool | Relative () |
| Returns the option of using the observation node in evaluation. | |
| NXOpen::CAE::ResponseSimulation::EvaluationResultType | ResultType () |
| Returns the result type Created in NX5.0.0. | |
| void | SetCoordinateSystem (NXOpen::CAE::ResponseSimulation::CoordinateSystem coordinateSystem) |
| Sets the coordinate system. | |
| void | SetDataComponents (const std::vector< NXOpen::CAE::ResponseSimulation::DirectionDataComponent > &dataComponent) |
| Sets the direction data components. | |
| void | SetObservationNode (NXOpen::CAE::FENode *relativeNode) |
| Sets the relative node.Only available when result type is CAE::ResponseSimulation::EvaluationResultTypeDisplacement , CAE::ResponseSimulation::EvaluationResultTypeAcceleration , CAE::ResponseSimulation::EvaluationResultTypeElementForce. | |
| void | SetOutputElements (const std::vector< NXOpen::CAE::FEElement * > &destinationElements) |
| Sets the destination elements Created in NX5.0.0. | |
| void | SetOutputNodes (const std::vector< NXOpen::CAE::FENode * > &destinationNodes) |
| Sets the destination nodes Created in NX5.0.0. | |
| void | SetRelative (bool relative) |
| Sets the option of using the observation node in evaluation. | |
| void | SetResultType (NXOpen::CAE::ResponseSimulation::EvaluationResultType resultType) |
| Sets the result type Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::DynamicResultEvaluationSettingBuilder | |
| std::vector< NXString > | GetDescriptionString () |
| Returns the description. | |
| void | SetDescriptionString (const std::vector< NXString > &description) |
| Sets the description Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
This is a manager to the CAE::ResponseSimulation::LcrResultsEvaluationSetting class.
Object of type CAE::ResponseSimulation::LcrResultsEvaluationSetting can be created and edited only through this class
To create a new instance of this class, use CAE::ResponseSimulation::EvaluationSettingManager::CreateLcrResultsEvaluationSettingBuilder
Created in NX5.0.0.
Member Function Documentation
| double NXOpen::CAE::ResponseSimulation::LcrResultsEvaluationSettingBuilder::CrossingLevel | ( | ) |
Returns the crossing level
- Deprecated:
- Deprecated in NX8.5.0.
Use CrossingLevelExpression and SetCrossingLevelExpression instead.
Created in NX5.0.0.
License requirements : nx_response_anlys ("NX Response Analysis")
| NXOpen::Expression* NXOpen::CAE::ResponseSimulation::LcrResultsEvaluationSettingBuilder::CrossingLevelExpression | ( | ) |
Returns the crossing level expression
Created in NX8.5.0.
License requirements : nx_response_anlys ("NX Response Analysis")
| void NXOpen::CAE::ResponseSimulation::LcrResultsEvaluationSettingBuilder::SetCrossingLevel | ( | double | crossingLevel | ) |
Sets the crossing level
- Deprecated:
- Deprecated in NX8.5.0.
Use CrossingLevelExpression and SetCrossingLevelExpression instead.
Created in NX5.0.0.
License requirements : nx_response_anlys ("NX Response Analysis")
- Parameters
-
crossingLevel crossing level
The documentation for this class was generated from the following file:
- CAE_ResponseSimulation_LcrResultsEvaluationSettingBuilder.hxx
