This is a manager to the CAE::ResponseSimulation::RmsResultsEvaluationSetting class. More...

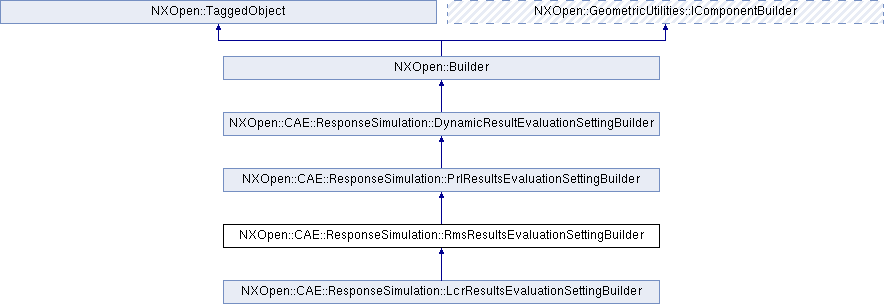

Inheritance diagram for NXOpen::CAE::ResponseSimulation::RmsResultsEvaluationSettingBuilder:

Public Member Functions
NXOpen::CAE::ResponseSimulation::RmsLcrEvaluationMethod	EvaluationMethod ()
	Returns the evaluation method for RMS Created in NX8.5.0.

void	SetEvaluationMethod (NXOpen::CAE::ResponseSimulation::RmsLcrEvaluationMethod evaluationMethod)
	Sets the evaluation method for RMS Created in NX8.5.0.

void	SetUserDefinedDirection (NXOpen::Direction *userDefinedDirection)
	Sets the user defined direction

void	SetUsingUserDefinedDirection (bool usingUserDefinedDirection)
	Sets the option of using user defined direction

NXOpen::Direction *	UserDefinedDirection ()
	Returns the user defined direction

bool	UsingUserDefinedDirection ()
	Returns the option of using user defined direction

Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder
NXOpen::CAE::ResponseSimulation::CoordinateSystem	CoordinateSystem ()
	Returns the coordinate system.

std::vector < NXOpen::CAE::ResponseSimulation::DirectionDataComponent >	GetDataComponents ()
	Returns the direction data components.

std::vector < NXOpen::CAE::FEElement * >	GetOutputElements ()
	Returns the destination elements.

std::vector < NXOpen::CAE::FENode * >	GetOutputNodes ()
	Returns the destination nodes.

NXOpen::CAE::FENode *	ObservationNode ()
	Returns the relative node.Only available when result type is CAE::ResponseSimulation::EvaluationResultTypeDisplacement , CAE::ResponseSimulation::EvaluationResultTypeAcceleration , CAE::ResponseSimulation::EvaluationResultTypeElementForce.

bool	Relative ()
	Returns the option of using the observation node in evaluation.

NXOpen::CAE::ResponseSimulation::EvaluationResultType	ResultType ()
	Returns the result type Created in NX5.0.0.

void	SetCoordinateSystem (NXOpen::CAE::ResponseSimulation::CoordinateSystem coordinateSystem)
	Sets the coordinate system.

void	SetDataComponents (const std::vector< NXOpen::CAE::ResponseSimulation::DirectionDataComponent > &dataComponent)
	Sets the direction data components.

void	SetObservationNode (NXOpen::CAE::FENode *relativeNode)
	Sets the relative node.Only available when result type is CAE::ResponseSimulation::EvaluationResultTypeDisplacement , CAE::ResponseSimulation::EvaluationResultTypeAcceleration , CAE::ResponseSimulation::EvaluationResultTypeElementForce.

void	SetOutputElements (const std::vector< NXOpen::CAE::FEElement * > &destinationElements)
	Sets the destination elements Created in NX5.0.0.

void	SetOutputNodes (const std::vector< NXOpen::CAE::FENode * > &destinationNodes)
	Sets the destination nodes Created in NX5.0.0.

void	SetRelative (bool relative)
	Sets the option of using the observation node in evaluation.

void	SetResultType (NXOpen::CAE::ResponseSimulation::EvaluationResultType resultType)
	Sets the result type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::DynamicResultEvaluationSettingBuilder
std::vector< NXString >	GetDescriptionString ()
	Returns the description.

void	SetDescriptionString (const std::vector< NXString > &description)
	Sets the description Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is a manager to the CAE::ResponseSimulation::RmsResultsEvaluationSetting class.

Object of type CAE::ResponseSimulation::RmsResultsEvaluationSetting can be created and edited only through this class
To create a new instance of this class, use CAE::ResponseSimulation::EvaluationSettingManager::CreateRmsResultsEvaluationSettingBuilder

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAE::ResponseSimulation::RmsLcrEvaluationMethod NXOpen::CAE::ResponseSimulation::RmsResultsEvaluationSettingBuilder::EvaluationMethod ( )

Returns the evaluation method for RMS
Created in NX8.5.0.

License requirements : nx_response_anlys ("NX Response Analysis")

void NXOpen::CAE::ResponseSimulation::RmsResultsEvaluationSettingBuilder::SetEvaluationMethod ( NXOpen::CAE::ResponseSimulation::RmsLcrEvaluationMethod evaluationMethod )

Sets the evaluation method for RMS
Created in NX8.5.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

evaluationMethod evaluationmethod

void NXOpen::CAE::ResponseSimulation::RmsResultsEvaluationSettingBuilder::SetUserDefinedDirection ( NXOpen::Direction * userDefinedDirection )

Sets the user defined direction

Deprecated:: Deprecated in NX8.5.0.

This method is not used any more and there is no replacement for it.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

userDefinedDirection user defined direction

void NXOpen::CAE::ResponseSimulation::RmsResultsEvaluationSettingBuilder::SetUsingUserDefinedDirection ( bool usingUserDefinedDirection )

Sets the option of using user defined direction

Deprecated:: Deprecated in NX8.5.0.

This method is not used any more and there is no replacement for it.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

usingUserDefinedDirection using user defined direction

NXOpen::Direction* NXOpen::CAE::ResponseSimulation::RmsResultsEvaluationSettingBuilder::UserDefinedDirection ( )

Returns the user defined direction

Deprecated:: Deprecated in NX8.5.0.

This method is not used any more and there is no replacement for it.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

bool NXOpen::CAE::ResponseSimulation::RmsResultsEvaluationSettingBuilder::UsingUserDefinedDirection ( )

Returns the option of using user defined direction

Deprecated:: Deprecated in NX8.5.0.

This method is not used any more and there is no replacement for it.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

The documentation for this class was generated from the following file:

CAE_ResponseSimulation_RmsResultsEvaluationSettingBuilder.hxx
