Represents a Finite Element. More...

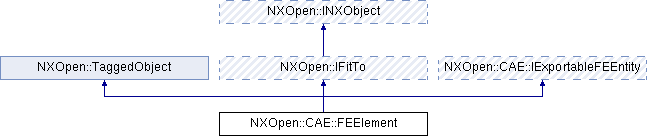

Inheritance diagram for NXOpen::CAE::FEElement:

Public Member Functions
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::CAE::FENode * >	GetNodes ()
	Returns the nodes for this element, if the element order CAE::FEElement::Order is mixed order, some of the nodes returned may be NULL.

virtual std::vector< NXString >	GetSolverCardSyntax ()
	Returns the solver card syntax strings for this entity.

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

int	Label ()
	Returns the element label Created in NX7.5.2.

NXOpen::CAE::Mesh *	Mesh ()
	Returns the mesh for this element Created in NX7.5.2.

virtual NXString	Name ()
	Returns the custom name of the object.

int	NumberOfCornerNodes ()
	Returns the number of corner nodes Created in NX8.0.0.

NXOpen::CAE::ElementTypes::Order	Order ()
	Returns the element order Created in NX7.5.2.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

NXOpen::CAE::ElementTypes::Shape	Shape ()
	Returns the element shape Created in NX7.5.2.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Finite Element.

Created in NX5.0.0.

Member Function Documentation

virtual NXOpen::INXObject* NXOpen::CAE::FEElement::FindObject ( const NXString & journalIdentifier )

virtual

Finds the NXObject with the given identifier as recorded in a journal.

An object may not return the same value as its JournalIdentifier in different versions of the software. However newer versions of the software should find the same object when FindObject is passed older versions of its journal identifier. In general, this method should not be used in handwritten code and exists to support record and playback of journals.

An exception will be thrown if no object can be found with the given journal identifier.

Returns: Created in NX3.0.0.

License requirements : None

Parameters

journalIdentifier Journal identifier of the object

Implements NXOpen::INXObject.

NXOpen::INXObject* NXOpen::CAE::FEElement::FindObject ( const char * journalIdentifier )

Finds the NXObject with the given identifier as recorded in a journal.

An object may not return the same value as its JournalIdentifier in different versions of the software. However newer versions of the software should find the same object when FindObject is passed older versions of its journal identifier. In general, this method should not be used in handwritten code and exists to support record and playback of journals.

An exception will be thrown if no object can be found with the given journal identifier.

Returns: Created in NX3.0.0.

License requirements : None

Parameters

journalIdentifier Journal identifier of the object

std::vector<NXOpen::CAE::FENode *> NXOpen::CAE::FEElement::GetNodes ( )

Returns the nodes for this element, if the element order CAE::FEElement::Order is mixed order, some of the nodes returned may be NULL.

@return

Created in NX7.5.2.

License requirements : None

virtual std::vector<NXString> NXOpen::CAE::FEElement::GetSolverCardSyntax ( )

virtual

Returns the solver card syntax strings for this entity.

Returns: Created in NX8.5.0.

License requirements : None

Implements NXOpen::CAE::IExportableFEEntity.

virtual bool NXOpen::CAE::FEElement::IsOccurrence ( )

virtual

Returns whether this object is an occurrence or not.

Created in NX3.0.0.

License requirements : None

Implements NXOpen::INXObject.

virtual NXString NXOpen::CAE::FEElement::JournalIdentifier ( )

virtual

Returns the identifier that would be recorded in a journal for this object.

This may not be the same across different releases of the software.
Created in NX3.0.0.

License requirements : None

Implements NXOpen::INXObject.

int NXOpen::CAE::FEElement::Label ( )

Returns the element label
Created in NX7.5.2.

License requirements : None

NXOpen::CAE::Mesh* NXOpen::CAE::FEElement::Mesh ( )

Returns the mesh for this element
Created in NX7.5.2.

License requirements : None

virtual NXString NXOpen::CAE::FEElement::Name ( )

virtual

Returns the custom name of the object.

Created in NX3.0.0.

License requirements : None

Implements NXOpen::INXObject.

int NXOpen::CAE::FEElement::NumberOfCornerNodes ( )

Returns the number of corner nodes
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::ElementTypes::Order NXOpen::CAE::FEElement::Order ( )

Returns the element order
Created in NX7.5.2.

License requirements : None

virtual NXOpen::Assemblies::Component* NXOpen::CAE::FEElement::OwningComponent ( )

virtual

Returns the owning component, if this object is an occurrence.

Created in NX3.0.0.

License requirements : None

Implements NXOpen::INXObject.

virtual NXOpen::BasePart* NXOpen::CAE::FEElement::OwningPart ( )

virtual

Returns the owning part of this object
Created in NX3.0.0.

License requirements : None

Implements NXOpen::INXObject.

virtual void NXOpen::CAE::FEElement::Print ( )

virtual

Prints a representation of this object to the system log file.

Created in NX3.0.0.

License requirements : None

Implements NXOpen::INXObject.

virtual NXOpen::INXObject* NXOpen::CAE::FEElement::Prototype ( )

virtual

Returns the prototype of this object if it is an occurrence.

Created in NX3.0.0.

License requirements : None

Implements NXOpen::INXObject.

virtual void NXOpen::CAE::FEElement::SetName ( const NXString & name )

virtual

Sets the custom name of the object.

   NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
         If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : None

Parameters

name name

Implements NXOpen::INXObject.

void NXOpen::CAE::FEElement::SetName ( const char * name )

Sets the custom name of the object.

   NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
         If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : None

Parameters

name name

NXOpen::CAE::ElementTypes::Shape NXOpen::CAE::FEElement::Shape ( )

Returns the element shape
Created in NX7.5.2.

License requirements : None

The documentation for this class was generated from the following file:

CAE_FEElement.hxx
