NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder Class Reference

Represents the abstract builder class of evaluation setting for peak value, RMS results and LCR results. More...

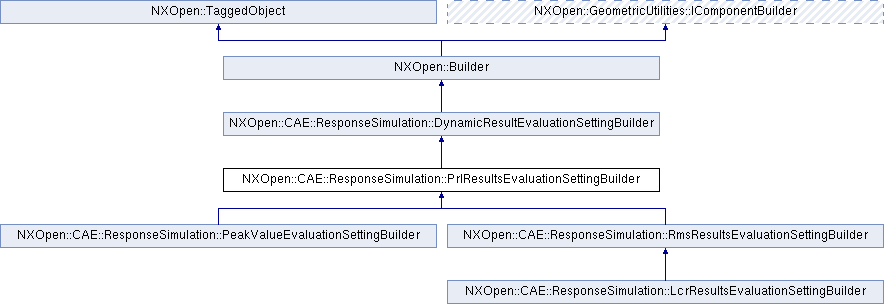

Inheritance diagram for NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder:

Public Member Functions
NXOpen::CAE::ResponseSimulation::CoordinateSystem	CoordinateSystem ()
	Returns the coordinate system.
std::vector < NXOpen::CAE::ResponseSimulation::DirectionDataComponent >	GetDataComponents ()
	Returns the direction data components.
std::vector < NXOpen::CAE::FEElement * >	GetOutputElements ()
	Returns the destination elements.
std::vector < NXOpen::CAE::FENode * >	GetOutputNodes ()
	Returns the destination nodes.
NXOpen::CAE::FENode *	ObservationNode ()
	Returns the relative node.Only available when result type is CAE::ResponseSimulation::EvaluationResultTypeDisplacement , CAE::ResponseSimulation::EvaluationResultTypeAcceleration , CAE::ResponseSimulation::EvaluationResultTypeElementForce.
bool	Relative ()
	Returns the option of using the observation node in evaluation.
NXOpen::CAE::ResponseSimulation::EvaluationResultType	ResultType ()
	Returns the result type Created in NX5.0.0.
void	SetCoordinateSystem (NXOpen::CAE::ResponseSimulation::CoordinateSystem coordinateSystem)
	Sets the coordinate system.
void	SetDataComponents (const std::vector< NXOpen::CAE::ResponseSimulation::DirectionDataComponent > &dataComponent)
	Sets the direction data components.
void	SetObservationNode (NXOpen::CAE::FENode *relativeNode)
	Sets the relative node.Only available when result type is CAE::ResponseSimulation::EvaluationResultTypeDisplacement , CAE::ResponseSimulation::EvaluationResultTypeAcceleration , CAE::ResponseSimulation::EvaluationResultTypeElementForce.
void	SetOutputElements (const std::vector< NXOpen::CAE::FEElement * > &destinationElements)
	Sets the destination elements Created in NX5.0.0.
void	SetOutputNodes (const std::vector< NXOpen::CAE::FENode * > &destinationNodes)
	Sets the destination nodes Created in NX5.0.0.
void	SetRelative (bool relative)
	Sets the option of using the observation node in evaluation.
void	SetResultType (NXOpen::CAE::ResponseSimulation::EvaluationResultType resultType)
	Sets the result type Created in NX5.0.0.
Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::DynamicResultEvaluationSettingBuilder
std::vector< NXString >	GetDescriptionString ()
	Returns the description.
void	SetDescriptionString (const std::vector< NXString > &description)
	Sets the description Created in NX5.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the abstract builder class of evaluation setting for peak value, RMS results and LCR results.

This is an abstract class, and cannot be created.

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAE::ResponseSimulation::CoordinateSystem NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::CoordinateSystem

(

)

Returns the coordinate system.

Only available when the result type is CAE::ResponseSimulation::EvaluationResultTypeStress , CAE::ResponseSimulation::EvaluationResultTypeShellResultant

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

std::vector<NXOpen::CAE::ResponseSimulation::DirectionDataComponent> NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::GetDataComponents

(

)

Returns the direction data components.

The condidate choices will be changed according to CAE::ResponseSimulation::EvaluationResultType setting

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

std::vector<NXOpen::CAE::FEElement *> NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::GetOutputElements

(

)

Returns the destination elements.

Only available when the result type is CAE::ResponseSimulation::EvaluationResultTypeStress , CAE::ResponseSimulation::EvaluationResultTypeShellResultant

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

std::vector<NXOpen::CAE::FENode *> NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::GetOutputNodes

(

)

Returns the destination nodes.

Only available when result type is CAE::ResponseSimulation::EvaluationResultTypeDisplacement , CAE::ResponseSimulation::EvaluationResultTypeAcceleration , CAE::ResponseSimulation::EvaluationResultTypeElementForce

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::FENode* NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::ObservationNode

(

)

Returns the relative node.Only available when result type is CAE::ResponseSimulation::EvaluationResultTypeDisplacement , CAE::ResponseSimulation::EvaluationResultTypeAcceleration , CAE::ResponseSimulation::EvaluationResultTypeElementForce.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

bool NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::Relative

(

)

Returns the option of using the observation node in evaluation.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::EvaluationResultType NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::ResultType

(

)

Returns the result type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

void NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::SetCoordinateSystem

(

NXOpen::CAE::ResponseSimulation::CoordinateSystem

coordinateSystem

)

Sets the coordinate system.

Only available when the result type is CAE::ResponseSimulation::EvaluationResultTypeStress , CAE::ResponseSimulation::EvaluationResultTypeShellResultant

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

coordinateSystem

coordinate system

void NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::SetDataComponents

(

const std::vector< NXOpen::CAE::ResponseSimulation::DirectionDataComponent > &

dataComponent

)

Sets the direction data components.

The condidate choices will be changed according to CAE::ResponseSimulation::EvaluationResultType setting

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

dataComponent

data component

void NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::SetObservationNode

(

NXOpen::CAE::FENode *

relativeNode

)

Sets the relative node.Only available when result type is CAE::ResponseSimulation::EvaluationResultTypeDisplacement , CAE::ResponseSimulation::EvaluationResultTypeAcceleration , CAE::ResponseSimulation::EvaluationResultTypeElementForce.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

relativeNode

relative node

void NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::SetOutputElements

(

const std::vector< NXOpen::CAE::FEElement * > &

destinationElements

)

Sets the destination elements
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

destinationElements

destination elements

void NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::SetOutputNodes

(

const std::vector< NXOpen::CAE::FENode * > &

destinationNodes

)

Sets the destination nodes
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

destinationNodes

destination nodes

void NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::SetRelative

(

bool

relative

)

Sets the option of using the observation node in evaluation.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

relative

relative

void NXOpen::CAE::ResponseSimulation::PrlResultsEvaluationSettingBuilder::SetResultType

(

NXOpen::CAE::ResponseSimulation::EvaluationResultType

resultType

)

Sets the result type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

resultType

result type

---

The documentation for this class was generated from the following file:

• CAE_ResponseSimulation_PrlResultsEvaluationSettingBuilder.hxx
