NXOpen::Routing::FittingPort Class Reference

Represents a Routing Fitting Port ObjectFittingPort . More...

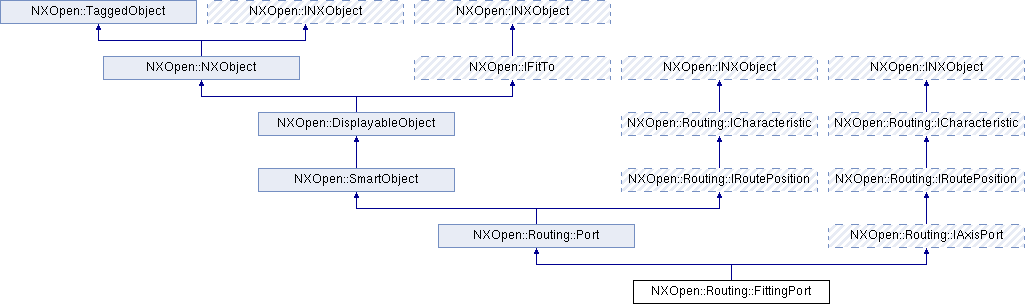

Inheritance diagram for NXOpen::Routing::FittingPort:

Public Member Functions
virtual NXOpen::Axis *	Axis ()
	Returns the axis that defines the port Created in NX5.0.0.
virtual NXOpen::Expression *	CutbackLengthObject ()
	Returns the cutback length object of a port, i.e.
virtual NXOpen::Expression *	EngagementObject ()
	Returns the engagement object of a port, i.e.
virtual NXOpen::Expression *	ForwardExtensionObject ()
	Returns the forward extension object of a port, i.e.
virtual void	SetAlignVector (const NXOpen::Vector3d &vector)
	Sets the align vector of Port Created in NX4.0.0.
virtual void	SetAxis (NXOpen::Axis *axis)
	Sets the axis that defines the port Created in NX5.0.0.
virtual void	SetCutbackLength (double cutbackLength)
	Sets the cutback length of a port, i.e.
virtual void	SetCutbackLengthObject (NXOpen::Expression *cutbackLength)
	Sets the cutback length object of a port, i.e.
virtual void	SetEngagement (double engagement)
	The engagment distance of a IAxisPort , i.e.
virtual void	SetEngagementObject (NXOpen::Expression *engagement)
	Sets the engagement object of a port, i.e.
virtual void	SetForwardExtension (double forwardExtension)
	Sets the forward extension value of a port, i.e.
virtual void	SetForwardExtensionObject (NXOpen::Expression *forwardExtension)
	Sets the forward extension object of a port, i.e.
virtual void	SetRotationObject (NXOpen::DisplayableObject *rotationObject)
	Sets the object used to derive the rotation vector of Port Created in NX4.0.0.
virtual void	SetRotationVector (const NXOpen::Vector3d &vector)
	Sets the rotation vector of Port Created in NX4.0.0.
Public Member Functions inherited from NXOpen::Routing::Port
bool	AllowMultipleConnections ()
	Returns the Allow Multiple Connections property for a Routing::Port .
NXOpen::Routing::FeaturePort *	AskFeature ()
	Ask Routing::FeaturePort object associated with Routing::Port .
NXOpen::Expression *	ClockIncrementObject ()
	Returns the clock angle increment expression of a Routing::Port , i.e.
NXOpen::Routing::PortConnection *	Connect ()
	Finds another Routing::Port to connect this port to.
virtual void	DeleteCharacterstics (NXOpen::Routing::CharacteristicList *values)
	Removes the input list of characteristics from this object.
void	Disconnect ()
	Deletes any Routing::PortConnection objects that reference this port.
int	FindPortIntegerCharacteristic (const NXString &name)
	Searches for an integer characteristics on the port, then on the ports component and prototype port if the port is an occurrence.
int	FindPortIntegerCharacteristic (const char *name)
	Searches for an integer characteristics on the port, then on the ports component and prototype port if the port is an occurrence.
double	FindPortRealCharacteristic (const NXString &name)
	Searches for a real characteristics on the port, then on the ports component and prototype port if the port is an occurrence.
double	FindPortRealCharacteristic (const char *name)
	Searches for a real characteristics on the port, then on the ports component and prototype port if the port is an occurrence.
NXString	FindPortStringCharacteristic (const NXString &name)
	Searches for a string characteristics on the port, then on the ports component and prototype port if the port is an occurrence.
NXString	FindPortStringCharacteristic (const char *name)
	Searches for a string characteristics on the port, then on the ports component and prototype port if the port is an occurrence.
NXOpen::Vector3d	GetAlignmentVector ()
	Retrieves the alignment vector of Port.
virtual NXOpen::Routing::CharacteristicList *	GetCharacteristics ()
	Get all of the characteristics values on the this object.
double	GetClockIncrement ()
	The clock angle increment value of Port.
NXOpen::Assemblies::Component *	GetComponent ()
	If this port is an occurrence, returns the component part to which it belongs.
NXOpen::Routing::ControlPoint *	GetControlPoint ()
	Returns the Control Point to which this port is constrained, if any.
double	GetCutbackLength ()
	Returns the cutback length of a port, i.e.
virtual NXOpen::Routing::CharacteristicList *	GetDestinationCharacteristics ()
	Returns the destination characteristics from the input object.
double	GetEngagement ()
	Returns the engagement distance of a port, i.e.
NXOpen::Routing::Port::FlowDirectionType	GetFlowDirection ()
	Get the value of flow direction of Port.
double	GetForwardExtension ()
	Returns the forward extension value for a port i.e.
virtual int	GetIntegerCharacteristic (const NXString &name)
	Get the value of an integer characteristic associated with the input name.
int	GetIntegerCharacteristic (const char *name)
	Get the value of an integer characteristic associated with the input name.
NXOpen::Routing::Port::PortType	GetPortType ()
	Get the type of Port.
virtual double	GetRealCharacteristic (const NXString &name)
	Get the value of a real characteristic associated with the input name.
double	GetRealCharacteristic (const char *name)
	Get the value of a real characteristic associated with the input name.
NXString	GetReferenceCharacteristic (const NXString &name)
	Gets a reference characteristic from the port.
NXString	GetReferenceCharacteristic (const char *name)
	Gets a reference characteristic from the port.
NXOpen::DisplayableObject *	GetRotationObject ()
	Retrieves the object used to derive the rotation vector of Port.
NXOpen::Vector3d	GetRotationVector ()
	Retrieves the rotation vector of Port.
NXOpen::Routing::ISegment *	GetSegment ()
	Return the segment the port position and alignment are derived from Returns NULL if the port is not derived from segment.
virtual NXString	GetStringCharacteristic (const NXString &name)
	Get the value of a string characteristic associated with the input name.
NXString	GetStringCharacteristic (const char *name)
	Get the value of a string characteristic associated with the input name.
bool	IsEngagementLocked (NXOpen::Routing::Port *portToCheck)
	Checks to see if ports are engaged.
bool	IsRotationLocked (NXOpen::Routing::Port *portToCheck)
	Checks if ports have their rotation vectors locked.
std::vector < NXOpen::Positioning::Constraint * >	LockEngagement (NXOpen::Routing::Port *portToLock)
	Locks the port engagement using dcm3 constraints.
std::vector < NXOpen::Positioning::Constraint * >	LockRotation (NXOpen::Routing::Port *portToLock)
	Locks the port rotation vector using dcm3 constraints.
virtual NXOpen::Point *	Point ()
	Returns the Point that specifies the location of the Routing::IRoutePosition object.
virtual NXOpen::Point3d	Position ()
	Returns the current location of the object in ABS coordinates.
void	ReorderFeature ()
	Reorders the Routing::FeaturePort object associated with Routing::Port after all of the features on which the port feature depends.
void	SetAllowMultipleConnections (bool allowMultipleConnections)
	Sets the Allow Multiple Connections property for a Routing::Port .
virtual void	SetCharacteristic (const NXString &name, int value)
	Set the value of an integer characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
void	SetCharacteristic (const char *name, int value)
	Set the value of an integer characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
virtual void	SetCharacteristic (const NXString &name, double value)
	Set the value of an real characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
void	SetCharacteristic (const char *name, double value)
	Set the value of an real characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
virtual void	SetCharacteristic (const NXString &name, const NXString &value)
	Set the value of an string characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
void	SetCharacteristic (const char *name, const char *value)
	Set the value of an string characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
virtual void	SetCharacteristics (NXOpen::Routing::CharacteristicList *values)
	Set all of the characteristics values on this object.
void	SetClockIncrement (double increment)
	The clock angle increment value of Port Created in NX4.0.0.
void	SetClockIncrementObject (NXOpen::Expression *increment)
	Sets the clock angle increment expression of a Routing::Port , i.e.
void	SetFlowDirection (NXOpen::Routing::Port::FlowDirectionType flowDirection)
	Set the flow direction value of Port Created in NX5.0.0.
virtual void	SetPoint (NXOpen::Point *point)
	Sets the Point that specifies the location of the Routing::IRoutePosition object.
virtual void	SetPosition (const NXOpen::Point3d &position)
	Sets the current location of the object in ABS coordinates.
void	SetReferenceCharacteristic (const NXString &name, const NXString &value)
	Sets a reference characteristics on the port.
void	SetReferenceCharacteristic (const char *name, const char *value)
	Sets a reference characteristics on the port.
void	UnlockEngagement (NXOpen::Routing::Port *portToUnlock)
	Unlocks the port engagement Created in NX5.0.0.
void	UnlockRotation (NXOpen::Routing::Port *portToUnlock)
	Unlocks the port rotation Created in NX5.0.0.
Public Member Functions inherited from NXOpen::SmartObject
void	Evaluate ()
	Evaluate a smart object.
void	RemoveParameters ()
	Removes the smart object parameters.
void	ReplaceParameters (NXOpen::SmartObject *otherSo)
	Edit a smart object by replacing its parameters using parameters of other smart object of the same class.
void	SetVisibility (NXOpen::SmartObject::VisibilityOption visibility)
	Sets the visibility.
NXOpen::SmartObject::UpdateOption	Update ()
	Returns the update option.
NXOpen::SmartObject::VisibilityOption	Visibility ()
	Returns the visibility.
Public Member Functions inherited from NXOpen::DisplayableObject
void	Blank ()
	Blanks the object.
int	Color ()
	Returns the color of the object.
void	Highlight ()
	Highlights the object.
bool	IsBlanked ()
	Returns the blank status of this object.
int	Layer ()
	Returns the layer that the object is in.
NXOpen::DisplayableObject::ObjectFont	LineFont ()
	Returns the line font of the object.
NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
	Returns the line width of the object.
NXOpen::Point3d	NameLocation ()
	Returns the location of the object's name.
void	RedisplayObject ()
	Redisplays the object in all views.
void	SetColor (int color)
	Sets the color of the object.
void	SetLayer (int layer)
	Sets the layer that the object is in.
void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the line font of the object.
void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
	Sets the line width of the object.
void	SetNameLocation (const NXOpen::Point3d &location)
	Sets the location of the object's name.
void	Unblank ()
	Unblanks the object.
void	Unhighlight ()
	Unhighlights the object.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::Routing::Port
enum	FlowDirectionType { FlowDirectionTypeRouteFlowEither, FlowDirectionTypeRouteFlowIn, FlowDirectionTypeRouteFlowOut, FlowDirectionTypeFlowNone }
	Allowed types for flow direction. More...
enum	PortType {   PortTypeUnknownPort, PortTypeFittingPort, PortTypeFixturePort, PortTypeMultiPort,   PortTypeTerminalPort, PortTypeStockPort, PortTypeStockOffsetPort }
	Specifies the port type. More...

Detailed Description

Represents a Routing Fitting Port ObjectFittingPort .

   These objects are ones to which segments are routed to or from when
   creating a routing path.
  <br> To create an instance of this class use @link Routing::FittingPortCollection Routing::FittingPortCollection@endlink   <br>

Created in NX4.0.0.

Member Function Documentation

virtual NXOpen::Axis* NXOpen::Routing::FittingPort::Axis ( )

virtual

Returns the axis that defines the port
Created in NX5.0.0.

License requirements : routing_base ("Routing Basic")

Implements NXOpen::Routing::IAxisPort.

virtual NXOpen::Expression* NXOpen::Routing::FittingPort::CutbackLengthObject ( )

virtual

Returns the cutback length object of a port, i.e.

an expression representing the length along the wire from the port where individual wires leave a bundle to attach to pins

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Implements NXOpen::Routing::IAxisPort.

virtual NXOpen::Expression* NXOpen::Routing::FittingPort::EngagementObject ( )

virtual

Returns the engagement object of a port, i.e.

an expression representing the distance behind the port that another fitting or stock may engage

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Implements NXOpen::Routing::IAxisPort.

virtual NXOpen::Expression* NXOpen::Routing::FittingPort::ForwardExtensionObject ( )

virtual

Returns the forward extension object of a port, i.e.

an expression representing the minimum length that a segment must remain straight coming out of a Port

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Implements NXOpen::Routing::IAxisPort.

virtual void NXOpen::Routing::FittingPort::SetAlignVector ( const NXOpen::Vector3d &  vector )

virtual

Sets the align vector of Port
Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

vector

Vector direction in absolute co-ordinate system

Implements NXOpen::Routing::IAxisPort.

virtual void NXOpen::Routing::FittingPort::SetAxis ( NXOpen::Axis *  axis )

virtual

Sets the axis that defines the port
Created in NX5.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

axis

axis

Implements NXOpen::Routing::IAxisPort.

virtual void NXOpen::Routing::FittingPort::SetCutbackLength ( double  cutbackLength )

virtual

Sets the cutback length of a port, i.e.

the length along the wire from the port where individual wires leave a bundle to attach to pins

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

cutbackLength

Cutback Length

Implements NXOpen::Routing::IAxisPort.

virtual void NXOpen::Routing::FittingPort::SetCutbackLengthObject ( NXOpen::Expression *  cutbackLength )

virtual

Sets the cutback length object of a port, i.e.

an expression representing the length along the wire from the port where individual wires leave a bundle to attach to pins

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

cutbackLength

Cutback Length Expression

Implements NXOpen::Routing::IAxisPort.

virtual void NXOpen::Routing::FittingPort::SetEngagement ( double  engagement )

virtual

The engagment distance of a IAxisPort , i.e.

the distance behind the port that another fitting or stock may engage

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

engagement

Engagement distance

Implements NXOpen::Routing::IAxisPort.

virtual void NXOpen::Routing::FittingPort::SetEngagementObject ( NXOpen::Expression *  engagement )

virtual

Sets the engagement object of a port, i.e.

an expression representing the distance behind the port that another fitting or stock may engage

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

engagement

Engagement Expression

Implements NXOpen::Routing::IAxisPort.

virtual void NXOpen::Routing::FittingPort::SetForwardExtension ( double  forwardExtension )

virtual

Sets the forward extension value of a port, i.e.

the minimum length that a segment must remain straight coming out of a Port

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

forwardExtension

Port extension

Implements NXOpen::Routing::IAxisPort.

virtual void NXOpen::Routing::FittingPort::SetForwardExtensionObject ( NXOpen::Expression *  forwardExtension )

virtual

Sets the forward extension object of a port, i.e.

an expression representing the minimum length that a segment must remain straight coming out of a Port

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

forwardExtension

Forward Extension Expression

Implements NXOpen::Routing::IAxisPort.

virtual void NXOpen::Routing::FittingPort::SetRotationObject ( NXOpen::DisplayableObject *  rotationObject )

virtual

Sets the object used to derive the rotation vector of Port
Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

rotationObject

Object used to derive the rotation vector

Implements NXOpen::Routing::IAxisPort.

virtual void NXOpen::Routing::FittingPort::SetRotationVector ( const NXOpen::Vector3d &  vector )

virtual

Sets the rotation vector of Port
Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

vector

Vector direction in absolute co-ordinate system

Implements NXOpen::Routing::IAxisPort.

---

The documentation for this class was generated from the following file:

• Routing_FittingPort.hxx
