Interface class for all routing objects that specify a direction
Created in NX4.0.0. More...

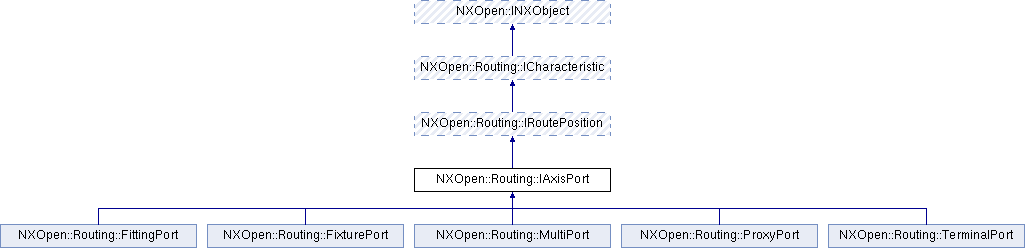

Inheritance diagram for NXOpen::Routing::IAxisPort:

Public Member Functions
virtual NXOpen::Axis *	Axis ()=0
	Returns the axis that defines the port Created in NX5.0.0.

virtual NXOpen::Expression *	CutbackLengthObject ()=0
	Returns the cutback length object of a port, i.e.

virtual NXOpen::Expression *	EngagementObject ()=0
	Returns the engagement object of a port, i.e.

virtual NXOpen::Expression *	ForwardExtensionObject ()=0
	Returns the forward extension object of a port, i.e.

virtual void	SetAlignVector (const NXOpen::Vector3d &vector)=0
	Sets the align vector of Port Created in NX4.0.0.

virtual void	SetAxis (NXOpen::Axis *axis)=0
	Sets the axis that defines the port Created in NX5.0.0.

virtual void	SetCutbackLength (double cutbackLength)=0
	Sets the cutback length of a port, i.e.

virtual void	SetCutbackLengthObject (NXOpen::Expression *cutbackLength)=0
	Sets the cutback length object of a port, i.e.

virtual void	SetEngagement (double engagement)=0
	The engagment distance of a IAxisPort , i.e.

virtual void	SetEngagementObject (NXOpen::Expression *engagement)=0
	Sets the engagement object of a port, i.e.

virtual void	SetForwardExtension (double forwardExtension)=0
	Sets the forward extension value of a port, i.e.

virtual void	SetForwardExtensionObject (NXOpen::Expression *forwardExtension)=0
	Sets the forward extension object of a port, i.e.

virtual void	SetRotationObject (NXOpen::DisplayableObject *rotationObject)=0
	Sets the object used to derive the rotation vector of Port Created in NX4.0.0.

virtual void	SetRotationVector (const NXOpen::Vector3d &vector)=0
	Sets the rotation vector of Port Created in NX4.0.0.

Public Member Functions inherited from NXOpen::Routing::IRoutePosition
virtual NXOpen::Point *	Point ()=0
	Returns the Point that specifies the location of the Routing::IRoutePosition object.

virtual NXOpen::Point3d	Position ()=0
	Returns the current location of the object in ABS coordinates.

virtual void	SetPoint (NXOpen::Point *point)=0
	Sets the Point that specifies the location of the Routing::IRoutePosition object.

virtual void	SetPosition (const NXOpen::Point3d &position)=0
	Sets the current location of the object in ABS coordinates.

Public Member Functions inherited from NXOpen::Routing::ICharacteristic
virtual void	DeleteCharacterstics (NXOpen::Routing::CharacteristicList *values)=0
	Removes the input list of characteristics from this object.

virtual NXOpen::Routing::CharacteristicList *	GetCharacteristics ()=0
	Get all of the characteristics values on the this object.

virtual NXOpen::Routing::CharacteristicList *	GetDestinationCharacteristics ()=0
	Returns the destination characteristics from the input object.

virtual int	GetIntegerCharacteristic (const NXString &name)=0
	Get the value of an integer characteristic associated with the input name.

int	GetIntegerCharacteristic (const char *name)
	Get the value of an integer characteristic associated with the input name.

virtual double	GetRealCharacteristic (const NXString &name)=0
	Get the value of a real characteristic associated with the input name.

double	GetRealCharacteristic (const char *name)
	Get the value of a real characteristic associated with the input name.

virtual NXString	GetStringCharacteristic (const NXString &name)=0
	Get the value of a string characteristic associated with the input name.

NXString	GetStringCharacteristic (const char *name)
	Get the value of a string characteristic associated with the input name.

virtual void	SetCharacteristic (const NXString &name, int value)=0
	Set the value of an integer characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

void	SetCharacteristic (const char *name, int value)
	Set the value of an integer characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

virtual void	SetCharacteristic (const NXString &name, double value)=0
	Set the value of an real characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

void	SetCharacteristic (const char *name, double value)
	Set the value of an real characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

virtual void	SetCharacteristic (const NXString &name, const NXString &value)=0
	Set the value of an string characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

void	SetCharacteristic (const char name, const char value)
	Set the value of an string characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

virtual void	SetCharacteristics (NXOpen::Routing::CharacteristicList *values)=0
	Set all of the characteristics values on this object.

Public Member Functions inherited from NXOpen::INXObject
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)=0
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

virtual bool	IsOccurrence ()=0
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()=0
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()=0
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()=0
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()=0
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()=0
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()=0
	Returns the prototype of this object if it is an occurrence.

virtual void	SetName (const NXString &name)=0
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Interface class for all routing objects that specify a direction
Created in NX4.0.0.

Member Function Documentation

virtual NXOpen::Axis* NXOpen::Routing::IAxisPort::Axis ( )

pure virtual

Returns the axis that defines the port
Created in NX5.0.0.

License requirements : routing_base ("Routing Basic")

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual NXOpen::Expression* NXOpen::Routing::IAxisPort::CutbackLengthObject ( )

pure virtual

Returns the cutback length object of a port, i.e.

an expression representing the length along the wire from the port where individual wires leave a bundle to attach to pins

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual NXOpen::Expression* NXOpen::Routing::IAxisPort::EngagementObject ( )

pure virtual

Returns the engagement object of a port, i.e.

an expression representing the distance behind the port that another fitting or stock may engage

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual NXOpen::Expression* NXOpen::Routing::IAxisPort::ForwardExtensionObject ( )

pure virtual

Returns the forward extension object of a port, i.e.

an expression representing the minimum length that a segment must remain straight coming out of a Port

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual void NXOpen::Routing::IAxisPort::SetAlignVector ( const NXOpen::Vector3d & vector )

pure virtual

Sets the align vector of Port
Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

vector Vector direction in absolute co-ordinate system

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual void NXOpen::Routing::IAxisPort::SetAxis ( NXOpen::Axis * axis )

pure virtual

Sets the axis that defines the port
Created in NX5.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

axis axis

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual void NXOpen::Routing::IAxisPort::SetCutbackLength ( double cutbackLength )

pure virtual

Sets the cutback length of a port, i.e.

the length along the wire from the port where individual wires leave a bundle to attach to pins

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

cutbackLength Cutback Length

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual void NXOpen::Routing::IAxisPort::SetCutbackLengthObject ( NXOpen::Expression * cutbackLength )

pure virtual

Sets the cutback length object of a port, i.e.

an expression representing the length along the wire from the port where individual wires leave a bundle to attach to pins

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

cutbackLength Cutback Length Expression

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual void NXOpen::Routing::IAxisPort::SetEngagement ( double engagement )

pure virtual

The engagment distance of a IAxisPort , i.e.

the distance behind the port that another fitting or stock may engage

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

engagement Engagement distance

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual void NXOpen::Routing::IAxisPort::SetEngagementObject ( NXOpen::Expression * engagement )

pure virtual

Sets the engagement object of a port, i.e.

an expression representing the distance behind the port that another fitting or stock may engage

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

engagement Engagement Expression

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual void NXOpen::Routing::IAxisPort::SetForwardExtension ( double forwardExtension )

pure virtual

Sets the forward extension value of a port, i.e.

the minimum length that a segment must remain straight coming out of a Port

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

forwardExtension Port extension

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual void NXOpen::Routing::IAxisPort::SetForwardExtensionObject ( NXOpen::Expression * forwardExtension )

pure virtual

Sets the forward extension object of a port, i.e.

an expression representing the minimum length that a segment must remain straight coming out of a Port

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

forwardExtension Forward Extension Expression

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual void NXOpen::Routing::IAxisPort::SetRotationObject ( NXOpen::DisplayableObject * rotationObject )

pure virtual

Sets the object used to derive the rotation vector of Port
Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

rotationObject Object used to derive the rotation vector

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

virtual void NXOpen::Routing::IAxisPort::SetRotationVector ( const NXOpen::Vector3d & vector )

pure virtual

Sets the rotation vector of Port
Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

vector Vector direction in absolute co-ordinate system

Implemented in NXOpen::Routing::MultiPort, NXOpen::Routing::ProxyPort, NXOpen::Routing::TerminalPort, NXOpen::Routing::FixturePort, and NXOpen::Routing::FittingPort.

The documentation for this class was generated from the following file:

Routing_IAxisPort.hxx
