NXOpen::Positioning::Constraint Class Reference

Constraint for use in positioning objects in NX. More...

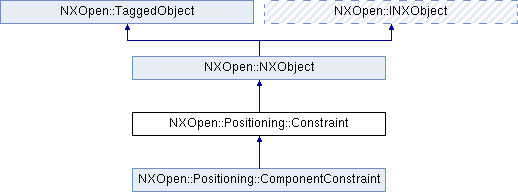

Inheritance diagram for NXOpen::Positioning::Constraint:

Public Types
enum	Alignment { AlignmentInferAlign, AlignmentCoAlign, AlignmentContraAlign }
	指定约束中使用的定向几何体的对齐方式.  More...
enum	SolverStatus {   SolverStatusNewlyCreated, SolverStatusSuppressed, SolverStatusOutOfDate, SolverStatusOverConstrained,   SolverStatusNotConsistentDims, SolverStatusNotConsistentOther, SolverStatusNotConsistentUnknown, SolverStatusBetweenFixed,   SolverStatusNotSolved, SolverStatusSolved, SolverStatusCannotSolve, SolverStatusDelayed,   SolverStatusIgnoredInArrangement, SolverStatusInternallyInconsistent, SolverStatusUnloadedGeometry, SolverStatusPendingConvertedMc,   SolverStatusConflictingWithWave }
	指定约束的状态.  More...
enum	SplineType { SplineTypeByPoles, SplineTypeByPoints, SplineTypeInvalid }
	指定样条点如何定义样条的形状.  More...
enum	Type {   TypeUndefined, TypeTouch, TypeConcentric, TypeFix,   TypeDistance, TypeParallel, TypePerpendicular, TypeCenter12,   TypeCenter22, TypeAngle, TypeFit, TypeBond,   TypeOrientAngle, TypeSplineData, TypeSplineLength, TypeLinearPattern,   TypeCircularPattern, TypeLinear2dPattern, TypeRadiantPattern, TypeAlignLock }
	指定的类型的有约束 .  More...
Public Types inherited from NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger,   AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference,   AttributeTypeAny = 100 }
	Specifies attribute type. More...
enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
bool	Automatic ()
	返回将约束标记为“自动”约束的标志。.
NXOpen::Positioning::Constraint::Alignment	ConstraintAlignment ()
	返回约束的对齐行为.
NXOpen::Positioning::Constraint::Type	ConstraintType ()
	返回的约束类型.
NXOpen::Positioning::ConstraintReference *	CreateConstraintReference (NXOpen::NXObject *movableObject, NXOpen::NXObject *geometry, bool usesAxis, bool isIndirect)
	将几何添加到约束，并设置要约束的移动对象.
NXOpen::Positioning::ConstraintReference *	CreateConstraintReference (NXOpen::NXObject *movableObject, NXOpen::NXObject *geometry, bool usesAxis, bool isIndirect, bool usePortRotate)
	Adds geometry to a constraint and sets the movable object to be constrained.
void	DeleteConstraintReference (NXOpen::Positioning::ConstraintReference *constraintReference)
	删除一个定位 Positioning::ConstraintReference from the constraint.
void	EditConstraintReference (NXOpen::Positioning::ConstraintReference *constraintReference, NXOpen::NXObject *movableObject, NXOpen::NXObject *geometry, bool usesAxis, bool isIndirect, bool usePortRotate)
	将几何添加到约束，并设置要约束的可移动对象，替换现有约束引用的属性.
NXOpen::Expression *	Expression ()
	返回用于约束的表达式.
void	FlipAlignment ()
	如果可能，则反转约束对齐方式。
void	GenerateConversionReport (std::vector< NXString > &lines)
	返回文本转换报告从将约束转换为程序集约束时的此约束.
NXOpen::Positioning::Constraint::SolverStatus	GetConstraintStatus ()
	返回约束的求解器状态.
NXOpen::Positioning::DisplayedConstraint *	GetDisplayedConstraint ()
	Gets the Positioning::DisplayedConstraint 这与约束的内容相同.
std::vector < NXOpen::Positioning::ConstraintReference * >	GetReferences ()
	获取约束的所有约束引用Positioning::ConstraintReference s for the constraint.
bool	Persistent ()
	返回约束的持久状态.
void	ReverseDirection ()
	反转约束方向 .
void	SetAlignmentHint (NXOpen::Positioning::Constraint::Alignment alignment)
	设置一个提示，说明该约束的求解器应该使用哪一个对齐方式.
void	SetAutomatic (bool isauto)
	将标志标记为“自动”约束的标志.
void	SetConstraintAlignment (NXOpen::Positioning::Constraint::Alignment alignment)
	设置约束的对齐行为.
void	SetConstraintType (NXOpen::Positioning::Constraint::Type constraintType)
	设置约束类型 .
void	SetExpression (const NXString &expression)
	用于约束的表达式，仅用于距离或角度 Created in NX4.0.0.
void	SetExpression (const char *expression)
	The expression used for constraint - only for distance or angle Created in NX4.0.0.
void	SetPersistent (bool persistent)
	设置约束的持久状态.
void	SetSplinePointsType (NXOpen::Positioning::Constraint::SplineType splineType)
	集合类型的样条.
void	SetSuppressed (bool suppressed)
	设置约束的抑制状态.
NXOpen::Positioning::Constraint::SplineType	SplinePointsType ()
	返回的类型的样条.
bool	Suppressed ()
	返回约束的抑制状态.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Constraint for use in positioning objects in NX.

For constraints between components, the subclass Positioning::ComponentConstraint should be used by preference.
To create a new instance of this class, use Positioning::Positioner::CreateConstraint

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Positioning::Constraint::Alignment

Specifies alignment of directed geometries used in a constraint.

Enumerator:

AlignmentInferAlign	Allow the solver to decide the alignment.
AlignmentCoAlign	Directions are the same.
AlignmentContraAlign	Directions are opposite.

enum NXOpen::Positioning::Constraint::SolverStatus

Specifies the status of a constraint.

Enumerator:

SolverStatusNewlyCreated	Not evaluated or suppressed since creation.
SolverStatusSuppressed	Constraint is suppressed.
SolverStatusOutOfDate	Needs evaluation.
SolverStatusOverConstrained	Conflicts with other constraints.
SolverStatusNotConsistentDims	Cannot solve with current dimension values. Model fully defined
SolverStatusNotConsistentOther	Cannot find a solution. Model underdefined
SolverStatusNotConsistentUnknown	Cannot find a solution.
SolverStatusBetweenFixed	Attempt to put constraint between two fixed objects.
SolverStatusNotSolved	Not evaluated because other parts of the model are over defined or inconsistent.
SolverStatusSolved	The constraint is solved and satisfied.
SolverStatusCannotSolve	The constraint has invalid geometry and could not be passed to the solver.
SolverStatusDelayed	The constraint is delayed and will not solve.
SolverStatusIgnoredInArrangement	The current arrangement ignores all constraints and they will not solve.
SolverStatusInternallyInconsistent	The constraint references invalid geometry for this constraint type.
SolverStatusUnloadedGeometry	The constraint could not solve as some geometry is unloaded.
SolverStatusPendingConvertedMc	The constraint has been converted from a mating condition and has not solved since conversion.
SolverStatusConflictingWithWave	The constraint has been suppressed because it's conflicting with WAVE.

enum NXOpen::Positioning::Constraint::SplineType

Specifies how the spline points define the shape of the spline.

Enumerator:

SplineTypeByPoles	Spline points define control points.
SplineTypeByPoints	Spline points define interpolation/through points.
SplineTypeInvalid	Not a valid spline constraint.

enum NXOpen::Positioning::Constraint::Type

Specifies the type of a constraint.

Enumerator:

TypeUndefined	No type.
TypeTouch	Two geometries touch.
TypeConcentric	Two geometries share a center and plane.
TypeFix	One movable object fixed.
TypeDistance	Two geometries have a specified distance between them.
TypeParallel	Two geometries are parallel.
TypePerpendicular	Two geometries are perpendicular.
TypeCenter12	One geometry is positioned mid-way between two others.
TypeCenter22	An implicit plane between two geometries of one movable object is positioned mid-way between two others.
TypeAngle	Two geometries have a specified angle between them.
TypeFit	Two geometries are coincident.
TypeBond	A number of movable objects form a rigid group.
TypeOrientAngle	Two geometries have a specified angle between them about an axis.
TypeSplineData	A spline and its defining points.
TypeSplineLength	Constrains the curve length of a spline.
TypeLinearPattern	For internal use only.
TypeCircularPattern	For internal use only.
TypeLinear2dPattern	For internal use only.
TypeRadiantPattern	For internal use only.
TypeAlignLock	Two geometries are constrained to have a common axis and no rotation about it.

Member Function Documentation

bool NXOpen::Positioning::Constraint::Automatic

(

)

Returns the flag marking the constraint as an "automatic" constraint.

Automatic constraints are constraints created by the system, but are visible and editable by the user. Automatic constraints are automatically deleted when one of the referenced objects are deleted by update.
Created in NX5.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::Positioning::Constraint::Alignment NXOpen::Positioning::Constraint::ConstraintAlignment

(

)

Returns the alignment behavior for the constraint.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::Positioning::Constraint::Type NXOpen::Positioning::Constraint::ConstraintType

(

)

Returns the constraint type.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::Positioning::ConstraintReference* NXOpen::Positioning::Constraint::CreateConstraintReference	(	NXOpen::NXObject *	movableObject,
		NXOpen::NXObject *	geometry,
		bool	usesAxis,
		bool	isIndirect
	)

Adds geometry to a constraint and sets the movable object to be constrained.

@return  The new @link Positioning::ConstraintReference Positioning::ConstraintReference@endlink

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

movableObject	Object to be positioned by constraint
geometry	Geometry used to define constraint
usesAxis	Use axis of geometry
isIndirect	Geometry is to be used indirectly to identify geometry in another part

NXOpen::Positioning::ConstraintReference* NXOpen::Positioning::Constraint::CreateConstraintReference	(	NXOpen::NXObject *	movableObject,
		NXOpen::NXObject *	geometry,
		bool	usesAxis,
		bool	isIndirect,
		bool	usePortRotate
	)

Adds geometry to a constraint and sets the movable object to be constrained.

@return  The new @link Positioning::ConstraintReference Positioning::ConstraintReference@endlink

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

movableObject	Object to be positioned by constraint
geometry	Geometry used to define constraint
usesAxis	Use axis of geometry
isIndirect	Geometry is to be used indirectly to identify geometry in another part
usePortRotate	Use rotate vector of Routing::Port .

void NXOpen::Positioning::Constraint::DeleteConstraintReference

(

NXOpen::Positioning::ConstraintReference *

constraintReference

)

Removes a Positioning::ConstraintReference from the constraint.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

constraintReference

The constraint reference to remove. A list of references can be obtained via Positioning::Constraint::GetReferences .

void NXOpen::Positioning::Constraint::EditConstraintReference	(	NXOpen::Positioning::ConstraintReference *	constraintReference,
		NXOpen::NXObject *	movableObject,
		NXOpen::NXObject *	geometry,
		bool	usesAxis,
		bool	isIndirect,
		bool	usePortRotate
	)

Adds geometry to a constraint and sets the movable object to be constrained, replacing the properties of an existing reference of the constraint.

Created in NX5.0.1.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

constraintReference	The Positioning::ConstraintReference whose properties are to be changed
movableObject	Object to be positioned by constraint
geometry	Geometry used to define constraint
usesAxis	Use axis of geometry
isIndirect	Geometry is to be used indirectly to identify geometry in another part
usePortRotate	Use rotate vector of Routing::Port .

NXOpen::Expression* NXOpen::Positioning::Constraint::Expression

(

)

Returns the expression used for constraint.

   The expression will be unused unless this constraint has type
   distance or angle.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

void NXOpen::Positioning::Constraint::FlipAlignment

(

)

Reverses the constraint alignment if this is possible.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

void NXOpen::Positioning::Constraint::GenerateConversionReport

(

std::vector< NXString > &

lines

)

Returns a textual conversion report this constraint from when it was converted from a Mating Constraint to an Assembly Constraint.

If this isn't a converted constraint or there were no problems converting this constraint, then an empty string is returned.

Created in NX5.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

lines

The text lines of the conversion report

NXOpen::Positioning::Constraint::SolverStatus NXOpen::Positioning::Constraint::GetConstraintStatus

(

)

Returns the solver status of a constraint.

@return  The solver status of the constraint

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::Positioning::DisplayedConstraint* NXOpen::Positioning::Constraint::GetDisplayedConstraint

(

)

Gets the Positioning::DisplayedConstraint that is in the same part as that of the constraint.

   Note that this will be NULL if the part has not been the displayed part since the constraint was created.
@return

Created in NX7.5.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

std::vector<NXOpen::Positioning::ConstraintReference *> NXOpen::Positioning::Constraint::GetReferences

(

)

Gets all the Positioning::ConstraintReference s for the constraint.

@return  ConstraintReferences used by this constraint

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

bool NXOpen::Positioning::Constraint::Persistent

(

)

Returns the persistent state of the constraint.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

void NXOpen::Positioning::Constraint::ReverseDirection

(

)

Reverses the constraint direction.

This operation reverses the Positioning::ConstraintReference::Order on each Positioning::ConstraintReference . So "Inside" becomes "Outside", "Outside" becomes "Inside" and "Unknown" remains as it is.

Created in NX5.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

void NXOpen::Positioning::Constraint::SetAlignmentHint

(

NXOpen::Positioning::Constraint::Alignment

alignment

)

Set a hint as to which alignment should be used by the solver for this constraint.

    If the constraint does not solve using this alignment
    then the hint will be ignored.

    The hint can only have an effect when the alignment of

[version_created("4")] the constraint, as returned by Positioning::Constraint::ConstraintAlignment , is Positioning::Constraint::AlignmentInferAlign .

The hint can only have an effect when the constraint has been explicitly added to a Positioning::Network .

Passing in Positioning::Constraint::AlignmentInferAlign as the alignment argument will have no effect.

The hint is forgotten after an update.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

alignment

The alignment hint

void NXOpen::Positioning::Constraint::SetAutomatic

(

bool

isauto

)

Sets the flag marking the constraint as an "automatic" constraint.

Automatic constraints are constraints created by the system, but are visible and editable by the user. Automatic constraints are automatically deleted when one of the referenced objects are deleted by update.
Created in NX5.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

isauto

The automatic state

void NXOpen::Positioning::Constraint::SetConstraintAlignment

(

NXOpen::Positioning::Constraint::Alignment

alignment

)

Sets the alignment behavior for the constraint.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

alignment

Alignment behavior for constraint

void NXOpen::Positioning::Constraint::SetConstraintType

(

NXOpen::Positioning::Constraint::Type

constraintType

)

Sets the constraint type.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

constraintType

constraint type

void NXOpen::Positioning::Constraint::SetExpression

(

const NXString &

expression

)

The expression used for constraint - only for distance or angle
Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

expression

Name of expression used in distance or angle constraint NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Positioning::Constraint::SetExpression

(

const char *

expression

)

The expression used for constraint - only for distance or angle
Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

expression

Name of expression used in distance or angle constraint NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Positioning::Constraint::SetPersistent

(

bool

persistent

)

Sets the persistent state of the constraint.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

persistent

The persistent state

void NXOpen::Positioning::Constraint::SetSplinePointsType

(

NXOpen::Positioning::Constraint::SplineType

splineType

)

Sets the type of the spline.

Only valid if the type of the constraint is set to Positioning::Constraint::TypeSplineData .
Created in NX6.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

splineType

spline type

void NXOpen::Positioning::Constraint::SetSuppressed

(

bool

suppressed

)

Sets the suppression state for the constraint.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

suppressed

The suppression state

NXOpen::Positioning::Constraint::SplineType NXOpen::Positioning::Constraint::SplinePointsType

(

)

Returns the type of the spline.

Only valid if the type of the constraint is set to Positioning::Constraint::TypeSplineData .
Created in NX6.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

bool NXOpen::Positioning::Constraint::Suppressed

(

)

Returns the suppression state for the constraint.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

---

The documentation for this class was generated from the following file:

• Positioning_Constraint.hxx
