Constraint for use in positioning assembly objects in NX. More...

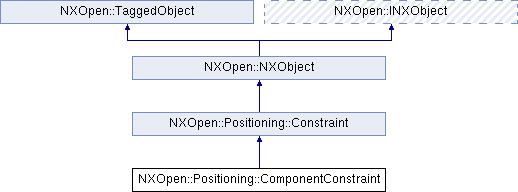

Inheritance diagram for NXOpen::Positioning::ComponentConstraint:

Public Types
enum	DirectionToFixed { DirectionToFixedUnknown = -1, DirectionToFixedToward, DirectionToFixedAwayFrom, DirectionToFixedNothingFixed, DirectionToFixedFix, DirectionToFixedSuppressed, DirectionToFixedIgnoredInArrangement }
	Specifies how a constraint affects the positioning of a component. More...

Public Types inherited from NXOpen::Positioning::Constraint
enum	Alignment { AlignmentInferAlign, AlignmentCoAlign, AlignmentContraAlign }
	Specifies alignment of directed geometries used in a constraint. More...

enum	SolverStatus { SolverStatusNewlyCreated, SolverStatusSuppressed, SolverStatusOutOfDate, SolverStatusOverConstrained, SolverStatusNotConsistentDims, SolverStatusNotConsistentOther, SolverStatusNotConsistentUnknown, SolverStatusBetweenFixed, SolverStatusNotSolved, SolverStatusSolved, SolverStatusCannotSolve, SolverStatusDelayed, SolverStatusIgnoredInArrangement, SolverStatusInternallyInconsistent, SolverStatusUnloadedGeometry, SolverStatusPendingConvertedMc, SolverStatusConflictingWithWave }
	Specifies the status of a constraint. More...

enum	SplineType { SplineTypeByPoles, SplineTypeByPoints, SplineTypeInvalid }
	Specifies how the spline points define the shape of the spline. More...

enum	Type { TypeUndefined, TypeTouch, TypeConcentric, TypeFix, TypeDistance, TypeParallel, TypePerpendicular, TypeCenter12, TypeCenter22, TypeAngle, TypeFit, TypeBond, TypeOrientAngle, TypeSplineData, TypeSplineLength, TypeLinearPattern, TypeCircularPattern, TypeLinear2dPattern, TypeRadiantPattern, TypeAlignLock }
	Specifies the type of a constraint. More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
bool	ArrangementSpecific ()
	Returns the arrangement specific state of this Positioning::ComponentConstraint in the Positioning::ComponentPositioner::PrimaryArrangement and Positioning::ComponentPositioner::SetPrimaryArrangement .

NXOpen::Positioning::ComponentConstraint::DirectionToFixed	GetDirectionToFixed (NXOpen::Assemblies::Component component, NXOpen::Assemblies::Arrangement arrangement)
	Get the Positioning::ComponentConstraint::DirectionToFixed value of the Positioning::ComponentConstraint given a component and an arrangement.

bool	GetInherited ()
	Get whether this Positioning::ComponentConstraint is an inherited constraint.

bool	GetSpecificInArrangement (NXOpen::Assemblies::Arrangement *arrangement)
	Get the arrangement specific state of this Positioning::ComponentConstraint in the specified Assemblies::Arrangement .

bool	GetSuppressedInArrangement (NXOpen::Assemblies::Arrangement *arrangement)
	Get the suppression state of this Positioning::ComponentConstraint in the specified Assemblies::Arrangement .

void	RememberOnComponent (NXOpen::Assemblies::Component *component)
	Remembers the constraint in the prototype part of a referenced component for reuse in other occurrences of the part.

void	SetArrangementSpecific (bool arrangementSpecific)
	Sets the arrangement specific state of this Positioning::ComponentConstraint in the Positioning::ComponentPositioner::PrimaryArrangement and Positioning::ComponentPositioner::SetPrimaryArrangement .

void	SetSpecificInArrangement (NXOpen::Assemblies::Arrangement *arrangement, bool arrangementSpecific)
	Set the arrangement specific state of this Positioning::ComponentConstraint in the specified Assemblies::Arrangement .

void	SetSuppressedInArrangement (NXOpen::Assemblies::Arrangement *arrangement, bool suppressed)
	Set the suppression state of this Positioning::ComponentConstraint in the specified Assemblies::Arrangement .

Public Member Functions inherited from NXOpen::Positioning::Constraint
bool	Automatic ()
	Returns the flag marking the constraint as an "automatic" constraint.

NXOpen::Positioning::Constraint::Alignment	ConstraintAlignment ()
	Returns the alignment behavior for the constraint.

NXOpen::Positioning::Constraint::Type	ConstraintType ()
	Returns the constraint type.

NXOpen::Positioning::ConstraintReference *	CreateConstraintReference (NXOpen::NXObject movableObject, NXOpen::NXObject geometry, bool usesAxis, bool isIndirect)
	Adds geometry to a constraint and sets the movable object to be constrained.

NXOpen::Positioning::ConstraintReference *	CreateConstraintReference (NXOpen::NXObject movableObject, NXOpen::NXObject geometry, bool usesAxis, bool isIndirect, bool usePortRotate)
	Adds geometry to a constraint and sets the movable object to be constrained.

void	DeleteConstraintReference (NXOpen::Positioning::ConstraintReference *constraintReference)
	Removes a Positioning::ConstraintReference from the constraint.

void	EditConstraintReference (NXOpen::Positioning::ConstraintReference constraintReference, NXOpen::NXObject movableObject, NXOpen::NXObject *geometry, bool usesAxis, bool isIndirect, bool usePortRotate)
	Adds geometry to a constraint and sets the movable object to be constrained, replacing the properties of an existing reference of the constraint.

NXOpen::Expression *	Expression ()
	Returns the expression used for constraint.

void	FlipAlignment ()
	Reverses the constraint alignment if this is possible.

void	GenerateConversionReport (std::vector< NXString > &lines)
	Returns a textual conversion report this constraint from when it was converted from a Mating Constraint to an Assembly Constraint.

NXOpen::Positioning::Constraint::SolverStatus	GetConstraintStatus ()
	Returns the solver status of a constraint.

NXOpen::Positioning::DisplayedConstraint *	GetDisplayedConstraint ()
	Gets the Positioning::DisplayedConstraint that is in the same part as that of the constraint.

std::vector < NXOpen::Positioning::ConstraintReference * >	GetReferences ()
	Gets all the Positioning::ConstraintReference s for the constraint.

bool	Persistent ()
	Returns the persistent state of the constraint.

void	ReverseDirection ()
	Reverses the constraint direction.

void	SetAlignmentHint (NXOpen::Positioning::Constraint::Alignment alignment)
	Set a hint as to which alignment should be used by the solver for this constraint.

void	SetAutomatic (bool isauto)
	Sets the flag marking the constraint as an "automatic" constraint.

void	SetConstraintAlignment (NXOpen::Positioning::Constraint::Alignment alignment)
	Sets the alignment behavior for the constraint.

void	SetConstraintType (NXOpen::Positioning::Constraint::Type constraintType)
	Sets the constraint type.

void	SetExpression (const NXString &expression)
	The expression used for constraint - only for distance or angle Created in NX4.0.0.

void	SetExpression (const char *expression)
	The expression used for constraint - only for distance or angle Created in NX4.0.0.

void	SetPersistent (bool persistent)
	Sets the persistent state of the constraint.

void	SetSplinePointsType (NXOpen::Positioning::Constraint::SplineType splineType)
	Sets the type of the spline.

void	SetSuppressed (bool suppressed)
	Sets the suppression state for the constraint.

NXOpen::Positioning::Constraint::SplineType	SplinePointsType ()
	Returns the type of the spline.

bool	Suppressed ()
	Returns the suppression state for the constraint.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Constraint for use in positioning assembly objects in NX.

Created in NX5.0.1.

Member Enumeration Documentation

enum NXOpen::Positioning::ComponentConstraint::DirectionToFixed

Specifies how a constraint affects the positioning of a component.

Enumerator:

DirectionToFixedToward	Toward fixed geometry.
DirectionToFixedAwayFrom	Away from fixed geometry.
DirectionToFixedNothingFixed	The network does not contain any fixed geometry.
DirectionToFixedFix	The constraint is a Positioning::Constraint::TypeFix.
DirectionToFixedSuppressed	The constraint is suppressed.
DirectionToFixedIgnoredInArrangement	The current arrangement ignores all constraints.

Member Function Documentation

bool NXOpen::Positioning::ComponentConstraint::ArrangementSpecific ( )

Returns the arrangement specific state of this Positioning::ComponentConstraint in the Positioning::ComponentPositioner::PrimaryArrangement and Positioning::ComponentPositioner::SetPrimaryArrangement .

Constraints can never be arrangement specific in piece parts.

Created in NX6.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::Positioning::ComponentConstraint::DirectionToFixed NXOpen::Positioning::ComponentConstraint::GetDirectionToFixed	(	NXOpen::Assemblies::Component *	component,
		NXOpen::Assemblies::Arrangement *	arrangement
	)

Get the Positioning::ComponentConstraint::DirectionToFixed value of the Positioning::ComponentConstraint given a component and an arrangement.

   This value specifies how a constraint affects the positioning of a component.
   If the arrangement is null, the "direction to fixed" value will be evaluated based on the default arrangement.
@return  The @link Positioning::ComponentConstraint::DirectionToFixed Positioning::ComponentConstraint::DirectionToFixed@endlink  value.

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

component	The component constrained to the specified constraint.
arrangement	The Assemblies::Arrangement in which the constraint state is being evaluated.

bool NXOpen::Positioning::ComponentConstraint::GetInherited ( )

Get whether this Positioning::ComponentConstraint is an inherited constraint.

An inherited constraint is created by the system to support Positioning Overrides.

Returns: The inherited state of this Positioning::ComponentConstraint
Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

bool NXOpen::Positioning::ComponentConstraint::GetSpecificInArrangement ( NXOpen::Assemblies::Arrangement * arrangement )

Get the arrangement specific state of this Positioning::ComponentConstraint in the specified Assemblies::Arrangement .

@return   The arrangement specific state.

Created in NX6.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

arrangement The Assemblies::Arrangement in which the arrangement specific state is being enquired.

bool NXOpen::Positioning::ComponentConstraint::GetSuppressedInArrangement ( NXOpen::Assemblies::Arrangement * arrangement )

Get the suppression state of this Positioning::ComponentConstraint in the specified Assemblies::Arrangement .

If the constraint is not arrangement specific in this arrangement then the shared suppression state, used across all arrangements where the constraint is not arrangement specific, is used.

Returns: The suppression state.
Created in NX6.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

arrangement The Assemblies::Arrangement in which the suppression state is being enquired.

void NXOpen::Positioning::ComponentConstraint::RememberOnComponent ( NXOpen::Assemblies::Component * component )

Remembers the constraint in the prototype part of a referenced component for reuse in other occurrences of the part.

Fix and Bond constraints are never remembered. If the constraint does not reference geometry in the component, it is not remembered.

Created in NX5.0.1.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

component The Assemblies::Component on which the constraint is remembered

void NXOpen::Positioning::ComponentConstraint::SetArrangementSpecific ( bool arrangementSpecific )

Sets the arrangement specific state of this Positioning::ComponentConstraint in the Positioning::ComponentPositioner::PrimaryArrangement and Positioning::ComponentPositioner::SetPrimaryArrangement .

Constraints can never be arrangement specific in piece parts.

Created in NX6.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

arrangementSpecific The arrangement specific state

void NXOpen::Positioning::ComponentConstraint::SetSpecificInArrangement	(	NXOpen::Assemblies::Arrangement *	arrangement,
		bool	arrangementSpecific
	)

Set the arrangement specific state of this Positioning::ComponentConstraint in the specified Assemblies::Arrangement .

Created in NX6.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

arrangement	The Assemblies::Arrangement in which the arrangement specific state is being set.
arrangementSpecific	The arrangement specific state.

void NXOpen::Positioning::ComponentConstraint::SetSuppressedInArrangement	(	NXOpen::Assemblies::Arrangement *	arrangement,
		bool	suppressed
	)

Set the suppression state of this Positioning::ComponentConstraint in the specified Assemblies::Arrangement .

If the constraint is not arrangement specific in this arrangement then the shared suppression state, used across all arrangements where the constraint is not arrangement specific, is set.

Created in NX6.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

arrangement	The Assemblies::Arrangement in which the suppression state is being set.
suppressed	The suppression state.

The documentation for this class was generated from the following file:

Positioning_ComponentConstraint.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
