ConstraintReference for use in positioning objects in NX. More...

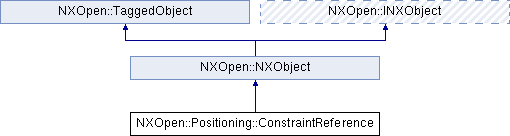

Inheritance diagram for NXOpen::Positioning::ConstraintReference:

Public Types
enum	ConstraintOrder { ConstraintOrderUnknown, ConstraintOrderInside, ConstraintOrderOutside }
	指定在一个中使用的约束引用的顺序 Positioning::Constraint . More...

enum	GeometryType { GeometryTypeUnknown = -1, GeometryTypePoint, GeometryTypeLine, GeometryTypeCircle, GeometryTypePlane, GeometryTypeCylinder, GeometryTypeSphere, GeometryTypeSweepSurface, GeometryTypeParametricSurface, GeometryTypeParametricCurve, GeometryTypeSplineCurve, GeometryTypeTorus, GeometryTypeCone, GeometryTypeEllipse, GeometryTypeSplineSurface, GeometryTypeCoordinateSystem = 1001 }
	指定中使用的几何图形的类型 Positioning::ConstraintReference . More...

enum	HalfSpace { HalfSpaceInfer, HalfSpacePositive, HalfSpaceNegative }
	指定用于距离约束的一个几何体的半空间值. More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
NXOpen::Positioning::ConstraintReference::HalfSpace	ConstraintReferenceHalfSpace ()
	返回约束引用的半空间值.

NXOpen::NXObject *	GetGeometry ()
	返回约束引用的几何图形.

bool	GetHasPerpendicularVector ()
	获取指示约束引用是否保持与主几何垂直的方向的标志.

NXOpen::NXObject *	GetMovableObject ()
	返回约束引用的可移动对象.

NXOpen::NXObject *	GetPrototypeGeometry ()
	返回约束引用的原型几何体.

NXOpen::Vector3d	GetPrototypePerpendicularVector ()
	得到垂直向量的值，对于大多数的约束它将是(0,0,0)Positioning::Constraint::TypeAlignLock .

bool	GetUsePortRotate ()
	在求解约束系统时，获取被引用路由的旋转向量的使用Routing::Port 端口对象而不是对齐向量。 .

bool	GetUsesGeometryAxis ()
	如果约束引用应该使用几何轴(例如一个圆筒形的面)而不是表面，则返回.

NXOpen::Point3d	HelpPoint ()
	返回约束引用的帮助点.

NXOpen::Positioning::ConstraintReference::ConstraintOrder	Order ()
	在约束中返回约束引用的顺序.

void	SetConstraintReferenceHalfSpace (NXOpen::Positioning::ConstraintReference::HalfSpace halfSpace)
	设置约束引用的半空间值.

void	SetFixHint (bool set)
	向求解器设置一个提示，以修复与此约束引用相关联的移动对象.

void	SetFixHintForUpdate (bool set)
	向求解器设置一个提示，以修复与此约束引用相关联的移动对象.

void	SetHelpPoint (const NXOpen::Point3d &helpPoint)
	设置约束引用的帮助点.

void	SetPrototypePerpendicularVector (const NXOpen::Vector3d &perpendicularVector)
	设置垂直向量的值.

void	SetUsePortRotateFlag (bool useRotate)
	设置标记，强制使用被引用路由的旋转向量Routing::Port 在求解约束系统时，而不是对齐向量.

NXOpen::Positioning::ConstraintReference::GeometryType	SolverGeometryType ()
	返回在解决过程中使用的约束引用的几何类型.

bool	UsePortRotateFlag ()
	返回强制使用引用的旋转向量的标志Routing::Port 约束系统求解时的对象代替对齐向量.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

ConstraintReference for use in positioning objects in NX.

A ConstraintReference is used by a Constraint to determine the movable object to be positioned by the constraint and the geometry used to define the constraint.
To create an instance of this class, use NXOpen::Positioning::Constraint::CreateConstraintReference .

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Positioning::ConstraintReference::ConstraintOrder

Specifies the order of the constraint reference used in a Positioning::Constraint .

Typically the order is set during creation, where the first constraint reference added is "outside" and the second "outside". For Bond constraints, the order is set to be "unknown" at creation.

Enumerator:

ConstraintOrderUnknown	No order specified.
ConstraintOrderInside	Inside.
ConstraintOrderOutside	Outside.

enum NXOpen::Positioning::ConstraintReference::GeometryType

Specifies the type of the geometry used in a Positioning::ConstraintReference .

The type reflects that used in a Positioning::Constraint while it is being solved and may be different from that inferred directly from NXOpen::Positioning::ConstraintReference::GetGeometry . For example we may use Positioning::ConstraintReference::GeometryTypeLine as an axis when given a cylindrical face as the geometry.

Enumerator:

GeometryTypePoint	Point.
GeometryTypeLine	Straight line.
GeometryTypeCircle	Circle.
GeometryTypePlane	Plane.
GeometryTypeCylinder	Cylinder.
GeometryTypeSphere	Sphere.
GeometryTypeSweepSurface	Swept surface.
GeometryTypeParametricSurface	Parametric surface.
GeometryTypeParametricCurve	Parametric curve.
GeometryTypeSplineCurve	Spline curve.
GeometryTypeTorus	Torus.
GeometryTypeCone	Cone.
GeometryTypeEllipse	Ellipse.
GeometryTypeSplineSurface	Spline surface.

enum NXOpen::Positioning::ConstraintReference::HalfSpace

Specifies the half space value of one geometry used in a distance constraint.

This is only used for surface geometries, and it determines which side of the surface the distance constraint is measured from.

Enumerator:

HalfSpaceInfer	Allow the solver to decide the half space value, or the geometry is not a surface.
HalfSpacePositive	Measure to the positive side of the surface.
HalfSpaceNegative	Measure to the negative side of the surface.

Member Function Documentation

NXOpen::Positioning::ConstraintReference::HalfSpace NXOpen::Positioning::ConstraintReference::ConstraintReferenceHalfSpace ( )

Returns the half_space value for the constraint reference.

This is only used for distance constraints.

Created in NX5.0.1.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::NXObject* NXOpen::Positioning::ConstraintReference::GetGeometry ( )

Returns the geometry of the constraint reference.

This is the geometry used in any Positioning::Constraint using this constraint reference.

Returns: The geometry referenced by the constraint
Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

bool NXOpen::Positioning::ConstraintReference::GetHasPerpendicularVector ( )

Get the flag indicating whether the constraint reference is one that maintains a direction perpendicular to the primary geometry.

   This is only applicable to @link Positioning::Constraint::Type Positioning::Constraint::Type@endlink
   @link Positioning::Constraint::TypeAlignLock Positioning::Constraint::TypeAlignLock@endlink .
@return  Whether the constraint has a perpendicular vector

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::NXObject* NXOpen::Positioning::ConstraintReference::GetMovableObject ( )

Returns the movable object of the constraint reference.

   The movable object determines the object to be
   positioned by any @link Positioning::Constraint Positioning::Constraint@endlink  using
   this constraint reference.
@return  The object positioned by the constraint

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::NXObject* NXOpen::Positioning::ConstraintReference::GetPrototypeGeometry ( )

Returns the prototype geometry of the constraint reference.

   This is never an occurrence.
@return  The prototype geometry referenced by the constraint

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::Vector3d NXOpen::Positioning::ConstraintReference::GetPrototypePerpendicularVector ( )

Get the value of the perpendicular vector, which will be (0,0,0) for most constraints apart from Positioning::Constraint::TypeAlignLock .

@return  The value of the perpendicular vector

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

bool NXOpen::Positioning::ConstraintReference::GetUsePortRotate ( )

Get the flag forcing the use of the rotation vector of the referenced Routing::Port object instead of the alignment vector when solving the constraint system.

   Only effective when the referenced geometry is a @link Routing::Port Routing::Port@endlink
   object.
@return

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

bool NXOpen::Positioning::ConstraintReference::GetUsesGeometryAxis ( )

Returns if the constraint reference should use the axis of the geometry (for example a cylindrical face) rather than the surface.

@return  If this reference is using the axis of the geometry

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::Point3d NXOpen::Positioning::ConstraintReference::HelpPoint ( )

Returns the help point of the constraint reference.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::Positioning::ConstraintReference::ConstraintOrder NXOpen::Positioning::ConstraintReference::Order ( )

Returns the order of the constraint reference within its constraint.

Note that this order is not associated with the geometry or with the alignment of the constraint. It is based on the idea that the constraint has a direction from "outside" to "inside". It does not affect the result of a solve.

Created in NX5.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

void NXOpen::Positioning::ConstraintReference::SetConstraintReferenceHalfSpace ( NXOpen::Positioning::ConstraintReference::HalfSpace halfSpace )

Sets the half_space value for the constraint reference.

This is only used for distance constraints.

Created in NX5.0.1.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

halfSpace Half space for constraint reference

void NXOpen::Positioning::ConstraintReference::SetFixHint ( bool set )

Set a hint to the solver to fix the movable object associated with this constraint reference.

   The hint is unset when "set" is false.

   The hint can only have an effect when the constraint owning this
   constraint reference has been explicitly added to
   a @link Network Network@endlink .

   The hint is forgotten after an update.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

set	Set or unset the hint

void NXOpen::Positioning::ConstraintReference::SetFixHintForUpdate ( bool set )

Set a hint to the solver to fix the movable object associated with this constraint reference.

   The hint is unset when "set" is false.

   The hint is forgotten after an update.

   Ensures that the constraint that owns this reference will
   solve during the next call to @link Update::DoUpdate Update::DoUpdate@endlink .

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

set	Set or unset the hint

void NXOpen::Positioning::ConstraintReference::SetHelpPoint ( const NXOpen::Point3d & helpPoint )

Sets the help point of the constraint reference.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

helpPoint Coordinates of point in part of constraint

void NXOpen::Positioning::ConstraintReference::SetPrototypePerpendicularVector ( const NXOpen::Vector3d & perpendicularVector )

Set the value of the perpendicular vector.

The value must be a unit vector given in the coordinates of the part containing the referenced geometry.

The perpendicular vector must be set to (0,0,0) for most constraints apart from Positioning::Constraint::TypeAlignLock which must have a value. An error is raised if this is not the case.

Whenever the constraint is solved, the value of the perpendicular vector may be modified, to ensure that the vector is perpendicular to the referenced geometry.

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

perpendicularVector The value of the perpendicular vector

void NXOpen::Positioning::ConstraintReference::SetUsePortRotateFlag ( bool useRotate )

Sets the flag forcing the use of the rotation vector of the referenced Routing::Port object instead of the alignment vector when solving the constraint system.

   Only effective when the referenced geometry is a @link Routing::Port Routing::Port@endlink
   object.

Created in NX5.0.1.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

useRotate use rotate

NXOpen::Positioning::ConstraintReference::GeometryType NXOpen::Positioning::ConstraintReference::SolverGeometryType ( )

Returns the geometry type of the constraint reference used during a solve.

Created in NX5.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

bool NXOpen::Positioning::ConstraintReference::UsePortRotateFlag ( )

Returns the flag forcing the use of the rotation vector of the referenced Routing::Port object instead of the alignment vector when solving the constraint system.

   Only effective when the referenced geometry is a @link Routing::Port Routing::Port@endlink
   object.

Created in NX5.0.1.

License requirements : assemblies ("ASSEMBLIES MODULE")

The documentation for this class was generated from the following file:

Positioning_ConstraintReference.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
