An instance of this class can be used to create Constraint s and associated objects. More...

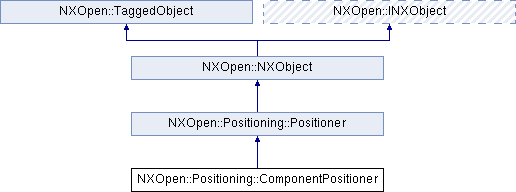

Inheritance diagram for NXOpen::Positioning::ComponentPositioner:

Public Member Functions
void	BeginAssemblyConstraints ()
	Begins a mode of operation where (1) each new Positioning::Constraint created by this Positioning::ComponentPositioner applies to components in the part of the positioner (or to components with variable component positioning defined in the part of the positioner) and (2) and component transforms derived from a Positioning::Network will apply to components in the part of the positioner.

void	BeginMoveComponent ()
	Begins a mode of operation where (1) each new Positioning::Constraint is created as transient and (2) a component transform is applied at the level where position is controlled for the component, typically in the component's immediate parent.

bool	DisplayConstraints ()
	返回指示该定位器的一部分中的约束是否将在图形窗口上显示的标志

bool	DisplaySuppressedConstraints ()
	返回指示该定位器的一部分中的抑制约束是否将在图形窗口上显示的标志。

void	EndAssemblyConstraints ()
	Ends the mode of operation started by Positioning::ComponentPositioner::BeginAssemblyConstraints All non-persistent constraints in this Positioning::ComponentPositioner will be deleted.

void	EndMoveComponent ()
	Ends the mode of operation started by Positioning::ComponentPositioner::BeginMoveComponent All constraints created while in that mode will be deleted.

void	LoadConstraintGeometry (const std::vector< NXOpen::Positioning::ComponentConstraint * > &constraints)
	尝试加载包含受约束或任何相关约束引用的未加载几何的所有部分。.

bool	MoveDumbGeometry ()
	返回使定位器重新定位哑几何图形的标志.

NXOpen::Assemblies::Arrangement *	PrimaryArrangement ()
	Returns the Assemblies::Arrangement in which the primary Positioning::Network will solve.

void	SetDisplayConstraints (bool display)
	设置指示该定位器的一部分中的约束是否将在图形窗口上显示的标志。.

void	SetDisplaySuppressedConstraints (bool display)
	Sets the flag indicating whether suppressed constraints in the part of this positioner are to be displayed on the graphics window or not.

void	SetMoveDumbGeometry (bool moveDumbGeometry)
	设置使定位器重新定位哑几何图形的标志.

void	SetPrimaryArrangement (NXOpen::Assemblies::Arrangement *arrangement)
	Sets the Assemblies::Arrangement in which the primary Positioning::Network will solve.

void	SolvePostponedConstraints ()
	解决当前推迟其解决方案的所有安排中的约束

Public Member Functions inherited from NXOpen::Positioning::Positioner
void	ClearNetwork ()
	Removes the Network of the positioner.

NXOpen::Positioning::ConstraintCollection *	Constraints ()
	The collection of Positioning::Constraint s defined in the positioner Created in NX3.0.0.

NXOpen::Positioning::Constraint *	CreateConstraint (bool persistent)
	Creates a new Constraint in the positioner.

NXOpen::Positioning::Constraint *	CreateConstraint ()
	Creates a new Constraint in the positioner.

void	DeleteNonPersistentConstraints ()
	Deletes all the non-persistent Constraint s of the positioner.

NXOpen::Positioning::Network *	EstablishNetwork ()
	Establishes a Network in the positioner.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Detailed Description

An instance of this class can be used to create Constraint s and associated objects.

To obtain an instance of this class, use Assemblies::ComponentAssembly::Positioner

Created in NX4.0.0.

Member Function Documentation

void NXOpen::Positioning::ComponentPositioner::BeginAssemblyConstraints ( )

Begins a mode of operation where (1) each new Positioning::Constraint created by this Positioning::ComponentPositioner applies to components in the part of the positioner (or to components with variable component positioning defined in the part of the positioner) and (2) and component transforms derived from a Positioning::Network will apply to components in the part of the positioner.

Created in NX5.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

void NXOpen::Positioning::ComponentPositioner::BeginMoveComponent ( )

Begins a mode of operation where (1) each new Positioning::Constraint is created as transient and (2) a component transform is applied at the level where position is controlled for the component, typically in the component's immediate parent.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

bool NXOpen::Positioning::ComponentPositioner::DisplayConstraints ( )

Returns the flag indicating whether constraints in the part of this positioner are to be displayed on the graphics window or not.

(This is a separate system from hiding and showing individual constraints.) This flag controls the visibility of both suppressed and unsuppressed constraints.

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

bool NXOpen::Positioning::ComponentPositioner::DisplaySuppressedConstraints ( )

Returns the flag indicating whether suppressed constraints in the part of this positioner are to be displayed on the graphics window or not.

(This is a separate system from hiding and showing individual constraints.)

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

void NXOpen::Positioning::ComponentPositioner::EndAssemblyConstraints ( )

Ends the mode of operation started by Positioning::ComponentPositioner::BeginAssemblyConstraints All non-persistent constraints in this Positioning::ComponentPositioner will be deleted.

Created in NX5.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

void NXOpen::Positioning::ComponentPositioner::EndMoveComponent ( )

Ends the mode of operation started by Positioning::ComponentPositioner::BeginMoveComponent All constraints created while in that mode will be deleted.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

void NXOpen::Positioning::ComponentPositioner::LoadConstraintGeometry ( const std::vector< NXOpen::Positioning::ComponentConstraint * > & constraints )

Attempts to load all the parts that contain unloaded geometry that is referenced by the constraints or by any related constraints.

The constraints must be within the positioner otherwise an error will be raised. Any constraints that are suppressed will be ignored.

If the number of constraints is zero then the function attempts to load the parts for every unsuppressed constraint in the positioner.

Calling this function can cause objects to be logged for update and therefore the caller of this function must call update.

Created in NX7.5.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

constraints Constraints

bool NXOpen::Positioning::ComponentPositioner::MoveDumbGeometry ( )

Returns the flag that enables the positioner to reposition dumb geometry.

Dumb geometry is any geometry that is not controlled by another object such as a Features::Feature object. This flag has no effect on Routing geometry (segments and control points) as they are always considered movable by the positioner.

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::Assemblies::Arrangement* NXOpen::Positioning::ComponentPositioner::PrimaryArrangement ( )

Returns the Assemblies::Arrangement in which the primary Positioning::Network will solve.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

void NXOpen::Positioning::ComponentPositioner::SetDisplayConstraints ( bool display )

Sets the flag indicating whether constraints in the part of this positioner are to be displayed on the graphics window or not.

(This is a separate system from hiding and showing individual constraints.) This flag controls the visibility of both suppressed and unsuppressed constraints.

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

display display

void NXOpen::Positioning::ComponentPositioner::SetDisplaySuppressedConstraints ( bool display )

Sets the flag indicating whether suppressed constraints in the part of this positioner are to be displayed on the graphics window or not.

(This is a separate system from hiding and showing individual constraints.)

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

display display

void NXOpen::Positioning::ComponentPositioner::SetMoveDumbGeometry ( bool moveDumbGeometry )

Sets the flag that enables the positioner to reposition dumb geometry.

Dumb geometry is any geometry that is not controlled by another object such as a Features::Feature object. This flag has no effect on Routing geometry (segments and control points) as they are always considered movable by the positioner.

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

moveDumbGeometry Whether the positioner will reposition dumb geometry

void NXOpen::Positioning::ComponentPositioner::SetPrimaryArrangement ( NXOpen::Assemblies::Arrangement * arrangement )

Sets the Assemblies::Arrangement in which the primary Positioning::Network will solve.

Created in NX4.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

arrangement The primary Assemblies::Arrangement .

void NXOpen::Positioning::ComponentPositioner::SolvePostponedConstraints ( )

Solves constraints in all arrangements that are currently postponing their solve.

This could lead to updating the model if required.

Created in NX9.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

The documentation for this class was generated from the following file:

Positioning_ComponentPositioner.hxx

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation
