Interface class for all routing segments [Line/Arc/Spline]
Created in NX4.0.0. More...

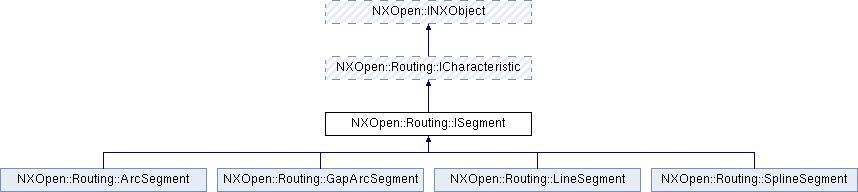

Inheritance diagram for NXOpen::Routing::ISegment:

Public Member Functions
virtual NXOpen::Routing::ConvertEccentricLinearToLinear	ConvertEccentricLinearToLinear ()=0
	Is line segment eccentric converted to line segment?

virtual NXOpen::Routing::ConvertLinearToEccentricLinear	ConvertLinearToEccentricLinear ()=0
	Is line segment converted to eccentric line segment?

virtual NXOpen::Curve *	FollowCurve ()=0
	Returns the segment follow curve.

virtual std::vector < NXOpen::Routing::Electrical::CableDevice * >	GetCableDevices ()=0
	Returns Routing::Electrical::CableDevice objects from Routing::ISegment .

virtual std::vector < NXOpen::Routing::Electrical::CablewaysLayoutView * >	GetCablewaysLayoutViews ()=0
	Returns Routing::Electrical::CablewaysLayoutView objects from the Routing::ISegment .

virtual void	GetEndPoints (NXOpen::Point3d startPoint, NXOpen::Point3d endPoint)=0
	Get the current location of the segment ends in ABS coordinates.

virtual void	GetEndRcps (NXOpen::Routing::ControlPoint startRcp, NXOpen::Routing::ControlPoint endRcp)=0
	Return of segment end control points.

virtual NXOpen::Routing::Eccentric	GetIsEccentricSegment ()=0
	Is given segment a eccentric segment?

virtual NXOpen::Routing::Interior	GetIsSegmentInterior ()=0
	Query if a segment is interior to any part.

virtual NXOpen::Routing::Terminal	GetIsTerminalSegment ()=0
	Is given segment a terminal segment?

virtual std::vector < NXOpen::Routing::Stock * >	GetSegmentAllStocks ()=0
	Returns Routing::Stock as well as Routing::Overstock objects from the Routing::ISegment .

virtual std::vector < NXOpen::Routing::Stock * >	GetSegmentStock ()=0
	Returns all stocks that directly reference this segment as part of the path defining the stock.

virtual void	SetEndPoints (const NXOpen::Point3d &startPoint, const NXOpen::Point3d &endPoint)=0
	Set the current location of the segment ends in ABS coordinates.

virtual void	SetEndRcps (NXOpen::Routing::ControlPoint startRcp, NXOpen::Routing::ControlPoint endRcp)=0
	Created in NX4.0.0.

virtual void	SetIsTerminalSegment (NXOpen::Routing::Terminal isTerminal)=0
	Set given segment to be a terminal segment? Created in NX4.0.0.

virtual void	SetSegmentInteriorPart (NXOpen::Assemblies::Component *interiorPart)=0
	Set a segment to be interior to supplied part Created in NX4.0.0.

Public Member Functions inherited from NXOpen::Routing::ICharacteristic
virtual void	DeleteCharacterstics (NXOpen::Routing::CharacteristicList *values)=0
	Removes the input list of characteristics from this object.

virtual NXOpen::Routing::CharacteristicList *	GetCharacteristics ()=0
	Get all of the characteristics values on the this object.

virtual NXOpen::Routing::CharacteristicList *	GetDestinationCharacteristics ()=0
	Returns the destination characteristics from the input object.

virtual int	GetIntegerCharacteristic (const NXString &name)=0
	Get the value of an integer characteristic associated with the input name.

int	GetIntegerCharacteristic (const char *name)
	Get the value of an integer characteristic associated with the input name.

virtual double	GetRealCharacteristic (const NXString &name)=0
	Get the value of a real characteristic associated with the input name.

double	GetRealCharacteristic (const char *name)
	Get the value of a real characteristic associated with the input name.

virtual NXString	GetStringCharacteristic (const NXString &name)=0
	Get the value of a string characteristic associated with the input name.

NXString	GetStringCharacteristic (const char *name)
	Get the value of a string characteristic associated with the input name.

virtual void	SetCharacteristic (const NXString &name, int value)=0
	Set the value of an integer characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

void	SetCharacteristic (const char *name, int value)
	Set the value of an integer characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

virtual void	SetCharacteristic (const NXString &name, double value)=0
	Set the value of an real characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

void	SetCharacteristic (const char *name, double value)
	Set the value of an real characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

virtual void	SetCharacteristic (const NXString &name, const NXString &value)=0
	Set the value of an string characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

void	SetCharacteristic (const char name, const char value)
	Set the value of an string characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

virtual void	SetCharacteristics (NXOpen::Routing::CharacteristicList *values)=0
	Set all of the characteristics values on this object.

Public Member Functions inherited from NXOpen::INXObject
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)=0
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

virtual bool	IsOccurrence ()=0
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()=0
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()=0
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()=0
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()=0
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()=0
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()=0
	Returns the prototype of this object if it is an occurrence.

virtual void	SetName (const NXString &name)=0
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Interface class for all routing segments [Line/Arc/Spline]
Created in NX4.0.0.

Member Function Documentation

virtual NXOpen::Routing::ConvertEccentricLinearToLinear NXOpen::Routing::ISegment::ConvertEccentricLinearToLinear ( )

pure virtual

Is line segment eccentric converted to line segment?

Returns: Is line segment eccentric converted to line segment?
Created in NX8.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual NXOpen::Routing::ConvertLinearToEccentricLinear NXOpen::Routing::ISegment::ConvertLinearToEccentricLinear ( )

pure virtual

Is line segment converted to eccentric line segment?

Returns: Is line segment converted to eccentric line segment?
Created in NX8.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual NXOpen::Curve* NXOpen::Routing::ISegment::FollowCurve ( )

pure virtual

Returns the segment follow curve.

NULL object indicates segment has no follow curve
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual std::vector<NXOpen::Routing::Electrical::CableDevice *> NXOpen::Routing::ISegment::GetCableDevices ( )

pure virtual

Returns Routing::Electrical::CableDevice objects from Routing::ISegment .

Returns: Array of cable devices.
Created in NX7.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual std::vector<NXOpen::Routing::Electrical::CablewaysLayoutView *> NXOpen::Routing::ISegment::GetCablewaysLayoutViews ( )

pure virtual

Returns Routing::Electrical::CablewaysLayoutView objects from the Routing::ISegment .

Returns: Array of cableways layout views.
Created in NX7.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual void NXOpen::Routing::ISegment::GetEndPoints	(	NXOpen::Point3d *	startPoint,
		NXOpen::Point3d *	endPoint
	)

pure virtual

Get the current location of the segment ends in ABS coordinates.

This value is overridden by the coordinates of the end RCPs associated with this segment.
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

startPoint	Location of end 0 in ABS coordinates
endPoint	Location of end 1 in ABS coordinates

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual void NXOpen::Routing::ISegment::GetEndRcps	(	NXOpen::Routing::ControlPoint **	startRcp,
		NXOpen::Routing::ControlPoint **	endRcp
	)

pure virtual

Return of segment end control points.

        The @link Routing::ControlPoint Routing::ControlPoint@endlink  defines an end of a segment

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

startRcp	RCP defining start of segment
endRcp	RCP defining end of segment

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual NXOpen::Routing::Eccentric NXOpen::Routing::ISegment::GetIsEccentricSegment ( )

pure virtual

Is given segment a eccentric segment?

Returns: Is segment a eccentric segment?
Created in NX8.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual NXOpen::Routing::Interior NXOpen::Routing::ISegment::GetIsSegmentInterior ( )

pure virtual

Query if a segment is interior to any part.

Returns: Is segment interior?
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual NXOpen::Routing::Terminal NXOpen::Routing::ISegment::GetIsTerminalSegment ( )

pure virtual

Is given segment a terminal segment?

Returns: Is segment a terminal segment?
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual std::vector<NXOpen::Routing::Stock *> NXOpen::Routing::ISegment::GetSegmentAllStocks ( )

pure virtual

Returns Routing::Stock as well as Routing::Overstock objects from the Routing::ISegment .

Returns: Array of stocks/overstocks.
Created in NX5.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual std::vector<NXOpen::Routing::Stock *> NXOpen::Routing::ISegment::GetSegmentStock ( )

pure virtual

Returns all stocks that directly reference this segment as part of the path defining the stock.

Returns: Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual void NXOpen::Routing::ISegment::SetEndPoints	(	const NXOpen::Point3d &	startPoint,
		const NXOpen::Point3d &	endPoint
	)

pure virtual

Set the current location of the segment ends in ABS coordinates.

This value is overridden by the coordinates of the end RCPs associated with this segment.
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

startPoint	New location of end 0 in ABS coordinates
endPoint	New location of end 1 in ABS coordinates

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual void NXOpen::Routing::ISegment::SetEndRcps	(	NXOpen::Routing::ControlPoint *	startRcp,
		NXOpen::Routing::ControlPoint *	endRcp
	)

pure virtual

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

startRcp	RCP defining start of segment
endRcp	RCP defining end of segment

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual void NXOpen::Routing::ISegment::SetIsTerminalSegment ( NXOpen::Routing::Terminal isTerminal )

pure virtual

Set given segment to be a terminal segment?
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

isTerminal Set as terminal segment?

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

virtual void NXOpen::Routing::ISegment::SetSegmentInteriorPart ( NXOpen::Assemblies::Component * interiorPart )

pure virtual

Set a segment to be interior to supplied part
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

interiorPart Part segment interior?

Implemented in NXOpen::Routing::LineSegment, NXOpen::Routing::GapArcSegment, NXOpen::Routing::ArcSegment, and NXOpen::Routing::SplineSegment.

The documentation for this class was generated from the following file:

Routing_ISegment.hxx

Public Member Functions

Detailed Description

Member Function Documentation
