NXOpen::Features::StudioSpline Class Reference

Represents a studio spline feature
To create or edit an instance of this class, use Features::StudioSplineBuilderEx

Created in NX5.0.0. More...

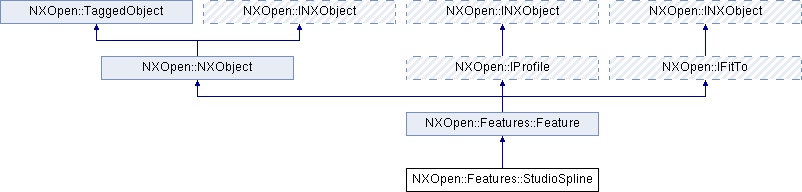

Inheritance diagram for NXOpen::Features::StudioSpline:

Additional Inherited Members
Public Types inherited from NXOpen::Features::Feature
enum	BooleanType {   BooleanTypeCreate, BooleanTypeUnite, BooleanTypeSubtract, BooleanTypeIntersect,   BooleanTypeEmbossNormalSide = 8, BooleanTypeEmbossOppositeNormalSide }
	Boolean operation type. More...
enum	DiagnosticType { DiagnosticTypeInformation = 1, DiagnosticTypeWarning }
	Diagnostic type. More...
Public Member Functions inherited from NXOpen::Features::Feature
int	AlgorithmVersion ()
	Returns the algorithm version of the feature
void	ChangeBooleanType ()
	Change Boolean Type Created in NX9.0.0.
NXOpen::Features::IContainerFeature *	ContainerFeature ()
	Returns the container feature for this feature.
void	DeleteClueAlerts ()
	Delete all clue alerts from the features Created in NX8.0.1.
void	DeleteHintAlerts ()
	Delete all clue alerts from the features Created in NX8.0.1.
void	DeleteInformationalAlerts ()
	Delete all informational alerts from the features Created in NX5.0.0.
NXString	FeatureType ()
	Returns the feature type Created in NX3.0.0.
std::vector < NXOpen::Features::Feature * >	GetChildren ()
	Returns the immediate child features.
std::vector< NXOpen::NXObject * >	GetEntities ()
	Returns the entities created by the feature.
std::vector< NXOpen::Expression * >	GetExpressions ()
	Returns the expressions created by the feature.
std::vector< NXString >	GetFeatureClueHintMessages ()
	Returns both clue and hint messages of the feature.
std::vector< NXString >	GetFeatureClueMessages ()
	Returns the feature clue messages.
std::vector< NXString >	GetFeatureErrorMessages ()
	Returns the feature error messages.
std::vector< NXString >	GetFeatureHintMessages ()
	Returns the feature hint messages.
std::vector< NXString >	GetFeatureInformationalMessages ()
	Returns the feature informational messages.
NXString	GetFeatureName ()
	Returns the displayed name of the feature.
std::vector< NXString >	GetFeatureWarningMessages ()
	Returns the feature warning messages.
std::vector < NXOpen::Features::Feature * >	GetParents ()
	Returns the immediate parent features.
std::vector< NXOpen::Section * >	GetSections ()
	Queries a feature for list of its sections.
void	HideBody ()
	Hide the body created by the feature Created in NX3.0.0.
void	HideParents ()
	Hide the body created by the parent feature Created in NX3.0.0.
void	Highlight ()
	Highlight the body created by the feature Created in NX3.0.0.
bool	IsContainedFeature ()
	Returns true if the feature is a contained feature.
bool	IsInternal ()
	Returns true if the feature is internal.
NXOpen::Point3d	Location ()
	Returns the location of the feature Created in NX3.0.0.
void	LogDiagnostic (int errorCode, const NXString &message, NXOpen::Features::Feature::DiagnosticType diagnosticType)
	Log a diagnostic alert for this feature Created in NX8.0.0.
void	LogDiagnostic (int errorCode, const char *message, NXOpen::Features::Feature::DiagnosticType diagnosticType)
	Log a diagnostic alert for this feature Created in NX8.0.0.
void	MakeCurrentFeature ()
	Make current feature Created in NX3.0.0.
void	MakeSketchExternal ()
	Make the parent sketch external for reuse by other features.
void	MakeSketchInternal ()
	Make the parent sketch internal if referenced only by this feature.
void	RemoveForEdit (bool dependent)
	Remove all the feature faces before a NoHistory mode edit.
void	RemoveParameters ()
	Remove Local feature parameters in history free mode.
void	SetGroupActive (bool active)
	Set a feature group as active group.
void	ShowBody (bool moveCurves)
	Show the body created by the feature Created in NX3.0.0.
void	ShowDimensions ()
	Show all feature dimensions of a feature.
void	ShowParents (bool moveCurves)
	Show the body created by the parent feature Created in NX3.0.0.
void	Suppress ()
	Suppress the feature Created in NX3.0.0.
bool	Suppressed ()
	Returns the suppression status of the feature Created in NX3.0.0.
int	Timestamp ()
	Returns the timestamp of the feature Created in NX3.0.0.
void	Unhighlight ()
	Unhighlight the body created by the feature Created in NX3.0.0.
void	Unsuppress ()
	Unsuppress the feature Created in NX3.0.0.

Detailed Description

Represents a studio spline feature
To create or edit an instance of this class, use Features::StudioSplineBuilderEx

Created in NX5.0.0.

---

The documentation for this class was generated from the following file:

• Features_StudioSpline.hxx
