NXOpen::Features::FlatPattern Class Reference

Represents a Flat Solid feature
To create or edit an instance of this class, use Features::SheetMetal::FlatPatternBuilder

Created in NX5.0.1. More...

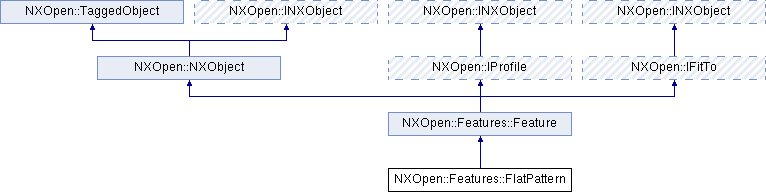

Inheritance diagram for NXOpen::Features::FlatPattern:

Classes
struct	ObjectDataCsys
	Structure used to return data about objects in the flat pattern. More...
struct	ObjectDataEdge
	Structure used to return data about objects in the flat pattern. More...
struct	ObjectDataFace
	Structure used to return data about objects in the flat pattern. More...
struct	ObjectDataGeneral
	Structure used to return data about objects in the flat pattern. More...

Public Member Functions
void	GetAddedBottomGeometry (std::vector< NXOpen::Features::FlatPattern::ObjectDataGeneral > &objects)
	Returns an array of all the added bottom geometry assocated with the flat pattern.
void	GetAddedTopGeometry (std::vector< NXOpen::Features::FlatPattern::ObjectDataGeneral > &objects)
	Returns an array of all the added top geometry assocated with the flat pattern.
std::vector< NXOpen::NXObject * >	GetAnnotations ()
	Returns an array of all the flat pattern annotations.
void	GetBendDownCenterLines (std::vector< NXOpen::Features::FlatPattern::ObjectDataFace > &objects)
	Returns an array describing the bend-down center lines and associated objects.
void	GetBendTangentLines (std::vector< NXOpen::Features::FlatPattern::ObjectDataEdge > &objects)
	Returns an array describing the bend tangent lines and associated objects.
void	GetBendUpCenterLines (std::vector< NXOpen::Features::FlatPattern::ObjectDataFace > &objects)
	Returns an array describing the bend-up center lines and associated objects.
std::vector< NXOpen::NXObject * >	GetCurves ()
	Returns an array of all the flat pattern curves.
void	GetExteriorCurves (std::vector< NXOpen::Features::FlatPattern::ObjectDataEdge > &objects)
	Returns an array describing the exterior curves and associated objects.
void	GetInnerMoldLines (std::vector< NXOpen::Features::FlatPattern::ObjectDataFace > &objects)
	Returns an array describing the inner mold lines and associated objects.
void	GetInteriorCutoutCurves (std::vector< NXOpen::Features::FlatPattern::ObjectDataEdge > &objects)
	Returns an array describing the interior cutout curves and associated objects.
void	GetInteriorFeatureCurves (std::vector< NXOpen::Features::FlatPattern::ObjectDataEdge > &objects)
	Returns an array describing the interior feature curves and associated objects.
void	GetJoggleLines (std::vector< NXOpen::Features::FlatPattern::ObjectDataEdge > &objects)
	Returns an array describing the outer mold lines and associated objects.
void	GetLighteningHoleCenters (std::vector< NXOpen::Features::FlatPattern::ObjectDataFace > &objects)
	Returns an array describing the lightening hole centers and associated objects.
void	GetOuterMoldLines (std::vector< NXOpen::Features::FlatPattern::ObjectDataFace > &objects)
	Returns an array describing the outer mold lines and associated objects.
void	GetToolMarkers (std::vector< NXOpen::Features::FlatPattern::ObjectDataCsys > &objects)
	Returns an array of all the tool marker points assocated with the flat pattern.
void	MakeFlatSolidExternal ()
	Makes the flat pattern's parent flat solid feature external.
void	MakeFlatSolidInternal ()
	Makes the flat pattern's parent flat solid feature internal.
Public Member Functions inherited from NXOpen::Features::Feature
int	AlgorithmVersion ()
	Returns the algorithm version of the feature
void	ChangeBooleanType ()
	Change Boolean Type Created in NX9.0.0.
NXOpen::Features::IContainerFeature *	ContainerFeature ()
	Returns the container feature for this feature.
void	DeleteClueAlerts ()
	Delete all clue alerts from the features Created in NX8.0.1.
void	DeleteHintAlerts ()
	Delete all clue alerts from the features Created in NX8.0.1.
void	DeleteInformationalAlerts ()
	Delete all informational alerts from the features Created in NX5.0.0.
NXString	FeatureType ()
	Returns the feature type Created in NX3.0.0.
std::vector < NXOpen::Features::Feature * >	GetChildren ()
	Returns the immediate child features.
std::vector< NXOpen::NXObject * >	GetEntities ()
	Returns the entities created by the feature.
std::vector< NXOpen::Expression * >	GetExpressions ()
	Returns the expressions created by the feature.
std::vector< NXString >	GetFeatureClueHintMessages ()
	Returns both clue and hint messages of the feature.
std::vector< NXString >	GetFeatureClueMessages ()
	Returns the feature clue messages.
std::vector< NXString >	GetFeatureErrorMessages ()
	Returns the feature error messages.
std::vector< NXString >	GetFeatureHintMessages ()
	Returns the feature hint messages.
std::vector< NXString >	GetFeatureInformationalMessages ()
	Returns the feature informational messages.
NXString	GetFeatureName ()
	Returns the displayed name of the feature.
std::vector< NXString >	GetFeatureWarningMessages ()
	Returns the feature warning messages.
std::vector < NXOpen::Features::Feature * >	GetParents ()
	Returns the immediate parent features.
std::vector< NXOpen::Section * >	GetSections ()
	Queries a feature for list of its sections.
void	HideBody ()
	Hide the body created by the feature Created in NX3.0.0.
void	HideParents ()
	Hide the body created by the parent feature Created in NX3.0.0.
void	Highlight ()
	Highlight the body created by the feature Created in NX3.0.0.
bool	IsContainedFeature ()
	Returns true if the feature is a contained feature.
bool	IsInternal ()
	Returns true if the feature is internal.
NXOpen::Point3d	Location ()
	Returns the location of the feature Created in NX3.0.0.
void	LogDiagnostic (int errorCode, const NXString &message, NXOpen::Features::Feature::DiagnosticType diagnosticType)
	Log a diagnostic alert for this feature Created in NX8.0.0.
void	LogDiagnostic (int errorCode, const char *message, NXOpen::Features::Feature::DiagnosticType diagnosticType)
	Log a diagnostic alert for this feature Created in NX8.0.0.
void	MakeCurrentFeature ()
	Make current feature Created in NX3.0.0.
void	MakeSketchExternal ()
	Make the parent sketch external for reuse by other features.
void	MakeSketchInternal ()
	Make the parent sketch internal if referenced only by this feature.
void	RemoveForEdit (bool dependent)
	Remove all the feature faces before a NoHistory mode edit.
void	RemoveParameters ()
	Remove Local feature parameters in history free mode.
void	SetGroupActive (bool active)
	Set a feature group as active group.
void	ShowBody (bool moveCurves)
	Show the body created by the feature Created in NX3.0.0.
void	ShowDimensions ()
	Show all feature dimensions of a feature.
void	ShowParents (bool moveCurves)
	Show the body created by the parent feature Created in NX3.0.0.
void	Suppress ()
	Suppress the feature Created in NX3.0.0.
bool	Suppressed ()
	Returns the suppression status of the feature Created in NX3.0.0.
int	Timestamp ()
	Returns the timestamp of the feature Created in NX3.0.0.
void	Unhighlight ()
	Unhighlight the body created by the feature Created in NX3.0.0.
void	Unsuppress ()
	Unsuppress the feature Created in NX3.0.0.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::Features::Feature
enum	BooleanType {   BooleanTypeCreate, BooleanTypeUnite, BooleanTypeSubtract, BooleanTypeIntersect,   BooleanTypeEmbossNormalSide = 8, BooleanTypeEmbossOppositeNormalSide }
	Boolean operation type. More...
enum	DiagnosticType { DiagnosticTypeInformation = 1, DiagnosticTypeWarning }
	Diagnostic type. More...

Detailed Description

Represents a Flat Solid feature
To create or edit an instance of this class, use Features::SheetMetal::FlatPatternBuilder

Created in NX5.0.1.

Member Function Documentation

void NXOpen::Features::FlatPattern::GetAddedBottomGeometry

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataGeneral > &

objects

)

Returns an array of all the added bottom geometry assocated with the flat pattern.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of tool marker object data

void NXOpen::Features::FlatPattern::GetAddedTopGeometry

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataGeneral > &

objects

)

Returns an array of all the added top geometry assocated with the flat pattern.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of tool marker object data

std::vector<NXOpen::NXObject *> NXOpen::Features::FlatPattern::GetAnnotations

(

)

Returns an array of all the flat pattern annotations.

       The objects are not sorted in any order.  @return  The flat pattern annotations

Created in NX7.5.5.

License requirements : nx_sheet_metal ("NX Sheet Metal")

void NXOpen::Features::FlatPattern::GetBendDownCenterLines

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataFace > &

objects

)

Returns an array describing the bend-down center lines and associated objects.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of bend-up center line object data

void NXOpen::Features::FlatPattern::GetBendTangentLines

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataEdge > &

objects

)

Returns an array describing the bend tangent lines and associated objects.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of bend-up center line object data

void NXOpen::Features::FlatPattern::GetBendUpCenterLines

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataFace > &

objects

)

Returns an array describing the bend-up center lines and associated objects.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of bend-up center line object data

std::vector<NXOpen::NXObject *> NXOpen::Features::FlatPattern::GetCurves

(

)

Returns an array of all the flat pattern curves.

       The objects are not sorted in any order.  @return  The flat pattern curves

Created in NX7.5.5.

License requirements : nx_sheet_metal ("NX Sheet Metal")

void NXOpen::Features::FlatPattern::GetExteriorCurves

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataEdge > &

objects

)

Returns an array describing the exterior curves and associated objects.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of bend-up center line object data

void NXOpen::Features::FlatPattern::GetInnerMoldLines

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataFace > &

objects

)

Returns an array describing the inner mold lines and associated objects.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of bend-up center line object data

void NXOpen::Features::FlatPattern::GetInteriorCutoutCurves

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataEdge > &

objects

)

Returns an array describing the interior cutout curves and associated objects.

       Note that all interior cutout curves are returned. Loops for separate interiour
       cutouts are not distinguished.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of bend-up center line object data

void NXOpen::Features::FlatPattern::GetInteriorFeatureCurves

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataEdge > &

objects

)

Returns an array describing the interior feature curves and associated objects.

       Note that all interior cutout curves are returned. Curves for separate interior
       features are not distinguished.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of bend-up center line object data

void NXOpen::Features::FlatPattern::GetJoggleLines

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataEdge > &

objects

)

Returns an array describing the outer mold lines and associated objects.

       The flat_pattern_object is the outer mold line on the flat pattern.
       The flat_solid_object is null.
       The formed_body_object is a bend face on the formed body.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of bend-up center line object data

void NXOpen::Features::FlatPattern::GetLighteningHoleCenters

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataFace > &

objects

)

Returns an array describing the lightening hole centers and associated objects.

       Note that in this case, the formed_body_object entry is null.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of bend-up center line object data

void NXOpen::Features::FlatPattern::GetOuterMoldLines

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataFace > &

objects

)

Returns an array describing the outer mold lines and associated objects.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of bend-up center line object data

void NXOpen::Features::FlatPattern::GetToolMarkers

(

std::vector< NXOpen::Features::FlatPattern::ObjectDataCsys > &

objects

)

Returns an array of all the tool marker points assocated with the flat pattern.

Created in NX6.0.3.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

objects

Array of tool marker object data

void NXOpen::Features::FlatPattern::MakeFlatSolidExternal

(

)

Makes the flat pattern's parent flat solid feature external.

Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal")

void NXOpen::Features::FlatPattern::MakeFlatSolidInternal

(

)

Makes the flat pattern's parent flat solid feature internal.

Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal")

---

The documentation for this class was generated from the following file:

• Features_FlatPattern.hxx
