Represents a @link Weld::Fillet Weld::Fillet@endlink  builder  <br> To create a new instance of this class, use @link Weld::WeldManager::CreateFilletBuilder  Weld::WeldManager::CreateFilletBuilder @endlink  <br>

Default values. More...

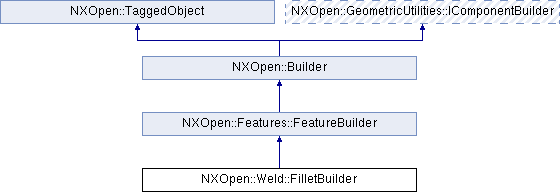

Inheritance diagram for NXOpen::Weld::FilletBuilder:

Public Types
enum	EnumContour { EnumContourNone, EnumContourConvex, EnumContourFlush, EnumContourConcave }
	the Contour enum More...

enum	EnumExtensionMethod { EnumExtensionMethodAutomatic, EnumExtensionMethodByValue }
	the Extension enum More...

enum	EnumSkipWeldMethod { EnumSkipWeldMethodNumberLength, EnumSkipWeldMethodNumberSpacing, EnumSkipWeldMethodSpacingLength }
	the Skipweld enum More...

enum	EnumWeldingType { EnumWeldingTypeT, EnumWeldingTypeLap, EnumWeldingTypeCorner }
	the WeldingType enum More...

Public Member Functions
bool	AllowBroken ()
	Returns the toggle to allow broken link Created in NX8.0.0.

bool	AssignWeldPMI ()
	Returns the toggle to assign weld pmi Created in NX8.0.0.

NXOpen::Expression *	ContourHeight ()
	Returns the linear dimension contour height Created in NX8.0.0.

NXOpen::Weld::FilletBuilder::EnumContour	ContourType ()
	Returns the contour Created in NX8.0.0.

bool	DirectionVector1 ()
	Returns the face normal direction Created in NX8.0.0.

bool	DirectionVector2 ()
	Returns the face normal direction for the second face Created in NX8.0.0.

bool	DirectToggle ()
	Returns the toggle to change direction Created in NX8.0.0.

double	DistTolerance ()
	Returns the distance tolerance Created in NX8.0.0.

NXOpen::Section *	EdgeSet1 ()
	Returns the edge set1 Created in NX8.0.0.

NXOpen::Section *	EdgeSet2 ()
	Returns the edge set2 Created in NX8.0.0.

NXOpen::GeometricUtilities::OnPathDimensionBuilder *	EndDist ()
	Returns the on path dimension end distance Created in NX8.0.0.

bool	EndVector ()
	Returns the end direction reversed or not Created in NX8.0.0.

NXOpen::Weld::FilletBuilder::EnumSkipWeldMethod	EnumMethod ()
	Returns the enum method for skip welds Created in NX8.0.0.

NXOpen::Expression *	ExtensionDistance ()
	Returns the linear dimension extension distance Created in NX8.0.0.

NXOpen::Weld::FilletBuilder::EnumExtensionMethod	ExtensionMethod ()
	Returns the extension method Created in NX8.0.0.

NXOpen::ScCollector *	FaceSet1 ()
	Returns the face set1 Created in NX8.0.0.

NXOpen::ScCollector *	FaceSet2 ()
	Returns the face set2 Created in NX8.0.0.

bool	FieldWeld ()
	Returns the field weld Created in NX8.0.0.

NXOpen::Weld::FilletBuilder::EnumWeldingType	FilletType ()
	Returns the fillet type Created in NX8.0.0.

NXOpen::Expression *	FirstLeg ()
	Returns the linear dimension first leg Created in NX8.0.0.

NXOpen::Expression *	NumberOfWelds ()
	Returns the expression number indicates number of welds in skip welds Created in NX8.0.0.

NXOpen::NXObject *	Pmi ()
	Returns the pmi symbol Created in NX8.0.0.

NXOpen::Expression *	SecondLeg ()
	Returns the linear dimension second leg Created in NX8.0.0.

NXOpen::Face *	SeedFace1 ()
	Returns the first seed face Created in NX8.0.0.

NXOpen::Face *	SeedFace2 ()
	Returns the second seed face Created in NX8.0.0.

NXOpen::Point3d	SeedPoint1 ()
	Returns the point on the first face Created in NX8.0.0.

NXOpen::Point3d	SeedPoint2 ()
	Returns the point on the second face Created in NX8.0.0.

NXOpen::Expression *	SegmentLength ()
	Returns the linear dimension length indicates segment length for each weld Created in NX8.0.0.

void	SetAllowBroken (bool allowBroken)
	Sets the toggle to allow broken link Created in NX8.0.0.

void	SetAssignWeldPMI (bool assignWeldPMI)
	Sets the toggle to assign weld pmi Created in NX8.0.0.

void	SetContourType (NXOpen::Weld::FilletBuilder::EnumContour contour)
	Sets the contour Created in NX8.0.0.

void	SetDirectionVector1 (bool directionVector1)
	Sets the face normal direction Created in NX8.0.0.

void	SetDirectionVector2 (bool directionVector2)
	Sets the face normal direction for the second face Created in NX8.0.0.

void	SetDirectToggle (bool directToggle)
	Sets the toggle to change direction Created in NX8.0.0.

void	SetDistTolerance (double distTolerance)
	Sets the distance tolerance Created in NX8.0.0.

void	SetEndVector (bool endVector)
	Sets the end direction reversed or not Created in NX8.0.0.

void	SetEnumMethod (NXOpen::Weld::FilletBuilder::EnumSkipWeldMethod enumMethod)
	Sets the enum method for skip welds Created in NX8.0.0.

void	SetExtensionMethod (NXOpen::Weld::FilletBuilder::EnumExtensionMethod extensionMethod)
	Sets the extension method Created in NX8.0.0.

void	SetFieldWeld (bool fieldWeld)
	Sets the field weld Created in NX8.0.0.

void	SetFilletType (NXOpen::Weld::FilletBuilder::EnumWeldingType filletType)
	Sets the fillet type Created in NX8.0.0.

void	SetPmi (NXOpen::NXObject *pmi)
	Sets the pmi symbol Created in NX8.0.0.

void	SetSeedFace1 (NXOpen::Face *seedFace1)
	Sets the first seed face Created in NX8.0.0.

void	SetSeedFace2 (NXOpen::Face *seedFace2)
	Sets the second seed face Created in NX8.0.0.

void	SetSeedPoint1 (const NXOpen::Point3d &seedPoint1)
	Sets the point on the first face Created in NX8.0.0.

void	SetSeedPoint2 (const NXOpen::Point3d &seedPoint1)
	Sets the point on the second face Created in NX8.0.0.

void	SetStartVector (bool startVector)
	Sets the start direction reversed or not Created in NX8.0.0.

void	SetThroatThickToggle (bool throatThickToggle)
	Sets the toggle throat thickness Created in NX8.0.0.

void	SetToggleCreateSkipWelds (bool toggleCreateSkipWelds)
	Sets the toggle to create skip welds Created in NX8.0.0.

void	SetToggleRecreateDeletedWelds (bool toggleRecreateDeletedWelds)
	Sets the toggle to recreate deleted welds Created in NX8.0.0.

void	SetUparameter1 (double u1)
	Sets the u parameter for first face Created in NX8.0.0.

void	SetUparameter2 (double u2)
	Sets the u parameter for second face Created in NX8.0.0.

void	SetVparameter1 (double v1)
	Sets the v parameter for first face Created in NX8.0.0.

void	SetVparameter2 (double v2)
	Sets the v parameter for second face Created in NX8.0.0.

NXOpen::Expression *	Spacing ()
	Returns the linear dimension spacing indicates distance between each weld Created in NX8.0.0.

NXOpen::GeometricUtilities::OnPathDimensionBuilder *	StartDist ()
	Returns the on path dimension start distance Created in NX8.0.0.

bool	StartVector ()
	Returns the start direction reversed or not Created in NX8.0.0.

bool	ThroatThickToggle ()
	Returns the toggle throat thickness Created in NX8.0.0.

bool	ToggleCreateSkipWelds ()
	Returns the toggle to create skip welds Created in NX8.0.0.

bool	ToggleRecreateDeletedWelds ()
	Returns the toggle to recreate deleted welds Created in NX8.0.0.

double	Uparameter1 ()
	Returns the u parameter for first face Created in NX8.0.0.

double	Uparameter2 ()
	Returns the u parameter for second face Created in NX8.0.0.

double	Vparameter1 ()
	Returns the v parameter for first face Created in NX8.0.0.

double	Vparameter2 ()
	Returns the v parameter for second face Created in NX8.0.0.

NXOpen::Weld::CharacteristicsBuilder *	WeldingCharacteristics ()
	Returns the welding characteristics Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Weld::Fillet Weld::Fillet@endlink  builder  <br> To create a new instance of this class, use @link Weld::WeldManager::CreateFilletBuilder  Weld::WeldManager::CreateFilletBuilder @endlink  <br>

Default values.

Property

Value

AllowBroken

0

AssignWeldPMI

0

ContourHeight.Value

1.875 (millimeters part), .073818 (inches part)

ContourType

None

EnumMethod

NumberLength

ExtensionDistance.Value

0.0254 (millimeters part), 0.001 (inches part)

ExtensionMethod

Automatic

FieldWeld

0

FilletType

T

FirstLeg.Value

6.25 (millimeters part), .246062 (inches part)

NumberOfWelds.Value

3

SecondLeg.Value

6.25 (millimeters part), .246062 (inches part)

SegmentLength.Value

3 (millimeters part), .118110 (inches part)

Spacing.Value

3 (millimeters part), .118110 (inches part)

ThroatThickToggle

0

ToggleCreateSkipWelds

0

ToggleRecreateDeletedWelds

0

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Weld::FilletBuilder::EnumContour

the Contour enum

Enumerator:

EnumContourNone	none
EnumContourConvex	convex
EnumContourFlush	flush
EnumContourConcave	concave

enum NXOpen::Weld::FilletBuilder::EnumExtensionMethod

the Extension enum

Enumerator:

EnumExtensionMethodAutomatic	automatic
EnumExtensionMethodByValue	by value

enum NXOpen::Weld::FilletBuilder::EnumSkipWeldMethod

the Skipweld enum

Enumerator:

EnumSkipWeldMethodNumberLength	number length
EnumSkipWeldMethodNumberSpacing	number spacing
EnumSkipWeldMethodSpacingLength	spacing length

enum NXOpen::Weld::FilletBuilder::EnumWeldingType

the WeldingType enum

Enumerator:

EnumWeldingTypeT	t
EnumWeldingTypeLap	lap
EnumWeldingTypeCorner	corner

Member Function Documentation

bool NXOpen::Weld::FilletBuilder::AllowBroken ( )

Returns the toggle to allow broken link
Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::FilletBuilder::AssignWeldPMI ( )

Returns the toggle to assign weld pmi
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Weld::FilletBuilder::ContourHeight ( )

Returns the linear dimension contour height
Created in NX8.0.0.

License requirements : None

NXOpen::Weld::FilletBuilder::EnumContour NXOpen::Weld::FilletBuilder::ContourType ( )

Returns the contour
Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::FilletBuilder::DirectionVector1 ( )

Returns the face normal direction
Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::FilletBuilder::DirectionVector2 ( )

Returns the face normal direction for the second face
Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::FilletBuilder::DirectToggle ( )

Returns the toggle to change direction
Created in NX8.0.0.

License requirements : None

double NXOpen::Weld::FilletBuilder::DistTolerance ( )

Returns the distance tolerance
Created in NX8.0.0.

License requirements : None

NXOpen::Section* NXOpen::Weld::FilletBuilder::EdgeSet1 ( )

Returns the edge set1
Created in NX8.0.0.

License requirements : None

NXOpen::Section* NXOpen::Weld::FilletBuilder::EdgeSet2 ( )

Returns the edge set2
Created in NX8.0.0.

License requirements : None

NXOpen::GeometricUtilities::OnPathDimensionBuilder* NXOpen::Weld::FilletBuilder::EndDist ( )

Returns the on path dimension end distance
Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::FilletBuilder::EndVector ( )

Returns the end direction reversed or not
Created in NX8.0.0.

License requirements : None

NXOpen::Weld::FilletBuilder::EnumSkipWeldMethod NXOpen::Weld::FilletBuilder::EnumMethod ( )

Returns the enum method for skip welds
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Weld::FilletBuilder::ExtensionDistance ( )

Returns the linear dimension extension distance
Created in NX8.0.0.

License requirements : None

NXOpen::Weld::FilletBuilder::EnumExtensionMethod NXOpen::Weld::FilletBuilder::ExtensionMethod ( )

Returns the extension method
Created in NX8.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Weld::FilletBuilder::FaceSet1 ( )

Returns the face set1
Created in NX8.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Weld::FilletBuilder::FaceSet2 ( )

Returns the face set2
Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::FilletBuilder::FieldWeld ( )

Returns the field weld
Created in NX8.0.0.

License requirements : None

NXOpen::Weld::FilletBuilder::EnumWeldingType NXOpen::Weld::FilletBuilder::FilletType ( )

Returns the fillet type
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Weld::FilletBuilder::FirstLeg ( )

Returns the linear dimension first leg
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Weld::FilletBuilder::NumberOfWelds ( )

Returns the expression number indicates number of welds in skip welds
Created in NX8.0.0.

License requirements : None

NXOpen::NXObject* NXOpen::Weld::FilletBuilder::Pmi ( )

Returns the pmi symbol
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Weld::FilletBuilder::SecondLeg ( )

Returns the linear dimension second leg
Created in NX8.0.0.

License requirements : None

NXOpen::Face* NXOpen::Weld::FilletBuilder::SeedFace1 ( )

Returns the first seed face
Created in NX8.0.0.

License requirements : None

NXOpen::Face* NXOpen::Weld::FilletBuilder::SeedFace2 ( )

Returns the second seed face
Created in NX8.0.0.

License requirements : None

NXOpen::Point3d NXOpen::Weld::FilletBuilder::SeedPoint1 ( )

Returns the point on the first face
Created in NX8.0.0.

License requirements : None

NXOpen::Point3d NXOpen::Weld::FilletBuilder::SeedPoint2 ( )

Returns the point on the second face
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Weld::FilletBuilder::SegmentLength ( )

Returns the linear dimension length indicates segment length for each weld
Created in NX8.0.0.

License requirements : None

void NXOpen::Weld::FilletBuilder::SetAllowBroken ( bool allowBroken )

Sets the toggle to allow broken link
Created in NX8.0.0.

License requirements : None

Parameters

allowBroken allowbroken

void NXOpen::Weld::FilletBuilder::SetAssignWeldPMI ( bool assignWeldPMI )

Sets the toggle to assign weld pmi
Created in NX8.0.0.

License requirements : None

Parameters

assignWeldPMI assignweldpmi

void NXOpen::Weld::FilletBuilder::SetContourType ( NXOpen::Weld::FilletBuilder::EnumContour contour )

Sets the contour
Created in NX8.0.0.

License requirements : None

Parameters

contour contour

void NXOpen::Weld::FilletBuilder::SetDirectionVector1 ( bool directionVector1 )

Sets the face normal direction
Created in NX8.0.0.

License requirements : None

Parameters

directionVector1 directionvector1

void NXOpen::Weld::FilletBuilder::SetDirectionVector2 ( bool directionVector2 )

Sets the face normal direction for the second face
Created in NX8.0.0.

License requirements : None

Parameters

directionVector2 directionvector2

void NXOpen::Weld::FilletBuilder::SetDirectToggle ( bool directToggle )

Sets the toggle to change direction
Created in NX8.0.0.

License requirements : None

Parameters

directToggle directtoggle

void NXOpen::Weld::FilletBuilder::SetDistTolerance ( double distTolerance )

Sets the distance tolerance
Created in NX8.0.0.

License requirements : None

Parameters

distTolerance disttolerance

void NXOpen::Weld::FilletBuilder::SetEndVector ( bool endVector )

Sets the end direction reversed or not
Created in NX8.0.0.

License requirements : None

Parameters

endVector endvector

void NXOpen::Weld::FilletBuilder::SetEnumMethod ( NXOpen::Weld::FilletBuilder::EnumSkipWeldMethod enumMethod )

Sets the enum method for skip welds
Created in NX8.0.0.

License requirements : None

Parameters

enumMethod enummethod

void NXOpen::Weld::FilletBuilder::SetExtensionMethod ( NXOpen::Weld::FilletBuilder::EnumExtensionMethod extensionMethod )

Sets the extension method
Created in NX8.0.0.

License requirements : None

Parameters

extensionMethod extensionmethod

void NXOpen::Weld::FilletBuilder::SetFieldWeld ( bool fieldWeld )

Sets the field weld
Created in NX8.0.0.

License requirements : None

Parameters

fieldWeld fieldweld

void NXOpen::Weld::FilletBuilder::SetFilletType ( NXOpen::Weld::FilletBuilder::EnumWeldingType filletType )

Sets the fillet type
Created in NX8.0.0.

License requirements : None

Parameters

filletType fillettype

void NXOpen::Weld::FilletBuilder::SetPmi ( NXOpen::NXObject * pmi )

Sets the pmi symbol
Created in NX8.0.0.

License requirements : None

Parameters

pmi pmi

void NXOpen::Weld::FilletBuilder::SetSeedFace1 ( NXOpen::Face * seedFace1 )

Sets the first seed face
Created in NX8.0.0.

License requirements : None

Parameters

seedFace1 seedface1

void NXOpen::Weld::FilletBuilder::SetSeedFace2 ( NXOpen::Face * seedFace2 )

Sets the second seed face
Created in NX8.0.0.

License requirements : None

Parameters

seedFace2 seedface2

void NXOpen::Weld::FilletBuilder::SetSeedPoint1 ( const NXOpen::Point3d & seedPoint1 )

Sets the point on the first face
Created in NX8.0.0.

License requirements : None

Parameters

seedPoint1 seedpoint1

void NXOpen::Weld::FilletBuilder::SetSeedPoint2 ( const NXOpen::Point3d & seedPoint1 )

Sets the point on the second face
Created in NX8.0.0.

License requirements : None

Parameters

seedPoint1 seedpoint1

void NXOpen::Weld::FilletBuilder::SetStartVector ( bool startVector )

Sets the start direction reversed or not
Created in NX8.0.0.

License requirements : None

Parameters

startVector startvector

void NXOpen::Weld::FilletBuilder::SetThroatThickToggle ( bool throatThickToggle )

Sets the toggle throat thickness
Created in NX8.0.0.

License requirements : None

Parameters

throatThickToggle throatthicktoggle

void NXOpen::Weld::FilletBuilder::SetToggleCreateSkipWelds ( bool toggleCreateSkipWelds )

Sets the toggle to create skip welds
Created in NX8.0.0.

License requirements : None

Parameters

toggleCreateSkipWelds togglecreateskipwelds

void NXOpen::Weld::FilletBuilder::SetToggleRecreateDeletedWelds ( bool toggleRecreateDeletedWelds )

Sets the toggle to recreate deleted welds
Created in NX8.0.0.

License requirements : None

Parameters

toggleRecreateDeletedWelds togglerecreatedeletedwelds

void NXOpen::Weld::FilletBuilder::SetUparameter1 ( double u1 )

Sets the u parameter for first face
Created in NX8.0.0.

License requirements : None

Parameters

u1 u1

void NXOpen::Weld::FilletBuilder::SetUparameter2 ( double u2 )

Sets the u parameter for second face
Created in NX8.0.0.

License requirements : None

Parameters

u2 u2

void NXOpen::Weld::FilletBuilder::SetVparameter1 ( double v1 )

Sets the v parameter for first face
Created in NX8.0.0.

License requirements : None

Parameters

v1 v1

void NXOpen::Weld::FilletBuilder::SetVparameter2 ( double v2 )

Sets the v parameter for second face
Created in NX8.0.0.

License requirements : None

Parameters

v2 v2

NXOpen::Expression* NXOpen::Weld::FilletBuilder::Spacing ( )

Returns the linear dimension spacing indicates distance between each weld
Created in NX8.0.0.

License requirements : None

NXOpen::GeometricUtilities::OnPathDimensionBuilder* NXOpen::Weld::FilletBuilder::StartDist ( )

Returns the on path dimension start distance
Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::FilletBuilder::StartVector ( )

Returns the start direction reversed or not
Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::FilletBuilder::ThroatThickToggle ( )

Returns the toggle throat thickness
Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::FilletBuilder::ToggleCreateSkipWelds ( )

Returns the toggle to create skip welds
Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::FilletBuilder::ToggleRecreateDeletedWelds ( )

Returns the toggle to recreate deleted welds
Created in NX8.0.0.

License requirements : None

double NXOpen::Weld::FilletBuilder::Uparameter1 ( )

Returns the u parameter for first face
Created in NX8.0.0.

License requirements : None

double NXOpen::Weld::FilletBuilder::Uparameter2 ( )

Returns the u parameter for second face
Created in NX8.0.0.

License requirements : None

double NXOpen::Weld::FilletBuilder::Vparameter1 ( )

Returns the v parameter for first face
Created in NX8.0.0.

License requirements : None

double NXOpen::Weld::FilletBuilder::Vparameter2 ( )

Returns the v parameter for second face
Created in NX8.0.0.

License requirements : None

NXOpen::Weld::CharacteristicsBuilder* NXOpen::Weld::FilletBuilder::WeldingCharacteristics ( )

Returns the welding characteristics
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Weld_FilletBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
