NXOpen::Routing::Electrical::WireDevice Class Reference

The Electrical WireDevice corresponds to a wire instance of Routing::Electrical::ElectricalStockDevice . More...

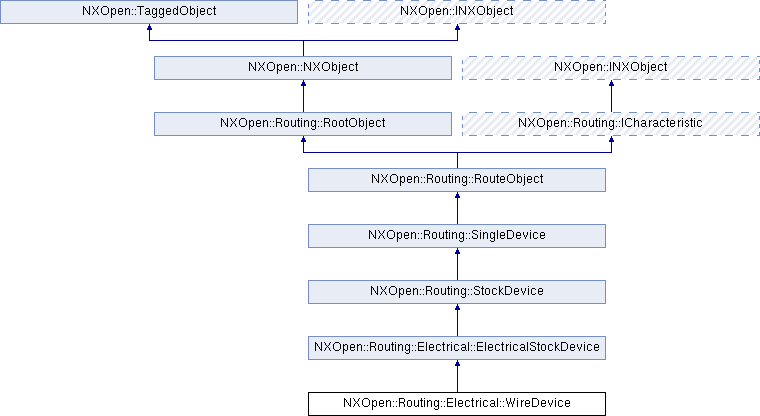

Inheritance diagram for NXOpen::Routing::Electrical::WireDevice:

Additional Inherited Members
Public Types inherited from NXOpen::Routing::Electrical::ElectricalStockDevice
enum	AutoRouteSel {   AutoRouteSelBundleDiameter, AutoRouteSelLeastBundles, AutoRouteSelDesignRules, AutoRouteSelLeastSegments,   AutoRouteSelShortestLength }
	Auto-route selections. More...
enum	RouteLevel { RouteLevelPin, RouteLevelComp, RouteLevelMixed, RouteLevelPartial }
	Routing level. More...
enum	RouteTypes { RouteTypesDefaultRoute = -1, RouteTypesAutoRoute, RouteTypesManualRoute }
	Route types (manual/auto). More...
Public Member Functions inherited from NXOpen::Routing::Electrical::ElectricalStockDevice
double	CalculateCutLength ()
	Calculates and sets cut length on object.
void	ChangeHarness (NXOpen::Routing::Electrical::HarnessDevice *harnessDevice)
	Adds this stockdevice as child of given HarnessDevice.
NXString	ColorName ()
	Returns the color name.
double	CutLength ()
	Returns the cut length.
NXOpen::Routing::Electrical::ConnectorDevice *	FindFromConnector ()
	Find the from connector for this stock device.
NXOpen::Routing::Electrical::Connection *	FindImplementedConnection ()
	Find the Routing::Electrical::Connection implemented by this device.
NXOpen::Routing::Electrical::HarnessDefinition *	FindNearestHarnessDefinition ()
	Get nearest Routing::Electrical::HarnessDefinition encountered up the parent-child hierarchy.
NXOpen::Routing::Electrical::HarnessDevice *	FindNearestHarnessDevice ()
	Find the nearest Routing::Electrical::HarnessDevice encountered up the parent-child hierarchy.
NXOpen::Routing::Electrical::ConnectorDevice *	FindToConnector ()
	Find the to connector for this stock device.
NXOpen::Routing::Electrical::CableDefinition *	FindTopmostCableDefinition ()
	Get topmost Routing::Electrical::CableDefinition encountered up the parent-child hierarchy.
std::vector < NXOpen::Routing::Electrical::ConnectorDevice * >	GetIntermediateComponents ()
	Get intermediate components.
std::vector < NXOpen::Routing::LogicalTerminal * >	GetIntermediateTerminals ()
	Get the intermediate terminals associated to this stock device.
bool	HasIntermediateComponents ()
	Does this stock device have intermediate components?
void	ManuallyRoute (NXOpen::Routing::Electrical::ElectricalStockDevice::RouteLevel routeLevel, const std::vector< NXOpen::Routing::ISegment * > &segments)
	Manually routes a Routing::Electrical::ElectricalStockDevice .
int	NxColorValue ()
	Returns the NX color value.
void	SetColorName (const NXString &colorName)
	Sets the color name.
void	SetColorName (const char *colorName)
	Sets the color name.
void	SetCutLength (double cutLength)
	Sets the cut length.
void	SetNxColorValue (int nxColorValue)
	Sets the NX color value.

Detailed Description

The Electrical WireDevice corresponds to a wire instance of Routing::Electrical::ElectricalStockDevice .

    <br> Creator not available in KF.  <br>

Created in NX4.0.2.

---

The documentation for this class was generated from the following file:

• Routing_Electrical_WireDevice.hxx
