NXOpen::Routing::Electrical::CableDefinition Class Reference

Holds the collection of wires in a Routing::Electrical::CableDevice . More...

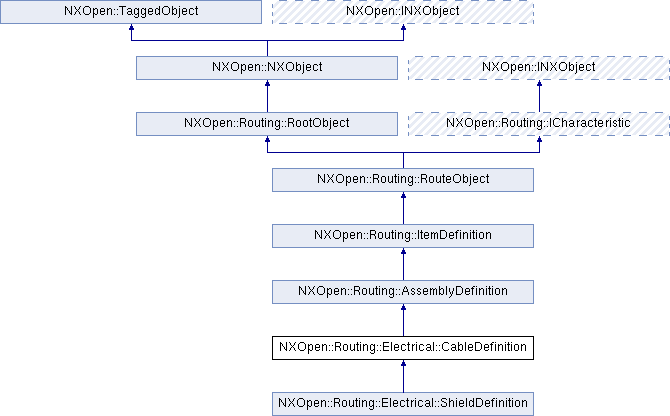

Inheritance diagram for NXOpen::Routing::Electrical::CableDefinition:

Additional Inherited Members
Public Types inherited from NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger,   AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference,   AttributeTypeAny = 100 }
	Specifies attribute type. More...
enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...
Public Member Functions inherited from NXOpen::Routing::AssemblyDefinition
void	AddSingleDeviceChild (NXOpen::Routing::SingleDevice *device)
	Adds a Routing::SingleDevice object to the list of objects contained in the assembly.
NXOpen::Routing::SingleDevice *	GetReferencingDevice ()
	Gets the Routing::SingleDevice object that has this AssemblyDefinition object as its definition.
std::vector < NXOpen::Routing::SingleDevice * >	GetSingleDeviceChildren ()
	Gets the list of Routing::SingleDevice objects contained in the assembly.
bool	IsSingleDeviceChild (NXOpen::Routing::SingleDevice *device)
	Determines if a Routing::SingleDevice object is contained in the assembly.
void	RemoveSingleDeviceChild (NXOpen::Routing::SingleDevice *device)
	Removes a Routing::SingleDevice from the list of objects contained in the assembly.
void	ReplaceSingleDeviceChildren (const std::vector< NXOpen::Routing::SingleDevice * > &replacementChildren)
	Replaces the list of Routing::SingleDevice objects contained in the assembly.

Detailed Description

Holds the collection of wires in a Routing::Electrical::CableDevice .

        <br>
       A cable consists of both a @link Routing::Electrical::CableDevice Routing::Electrical::CableDevice@endlink
       and a @link Routing::Electrical::CableDefinition Routing::Electrical::CableDefinition@endlink .
       A @link Routing::Electrical::CableDevice Routing::Electrical::CableDevice@endlink  object uses a
       @link Routing::Electrical::CableDefinition Routing::Electrical::CableDefinition@endlink  to hold
       a collection of @link Routing::Electrical::WireDevice Routing::Electrical::WireDevice@endlink  objects and/or
       @link Routing::Electrical::CableDevice Routing::Electrical::CableDevice@endlink  objects contained
       by the cable. This definition corresponds to AP212 Assembly_definition.
        <br>
       See the NX Routing help for detailed information on the Connection data model.
    <br> Creator not available in KF.  <br>

Created in NX4.0.2.

---

The documentation for this class was generated from the following file:

• Routing_Electrical_CableDefinition.hxx
