NXOpen::Routing::Electrical::ConnectorDevice Class Reference

The Electrical ConnectorDevice corresponds to a connector instance of Routing::SingleDevice . More...

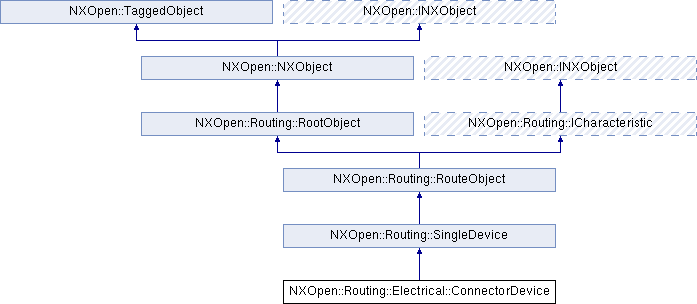

Inheritance diagram for NXOpen::Routing::Electrical::ConnectorDevice:

Public Types
enum	Assign { AssignNone, AssignAuto, AssignManual }
	Assignment method. More...
enum	ComponentType {   ComponentTypeNone, ComponentTypeConnector, ComponentTypeSplice, ComponentTypeDevice,   ComponentTypeOther }
	Component type. More...
Public Types inherited from NXOpen::Routing::SingleDevice
enum	DeleteObjectResult { DeleteObjectResultOk, DeleteObjectResultStillRouted, DeleteObjectResultStillAssigned, DeleteObjectResultCantDeleteUnknown }
	Deletion result. More...

Public Member Functions
NXString	ComponentName ()
	Returns the component name.
NXOpen::Routing::Electrical::ConnectorDevice::ComponentType	ConnectorType ()
	Returns the connector type.
std::vector < NXOpen::Routing::Electrical::Connection * >	FindConnections ()
	Find connections.
std::vector < NXOpen::Routing::CharacteristicList * >	FindMatchingParts ()
	Find parts matching the connector device.
NXOpen::Routing::Electrical::CableDevice *	FindNearestCableDevice ()
	Get the nearest Routing::Electrical::CableDevice encountered up the parent-child hierarchy.
NXOpen::Routing::Electrical::HarnessDevice *	FindNearestHarnessDevice ()
	Get the nearest Routing::Electrical::HarnessDevice encountered up the parent-child hierarchy.
NXOpen::Routing::Port *	FindPlacer (double *placerPos)
	Searches for a placement port for the connector device.
std::vector < NXOpen::Routing::Electrical::ElectricalStockDevice * >	FindRoutedStockDevices ()
	Find routed stock devices.
std::vector < NXOpen::Routing::Electrical::ElectricalStockDevice * >	FindStockDevices ()
	Find stock devices.
NXOpen::Routing::Electrical::ConnectorDevice::Assign	GetAssignMethod ()
	Get assign method.
NXOpen::Routing::Electrical::ElectricalPartDefinitionShadow *	GetPartDefinition ()
	Get part definition.
NXOpen::Routing::LogicalTerminal *	GetTerminal (const NXString &terminalName, bool createTerminal)
	Get Routing::LogicalTerminal given the name of the terminal.
NXOpen::Routing::LogicalTerminal *	GetTerminal (const char *terminalName, bool createTerminal)
	Get Routing::LogicalTerminal given the name of the terminal.
std::vector < NXOpen::Routing::LogicalTerminal * >	GetTerminals ()
	Get terminals.
bool	IsAssigned ()
	Get status of a connector device (assigned or not).
bool	IsNxConnector (NXOpen::Routing::Electrical::HarnessDevice *elecHarnessDevice)
	Is the device a connector?
bool	IsNxDevice (NXOpen::Routing::Electrical::HarnessDevice *elecHarnessDevice)
	Is the device a NX device?
bool	IsUsedInRoutedConnection (NXOpen::Routing::Electrical::HarnessDevice *elecHarnessDevice)
	Is the device used in a routed connection?
void	ManuallyAssignConnector (NXOpen::Assemblies::Component *elecConnectorPartOccurrence)
	Assign a connector manually.
NXOpen::Assemblies::Component *	PlaceConnectorOnPort (NXOpen::Routing::CharacteristicList *match, NXOpen::Routing::Port *placer)
	Loads the parts based on the Routing::CharacteristicList adds the instance of the part to the current work part and places the instance on the placer.
void	ProxyAssignConnector (NXOpen::Routing::Port *proxy)
	Assign a connector to a proxy port.
bool	RemoveTerminal (NXOpen::Routing::LogicalTerminal *routeTerminalToRemove)
	Remove a terminal.
void	SetComponentName (const NXString &componentName)
	Sets the component name.
void	SetComponentName (const char *componentName)
	Sets the component name.
void	SetConnectorType (NXOpen::Routing::Electrical::ConnectorDevice::ComponentType elecRlistComponent)
	Sets the connector type.
void	SetPartDefinition (NXOpen::Routing::Electrical::ElectricalPartDefinitionShadow *elecPartDefinitionShadow)
	Sets part definition.
void	UnassignConnector ()
	Unassign connector.
Public Member Functions inherited from NXOpen::Routing::SingleDevice
std::vector < NXOpen::Routing::LogicalConnection * >	GetImplementedConnections ()
	Gets connections implemented on single device.
NXOpen::Routing::ItemDefinition *	GetItemDefinition ()
	Get item definition.
std::vector < NXOpen::Routing::DeviceRelationship * >	GetReferencingDeviceRelshps ()
	Gets referencing device relationships.
std::vector < NXOpen::Routing::SingleDevice * >	GetRelatedSingleDevices ()
	Assuming this single device to be the relating single device in a Routing::DeviceRelationship , get associated related single devices.
NXOpen::Routing::SingleDevice *	GetRelatingSingleDevice ()
	Assuming this single device to be the related single device in a Routing::DeviceRelationship , get associated relating single device.
NXOpen::Routing::SingleDevice::DeleteObjectResult	ManuallyDelete ()
	Deletes the single device.
NXOpen::NXObject *	NxEquivalent ()
	Returns the NX equivalent object.
NXString	PartName ()
	Returns the part name Created in NX4.0.2.
NXString	PartNumber ()
	Returns the part number Created in NX4.0.2.
void	SetNxEquivalent (NXOpen::NXObject *routeNxEquivalent)
	Sets the NX equivalent object.
void	SetPartName (const NXString &routePartName)
	Sets the part name Created in NX4.0.2.
void	SetPartName (const char *routePartName)
	Sets the part name Created in NX4.0.2.
void	SetPartNumber (const NXString &routePartNumber)
	Sets the part number Created in NX4.0.2.
void	SetPartNumber (const char *routePartNumber)
	Sets the part number Created in NX4.0.2.
Public Member Functions inherited from NXOpen::Routing::RouteObject
virtual void	DeleteCharacterstics (NXOpen::Routing::CharacteristicList *values)
	Removes the input list of characteristics from this object.
virtual NXOpen::Routing::CharacteristicList *	GetCharacteristics ()
	Get all of the characteristics values on the this object.
virtual NXOpen::Routing::CharacteristicList *	GetDestinationCharacteristics ()
	Returns the destination characteristics from the input object.
virtual int	GetIntegerCharacteristic (const NXString &name)
	Get the value of an integer characteristic associated with the input name.
int	GetIntegerCharacteristic (const char *name)
	Get the value of an integer characteristic associated with the input name.
virtual double	GetRealCharacteristic (const NXString &name)
	Get the value of a real characteristic associated with the input name.
double	GetRealCharacteristic (const char *name)
	Get the value of a real characteristic associated with the input name.
virtual NXString	GetStringCharacteristic (const NXString &name)
	Get the value of a string characteristic associated with the input name.
NXString	GetStringCharacteristic (const char *name)
	Get the value of a string characteristic associated with the input name.
virtual void	SetCharacteristic (const NXString &name, int value)
	Set the value of an integer characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
void	SetCharacteristic (const char *name, int value)
	Set the value of an integer characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
virtual void	SetCharacteristic (const NXString &name, double value)
	Set the value of an real characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
void	SetCharacteristic (const char *name, double value)
	Set the value of an real characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
virtual void	SetCharacteristic (const NXString &name, const NXString &value)
	Set the value of an string characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
void	SetCharacteristic (const char *name, const char *value)
	Set the value of an string characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
virtual void	SetCharacteristics (NXOpen::Routing::CharacteristicList *values)
	Set all of the characteristics values on this object.
Public Member Functions inherited from NXOpen::Routing::RootObject
NXString	Guid ()
	Returns the object's Global Unique Identifier (GUID).
void	SetGuid (const NXString &guid)
	Sets the object's Global Unique Identifier (GUID).
void	SetGuid (const char *guid)
	Sets the object's Global Unique Identifier (GUID).
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.
Public Member Functions inherited from NXOpen::Routing::ICharacteristic
int	GetIntegerCharacteristic (const char *name)
	Get the value of an integer characteristic associated with the input name.
double	GetRealCharacteristic (const char *name)
	Get the value of a real characteristic associated with the input name.
NXString	GetStringCharacteristic (const char *name)
	Get the value of a string characteristic associated with the input name.
void	SetCharacteristic (const char *name, int value)
	Set the value of an integer characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
void	SetCharacteristic (const char *name, double value)
	Set the value of an real characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.
void	SetCharacteristic (const char *name, const char *value)
	Set the value of an string characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already.

Detailed Description

The Electrical ConnectorDevice corresponds to a connector instance of Routing::SingleDevice .

    <br> To create a new instance of this class, use @link Routing::Electrical::ConnectorDeviceCollection::CreateConnectorDevice  Routing::Electrical::ConnectorDeviceCollection::CreateConnectorDevice @endlink  <br>

Created in NX4.0.2.

Member Enumeration Documentation

enum NXOpen::Routing::Electrical::ConnectorDevice::Assign

Assignment method.

Enumerator:

AssignNone	none
AssignAuto	auto
AssignManual	manual

enum NXOpen::Routing::Electrical::ConnectorDevice::ComponentType

Component type.

Enumerator:

ComponentTypeNone	none
ComponentTypeConnector	connector
ComponentTypeSplice	splice
ComponentTypeDevice	device
ComponentTypeOther	other

Member Function Documentation

NXString NXOpen::Routing::Electrical::ConnectorDevice::ComponentName

(

)

Returns the component name.

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::Electrical::ConnectorDevice::ComponentType NXOpen::Routing::Electrical::ConnectorDevice::ConnectorType

(

)

Returns the connector type.

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

std::vector<NXOpen::Routing::Electrical::Connection *> NXOpen::Routing::Electrical::ConnectorDevice::FindConnections

(

)

Find connections.

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

std::vector<NXOpen::Routing::CharacteristicList *> NXOpen::Routing::Electrical::ConnectorDevice::FindMatchingParts

(

)

Find parts matching the connector device.

Searches for "PART_NAME" property on connector device to search for matches in the part tables Returns all matching rows from the part tables.

Returns

Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::Electrical::CableDevice* NXOpen::Routing::Electrical::ConnectorDevice::FindNearestCableDevice

(

)

Get the nearest Routing::Electrical::CableDevice encountered up the parent-child hierarchy.

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::Electrical::HarnessDevice* NXOpen::Routing::Electrical::ConnectorDevice::FindNearestHarnessDevice

(

)

Get the nearest Routing::Electrical::HarnessDevice encountered up the parent-child hierarchy.

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::Port* NXOpen::Routing::Electrical::ConnectorDevice::FindPlacer

(

double *

placerPos

)

Searches for a placement port for the connector device.

The placement port is defined in the component list by attribute "DEVICE_PIN" or "EQUIPMENT_PIN". If the attribute is not defined, searches for the first available port on the relating device.

Returns

Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

placerPos

placer pos

std::vector<NXOpen::Routing::Electrical::ElectricalStockDevice *> NXOpen::Routing::Electrical::ConnectorDevice::FindRoutedStockDevices

(

)

Find routed stock devices.

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

std::vector<NXOpen::Routing::Electrical::ElectricalStockDevice *> NXOpen::Routing::Electrical::ConnectorDevice::FindStockDevices

(

)

Find stock devices.

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::Electrical::ConnectorDevice::Assign NXOpen::Routing::Electrical::ConnectorDevice::GetAssignMethod

(

)

Get assign method.

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::Electrical::ElectricalPartDefinitionShadow* NXOpen::Routing::Electrical::ConnectorDevice::GetPartDefinition

(

)

Get part definition.

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::LogicalTerminal* NXOpen::Routing::Electrical::ConnectorDevice::GetTerminal	(	const NXString &	terminalName,
		bool	createTerminal
	)

Get Routing::LogicalTerminal given the name of the terminal.

           If a terminal does not exists creates a terminal @return

Created in NX5.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

terminalName	NOTE: The full Unicode character set is not supported for this parameter.
createTerminal	TRUE - creates a new terminal if one does not exist with given name

NXOpen::Routing::LogicalTerminal* NXOpen::Routing::Electrical::ConnectorDevice::GetTerminal	(	const char *	terminalName,
		bool	createTerminal
	)

Get Routing::LogicalTerminal given the name of the terminal.

           If a terminal does not exists creates a terminal @return

Created in NX5.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

terminalName	NOTE: The full Unicode character set is not supported for this parameter.
createTerminal	TRUE - creates a new terminal if one does not exist with given name

std::vector<NXOpen::Routing::LogicalTerminal *> NXOpen::Routing::Electrical::ConnectorDevice::GetTerminals

(

)

Get terminals.

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

bool NXOpen::Routing::Electrical::ConnectorDevice::IsAssigned

(

)

Get status of a connector device (assigned or not).

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

bool NXOpen::Routing::Electrical::ConnectorDevice::IsNxConnector

(

NXOpen::Routing::Electrical::HarnessDevice *

elecHarnessDevice

)

Is the device a connector?

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

elecHarnessDevice

elec harness device

bool NXOpen::Routing::Electrical::ConnectorDevice::IsNxDevice

(

NXOpen::Routing::Electrical::HarnessDevice *

elecHarnessDevice

)

Is the device a NX device?

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

elecHarnessDevice

elec harness device

bool NXOpen::Routing::Electrical::ConnectorDevice::IsUsedInRoutedConnection

(

NXOpen::Routing::Electrical::HarnessDevice *

elecHarnessDevice

)

Is the device used in a routed connection?

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

elecHarnessDevice

elec harness device

void NXOpen::Routing::Electrical::ConnectorDevice::ManuallyAssignConnector

(

NXOpen::Assemblies::Component *

elecConnectorPartOccurrence

)

Assign a connector manually.

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

elecConnectorPartOccurrence

Component to assign.

NXOpen::Assemblies::Component* NXOpen::Routing::Electrical::ConnectorDevice::PlaceConnectorOnPort	(	NXOpen::Routing::CharacteristicList *	match,
		NXOpen::Routing::Port *	placer
	)

Loads the parts based on the Routing::CharacteristicList adds the instance of the part to the current work part and places the instance on the placer.

Returns

Created in NX6.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

match	match
placer	placer

void NXOpen::Routing::Electrical::ConnectorDevice::ProxyAssignConnector

(

NXOpen::Routing::Port *

proxy

)

Assign a connector to a proxy port.

Created in NX8.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

proxy

Assigned port.

bool NXOpen::Routing::Electrical::ConnectorDevice::RemoveTerminal

(

NXOpen::Routing::LogicalTerminal *

routeTerminalToRemove

)

Remove a terminal.

Returns

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

routeTerminalToRemove

route terminal to remove

void NXOpen::Routing::Electrical::ConnectorDevice::SetComponentName

(

const NXString &

componentName

)

Sets the component name.

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

componentName

component name

void NXOpen::Routing::Electrical::ConnectorDevice::SetComponentName

(

const char *

componentName

)

Sets the component name.

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

componentName

component name

void NXOpen::Routing::Electrical::ConnectorDevice::SetConnectorType

(

NXOpen::Routing::Electrical::ConnectorDevice::ComponentType

elecRlistComponent

)

Sets the connector type.

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

elecRlistComponent

elec rlist component

void NXOpen::Routing::Electrical::ConnectorDevice::SetPartDefinition

(

NXOpen::Routing::Electrical::ElectricalPartDefinitionShadow *

elecPartDefinitionShadow

)

Sets part definition.

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

elecPartDefinitionShadow

elec part definition shadow

void NXOpen::Routing::Electrical::ConnectorDevice::UnassignConnector

(

)

Unassign connector.

Created in NX4.0.2.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

---

The documentation for this class was generated from the following file:

• Routing_Electrical_ConnectorDevice.hxx
