NXOpen::GeometricUtilities::MultiDraft Class Reference

Represents a multi-draft. More...

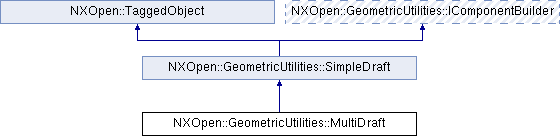

Inheritance diagram for NXOpen::GeometricUtilities::MultiDraft:

Public Types
enum	AngleOption { AngleOptionSingle, AngleOptionMultiple }
	Represents the angle option. More...
Public Types inherited from NXOpen::GeometricUtilities::SimpleDraft
enum	SimpleDraftType {   SimpleDraftTypeNoDraft, SimpleDraftTypeSimpleFromStart, SimpleDraftTypeSimpleFromProfile, SimpleDraftTypeSymmetric,   SimpleDraftTypeMatchedEnds, SimpleDraftTypeAsymmetric }
	This enum represents the kind of simple_draft. More...

Public Member Functions
NXOpen::Expression *	BackDraftAngle ()
	Returns the back draft angle.
NXOpen::GeometricUtilities::SimpleDraft::SimpleDraftType	DraftOption ()
	Returns the draft type.
NXOpen::Expression *	FrontDraftAngle ()
	Returns the front draft angle.
NXOpen::GeometricUtilities::MultiDraft::AngleOption	GetAngleOption ()
	Returns the draft angle option.
std::vector < NXOpen::Features::EmbossTaper * >	GetDrafts (NXOpen::Section *section)
	Return all the drafts.
void	SetAngleOption (NXOpen::GeometricUtilities::MultiDraft::AngleOption type)
	Sets the draft angle option.
void	SetDraftOption (NXOpen::GeometricUtilities::SimpleDraft::SimpleDraftType type)
	Sets the draft type.
Public Member Functions inherited from NXOpen::GeometricUtilities::SimpleDraft
NXOpen::Expression *	DraftAngle ()
	Returns the draft angle.
NXOpen::GeometricUtilities::SimpleDraft::SimpleDraftType	DraftType ()
	Returns the simple draft type.
void	SetDraftAngle (const NXString &draftAngle)
	Sets the draft angle
void	SetDraftAngle (const char *draftAngle)
	Sets the draft angle
void	SetDraftType (NXOpen::GeometricUtilities::SimpleDraft::SimpleDraftType type)
	Sets the simple draft type.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a multi-draft.

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricUtilities::MultiDraft::AngleOption

Represents the angle option.

Enumerator:

AngleOptionSingle	Sigle draft.
AngleOptionMultiple	Multi draft.

Member Function Documentation

NXOpen::Expression* NXOpen::GeometricUtilities::MultiDraft::BackDraftAngle

(

)

Returns the back draft angle.

This function is used only when the angle type is GeometricUtilities::MultiDraft::AngleOptionSingle .

Created in NX5.0.0.

License requirements : None

NXOpen::GeometricUtilities::SimpleDraft::SimpleDraftType NXOpen::GeometricUtilities::MultiDraft::DraftOption

(

)

Returns the draft type.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::GeometricUtilities::MultiDraft::FrontDraftAngle

(

)

Returns the front draft angle.

This function is used only when the angle type is GeometricUtilities::MultiDraft::AngleOptionSingle .

Created in NX5.0.0.

License requirements : None

NXOpen::GeometricUtilities::MultiDraft::AngleOption NXOpen::GeometricUtilities::MultiDraft::GetAngleOption

(

)

Returns the draft angle option.

     @return

Created in NX5.0.0.

License requirements : None

std::vector<NXOpen::Features::EmbossTaper *> NXOpen::GeometricUtilities::MultiDraft::GetDrafts

(

NXOpen::Section *

section

)

Return all the drafts.

     @return  Array of draft objects

Created in NX5.0.0.

License requirements : None

Parameters

section

section

void NXOpen::GeometricUtilities::MultiDraft::SetAngleOption

(

NXOpen::GeometricUtilities::MultiDraft::AngleOption

type

)

Sets the draft angle option.

Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

type

type

void NXOpen::GeometricUtilities::MultiDraft::SetDraftOption

(

NXOpen::GeometricUtilities::SimpleDraft::SimpleDraftType

type

)

Sets the draft type.

Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

type

type

---

The documentation for this class was generated from the following file:

• GeometricUtilities_MultiDraft.hxx
