NXOpen::GeometricUtilities::SimpleDraft Class Reference

Represents an Offset . More...

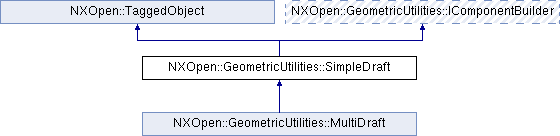

Inheritance diagram for NXOpen::GeometricUtilities::SimpleDraft:

Public Types
enum	SimpleDraftType {   SimpleDraftTypeNoDraft, SimpleDraftTypeSimpleFromStart, SimpleDraftTypeSimpleFromProfile, SimpleDraftTypeSymmetric,   SimpleDraftTypeMatchedEnds, SimpleDraftTypeAsymmetric }
	This enum represents the kind of simple_draft. More...

Public Member Functions
NXOpen::Expression *	DraftAngle ()
	Returns the draft angle.
NXOpen::GeometricUtilities::SimpleDraft::SimpleDraftType	DraftType ()
	Returns the simple draft type.
void	SetDraftAngle (const NXString &draftAngle)
	Sets the draft angle
void	SetDraftAngle (const char *draftAngle)
	Sets the draft angle
void	SetDraftType (NXOpen::GeometricUtilities::SimpleDraft::SimpleDraftType type)
	Sets the simple draft type.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents an Offset .

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricUtilities::SimpleDraft::SimpleDraftType

This enum represents the kind of simple_draft.

Enumerator:

SimpleDraftTypeNoDraft	No draft.
SimpleDraftTypeSimpleFromStart	Draft using the start limit as the reference.
SimpleDraftTypeSimpleFromProfile	Draft using the profile as the reference.
SimpleDraftTypeSymmetric	Draft on both sides of the profile using the same angle.
SimpleDraftTypeMatchedEnds	Draft on both sides of the profile such that the end profiles match in areas.
SimpleDraftTypeAsymmetric	Draft on both sides of the profile using the not same angle.

Member Function Documentation

NXOpen::Expression* NXOpen::GeometricUtilities::SimpleDraft::DraftAngle

(

)

Returns the draft angle.

Created in NX4.0.0.

License requirements : None

NXOpen::GeometricUtilities::SimpleDraft::SimpleDraftType NXOpen::GeometricUtilities::SimpleDraft::DraftType

(

)

Returns the simple draft type.

Created in NX4.0.0.

License requirements : None

void NXOpen::GeometricUtilities::SimpleDraft::SetDraftAngle

(

const NXString &

draftAngle

)

Sets the draft angle

Deprecated:

Deprecated in NX5.0.0.

To set the value of the expression modify the expression directly using GeometricUtilities::SimpleDraft::DraftAngle and Expression::SetRightHandSide .

Created in NX4.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

draftAngle

Draft angle NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::GeometricUtilities::SimpleDraft::SetDraftAngle

(

const char *

draftAngle

)

Sets the draft angle

Deprecated:

Deprecated in NX5.0.0.

To set the value of the expression modify the expression directly using GeometricUtilities::SimpleDraft::DraftAngle and Expression::SetRightHandSide .

Created in NX4.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

draftAngle

Draft angle NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::GeometricUtilities::SimpleDraft::SetDraftType

(

NXOpen::GeometricUtilities::SimpleDraft::SimpleDraftType

type

)

Sets the simple draft type.

Created in NX4.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

type

type

virtual bool NXOpen::GeometricUtilities::SimpleDraft::Validate ( )

virtual

Validate whether the inputs to the component are sufficient for commit to be called.

If the component is not in a state to commit then an exception is thrown. For example, if the component requires you to set some property, this method will throw an exception if you haven't set it. This method throws a not-yet-implemented NXException for some components.

Returns

Was self validation successful
Created in NX3.0.1.

License requirements : None

Implements NXOpen::GeometricUtilities::IComponentBuilder.

---

The documentation for this class was generated from the following file:

• GeometricUtilities_SimpleDraft.hxx
