    Represents a @link Features::VehicleDesign::PedestrianProtection Features::VehicleDesign::PedestrianProtection@endlink  builder
     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreatePedestrianProtectionBuilder  Features::VehicleDesignCollection::CreatePedestrianProtectionBuilder @endlink  <br>

Default values. More...

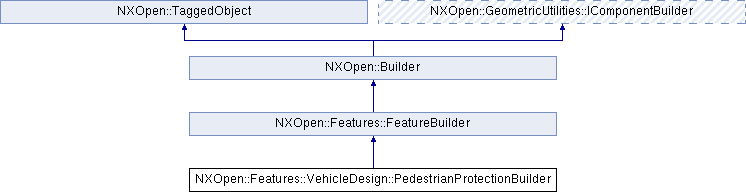

Inheritance diagram for NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder:

Public Types
enum	Font { FontDefault, FontSolid, FontDashed, FontPhantom, FontCenterline, FontDotted, FontLongDashed, FontDottedDashed }
	Settings for font to create the various output with. More...

enum	StandardType { StandardTypeNorthAmerican, StandardTypeEuropean, StandardTypeJapanese, StandardTypeKorean, StandardTypeChinese }
	Settings for the type of pedestrian protection standard to use in the study. More...

enum	TransformMethods { TransformMethodsTranslation, TransformMethodsRotation }
	Settings for the transform method of pedestrian protection active hood system. More...

enum	Types { TypesHeadAndLegImpact, TypesHeadImpact, TypesLegImpact }
	Settings for the type of pedestrian protection impact study. More...

enum	Wad { WadFirst, WadSecond, WadThird, WadFourth, WadFifth, WadSixth }
	Settings for the start, end and boundary wrap around distance line to create. More...

enum	Width { WidthDefault, WidthNormal, WidthThick, WidthThin }
	Settings for width to create the various output with. More...

Public Member Functions
NXOpen::Expression *	AdultHic1000Angle ()
	Returns the angle to translate the adult HIC (Head Injury Criterion) 1000 impact sheet and grid.

NXOpen::Expression *	AdultHic1000Offset ()
	Returns the distance to translate the adult HIC (Head Injury Criterion) 1000 impact sheet and grid.

NXOpen::NXColor *	AdultHic1000OutputColor ()
	Returns the color that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font	AdultHic1000OutputFont ()
	Returns the font that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

int	AdultHic1000OutputLayer ()
	Returns the layer that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width	AdultHic1000OutputWidth ()
	Returns the line width that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

NXOpen::Expression *	AdultHic1700Angle ()
	Returns the angle to translate the adult HIC (Head Injury Criterion) 1700 impact sheet and grid.

NXOpen::Expression *	AdultHic1700Offset ()
	Returns the distance to translate the adult HIC (Head Injury Criterion) 1700 impact sheet and grid.

NXOpen::NXColor *	AdultHic1700OutputColor ()
	Returns the color that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font	AdultHic1700OutputFont ()
	Returns the font that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

int	AdultHic1700OutputLayer ()
	Returns the layer that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width	AdultHic1700OutputWidth ()
	Returns the line width that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

NXOpen::SelectDisplayableObjectList *	APillar ()
	Returns the collector containing the faces and facetted bodies of the A-Pillar.

NXOpen::SelectDisplayableObjectList *	BonnetTop ()
	Returns the collector containing the faces of the bonnet.

NXOpen::SelectDisplayableObjectList *	BonnetTopNotMirrored ()
	Returns the collector containing the faces of the bonnet that are not to be mirrored.

NXOpen::Expression *	ChildHic1000Angle ()
	Returns the angle to translate the child HIC (Head Injury Criterion) 1000 impact sheet and grid.

NXOpen::Expression *	ChildHic1000Offset ()
	Returns the distance to translate the child HIC (Head Injury Criterion) 1000 impact sheet and grid.

NXOpen::NXColor *	ChildHic1000OutputColor ()
	Returns the color that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font	ChildHic1000OutputFont ()
	Returns the font that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

int	ChildHic1000OutputLayer ()
	Returns the layer that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width	ChildHic1000OutputWidth ()
	Returns the line width that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

NXOpen::Expression *	ChildHic1700Angle ()
	Returns the angle to translate the child HIC (Head Injury Criterion) 1700 impact sheet and grid.

NXOpen::Expression *	ChildHic1700Offset ()
	Returns the distance to translate the child HIC (Head Injury Criterion) 1700 impact sheet and grid.

NXOpen::NXColor *	ChildHic1700OutputColor ()
	Returns the color that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font	ChildHic1700OutputFont ()
	Returns the font that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

int	ChildHic1700OutputLayer ()
	Returns the layer that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width	ChildHic1700OutputWidth ()
	Returns the line width that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

NXOpen::SelectDisplayableObjectList *	Component ()
	Returns the list of the components to check interference with the impact sheets.

NXOpen::NXColor *	ConstructGeometryColor ()
	Returns the color that will be used for the various construction curves.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font	ConstructGeometryFont ()
	Returns the font that will be used for the various construction curves.

int	ConstructGeometryLayer ()
	Returns the layer that will be used for the various construction curves.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width	ConstructGeometryWidth ()
	Returns the line width that will be used for the various construction curves.

NXOpen::Expression *	CornerBumperAngle ()
	Returns the angle that is used to determine the corner of the bumper.

NXOpen::Expression *	CornerBumperAngleMarginal ()
	Returns the marginal angle that is used to determine the corner of the bumper.

bool	CreateHeadImpactZones ()
	Returns the setting to indicate if the adult and child head impact sheets should be created, true they will be created, false they will not be created.

bool	CreateImpactGrid ()
	Returns the setting to indicate if the impact grid should be created, true it will be created, false it will not be created.

bool	CreateLegImpact ()
	Returns the setting to indicate if the leg impact curves should be created, true they will be created, false they will not be created.

bool	CreateReferenceLines ()
	Returns the setting to indicate if the reference lines should be created, true they will be created, false they will not be created.

bool	CreateWrapAroundDistanceLines ()
	Returns the setting to indicate if the wrap around distance lines should be created, true they will be created, false they will not be created.

NXOpen::NXColor *	DeletedPointsColor ()
	Returns the color that will be used for the headform deleted points of the European NCAP (New Car Assessment Program) grid.

bool	DisplayConstructionGeometry ()
	Returns the setting to indicate if the construction geometry should be created, true they will be created, false they will not be created.

bool	DisplayDeletedGridPoints ()
	Returns the setting to indicate if the deleted grid points should be displayed, true they will be displayed, false they will not be displayed.

bool	DisplayInterferenceResult ()
	Returns the setting to indicate if the interference curves should be created, true they will be created, false they will not be created.

NXOpen::Expression *	FrontRefAngle ()
	Returns the angle that is used to determine the front reference line.

NXOpen::Expression *	FrontRefAngleMarginal ()
	Returns the marginal angle that is used to determine the front reference line.

NXOpen::Expression *	FrontRefAngleNcap ()
	Returns the European NCAP (New Car Assessment Program) angle that is used to determine the front reference line.

NXOpen::Expression *	FrontRefAngleNcapMarginal ()
	Returns the European NCAP (New Car Assessment Program) marginal angle that is used to determine the front reference line.

int	GridAdultFullOutputLayer ()
	Returns the layer that will be used for the NCAP (New Car Assessment Program) adult full grid sheet.

int	GridAdultPartialOutputLayer ()
	Returns the layer that will be used for the NCAP (New Car Assessment Program) adult partial grid sheet.

int	GridChildFullOutputLayer ()
	Returns the layer that will be used for the NCAP (New Car Assessment Program) child full grid sheet.

int	GridChildPartialOutputLayer ()
	Returns the layer that will be used for the NCAP (New Car Assessment Program) child partial grid sheet.

NXOpen::NXColor *	GridFailColor ()
	Returns the color that will be used for the failing areas of the NCAP (New Car Assessment Program) grid.

double	GridNcap1000OffsetScore ()
	Returns the score value is used to check NCAP 1000 offset interference.

NXOpen::NXColor *	GridNCAP1000OutputColor ()
	Returns the color that will be used for the European NCAP (New Car Assessment Program) 1000 offset grid sheet.

int	GridNCAP1000OutputLayer ()
	Returns the layer that will be used for the European NCAP (New Car Assessment Program) 1000 offset grid sheet.

double	GridNcap1350OffsetScore ()
	Returns the score value is used to check NCAP 1350 offset interference.

NXOpen::NXColor *	GridNCAP1350OutputColor ()
	Returns the color that will be used for the European NCAP (New Car Assessment Program) 1350 offset grid sheet.

int	GridNCAP1350OutputLayer ()
	Returns the layer that will be used for the European NCAP (New Car Assessment Program) 1350 offset grid sheet.

double	GridNcap1700OffsetScore ()
	Returns the score value is used to check NCAP 1700 offset interference.

NXOpen::NXColor *	GridNCAP1700OutputColor ()
	Returns the color that will be used for the European NCAP (New Car Assessment Program) 1700 offset grid sheet.

int	GridNCAP1700OutputLayer ()
	Returns the layer that will be used for the European NCAP (New Car Assessment Program) 1700 offset grid sheet.

double	GridNcap650OffsetScore ()
	Returns the score value is used to check NCAP 650 offset interference.

NXOpen::NXColor *	GridNCAP650OutputColor ()
	Returns the color that will be used for the European NCAP (New Car Assessment Program) 650 offset grid sheet.

int	GridNCAP650OutputLayer ()
	Returns the layer that will be used for the European NCAP (New Car Assessment Program) 650 offset grid sheet.

NXOpen::NXColor *	GridNCAPUntranslatedOutputColor ()
	Returns the color that will be used for the European NCAP (New Car Assessment Program) untranslated grid sheet.

double	GridNcapUntranslatedScore ()
	Returns the score value is used to check NCAP untranslated interference.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font	GridOutputFont ()
	Returns the font that will be used for the European NCAP (New Car Assessment Program) grid sheet.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width	GridOutputWidth ()
	Returns the line width that will be used for the NCAP (New Car Assessment Program) grid sheet.

NXOpen::NXColor *	GridPassColor ()
	Returns the color that will be used for the passing areas of the NCAP (New Car Assessment Program) grid.

NXOpen::NXColor *	GridPointsColor ()
	Returns the color that will be used for the headform grid points of the European NCAP (New Car Assessment Program) grid.

int	GridUntranslatedOutputLayer ()
	Returns the layer that will be used for the NCAP (New Car Assessment Program) untranslated grid sheet.

NXOpen::NXColor *	GridWarningColor ()
	Returns the color that will be used for the warning areas of the NCAP (New Car Assessment Program) grid.

NXOpen::Expression *	HeadDiameter ()
	Returns the diameter of the headform.

NXOpen::Expression *	HeadDiameterMarginal ()
	Returns the marginal diameter of the headform.

NXOpen::Expression *	HingeDistance ()
	Returns the distance to move the reference point of the active hood.

NXOpen::Point *	HingePoint ()
	Returns the point about which to rotate the active hood.

NXOpen::SelectDisplayableObjectList *	Hood ()
	Returns the collector containing the faces of the active hood.

NXOpen::NXColor *	InterferenceColor ()
	Returns the color that will be used for the interference curves.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font	InterferenceFont ()
	Returns the font that will be used for the interference curves.

int	InterferenceLayer ()
	Returns the layer that will be used for the interference curves.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width	InterferenceWidth ()
	Returns the line width that will be used for the interference curves.

NXString	LegSpreadsheet ()
	Returns the leg impact spreadsheet file.

NXOpen::NXColor *	LegZonesOutputColor ()
	Returns the color that will be used for the leg impact zone lines.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font	LegZonesOutputFont ()
	Returns the font that will be used for the leg impact zone lines.

int	LegZonesOutputLayer ()
	Returns the layer that will be used for the leg impact zone lines.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width	LegZonesOutputWidth ()
	Returns the line width that will be used for the leg impact zone lines.

NXOpen::Expression *	LowerBumperAngle ()
	Returns the angle that is used to determine the lower limit of the bumper.

bool	MirrorFaces ()
	Returns the setting to indicate if the bonnet, windshield and hood faces should be mirrored before performing the analysis, true they will be mirrored, false they will not be mirrored.

NXOpen::Plane *	Plane ()
	Returns the ground plane.

NXOpen::Expression *	PopupDistance ()
	Returns the distance to move the reference point of the active hood.

NXOpen::Point *	PopupPoint ()
	Returns the reference point of the active hood.

bool	ProcessActiveHood ()
	Returns the setting to indicate if the active hood should be analyzed, true it will be used, false it will not be used.

NXOpen::NXColor *	ReferenceOutputColor ()
	Returns the color that will be used for the reference lines.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font	ReferenceOutputFont ()
	Returns the font that will be used for the reference lines.

int	ReferenceOutputLayer ()
	Returns the layer that will be used for the reference lines.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width	ReferenceOutputWidth ()
	Returns the line width that will be used for the reference lines.

NXOpen::Expression *	RodDiameter ()
	Returns the testing rod diameter of the leg impact.

void	SetAdultHic1000OutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

void	SetAdultHic1000OutputFont (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font)
	Sets the font that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

void	SetAdultHic1000OutputLayer (int layer)
	Sets the layer that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

void	SetAdultHic1000OutputWidth (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width)
	Sets the line width that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

void	SetAdultHic1700OutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

void	SetAdultHic1700OutputFont (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font)
	Sets the font that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

void	SetAdultHic1700OutputLayer (int layer)
	Sets the layer that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

void	SetAdultHic1700OutputWidth (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width)
	Sets the line width that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

void	SetChildHic1000OutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

void	SetChildHic1000OutputFont (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font)
	Sets the font that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

void	SetChildHic1000OutputLayer (int layer)
	Sets the layer that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

void	SetChildHic1000OutputWidth (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width)
	Sets the line width that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

void	SetChildHic1700OutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

void	SetChildHic1700OutputFont (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font)
	Sets the font that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

void	SetChildHic1700OutputLayer (int layer)
	Sets the layer that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

void	SetChildHic1700OutputWidth (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width)
	Sets the line width that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

void	SetConstructGeometryColor (NXOpen::NXColor *color)
	Sets the color that will be used for the various construction curves.

void	SetConstructGeometryFont (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font)
	Sets the font that will be used for the various construction curves.

void	SetConstructGeometryLayer (int layer)
	Sets the layer that will be used for the various construction curves.

void	SetConstructGeometryWidth (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width)
	Sets the line width that will be used for the various construction curves.

void	SetCreateHeadImpactZones (bool headImpactZones)
	Sets the setting to indicate if the adult and child head impact sheets should be created, true they will be created, false they will not be created.

void	SetCreateImpactGrid (bool createImpactGrid)
	Sets the setting to indicate if the impact grid should be created, true it will be created, false it will not be created.

void	SetCreateLegImpact (bool legImpact)
	Sets the setting to indicate if the leg impact curves should be created, true they will be created, false they will not be created.

void	SetCreateReferenceLines (bool referenceLines)
	Sets the setting to indicate if the reference lines should be created, true they will be created, false they will not be created.

void	SetCreateWrapAroundDistanceLines (bool wad)
	Sets the setting to indicate if the wrap around distance lines should be created, true they will be created, false they will not be created.

void	SetDeletedPointsColor (NXOpen::NXColor *color)
	Sets the color that will be used for the headform deleted points of the European NCAP (New Car Assessment Program) grid.

void	SetDisplayConstructionGeometry (bool displayConstructionGeometry)
	Sets the setting to indicate if the construction geometry should be created, true they will be created, false they will not be created.

void	SetDisplayDeletedGridPoints (bool displayDeletedGridPoints)
	Sets the setting to indicate if the deleted grid points should be displayed, true they will be displayed, false they will not be displayed.

void	SetDisplayInterferenceResult (bool displayInterferenceResult)
	Sets the setting to indicate if the interference curves should be created, true they will be created, false they will not be created.

void	SetGridAdultFullOutputLayer (int layer)
	Sets the layer that will be used for the NCAP (New Car Assessment Program) adult full grid sheet.

void	SetGridAdultPartialOutputLayer (int layer)
	Sets the layer that will be used for the NCAP (New Car Assessment Program) adult partial grid sheet.

void	SetGridChildFullOutputLayer (int layer)
	Sets the layer that will be used for the NCAP (New Car Assessment Program) child full grid sheet.

void	SetGridChildPartialOutputLayer (int layer)
	Sets the layer that will be used for the NCAP (New Car Assessment Program) child partial grid sheet.

void	SetGridFailColor (NXOpen::NXColor *color)
	Sets the color that will be used for the failing areas of the NCAP (New Car Assessment Program) grid.

void	SetGridNCAP1000OutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the European NCAP (New Car Assessment Program) 1000 offset grid sheet.

void	SetGridNCAP1000OutputLayer (int layer)
	Sets the layer that will be used for the European NCAP (New Car Assessment Program) 1000 offset grid sheet.

void	SetGridNCAP1350OutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the European NCAP (New Car Assessment Program) 1350 offset grid sheet.

void	SetGridNCAP1350OutputLayer (int layer)
	Sets the layer that will be used for the European NCAP (New Car Assessment Program) 1350 offset grid sheet.

void	SetGridNCAP1700OutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the European NCAP (New Car Assessment Program) 1700 offset grid sheet.

void	SetGridNCAP1700OutputLayer (int layer)
	Sets the layer that will be used for the European NCAP (New Car Assessment Program) 1700 offset grid sheet.

void	SetGridNCAP650OutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the European NCAP (New Car Assessment Program) 650 offset grid sheet.

void	SetGridNCAP650OutputLayer (int layer)
	Sets the layer that will be used for the European NCAP (New Car Assessment Program) 650 offset grid sheet.

void	SetGridNCAPUntranslatedOutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the European NCAP (New Car Assessment Program) untranslated grid sheet.

void	SetGridOutputFont (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font)
	Sets the font that will be used for the European NCAP (New Car Assessment Program) grid sheet.

void	SetGridOutputWidth (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width)
	Sets the line width that will be used for the NCAP (New Car Assessment Program) grid sheet.

void	SetGridPassColor (NXOpen::NXColor *color)
	Sets the color that will be used for the passing areas of the NCAP (New Car Assessment Program) grid.

void	SetGridPointsColor (NXOpen::NXColor *color)
	Sets the color that will be used for the headform grid points of the European NCAP (New Car Assessment Program) grid.

void	SetGridUntranslatedOutputLayer (int layer)
	Sets the layer that will be used for the NCAP (New Car Assessment Program) untranslated grid sheet.

void	SetGridWarningColor (NXOpen::NXColor *color)
	Sets the color that will be used for the warning areas of the NCAP (New Car Assessment Program) grid.

void	SetHingePoint (NXOpen::Point *hingePoint)
	Sets the point about which to rotate the active hood.

void	SetInterferenceColor (NXOpen::NXColor *color)
	Sets the color that will be used for the interference curves.

void	SetInterferenceFont (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font)
	Sets the font that will be used for the interference curves.

void	SetInterferenceLayer (int layer)
	Sets the layer that will be used for the interference curves.

void	SetInterferenceWidth (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width)
	Sets the line width that will be used for the interference curves.

void	SetLegSpreadsheet (const NXString &legSpreadsheet)
	Sets the leg impact spreadsheet file.

void	SetLegSpreadsheet (const char *legSpreadsheet)
	Sets the leg impact spreadsheet file.

void	SetLegZonesOutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the leg impact zone lines.

void	SetLegZonesOutputFont (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font)
	Sets the font that will be used for the leg impact zone lines.

void	SetLegZonesOutputLayer (int layer)
	Sets the layer that will be used for the leg impact zone lines.

void	SetLegZonesOutputWidth (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width)
	Sets the line width that will be used for the leg impact zone lines.

void	SetMirrorFaces (bool mirrorFaces)
	Sets the setting to indicate if the bonnet, windshield and hood faces should be mirrored before performing the analysis, true they will be mirrored, false they will not be mirrored.

void	SetPlane (NXOpen::Plane *plane)
	Sets the ground plane.

void	SetPopupPoint (NXOpen::Point *popupPoint)
	Sets the reference point of the active hood.

void	SetProcessActiveHood (bool processActiveHood)
	Sets the setting to indicate if the active hood should be analyzed, true it will be used, false it will not be used.

void	SetReferenceOutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the reference lines.

void	SetReferenceOutputFont (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font)
	Sets the font that will be used for the reference lines.

void	SetReferenceOutputLayer (int layer)
	Sets the layer that will be used for the reference lines.

void	SetReferenceOutputWidth (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width)
	Sets the line width that will be used for the reference lines.

void	SetStandard (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::StandardType setStandard)
	Sets the standard that should be used in the analysis.

void	SetTransformMethod (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::TransformMethods transformMethod)
	Sets the transform method that should be used in active hood system.

void	SetType (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Types type)
	Sets the type of impact study to perform.

void	SetUpperLegZonesOutputLayer (int layer)
	Sets the layer that will be used for the upper leg impact zone.

void	SetUseMarginal (bool useMarginal)
	Sets the setting to indicate if the marginal values should be used when creating the impact zone, true they will be used, false they will not be used.

void	SetWadBoundaryValue (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad wadboundaryenum)
	Sets the wrap around distance line to use as the boundary between the adult and child zones.

void	SetWadEndValue (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad wadendenum)
	Sets the last wrap around distance line to create.

void	SetWadOutputColor (NXOpen::NXColor *color)
	Sets the color that will be used for the wrap around distance lines.

void	SetWadOutputFont (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font)
	Sets the font that will be used for the wrap around distance lines.

void	SetWadOutputLayer (int layer)
	Sets the layer that will be used for the wrap around distance lines.

void	SetWadOutputWidth (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width)
	Sets the line width that will be used for the wrap around distance lines.

void	SetWadStartValue (NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad wadstartenum)
	Sets the first wrap around distance line to create.

NXOpen::Expression *	SideRefAngle ()
	Returns the angle that is used to determine the side reference line.

NXOpen::Expression *	SideRefAngleMarginal ()
	Returns the marginal angle that is used to determine the side reference line.

NXOpen::Expression *	SideRefAngleNcap ()
	Returns the European NCAP (New Car Assessment Program) angle that is used to determine the side reference line.

NXOpen::Expression *	SideRefAngleNcapMarginal ()
	Returns the European NCAP (New Car Assessment Program) angle that is used to determine the side reference line.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::StandardType	Standard ()
	Returns the standard that should be used in the analysis.

NXOpen::Expression *	StepDistance ()
	Returns the distance between sections used in the analysis.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::TransformMethods	TransformMethod ()
	Returns the transform method that should be used in active hood system.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Types	Type ()
	Returns the type of impact study to perform.

NXOpen::Expression *	UpperBumperAngle ()
	Returns the angle that is used to determine the upper limit of the bumper.

NXOpen::Section *	UpperLegPositions ()
	Returns the upper leg impact locations.

int	UpperLegZonesOutputLayer ()
	Returns the layer that will be used for the upper leg impact zone.

bool	UseMarginal ()
	Returns the setting to indicate if the marginal values should be used when creating the impact zone, true they will be used, false they will not be used.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad	WadBoundaryValue ()
	Returns the wrap around distance line to use as the boundary between the adult and child zones.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad	WadEndValue ()
	Returns the last wrap around distance line to create.

NXOpen::NXColor *	WadOutputColor ()
	Returns the color that will be used for the wrap around distance lines.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font	WadOutputFont ()
	Returns the font that will be used for the wrap around distance lines.

int	WadOutputLayer ()
	Returns the layer that will be used for the wrap around distance lines.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width	WadOutputWidth ()
	Returns the line width that will be used for the wrap around distance lines.

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad	WadStartValue ()
	Returns the first wrap around distance line to create.

NXOpen::SelectDisplayableObjectList *	Windshield ()
	Returns the collector containing the faces of the windshield.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

    Represents a @link Features::VehicleDesign::PedestrianProtection Features::VehicleDesign::PedestrianProtection@endlink  builder
     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreatePedestrianProtectionBuilder  Features::VehicleDesignCollection::CreatePedestrianProtectionBuilder @endlink  <br>

Default values.

Property

Value

AdultHic1000Angle.Value

50

AdultHic1000Offset.Value (deprecated)

95 (millimeters part), 3.7 (inches part)

AdultHic1000OutputFont

Solid

AdultHic1000OutputLayer

0

AdultHic1000OutputWidth

Normal

AdultHic1700Angle.Value

50

AdultHic1700Offset.Value (deprecated)

74 (millimeters part), 2.9 (inches part)

AdultHic1700OutputFont

Solid

AdultHic1700OutputLayer

0

AdultHic1700OutputWidth

Normal

ChildHic1000Angle.Value

65

ChildHic1000Offset.Value (deprecated)

85 (millimeters part), 3.3 (inches part)

ChildHic1000OutputFont

Solid

ChildHic1000OutputLayer

0

ChildHic1000OutputWidth

Normal

ChildHic1700Angle.Value

65

ChildHic1700Offset.Value (deprecated)

68 (millimeters part), 2.7 (inches part)

ChildHic1700OutputFont

Solid

ChildHic1700OutputLayer

0

ChildHic1700OutputWidth

Normal

ConstructGeometryFont

Solid

ConstructGeometryLayer

0

ConstructGeometryWidth

Normal

CornerBumperAngle.Value

30

CornerBumperAngleMarginal.Value

32

CreateHeadImpactZones

1

CreateImpactGrid

1

CreateLegImpact

1

CreateReferenceLines

1

CreateWrapAroundDistanceLines

1

DisplayConstructionGeometry

0

DisplayDeletedGridPoints

0

DisplayInterferenceResult

0

FrontRefAngle.Value

40

FrontRefAngleMarginal.Value

38

FrontRefAngleNcap.Value

50

GridAdultFullOutputLayer

0

GridAdultPartialOutputLayer

0

GridChildFullOutputLayer

0

GridChildPartialOutputLayer

0

GridNCAP1000OutputLayer

0

GridNCAP1350OutputLayer

0

GridNCAP1700OutputLayer

0

GridNCAP650OutputLayer

0

GridOutputFont

Solid

GridOutputWidth

Normal

HeadDiameter.Value

165 (millimeters part), 6.5 (inches part)

HeadDiameterMarginal.Value

145 (millimeters part), 5.7 (inches part)

HingeDistance.Value

0 (millimeters part), 0 (inches part)

InterferenceFont

Solid

InterferenceLayer

0

InterferenceWidth

Normal

LegZonesOutputFont

Solid

LegZonesOutputLayer

0

LegZonesOutputWidth

Normal

LowerBumperAngle.Value

20

MirrorFaces (deprecated)

0

PopupDistance.Value

120 (millimeters part), 4.7 (inches part)

ProcessActiveHood

0

ReferenceOutputFont

Solid

ReferenceOutputLayer

0

ReferenceOutputWidth

Normal

RodDiameter.Value

50 (millimeters part), 2 (inches part)

SideRefAngle.Value

45

SideRefAngleMarginal.Value

47

SideRefAngleNcap.Value

45

Standard

NorthAmerican

StepDistance.Value

50 (millimeters part), 2 (inches part)

TransformMethod

Translation

UpperBumperAngle.Value

25

UseMarginal

0

WadBoundaryValue

Fourth

WadEndValue

Sixth

WadOutputFont

Solid

WadOutputLayer

0

WadOutputWidth

Normal

WadStartValue

First

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font

Settings for font to create the various output with.

Enumerator:

FontDefault	Default Font.
FontSolid	Solid Font.
FontDashed	Dashed Font.
FontPhantom	Phantom Font.
FontCenterline	Centerline Font.
FontDotted	Dotted Font.
FontLongDashed	LongDashed Font.
FontDottedDashed	DottedDashed Font.

enum NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::StandardType

Settings for the type of pedestrian protection standard to use in the study.

Enumerator:

StandardTypeNorthAmerican	North american standard.
StandardTypeEuropean	European standard.
StandardTypeJapanese	Japanese standard.
StandardTypeKorean	Korean standard.
StandardTypeChinese	Chinese standard.

enum NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::TransformMethods

Settings for the transform method of pedestrian protection active hood system.

Enumerator:

TransformMethodsTranslation	Translation method.
TransformMethodsRotation	Rotation method.

enum NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Types

Settings for the type of pedestrian protection impact study.

Enumerator:

TypesHeadAndLegImpact	Head and leg impact study.
TypesHeadImpact	Head impact study only.
TypesLegImpact	Leg impact study only.

enum NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad

Settings for the start, end and boundary wrap around distance line to create.

Enumerator:

WadFirst	First wrap around distance line.
WadSecond	Second wrap around distance line.
WadThird	Third wrap around distance line.
WadFourth	Fourth wrap around distance line.
WadFifth	Fifth wrap around distance line.
WadSixth	Sixth wrap around distance line. Not valid for boundary.

enum NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width

Settings for width to create the various output with.

Enumerator:

WidthDefault	Default Width.
WidthNormal	normal Width
WidthThick	Thick width.
WidthThin	Thin width.

Member Function Documentation

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1000Angle ( )

Returns the angle to translate the adult HIC (Head Injury Criterion) 1000 impact sheet and grid.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1000Offset ( )

Returns the distance to translate the adult HIC (Head Injury Criterion) 1000 impact sheet and grid.

Deprecated:: Deprecated in NX9.0.0. The offset value will be retrieved from the physical material property.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1000OutputColor ( )

Returns the color that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1000OutputFont ( )

Returns the font that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1000OutputLayer ( )

Returns the layer that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1000OutputWidth ( )

Returns the line width that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1700Angle ( )

Returns the angle to translate the adult HIC (Head Injury Criterion) 1700 impact sheet and grid.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1700Offset ( )

Returns the distance to translate the adult HIC (Head Injury Criterion) 1700 impact sheet and grid.

Deprecated:: Deprecated in NX9.0.0. The offset value will be retrieved from the physical material property.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1700OutputColor ( )

Returns the color that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1700OutputFont ( )

Returns the font that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1700OutputLayer ( )

Returns the layer that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::AdultHic1700OutputWidth ( )

Returns the line width that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::APillar ( )

Returns the collector containing the faces and facetted bodies of the A-Pillar.

Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::BonnetTop ( )

Returns the collector containing the faces of the bonnet.

Created in NX6.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::BonnetTopNotMirrored ( )

Returns the collector containing the faces of the bonnet that are not to be mirrored.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1000Angle ( )

Returns the angle to translate the child HIC (Head Injury Criterion) 1000 impact sheet and grid.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1000Offset ( )

Returns the distance to translate the child HIC (Head Injury Criterion) 1000 impact sheet and grid.

Deprecated:: Deprecated in NX9.0.0. The offset value will be retrieved from the physical material property.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1000OutputColor ( )

Returns the color that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1000OutputFont ( )

Returns the font that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1000OutputLayer ( )

Returns the layer that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1000OutputWidth ( )

Returns the line width that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1700Angle ( )

Returns the angle to translate the child HIC (Head Injury Criterion) 1700 impact sheet and grid.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1700Offset ( )

Returns the distance to translate the child HIC (Head Injury Criterion) 1700 impact sheet and grid.

Deprecated:: Deprecated in NX9.0.0. The offset value will be retrieved from the physical material property.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1700OutputColor ( )

Returns the color that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1700OutputFont ( )

Returns the font that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1700OutputLayer ( )

Returns the layer that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ChildHic1700OutputWidth ( )

Returns the line width that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Component ( )

Returns the list of the components to check interference with the impact sheets.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ConstructGeometryColor ( )

Returns the color that will be used for the various construction curves.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ConstructGeometryFont ( )

Returns the font that will be used for the various construction curves.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ConstructGeometryLayer ( )

Returns the layer that will be used for the various construction curves.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ConstructGeometryWidth ( )

Returns the line width that will be used for the various construction curves.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::CornerBumperAngle ( )

Returns the angle that is used to determine the corner of the bumper.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::CornerBumperAngleMarginal ( )

Returns the marginal angle that is used to determine the corner of the bumper.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::CreateHeadImpactZones ( )

Returns the setting to indicate if the adult and child head impact sheets should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::CreateImpactGrid ( )

Returns the setting to indicate if the impact grid should be created, true it will be created, false it will not be created.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::CreateLegImpact ( )

Returns the setting to indicate if the leg impact curves should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::CreateReferenceLines ( )

Returns the setting to indicate if the reference lines should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::CreateWrapAroundDistanceLines ( )

Returns the setting to indicate if the wrap around distance lines should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::DeletedPointsColor ( )

Returns the color that will be used for the headform deleted points of the European NCAP (New Car Assessment Program) grid.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::DisplayConstructionGeometry ( )

Returns the setting to indicate if the construction geometry should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::DisplayDeletedGridPoints ( )

Returns the setting to indicate if the deleted grid points should be displayed, true they will be displayed, false they will not be displayed.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::DisplayInterferenceResult ( )

Returns the setting to indicate if the interference curves should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::FrontRefAngle ( )

Returns the angle that is used to determine the front reference line.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::FrontRefAngleMarginal ( )

Returns the marginal angle that is used to determine the front reference line.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::FrontRefAngleNcap ( )

Returns the European NCAP (New Car Assessment Program) angle that is used to determine the front reference line.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::FrontRefAngleNcapMarginal ( )

Returns the European NCAP (New Car Assessment Program) marginal angle that is used to determine the front reference line.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridAdultFullOutputLayer ( )

Returns the layer that will be used for the NCAP (New Car Assessment Program) adult full grid sheet.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridAdultPartialOutputLayer ( )

Returns the layer that will be used for the NCAP (New Car Assessment Program) adult partial grid sheet.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridChildFullOutputLayer ( )

Returns the layer that will be used for the NCAP (New Car Assessment Program) child full grid sheet.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridChildPartialOutputLayer ( )

Returns the layer that will be used for the NCAP (New Car Assessment Program) child partial grid sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridFailColor ( )

Returns the color that will be used for the failing areas of the NCAP (New Car Assessment Program) grid.

Created in NX6.0.0.

License requirements : None

double NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNcap1000OffsetScore ( )

Returns the score value is used to check NCAP 1000 offset interference.

Created in NX9.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNCAP1000OutputColor ( )

Returns the color that will be used for the European NCAP (New Car Assessment Program) 1000 offset grid sheet.

Created in NX9.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNCAP1000OutputLayer ( )

Returns the layer that will be used for the European NCAP (New Car Assessment Program) 1000 offset grid sheet.

Created in NX9.0.0.

License requirements : None

double NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNcap1350OffsetScore ( )

Returns the score value is used to check NCAP 1350 offset interference.

Created in NX9.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNCAP1350OutputColor ( )

Returns the color that will be used for the European NCAP (New Car Assessment Program) 1350 offset grid sheet.

Created in NX9.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNCAP1350OutputLayer ( )

Returns the layer that will be used for the European NCAP (New Car Assessment Program) 1350 offset grid sheet.

Created in NX9.0.0.

License requirements : None

double NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNcap1700OffsetScore ( )

Returns the score value is used to check NCAP 1700 offset interference.

Created in NX9.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNCAP1700OutputColor ( )

Returns the color that will be used for the European NCAP (New Car Assessment Program) 1700 offset grid sheet.

Created in NX9.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNCAP1700OutputLayer ( )

Returns the layer that will be used for the European NCAP (New Car Assessment Program) 1700 offset grid sheet.

Created in NX9.0.0.

License requirements : None

double NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNcap650OffsetScore ( )

Returns the score value is used to check NCAP 650 offset interference.

Created in NX9.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNCAP650OutputColor ( )

Returns the color that will be used for the European NCAP (New Car Assessment Program) 650 offset grid sheet.

Created in NX9.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNCAP650OutputLayer ( )

Returns the layer that will be used for the European NCAP (New Car Assessment Program) 650 offset grid sheet.

Created in NX9.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNCAPUntranslatedOutputColor ( )

Returns the color that will be used for the European NCAP (New Car Assessment Program) untranslated grid sheet.

Created in NX9.0.0.

License requirements : None

double NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridNcapUntranslatedScore ( )

Returns the score value is used to check NCAP untranslated interference.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridOutputFont ( )

Returns the font that will be used for the European NCAP (New Car Assessment Program) grid sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridOutputWidth ( )

Returns the line width that will be used for the NCAP (New Car Assessment Program) grid sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridPassColor ( )

Returns the color that will be used for the passing areas of the NCAP (New Car Assessment Program) grid.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridPointsColor ( )

Returns the color that will be used for the headform grid points of the European NCAP (New Car Assessment Program) grid.

Created in NX9.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridUntranslatedOutputLayer ( )

Returns the layer that will be used for the NCAP (New Car Assessment Program) untranslated grid sheet.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::GridWarningColor ( )

Returns the color that will be used for the warning areas of the NCAP (New Car Assessment Program) grid.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::HeadDiameter ( )

Returns the diameter of the headform.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::HeadDiameterMarginal ( )

Returns the marginal diameter of the headform.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::HingeDistance ( )

Returns the distance to move the reference point of the active hood.

Created in NX8.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::HingePoint ( )

Returns the point about which to rotate the active hood.

Created in NX6.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Hood ( )

Returns the collector containing the faces of the active hood.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::InterferenceColor ( )

Returns the color that will be used for the interference curves.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::InterferenceFont ( )

Returns the font that will be used for the interference curves.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::InterferenceLayer ( )

Returns the layer that will be used for the interference curves.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::InterferenceWidth ( )

Returns the line width that will be used for the interference curves.

Created in NX6.0.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::LegSpreadsheet ( )

Returns the leg impact spreadsheet file.

Created in NX9.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::LegZonesOutputColor ( )

Returns the color that will be used for the leg impact zone lines.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::LegZonesOutputFont ( )

Returns the font that will be used for the leg impact zone lines.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::LegZonesOutputLayer ( )

Returns the layer that will be used for the leg impact zone lines.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::LegZonesOutputWidth ( )

Returns the line width that will be used for the leg impact zone lines.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::LowerBumperAngle ( )

Returns the angle that is used to determine the lower limit of the bumper.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::MirrorFaces ( )

Returns the setting to indicate if the bonnet, windshield and hood faces should be mirrored before performing the analysis, true they will be mirrored, false they will not be mirrored.

Deprecated:: Deprecated in NX9.0.0. This API is no longer used.

Created in NX6.0.0.

License requirements : None

NXOpen::Plane* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Plane ( )

Returns the ground plane.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::PopupDistance ( )

Returns the distance to move the reference point of the active hood.

Created in NX6.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::PopupPoint ( )

Returns the reference point of the active hood.

At this point the active hood will be rotated about the hinge point so that this point is moved the popup distance in the +Z direction.
Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ProcessActiveHood ( )

Returns the setting to indicate if the active hood should be analyzed, true it will be used, false it will not be used.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ReferenceOutputColor ( )

Returns the color that will be used for the reference lines.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ReferenceOutputFont ( )

Returns the font that will be used for the reference lines.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ReferenceOutputLayer ( )

Returns the layer that will be used for the reference lines.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::ReferenceOutputWidth ( )

Returns the line width that will be used for the reference lines.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::RodDiameter ( )

Returns the testing rod diameter of the leg impact.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetAdultHic1000OutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetAdultHic1000OutputFont ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font )

Sets the font that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

font font

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetAdultHic1000OutputLayer ( int layer )

Sets the layer that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetAdultHic1000OutputWidth ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width )

Sets the line width that will be used for the adult HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

width width

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetAdultHic1700OutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetAdultHic1700OutputFont ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font )

Sets the font that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

font font

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetAdultHic1700OutputLayer ( int layer )

Sets the layer that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetAdultHic1700OutputWidth ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width )

Sets the line width that will be used for the adult HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

width width

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetChildHic1000OutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetChildHic1000OutputFont ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font )

Sets the font that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

font font

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetChildHic1000OutputLayer ( int layer )

Sets the layer that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetChildHic1000OutputWidth ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width )

Sets the line width that will be used for the child HIC (Head Injury Criterion) 1000 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

width width

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetChildHic1700OutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetChildHic1700OutputFont ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font )

Sets the font that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

font font

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetChildHic1700OutputLayer ( int layer )

Sets the layer that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetChildHic1700OutputWidth ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width )

Sets the line width that will be used for the child HIC (Head Injury Criterion) 1700 impact sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

width width

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetConstructGeometryColor ( NXOpen::NXColor * color )

Sets the color that will be used for the various construction curves.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetConstructGeometryFont ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font )

Sets the font that will be used for the various construction curves.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

font font

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetConstructGeometryLayer ( int layer )

Sets the layer that will be used for the various construction curves.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetConstructGeometryWidth ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width )

Sets the line width that will be used for the various construction curves.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

width width

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetCreateHeadImpactZones ( bool headImpactZones )

Sets the setting to indicate if the adult and child head impact sheets should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

headImpactZones headimpactzones

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetCreateImpactGrid ( bool createImpactGrid )

Sets the setting to indicate if the impact grid should be created, true it will be created, false it will not be created.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

createImpactGrid createimpactgrid

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetCreateLegImpact ( bool legImpact )

Sets the setting to indicate if the leg impact curves should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

legImpact legimpact

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetCreateReferenceLines ( bool referenceLines )

Sets the setting to indicate if the reference lines should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

referenceLines referencelines

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetCreateWrapAroundDistanceLines ( bool wad )

Sets the setting to indicate if the wrap around distance lines should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

wad wad

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetDeletedPointsColor ( NXOpen::NXColor * color )

Sets the color that will be used for the headform deleted points of the European NCAP (New Car Assessment Program) grid.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetDisplayConstructionGeometry ( bool displayConstructionGeometry )

Sets the setting to indicate if the construction geometry should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

displayConstructionGeometry displayconstructiongeometry

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetDisplayDeletedGridPoints ( bool displayDeletedGridPoints )

Sets the setting to indicate if the deleted grid points should be displayed, true they will be displayed, false they will not be displayed.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

displayDeletedGridPoints displaydeletedgridpoints

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetDisplayInterferenceResult ( bool displayInterferenceResult )

Sets the setting to indicate if the interference curves should be created, true they will be created, false they will not be created.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

displayInterferenceResult displayinterferenceresult

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridAdultFullOutputLayer ( int layer )

Sets the layer that will be used for the NCAP (New Car Assessment Program) adult full grid sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridAdultPartialOutputLayer ( int layer )

Sets the layer that will be used for the NCAP (New Car Assessment Program) adult partial grid sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridChildFullOutputLayer ( int layer )

Sets the layer that will be used for the NCAP (New Car Assessment Program) child full grid sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridChildPartialOutputLayer ( int layer )

Sets the layer that will be used for the NCAP (New Car Assessment Program) child partial grid sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridFailColor ( NXOpen::NXColor * color )

Sets the color that will be used for the failing areas of the NCAP (New Car Assessment Program) grid.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridNCAP1000OutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the European NCAP (New Car Assessment Program) 1000 offset grid sheet.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridNCAP1000OutputLayer ( int layer )

Sets the layer that will be used for the European NCAP (New Car Assessment Program) 1000 offset grid sheet.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridNCAP1350OutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the European NCAP (New Car Assessment Program) 1350 offset grid sheet.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridNCAP1350OutputLayer ( int layer )

Sets the layer that will be used for the European NCAP (New Car Assessment Program) 1350 offset grid sheet.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridNCAP1700OutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the European NCAP (New Car Assessment Program) 1700 offset grid sheet.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridNCAP1700OutputLayer ( int layer )

Sets the layer that will be used for the European NCAP (New Car Assessment Program) 1700 offset grid sheet.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridNCAP650OutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the European NCAP (New Car Assessment Program) 650 offset grid sheet.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridNCAP650OutputLayer ( int layer )

Sets the layer that will be used for the European NCAP (New Car Assessment Program) 650 offset grid sheet.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridNCAPUntranslatedOutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the European NCAP (New Car Assessment Program) untranslated grid sheet.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridOutputFont ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font )

Sets the font that will be used for the European NCAP (New Car Assessment Program) grid sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

font font

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridOutputWidth ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width )

Sets the line width that will be used for the NCAP (New Car Assessment Program) grid sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

width width

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridPassColor ( NXOpen::NXColor * color )

Sets the color that will be used for the passing areas of the NCAP (New Car Assessment Program) grid.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridPointsColor ( NXOpen::NXColor * color )

Sets the color that will be used for the headform grid points of the European NCAP (New Car Assessment Program) grid.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridUntranslatedOutputLayer ( int layer )

Sets the layer that will be used for the NCAP (New Car Assessment Program) untranslated grid sheet.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetGridWarningColor ( NXOpen::NXColor * color )

Sets the color that will be used for the warning areas of the NCAP (New Car Assessment Program) grid.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetHingePoint ( NXOpen::Point * hingePoint )

Sets the point about which to rotate the active hood.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

hingePoint hingepoint

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetInterferenceColor ( NXOpen::NXColor * color )

Sets the color that will be used for the interference curves.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetInterferenceFont ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font )

Sets the font that will be used for the interference curves.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

font font

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetInterferenceLayer ( int layer )

Sets the layer that will be used for the interference curves.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetInterferenceWidth ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width )

Sets the line width that will be used for the interference curves.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

width width

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetLegSpreadsheet ( const NXString & legSpreadsheet )

Sets the leg impact spreadsheet file.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

legSpreadsheet legspreadsheet

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetLegSpreadsheet ( const char * legSpreadsheet )

Sets the leg impact spreadsheet file.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

legSpreadsheet legspreadsheet

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetLegZonesOutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the leg impact zone lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetLegZonesOutputFont ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font )

Sets the font that will be used for the leg impact zone lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

font font

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetLegZonesOutputLayer ( int layer )

Sets the layer that will be used for the leg impact zone lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetLegZonesOutputWidth ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width )

Sets the line width that will be used for the leg impact zone lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

width width

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetMirrorFaces ( bool mirrorFaces )

Sets the setting to indicate if the bonnet, windshield and hood faces should be mirrored before performing the analysis, true they will be mirrored, false they will not be mirrored.

Deprecated:: Deprecated in NX9.0.0. This API is no longer used.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

mirrorFaces mirrorfaces

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetPlane ( NXOpen::Plane * plane )

Sets the ground plane.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

plane plane

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetPopupPoint ( NXOpen::Point * popupPoint )

Sets the reference point of the active hood.

At this point the active hood will be rotated about the hinge point so that this point is moved the popup distance in the +Z direction.
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

popupPoint popuppoint

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetProcessActiveHood ( bool processActiveHood )

Sets the setting to indicate if the active hood should be analyzed, true it will be used, false it will not be used.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

processActiveHood processactivehood

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetReferenceOutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the reference lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetReferenceOutputFont ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font )

Sets the font that will be used for the reference lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

font font

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetReferenceOutputLayer ( int layer )

Sets the layer that will be used for the reference lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetReferenceOutputWidth ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width )

Sets the line width that will be used for the reference lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

width width

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetStandard ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::StandardType setStandard )

Sets the standard that should be used in the analysis.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

setStandard setstandard

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetTransformMethod ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::TransformMethods transformMethod )

Sets the transform method that should be used in active hood system.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

transformMethod transformmethod

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetType ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Types type )

Sets the type of impact study to perform.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

type type

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetUpperLegZonesOutputLayer ( int layer )

Sets the layer that will be used for the upper leg impact zone.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetUseMarginal ( bool useMarginal )

Sets the setting to indicate if the marginal values should be used when creating the impact zone, true they will be used, false they will not be used.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

useMarginal usemarginal

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetWadBoundaryValue ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad wadboundaryenum )

Sets the wrap around distance line to use as the boundary between the adult and child zones.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

wadboundaryenum wadboundaryenum

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetWadEndValue ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad wadendenum )

Sets the last wrap around distance line to create.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

wadendenum wadendenum

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetWadOutputColor ( NXOpen::NXColor * color )

Sets the color that will be used for the wrap around distance lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetWadOutputFont ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font font )

Sets the font that will be used for the wrap around distance lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

font font

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetWadOutputLayer ( int layer )

Sets the layer that will be used for the wrap around distance lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

layer layer

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetWadOutputWidth ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width width )

Sets the line width that will be used for the wrap around distance lines.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

width width

void NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SetWadStartValue ( NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad wadstartenum )

Sets the first wrap around distance line to create.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

wadstartenum wadstartenum

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SideRefAngle ( )

Returns the angle that is used to determine the side reference line.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SideRefAngleMarginal ( )

Returns the marginal angle that is used to determine the side reference line.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SideRefAngleNcap ( )

Returns the European NCAP (New Car Assessment Program) angle that is used to determine the side reference line.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::SideRefAngleNcapMarginal ( )

Returns the European NCAP (New Car Assessment Program) angle that is used to determine the side reference line.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::StandardType NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Standard ( )

Returns the standard that should be used in the analysis.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::StepDistance ( )

Returns the distance between sections used in the analysis.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::TransformMethods NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::TransformMethod ( )

Returns the transform method that should be used in active hood system.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Types NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Type ( )

Returns the type of impact study to perform.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::UpperBumperAngle ( )

Returns the angle that is used to determine the upper limit of the bumper.

Created in NX6.0.0.

License requirements : None

NXOpen::Section* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::UpperLegPositions ( )

Returns the upper leg impact locations.

Created in NX9.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::UpperLegZonesOutputLayer ( )

Returns the layer that will be used for the upper leg impact zone.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::UseMarginal ( )

Returns the setting to indicate if the marginal values should be used when creating the impact zone, true they will be used, false they will not be used.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::WadBoundaryValue ( )

Returns the wrap around distance line to use as the boundary between the adult and child zones.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::WadEndValue ( )

Returns the last wrap around distance line to create.

Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::WadOutputColor ( )

Returns the color that will be used for the wrap around distance lines.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Font NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::WadOutputFont ( )

Returns the font that will be used for the wrap around distance lines.

Created in NX6.0.0.

License requirements : None

int NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::WadOutputLayer ( )

Returns the layer that will be used for the wrap around distance lines.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Width NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::WadOutputWidth ( )

Returns the line width that will be used for the wrap around distance lines.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Wad NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::WadStartValue ( )

Returns the first wrap around distance line to create.

Created in NX6.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::Features::VehicleDesign::PedestrianProtectionBuilder::Windshield ( )

Returns the collector containing the faces of the windshield.

Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_PedestrianProtectionBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
