The builder to create close range visibility feature. More...

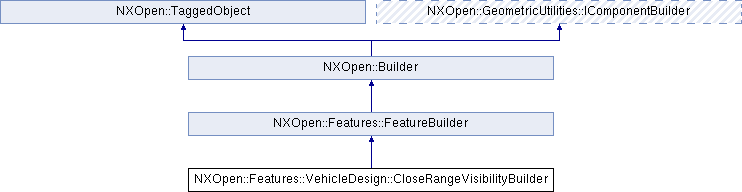

Inheritance diagram for NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder:

Public Types
enum	EyePointOffsetTypes { EyePointOffsetTypesNoOffset, EyePointOffsetTypesAllOffsets, EyePointOffsetTypesForwardOffset, EyePointOffsetTypesSidewaysOffset, EyePointOffsetTypesUpwardOffset }
	This enum represents the eye position offset options. More...

enum	EyePointTypes { EyePointTypesBinocular, EyePointTypesMonocular }
	This enum represents the binocular or monocular eye position definition options. More...

enum	PathPositionTypes { PathPositionTypesBoth, PathPositionTypesTop, PathPositionTypesBottom }
	This enum represents the cylinder path position display options. More...

enum	PositionMethods { PositionMethodsTangentArea, PositionMethodsVehicleContact, PositionMethodsFrontView }
	This enum represents the cylinder position method options. More...

enum	PositionPaths { PositionPathsBaseData, PositionPathsVehicleObject }
	This enum represents the cylinder position path options. More...

enum	RequirementsControlType { RequirementsControlTypeStandardDriven, RequirementsControlTypeUserDefined }
	This enum represents the standard or user defined requirement options. More...

Public Member Functions
NXOpen::Features::VehicleDesign::CloseRangeCameraListItemBuilderList *	CameraList ()
	Returns the list of Features::VehicleDesign::CloseRangeCameraListItemBuilder defining the camera parameters.

NXOpen::Features::VehicleDesign::CloseRangeCameraListItemBuilder *	CreateCameraListItemBuilder ()
	Creates a Features::VehicleDesign::CloseRangeCameraListItemBuilder.

NXOpen::Features::VehicleDesign::CloseRangeDemoCylinderListItemBuilder *	CreateDemoCylinderListItemBuilder ()
	Creates a Features::VehicleDesign::CloseRangeDemoCylinderListItemBuilder.

NXOpen::Expression *	CylinderHeight ()
	Returns the expression containing the value for the cylinder height.

NXOpen::Expression *	CylinderRadius ()
	Returns the expression containing the value for the cylinder radius.

NXOpen::Features::VehicleDesign::CloseRangeDemoCylinderListItemBuilderList *	DemoCylinderList ()
	Returns the list of Features::VehicleDesign::CloseRangeDemoCylinderListItemBuilder defining the demo cylinder parameters.

NXOpen::Expression *	DistanceFromVehicle ()
	Returns the expression containing the value for the distance from vehicle.

NXOpen::Expression *	DriverSideExtension ()
	Returns the expression containing the value for the driver side extension.

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointOffsetTypes	EyePointOffsetType ()
	Returns the eye point offset types to define the close range visibility.

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointTypes	EyePointType ()
	Returns the eye point types to define the close range visibility.

NXOpen::Expression *	K1Coefficient ()
	Returns the expression containing the value for the k1 coefficient used in blind volume checking.

NXOpen::Expression *	K2Coefficient ()
	Returns the expression containing the value for the k2 coefficient used in blind volume checking.

NXString	Loading ()
	Returns the loading used in the close range visibility.

NXOpen::Section *	MirrorBoundary ()
	Returns the curves selection used to identify the mirror boundary section.

NXOpen::ScCollector *	MirrorFaces ()
	Returns the faces selection used to identify the mirror surfaces.

NXOpen::Point *	MirrorRotationPoint ()
	Returns the mirror rotation point specified.

NXOpen::Expression *	MirrorRotationYAngle ()
	Returns the mirror rotation angle around vehicle Y axis after Z axis.

NXOpen::Expression *	MirrorRotationZAngle ()
	Returns the mirror rotation angle around vehicle Z axis.

NXOpen::ScCollector *	ObstructionFaces ()
	Returns the faces selection used to identify the vehicle obstruction surfaces.

NXOpen::Expression *	PassengerSideExtension ()
	Returns the expression containing the value for the passenger side extension.

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PathPositionTypes	PathPositionType ()
	Returns the path position types used to define close range visibility.

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionMethods	PositionMethod ()
	Returns the position method types to define the close range visibility.

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionPaths	PositionPath ()
	Returns the position path types to define the close range visibility.

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::RequirementsControlType	RequirementsControl ()
	Returns the requirements control types to define the close range visibility.

bool	RotateMirrorFace ()
	Returns the indication if the mirror face will be rotated.

void	SetEyePointOffsetType (NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointOffsetTypes eyePointOffsetType)
	Sets the eye point offset types to define the close range visibility.

void	SetEyePointType (NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointTypes eyePointType)
	Sets the eye point types to define the close range visibility.

void	SetLoading (const NXString &loading)
	Sets the loading used in the close range visibility.

void	SetLoading (const char *loading)
	Sets the loading used in the close range visibility.

void	SetMirrorRotationPoint (NXOpen::Point *mirrorRotationPoint)
	Sets the mirror rotation point specified.

void	SetPathPositionType (NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PathPositionTypes pathPositionType)
	Sets the path position types used to define close range visibility.

void	SetPositionMethod (NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionMethods positionMethod)
	Sets the position method types to define the close range visibility.

void	SetPositionPath (NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionPaths positionPath)
	Sets the position path types to define the close range visibility.

void	SetRequirementsControl (NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::RequirementsControlType requirement)
	Sets the requirements control types to define the close range visibility.

void	SetRotateMirrorFace (bool rotateMirrorFace)
	Sets the indication if the mirror face will be rotated.

void	SetShowBlindVolume (bool showBlindVolume)
	Sets the indication if blind volume will be displayed.

void	SetShowExtendedEyes (bool showExtendedEyes)
	Sets the indication if extended eyes will be displayed.

void	SetShowEyeLabels (bool showEyeLabels)
	Sets the indication if eye labels will be displayed.

void	SetShowEyePoints (bool showEyePoints)
	Sets the indication if eye points will be displayed.

void	SetShowPath (bool showPath)
	Sets the indication if demo cylinder path will be displayed.

void	SetShowPathPoints (bool showPathPoints)
	Sets the indication if demo cylinder point position on path will be displayed.

void	SetShowSightRays (bool showSightRays)
	Sets the indication if blind volume sight rays will be displayed.

void	SetShowTorsoLine (bool showTorsoLine)
	Sets the indication if torso line will be displayed.

void	SetStandard (const NXString &standard)
	Sets the standard types to define the close range visibility.

void	SetStandard (const char *standard)
	Sets the standard types to define the close range visibility.

void	SetStepValue (double stepValue)
	Sets the step value to control the accurate for demo cylinder visibility and blind volume area calculation.

void	SetUseMirror (bool useMirror)
	Sets the indication if the mirror will be used.

bool	ShowBlindVolume ()
	Returns the indication if blind volume will be displayed.

bool	ShowExtendedEyes ()
	Returns the indication if extended eyes will be displayed.

bool	ShowEyeLabels ()
	Returns the indication if eye labels will be displayed.

bool	ShowEyePoints ()
	Returns the indication if eye points will be displayed.

bool	ShowPath ()
	Returns the indication if demo cylinder path will be displayed.

bool	ShowPathPoints ()
	Returns the indication if demo cylinder point position on path will be displayed.

bool	ShowSightRays ()
	Returns the indication if blind volume sight rays will be displayed.

bool	ShowTorsoLine ()
	Returns the indication if torso line will be displayed.

NXString	Standard ()
	Returns the standard types to define the close range visibility.

double	StepValue ()
	Returns the step value to control the accurate for demo cylinder visibility and blind volume area calculation.

bool	UseMirror ()
	Returns the indication if the mirror will be used.

void	ValidateBlindVolumes ()
	Validate blind volume area from driver side view.

NXOpen::ScCollector *	VehicleBodies ()
	Returns the bodies selection used to identify vehicle bodies.

NXOpen::ScCollector *	WindowFaces ()
	Returns the faces selection used to identify the vehicle window surfaces.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

The builder to create close range visibility feature.

 <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateCloseRangeVisibilityBuilder  Features::VehicleDesignCollection::CreateCloseRangeVisibilityBuilder @endlink  <br>

Default values.

Property

Value

CylinderHeight.Value

1000 (millimeters part), 40 (inches part)

CylinderRadius.Value

150 (millimeters part), 6 (inches part)

DistanceFromVehicle.Value

2000 (millimeters part), 78.7 (inches part)

DriverSideExtension.Value

700 (millimeters part), 27.5 (inches part)

EyePointOffsetType

NoOffset

EyePointType

Binocular

K1Coefficient.Value

0.292

K2Coefficient.Value

203 (millimeters part), 7.99 (inches part)

MirrorRotationYAngle.Value

0

MirrorRotationZAngle.Value

0

PassengerSideExtension.Value

900 (millimeters part), 35.4 (inches part)

PathPositionType

Both

PositionMethod

TangentArea

PositionPath

BaseData

RequirementsControl

StandardDriven

RotateMirrorFace

0

ShowBlindVolume

0

ShowExtendedEyes

0

ShowEyeLabels

0

ShowEyePoints

0

ShowPath

0

ShowPathPoints

0

ShowSightRays

0

ShowTorsoLine

0

StepValue

0.5

UseMirror

0

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointOffsetTypes

This enum represents the eye position offset options.

Enumerator:

EyePointOffsetTypesNoOffset	No offset.
EyePointOffsetTypesAllOffsets	All offsets.
EyePointOffsetTypesForwardOffset	Forward offset.
EyePointOffsetTypesSidewaysOffset	Sideways offset.
EyePointOffsetTypesUpwardOffset	Upward offset.

enum NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointTypes

This enum represents the binocular or monocular eye position definition options.

Enumerator:

EyePointTypesBinocular	Binocular type.
EyePointTypesMonocular	Monocular type.

enum NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PathPositionTypes

This enum represents the cylinder path position display options.

Enumerator:

PathPositionTypesBoth	Both top and bottom.
PathPositionTypesTop	Top.
PathPositionTypesBottom	Bottom.

enum NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionMethods

This enum represents the cylinder position method options.

Enumerator:

PositionMethodsTangentArea	Tangent Area.
PositionMethodsVehicleContact	Vehicle contact.
PositionMethodsFrontView	Front view.

enum NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionPaths

This enum represents the cylinder position path options.

Enumerator:

PositionPathsBaseData	Base data.
PositionPathsVehicleObject	Vehicle object.

enum NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::RequirementsControlType

This enum represents the standard or user defined requirement options.

Enumerator:

RequirementsControlTypeStandardDriven	Standard driven type.
RequirementsControlTypeUserDefined	User defined type.

Member Function Documentation

NXOpen::Features::VehicleDesign::CloseRangeCameraListItemBuilderList* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::CameraList ( )

Returns the list of Features::VehicleDesign::CloseRangeCameraListItemBuilder defining the camera parameters.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CloseRangeCameraListItemBuilder* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::CreateCameraListItemBuilder ( )

Creates a Features::VehicleDesign::CloseRangeCameraListItemBuilder.

Returns: Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

NXOpen::Features::VehicleDesign::CloseRangeDemoCylinderListItemBuilder* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::CreateDemoCylinderListItemBuilder ( )

Creates a Features::VehicleDesign::CloseRangeDemoCylinderListItemBuilder.

Returns: Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

NXOpen::Expression* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::CylinderHeight ( )

Returns the expression containing the value for the cylinder height.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::CylinderRadius ( )

Returns the expression containing the value for the cylinder radius.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CloseRangeDemoCylinderListItemBuilderList* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::DemoCylinderList ( )

Returns the list of Features::VehicleDesign::CloseRangeDemoCylinderListItemBuilder defining the demo cylinder parameters.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::DistanceFromVehicle ( )

Returns the expression containing the value for the distance from vehicle.

Only valid when position method equals to front view type.
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::DriverSideExtension ( )

Returns the expression containing the value for the driver side extension.

Only valid when position method equals to front view type.
Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointOffsetTypes NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointOffsetType ( )

Returns the eye point offset types to define the close range visibility.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointTypes NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointType ( )

Returns the eye point types to define the close range visibility.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::K1Coefficient ( )

Returns the expression containing the value for the k1 coefficient used in blind volume checking.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::K2Coefficient ( )

Returns the expression containing the value for the k2 coefficient used in blind volume checking.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::Loading ( )

Returns the loading used in the close range visibility.

Created in NX8.5.0.

License requirements : None

NXOpen::Section* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::MirrorBoundary ( )

Returns the curves selection used to identify the mirror boundary section.

Only valid when use mirror is checked.
Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::MirrorFaces ( )

Returns the faces selection used to identify the mirror surfaces.

Only valid when use mirror is checked.
Created in NX8.5.0.

License requirements : None

NXOpen::Point* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::MirrorRotationPoint ( )

Returns the mirror rotation point specified.

Only valid when rotate mirror face is checked.
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::MirrorRotationYAngle ( )

Returns the mirror rotation angle around vehicle Y axis after Z axis.

Only valid when rotate mirror face is checked.
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::MirrorRotationZAngle ( )

Returns the mirror rotation angle around vehicle Z axis.

Only valid when rotate mirror face is checked.
Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::ObstructionFaces ( )

Returns the faces selection used to identify the vehicle obstruction surfaces.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PassengerSideExtension ( )

Returns the expression containing the value for the passenger side extension.

Only valid when position method equals to front view type.
Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PathPositionTypes NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PathPositionType ( )

Returns the path position types used to define close range visibility.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionMethods NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionMethod ( )

Returns the position method types to define the close range visibility.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionPaths NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionPath ( )

Returns the position path types to define the close range visibility.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::RequirementsControlType NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::RequirementsControl ( )

Returns the requirements control types to define the close range visibility.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::RotateMirrorFace ( )

Returns the indication if the mirror face will be rotated.

Only valid when use mirror is checked.
Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetEyePointOffsetType ( NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointOffsetTypes eyePointOffsetType )

Sets the eye point offset types to define the close range visibility.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

eyePointOffsetType eyepointoffsettype

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetEyePointType ( NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::EyePointTypes eyePointType )

Sets the eye point types to define the close range visibility.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

eyePointType eyepointtype

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetLoading ( const NXString & loading )

Sets the loading used in the close range visibility.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loading loading

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetLoading ( const char * loading )

Sets the loading used in the close range visibility.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loading loading

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetMirrorRotationPoint ( NXOpen::Point * mirrorRotationPoint )

Sets the mirror rotation point specified.

Only valid when rotate mirror face is checked.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

mirrorRotationPoint mirrorrotationpoint

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetPathPositionType ( NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PathPositionTypes pathPositionType )

Sets the path position types used to define close range visibility.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

pathPositionType pathpositiontype

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetPositionMethod ( NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionMethods positionMethod )

Sets the position method types to define the close range visibility.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

positionMethod positionmethod

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetPositionPath ( NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::PositionPaths positionPath )

Sets the position path types to define the close range visibility.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

positionPath positionpath

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetRequirementsControl ( NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::RequirementsControlType requirement )

Sets the requirements control types to define the close range visibility.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

requirement requirement

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetRotateMirrorFace ( bool rotateMirrorFace )

Sets the indication if the mirror face will be rotated.

Only valid when use mirror is checked.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rotateMirrorFace rotatemirrorface

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetShowBlindVolume ( bool showBlindVolume )

Sets the indication if blind volume will be displayed.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showBlindVolume showblindvolume

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetShowExtendedEyes ( bool showExtendedEyes )

Sets the indication if extended eyes will be displayed.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showExtendedEyes showextendedeyes

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetShowEyeLabels ( bool showEyeLabels )

Sets the indication if eye labels will be displayed.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showEyeLabels showeyelabels

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetShowEyePoints ( bool showEyePoints )

Sets the indication if eye points will be displayed.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showEyePoints showeyepoints

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetShowPath ( bool showPath )

Sets the indication if demo cylinder path will be displayed.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showPath showpath

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetShowPathPoints ( bool showPathPoints )

Sets the indication if demo cylinder point position on path will be displayed.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showPathPoints showpathpoints

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetShowSightRays ( bool showSightRays )

Sets the indication if blind volume sight rays will be displayed.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showSightRays showsightrays

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetShowTorsoLine ( bool showTorsoLine )

Sets the indication if torso line will be displayed.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showTorsoLine showtorsoline

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetStandard ( const NXString & standard )

Sets the standard types to define the close range visibility.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetStandard ( const char * standard )

Sets the standard types to define the close range visibility.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetStepValue ( double stepValue )

Sets the step value to control the accurate for demo cylinder visibility and blind volume area calculation.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

stepValue stepvalue

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::SetUseMirror ( bool useMirror )

Sets the indication if the mirror will be used.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

useMirror usemirror

bool NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::ShowBlindVolume ( )

Returns the indication if blind volume will be displayed.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::ShowExtendedEyes ( )

Returns the indication if extended eyes will be displayed.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::ShowEyeLabels ( )

Returns the indication if eye labels will be displayed.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::ShowEyePoints ( )

Returns the indication if eye points will be displayed.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::ShowPath ( )

Returns the indication if demo cylinder path will be displayed.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::ShowPathPoints ( )

Returns the indication if demo cylinder point position on path will be displayed.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::ShowSightRays ( )

Returns the indication if blind volume sight rays will be displayed.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::ShowTorsoLine ( )

Returns the indication if torso line will be displayed.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::Standard ( )

Returns the standard types to define the close range visibility.

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::StepValue ( )

Returns the step value to control the accurate for demo cylinder visibility and blind volume area calculation.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::UseMirror ( )

Returns the indication if the mirror will be used.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::ValidateBlindVolumes ( )

Validate blind volume area from driver side view.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::VehicleBodies ( )

Returns the bodies selection used to identify vehicle bodies.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::CloseRangeVisibilityBuilder::WindowFaces ( )

Returns the faces selection used to identify the vehicle window surfaces.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_CloseRangeVisibilityBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
