NXOpen::Features::VehicleDesign::AllAroundVisionBuilder Class Reference

A Features::VehicleDesign::AllAroundVisionBuilder used to create or edit a vehicle design Features::VehicleDesign::AllAroundVision feature. More...

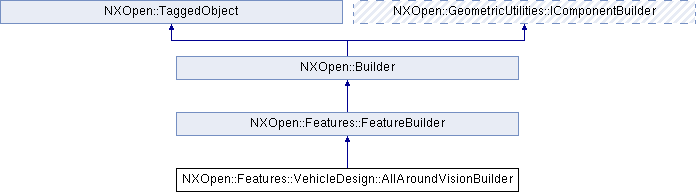

Inheritance diagram for NXOpen::Features::VehicleDesign::AllAroundVisionBuilder:

Public Types
enum	Types { TypesPillars, TypesWindows }
	Used to indicate the type of obstructing geometry to use. More...
enum	WindowTypes { WindowTypesFace, WindowTypesCurve }
	Used to indicate the type of geometry used to define the window. More...

Public Member Functions
NXOpen::ScCollector *	CarGeometry ()
	Returns the faces representing the car geometry to use as obstructing elements.
bool	CreateIntersectionGeometry ()
	Returns the indication if the intersection geometry should be created.
double	DistanceTolerance ()
	Returns the distance tolerance.
NXOpen::ScCollector *	FrontHeadRestGeometry ()
	Returns the faces representing the front head rest geometry to use as obstructing elements.
NXOpen::NXColor *	ObstructedColor ()
	Returns the color of the obstructed area.
NXOpen::ScCollector *	RearHeadRestGeometry ()
	Returns the faces representing the rear head rest geometry to use as obstructing elements.
NXOpen::Point *	SeatReferencePoint ()
	Returns the seat reference point(SgRP).
void	SetCreateIntersectionGeometry (bool createIntersectionGeometry)
	Sets the indication if the intersection geometry should be created.
void	SetDistanceTolerance (double distanceTolerance)
	Sets the distance tolerance.
void	SetObstructedColor (NXOpen::NXColor *obstructedColor)
	Sets the color of the obstructed area.
void	SetSeatReferencePoint (NXOpen::Point *seatReferencePoint)
	Sets the seat reference point(SgRP).
void	SetTranslucency (int translucency)
	Sets the translucency of the vision area.
void	SetType (NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::Types type)
	Sets the type of obstructing geometry being supplied.
void	SetUseFrontHeadRests (bool useFrontHeadRests)
	Sets the indication if the front head rests geometry should be used.
void	SetUseRearHeadRests (bool useRearHeadRests)
	Sets the indication if rear head rests geometry should be used.
void	SetUseWireFrameOnly (bool useWireFrameOnly)
	Sets the indication if only wire frame should be used.
void	SetVisibleColor (NXOpen::NXColor *visibleColor)
	Sets the color of the visible area.
void	SetWindowType (NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::WindowTypes windowType)
	Sets the type of geometry used to define the window.
int	Translucency ()
	Returns the translucency of the vision area.
NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::Types	Type ()
	Returns the type of obstructing geometry being supplied.
bool	UseFrontHeadRests ()
	Returns the indication if the front head rests geometry should be used.
bool	UseRearHeadRests ()
	Returns the indication if rear head rests geometry should be used.
bool	UseWireFrameOnly ()
	Returns the indication if only wire frame should be used.
NXOpen::NXColor *	VisibleColor ()
	Returns the color of the visible area.
NXOpen::Expression *	VisionAreaRadius ()
	Returns the radius of a circle definiing the vision area.
NXOpen::Section *	WindowCurveGeometry ()
	Returns the curves representing the window geometry to use as non-obstructing elements.
NXOpen::ScCollector *	WindowFaceGeometry ()
	Returns the faces representing the window geometry to use as non-obstructing elements.
NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::WindowTypes	WindowType ()
	Returns the type of geometry used to define the window.
Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.
NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.
bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.
NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.
void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.
void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.
NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

A Features::VehicleDesign::AllAroundVisionBuilder used to create or edit a vehicle design Features::VehicleDesign::AllAroundVision feature.

     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateAllAroundVisionBuilder  Features::VehicleDesignCollection::CreateAllAroundVisionBuilder @endlink  <br>

Default values.

Property	Value
CreateIntersectionGeometry	0
UseFrontHeadRests	0
UseRearHeadRests	0
UseWireFrameOnly	0
VisionAreaRadius.Value	0 (millimeters part), 0 (inches part)
WindowType	Face

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::Types

Used to indicate the type of obstructing geometry to use.

Enumerator:

TypesPillars	Pillars as obstructing geometry.
TypesWindows	Windows as non-obstructing geometry.

enum NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::WindowTypes

Used to indicate the type of geometry used to define the window.

Enumerator:

WindowTypesFace	Face Object for Windows.
WindowTypesCurve	Curve Object for Windows.

Member Function Documentation

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::CarGeometry

(

)

Returns the faces representing the car geometry to use as obstructing elements.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::CreateIntersectionGeometry

(

)

Returns the indication if the intersection geometry should be created.

Created in NX8.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::DistanceTolerance

(

)

Returns the distance tolerance.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::FrontHeadRestGeometry

(

)

Returns the faces representing the front head rest geometry to use as obstructing elements.

Created in NX8.5.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::ObstructedColor

(

)

Returns the color of the obstructed area.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::RearHeadRestGeometry

(

)

Returns the faces representing the rear head rest geometry to use as obstructing elements.

Created in NX8.5.0.

License requirements : None

NXOpen::Point* NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SeatReferencePoint

(

)

Returns the seat reference point(SgRP).

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SetCreateIntersectionGeometry

(

bool

createIntersectionGeometry

)

Sets the indication if the intersection geometry should be created.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

createIntersectionGeometry

createintersectiongeometry

void NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SetDistanceTolerance

(

double

distanceTolerance

)

Sets the distance tolerance.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

distanceTolerance

distancetolerance

void NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SetObstructedColor

(

NXOpen::NXColor *

obstructedColor

)

Sets the color of the obstructed area.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

obstructedColor

obstructedcolor

void NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SetSeatReferencePoint

(

NXOpen::Point *

seatReferencePoint

)

Sets the seat reference point(SgRP).

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

seatReferencePoint

seatreferencepoint

void NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SetTranslucency

(

int

translucency

)

Sets the translucency of the vision area.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

translucency

translucency

void NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SetType

(

NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::Types

type

)

Sets the type of obstructing geometry being supplied.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

type

type

void NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SetUseFrontHeadRests

(

bool

useFrontHeadRests

)

Sets the indication if the front head rests geometry should be used.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

useFrontHeadRests

usefrontheadrests

void NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SetUseRearHeadRests

(

bool

useRearHeadRests

)

Sets the indication if rear head rests geometry should be used.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

useRearHeadRests

userearheadrests

void NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SetUseWireFrameOnly

(

bool

useWireFrameOnly

)

Sets the indication if only wire frame should be used.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

useWireFrameOnly

usewireframeonly

void NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SetVisibleColor

(

NXOpen::NXColor *

visibleColor

)

Sets the color of the visible area.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

visibleColor

visiblecolor

void NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::SetWindowType

(

NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::WindowTypes

windowType

)

Sets the type of geometry used to define the window.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

windowType

windowtype

int NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::Translucency

(

)

Returns the translucency of the vision area.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::Types NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::Type

(

)

Returns the type of obstructing geometry being supplied.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::UseFrontHeadRests

(

)

Returns the indication if the front head rests geometry should be used.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::UseRearHeadRests

(

)

Returns the indication if rear head rests geometry should be used.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::UseWireFrameOnly

(

)

Returns the indication if only wire frame should be used.

Created in NX8.5.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::VisibleColor

(

)

Returns the color of the visible area.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::VisionAreaRadius

(

)

Returns the radius of a circle definiing the vision area.

Created in NX8.5.0.

License requirements : None

NXOpen::Section* NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::WindowCurveGeometry

(

)

Returns the curves representing the window geometry to use as non-obstructing elements.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::WindowFaceGeometry

(

)

Returns the faces representing the window geometry to use as non-obstructing elements.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::WindowTypes NXOpen::Features::VehicleDesign::AllAroundVisionBuilder::WindowType

(

)

Returns the type of geometry used to define the window.

Created in NX8.5.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_VehicleDesign_AllAroundVisionBuilder.hxx
