    Represents a @link Features::ShipDesign::Profile Features::ShipDesign::Profile@endlink  builder
     <br> To create a new instance of this class, use @link Features::ShipCollection::CreateProfileBuilder  Features::ShipCollection::CreateProfileBuilder @endlink  <br>

Default values. More...

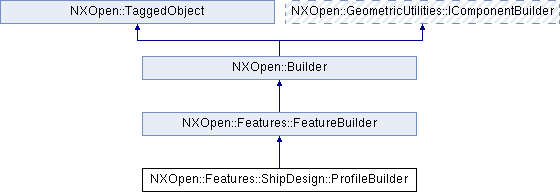

Inheritance diagram for NXOpen::Features::ShipDesign::ProfileBuilder:

Public Types
enum	Alignment { AlignmentCenter, AlignmentGuideEdge, AlignmentOppositeGuide }
	Creation method used to define the placement of the belt this is disabled for profiles. More...

enum	EndCutOption { EndCutOptionNone, EndCutOptionSymmetric, EndCutOptionTwoSided }
	Creation method used to define the end cut type. More...

enum	OrientationOption { OrientationOptionFaceNormal, OrientationOptionDatumCsys, OrientationOptionVector }
	Creation method used to define the placement of the profile this is disabled for belt creation. More...

enum	SectionOption { SectionOptionPlate, SectionOptionProfile }
	Creation of profile from the library or a plate. More...

enum	TypeOption { TypeOptionProfile, TypeOptionBelt }
	Creation type either a belt or a profile. More...

Public Member Functions
NXOpen::Expression *	AngleOfRotation ()
	Returns the angle of rotation Created in NX7.5.1.

double	AngularTolerance ()
	Returns the angular tolerance (degrees).

int	AttributeMaterial ()
	Returns the material attribute Created in NX7.5.0.

int	AttributeName ()
	Returns the name attribute value Created in NX7.5.0.

NXOpen::Features::ShipDesign::ProfileBuilder::Alignment	BeltAlignment ()
	Returns the belt alignment Created in NX7.5.0.

int	BeltSize ()
	Returns the belt size options Created in NX7.5.0.

int	BeltType ()
	Returns the belt type options Created in NX7.5.0.

NXOpen::GeometricUtilities::CurveLengthData *	CurveLengthData ()
	Returns the curve length data Created in NX7.5.0.

double	DistanceTolerance ()
	Returns the distance tolerance (part units).

NXOpen::Features::ShipDesign::ProfileBuilder::EndCutOption	EndCutType ()
	Returns the end cut type Created in NX7.5.0.

NXOpen::EndCutBlockBuilder *	EndEndCutBlock ()
	Returns the end end cut block Created in NX7.5.0.

NXOpen::Expression *	FaceOffsetExpression ()
	Returns the face offset expression Created in NX7.5.0.

bool	FaceOffsetVector ()
	Returns the face offset vector Created in NX7.5.0.

std::vector< NXString >	GetAvailableAttributeMaterials ()
	Returns the list of available material attributes.

std::vector< NXString >	GetAvailableAttributeNames ()
	Returns the list of available name attributes.

std::vector< NXString >	GetAvailableBeltSizes ()
	Returns the list of available material attributes.

std::vector< NXString >	GetAvailableBeltTypes ()
	Returns the list of available material attributes.

std::vector< NXString >	GetAvailableProfileSizes ()
	Returns the list of available material attributes.

std::vector< NXString >	GetAvailableProfileTypes ()
	Returns the list of available material attributes.

NXOpen::Expression *	GuideOffsetExpression ()
	Returns the guide offset expression Created in NX7.5.0.

bool	GuideOffsetVector ()
	Returns the guide offset vector Created in NX7.5.0.

NXOpen::Section *	GuideSection ()
	Returns the select edge Created in NX7.5.0.

bool	KeepFace ()
	Returns the toggle which allows re-use of the selected faces Created in NX7.5.0.

bool	KeepGuide ()
	Returns the toggle which allows re-use of the selected edges or curves Created in NX7.5.0.

NXOpen::Direction *	OrientationVector ()
	Returns the orientation vector Created in NX7.5.4.

NXOpen::Features::ShipDesign::ProfileBuilder::OrientationOption	OrientType ()
	Returns the orient type Created in NX7.5.0.

NXOpen::Expression *	PlateHeight ()
	Returns the plate height Created in NX7.5.0.

NXOpen::Expression *	PlateWIdth ()
	Returns the plate width Created in NX7.5.0.

int	ProfileSize ()
	Returns the profile size options Created in NX7.5.0.

int	ProfileType ()
	Returns the profile type options Created in NX7.5.0.

NXOpen::Features::ShipDesign::ProfileBuilder::SectionOption	SectionType ()
	Returns the section type Created in NX7.5.0.

NXOpen::Features::SelectFeatureList *	SelectCsys ()
	Returns the select csys Created in NX7.5.0.

NXOpen::ScCollector *	SelectFace ()
	Returns the placement faces or datum plane Created in NX7.5.0.

void	SetAngularTolerance (double angularTolerance)
	Sets the angular tolerance (degrees).

void	SetAttributeMaterial (int material)
	Sets the material attribute Created in NX7.5.0.

void	SetAttributeName (int name)
	Sets the name attribute value Created in NX7.5.0.

void	SetBeltAlignment (NXOpen::Features::ShipDesign::ProfileBuilder::Alignment beltAlignment)
	Sets the belt alignment Created in NX7.5.0.

void	SetBeltSize (int size)
	Sets the belt size options Created in NX7.5.0.

void	SetBeltType (int type)
	Sets the belt type options Created in NX7.5.0.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the distance tolerance (part units).

void	SetEndCutType (NXOpen::Features::ShipDesign::ProfileBuilder::EndCutOption endCutType)
	Sets the end cut type Created in NX7.5.0.

void	SetFaceOffsetVector (bool faceOffsetVector)
	Sets the face offset vector Created in NX7.5.0.

void	SetGuideOffsetVector (bool guideOffsetVector)
	Sets the guide offset vector Created in NX7.5.0.

void	SetKeepFace (bool keepFace)
	Sets the toggle which allows re-use of the selected faces Created in NX7.5.0.

void	SetKeepGuide (bool keepGuide)
	Sets the toggle which allows re-use of the selected edges or curves Created in NX7.5.0.

void	SetOrientationVector (NXOpen::Direction *orientationVector)
	Sets the orientation vector Created in NX7.5.4.

void	SetOrientType (NXOpen::Features::ShipDesign::ProfileBuilder::OrientationOption orientType)
	Sets the orient type Created in NX7.5.0.

void	SetProfileSize (int size)
	Sets the profile size options Created in NX7.5.0.

void	SetProfileType (int type)
	Sets the profile type options Created in NX7.5.0.

void	SetSectionType (NXOpen::Features::ShipDesign::ProfileBuilder::SectionOption sectionType)
	Sets the section type Created in NX7.5.0.

void	SetType (NXOpen::Features::ShipDesign::ProfileBuilder::TypeOption type)
	Sets the type belt or profile Created in NX7.5.0.

NXOpen::EndCutBlockBuilder *	StartEndCutBlock ()
	Returns the start end cut block Created in NX7.5.0.

NXOpen::Features::ShipDesign::ProfileBuilder::TypeOption	Type ()
	Returns the type belt or profile Created in NX7.5.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

    Represents a @link Features::ShipDesign::Profile Features::ShipDesign::Profile@endlink  builder
     <br> To create a new instance of this class, use @link Features::ShipCollection::CreateProfileBuilder  Features::ShipCollection::CreateProfileBuilder @endlink  <br>

Default values.

Property

Value

AngleOfRotation.Value

0

AngularTolerance

0.5

BeltAlignment

Center

DistanceTolerance

0.0254 (millimeters part), 0.001 (inches part)

EndCutType

None

EndEndCutBlock.Angle.Value

0

EndEndCutBlock.Offset.Value

0

EndEndCutBlock.SketchBlock.Exp1.Value

0

EndEndCutBlock.SketchBlock.Exp10.Value

0

EndEndCutBlock.SketchBlock.Exp11.Value

0

EndEndCutBlock.SketchBlock.Exp12.Value

0

EndEndCutBlock.SketchBlock.Exp2.Value

0

EndEndCutBlock.SketchBlock.Exp3.Value

0

EndEndCutBlock.SketchBlock.Exp4.Value

0

EndEndCutBlock.SketchBlock.Exp5.Value

0

EndEndCutBlock.SketchBlock.Exp6.Value

0

EndEndCutBlock.SketchBlock.Exp7.Value

0

EndEndCutBlock.SketchBlock.Exp8.Value

0

EndEndCutBlock.SketchBlock.Exp9.Value

0

EndEndCutBlock.SketchBlock.Sketches

EndCut1

EndEndCutBlock.TaperType

Trim

FaceOffsetExpression.Value

0

GuideOffsetExpression.Value

0

KeepFace

0

KeepGuide

0

OrientType

FaceNormal

PlateHeight.Value

0

PlateWIdth.Value

0

SectionType

Profile

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::ProfileBuilder::Alignment

Creation method used to define the placement of the belt this is disabled for profiles.

Enumerator:

AlignmentCenter	center
AlignmentGuideEdge	guide edge
AlignmentOppositeGuide	opposite guide

enum NXOpen::Features::ShipDesign::ProfileBuilder::EndCutOption

Creation method used to define the end cut type.

Enumerator:

EndCutOptionNone	none
EndCutOptionSymmetric	symmetric
EndCutOptionTwoSided	two sided

enum NXOpen::Features::ShipDesign::ProfileBuilder::OrientationOption

Creation method used to define the placement of the profile this is disabled for belt creation.

Enumerator:

OrientationOptionFaceNormal	face normal
OrientationOptionDatumCsys	datum csys
OrientationOptionVector	vector

enum NXOpen::Features::ShipDesign::ProfileBuilder::SectionOption

Creation of profile from the library or a plate.

Enumerator:

SectionOptionPlate	plate
SectionOptionProfile	profile

enum NXOpen::Features::ShipDesign::ProfileBuilder::TypeOption

Creation type either a belt or a profile.

Enumerator:

TypeOptionProfile	profile
TypeOptionBelt	belt

Member Function Documentation

NXOpen::Expression* NXOpen::Features::ShipDesign::ProfileBuilder::AngleOfRotation ( )

Returns the angle of rotation
Created in NX7.5.1.

License requirements : None

double NXOpen::Features::ShipDesign::ProfileBuilder::AngularTolerance ( )

Returns the angular tolerance (degrees).

Created in NX8.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::ProfileBuilder::AttributeMaterial ( )

Returns the material attribute
Created in NX7.5.0.

License requirements : None

int NXOpen::Features::ShipDesign::ProfileBuilder::AttributeName ( )

Returns the name attribute value
Created in NX7.5.0.

License requirements : None

NXOpen::Features::ShipDesign::ProfileBuilder::Alignment NXOpen::Features::ShipDesign::ProfileBuilder::BeltAlignment ( )

Returns the belt alignment
Created in NX7.5.0.

License requirements : None

int NXOpen::Features::ShipDesign::ProfileBuilder::BeltSize ( )

Returns the belt size options
Created in NX7.5.0.

License requirements : None

int NXOpen::Features::ShipDesign::ProfileBuilder::BeltType ( )

Returns the belt type options
Created in NX7.5.0.

License requirements : None

NXOpen::GeometricUtilities::CurveLengthData* NXOpen::Features::ShipDesign::ProfileBuilder::CurveLengthData ( )

Returns the curve length data
Created in NX7.5.0.

License requirements : None

double NXOpen::Features::ShipDesign::ProfileBuilder::DistanceTolerance ( )

Returns the distance tolerance (part units).

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::ProfileBuilder::EndCutOption NXOpen::Features::ShipDesign::ProfileBuilder::EndCutType ( )

Returns the end cut type
Created in NX7.5.0.

License requirements : None

NXOpen::EndCutBlockBuilder* NXOpen::Features::ShipDesign::ProfileBuilder::EndEndCutBlock ( )

Returns the end end cut block
Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::ProfileBuilder::FaceOffsetExpression ( )

Returns the face offset expression
Created in NX7.5.0.

License requirements : None

bool NXOpen::Features::ShipDesign::ProfileBuilder::FaceOffsetVector ( )

Returns the face offset vector
Created in NX7.5.0.

License requirements : None

std::vector<NXString> NXOpen::Features::ShipDesign::ProfileBuilder::GetAvailableAttributeMaterials ( )

Returns the list of available material attributes.

Returns: Array of available attribute materials. These materials are specified in the customer defaults file.
Created in NX7.5.0.

License requirements : None

std::vector<NXString> NXOpen::Features::ShipDesign::ProfileBuilder::GetAvailableAttributeNames ( )

Returns the list of available name attributes.

Returns: Array of available attribute names. These names are specified in the customer defaults file.
Created in NX7.5.0.

License requirements : None

std::vector<NXString> NXOpen::Features::ShipDesign::ProfileBuilder::GetAvailableBeltSizes ( )

Returns the list of available material attributes.

Returns: Array of available belt types derived from the belt library.
Created in NX7.5.0.

License requirements : None

std::vector<NXString> NXOpen::Features::ShipDesign::ProfileBuilder::GetAvailableBeltTypes ( )

Returns the list of available material attributes.

Returns: Array of available belt types derived from the belt library.
Created in NX7.5.0.

License requirements : None

std::vector<NXString> NXOpen::Features::ShipDesign::ProfileBuilder::GetAvailableProfileSizes ( )

Returns the list of available material attributes.

Returns: Array of available profile types derived from the profile library.
Created in NX7.5.0.

License requirements : None

std::vector<NXString> NXOpen::Features::ShipDesign::ProfileBuilder::GetAvailableProfileTypes ( )

Returns the list of available material attributes.

Returns: Array of available profile types derived from the profile library.
Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::ProfileBuilder::GuideOffsetExpression ( )

Returns the guide offset expression
Created in NX7.5.0.

License requirements : None

bool NXOpen::Features::ShipDesign::ProfileBuilder::GuideOffsetVector ( )

Returns the guide offset vector
Created in NX7.5.0.

License requirements : None

NXOpen::Section* NXOpen::Features::ShipDesign::ProfileBuilder::GuideSection ( )

Returns the select edge
Created in NX7.5.0.

License requirements : None

bool NXOpen::Features::ShipDesign::ProfileBuilder::KeepFace ( )

Returns the toggle which allows re-use of the selected faces
Created in NX7.5.0.

License requirements : None

bool NXOpen::Features::ShipDesign::ProfileBuilder::KeepGuide ( )

Returns the toggle which allows re-use of the selected edges or curves
Created in NX7.5.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::ShipDesign::ProfileBuilder::OrientationVector ( )

Returns the orientation vector
Created in NX7.5.4.

License requirements : None

NXOpen::Features::ShipDesign::ProfileBuilder::OrientationOption NXOpen::Features::ShipDesign::ProfileBuilder::OrientType ( )

Returns the orient type
Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::ProfileBuilder::PlateHeight ( )

Returns the plate height
Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::ProfileBuilder::PlateWIdth ( )

Returns the plate width
Created in NX7.5.0.

License requirements : None

int NXOpen::Features::ShipDesign::ProfileBuilder::ProfileSize ( )

Returns the profile size options
Created in NX7.5.0.

License requirements : None

int NXOpen::Features::ShipDesign::ProfileBuilder::ProfileType ( )

Returns the profile type options
Created in NX7.5.0.

License requirements : None

NXOpen::Features::ShipDesign::ProfileBuilder::SectionOption NXOpen::Features::ShipDesign::ProfileBuilder::SectionType ( )

Returns the section type
Created in NX7.5.0.

License requirements : None

NXOpen::Features::SelectFeatureList* NXOpen::Features::ShipDesign::ProfileBuilder::SelectCsys ( )

Returns the select csys
Created in NX7.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::ShipDesign::ProfileBuilder::SelectFace ( )

Returns the placement faces or datum plane
Created in NX7.5.0.

License requirements : None

void NXOpen::Features::ShipDesign::ProfileBuilder::SetAngularTolerance ( double angularTolerance )

Sets the angular tolerance (degrees).

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

angularTolerance angulartolerance

void NXOpen::Features::ShipDesign::ProfileBuilder::SetAttributeMaterial ( int material )

Sets the material attribute
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

material material

void NXOpen::Features::ShipDesign::ProfileBuilder::SetAttributeName ( int name )

Sets the name attribute value
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

name name

void NXOpen::Features::ShipDesign::ProfileBuilder::SetBeltAlignment ( NXOpen::Features::ShipDesign::ProfileBuilder::Alignment beltAlignment )

Sets the belt alignment
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

beltAlignment beltalignment

void NXOpen::Features::ShipDesign::ProfileBuilder::SetBeltSize ( int size )

Sets the belt size options
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

size size

void NXOpen::Features::ShipDesign::ProfileBuilder::SetBeltType ( int type )

Sets the belt type options
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

type type

void NXOpen::Features::ShipDesign::ProfileBuilder::SetDistanceTolerance ( double distanceTolerance )

Sets the distance tolerance (part units).

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

distanceTolerance distancetolerance

void NXOpen::Features::ShipDesign::ProfileBuilder::SetEndCutType ( NXOpen::Features::ShipDesign::ProfileBuilder::EndCutOption endCutType )

Sets the end cut type
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

endCutType endcuttype

void NXOpen::Features::ShipDesign::ProfileBuilder::SetFaceOffsetVector ( bool faceOffsetVector )

Sets the face offset vector
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

faceOffsetVector faceoffsetvector

void NXOpen::Features::ShipDesign::ProfileBuilder::SetGuideOffsetVector ( bool guideOffsetVector )

Sets the guide offset vector
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

guideOffsetVector guideoffsetvector

void NXOpen::Features::ShipDesign::ProfileBuilder::SetKeepFace ( bool keepFace )

Sets the toggle which allows re-use of the selected faces
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

keepFace keepface

void NXOpen::Features::ShipDesign::ProfileBuilder::SetKeepGuide ( bool keepGuide )

Sets the toggle which allows re-use of the selected edges or curves
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

keepGuide keepguide

void NXOpen::Features::ShipDesign::ProfileBuilder::SetOrientationVector ( NXOpen::Direction * orientationVector )

Sets the orientation vector
Created in NX7.5.4.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

orientationVector orientationvector

void NXOpen::Features::ShipDesign::ProfileBuilder::SetOrientType ( NXOpen::Features::ShipDesign::ProfileBuilder::OrientationOption orientType )

Sets the orient type
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

orientType orienttype

void NXOpen::Features::ShipDesign::ProfileBuilder::SetProfileSize ( int size )

Sets the profile size options
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

size size

void NXOpen::Features::ShipDesign::ProfileBuilder::SetProfileType ( int type )

Sets the profile type options
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

type type

void NXOpen::Features::ShipDesign::ProfileBuilder::SetSectionType ( NXOpen::Features::ShipDesign::ProfileBuilder::SectionOption sectionType )

Sets the section type
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

sectionType sectiontype

void NXOpen::Features::ShipDesign::ProfileBuilder::SetType ( NXOpen::Features::ShipDesign::ProfileBuilder::TypeOption type )

Sets the type belt or profile
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

type type

NXOpen::EndCutBlockBuilder* NXOpen::Features::ShipDesign::ProfileBuilder::StartEndCutBlock ( )

Returns the start end cut block
Created in NX7.5.0.

License requirements : None

NXOpen::Features::ShipDesign::ProfileBuilder::TypeOption NXOpen::Features::ShipDesign::ProfileBuilder::Type ( )

Returns the type belt or profile
Created in NX7.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_ProfileBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
