Represents a Tab feature builder. More...

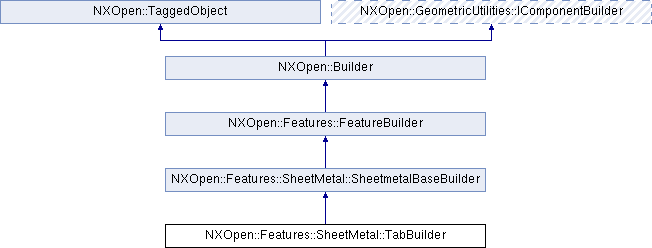

Inheritance diagram for NXOpen::Features::SheetMetal::TabBuilder:

Public Types
enum	SectionSideOptions { SectionSideOptionsLeft, SectionSideOptionsRight }
	This enum represents the side of the section that the dimple punches material. More...

enum	ThicknessSideOptions { ThicknessSideOptionsSectionNormalSide, ThicknessSideOptionsSectionReverseNormalSide }
	This enum represents the extent direction for the Tab. More...

Public Member Functions
bool	IsSecondary ()
	Returns the tab type Created in NX4.0.0.

NXOpen::Features::SheetMetal::TabBuilder::SectionSideOptions	MaterialSide ()
	Returns the material side value of secondary tab Created in NX4.0.0.

NXOpen::Section *	Section ()
	Returns the section of tab Created in NX4.0.0.

void	SetMaterialSide (NXOpen::Features::SheetMetal::TabBuilder::SectionSideOptions sectionSide)
	Sets the material side value of secondary tab Created in NX4.0.0.

void	SetSecondary (bool isSecondary)
	Sets the tab type Created in NX4.0.0.

void	SetSection (NXOpen::Section *section)
	Sets the section of tab Created in NX4.0.0.

void	SetSketch (NXOpen::Features::SketchFeature *sketch)
	Sets the sketch of tab Created in NX4.0.0.

void	SetThickness (const NXString &thickness)
	Created in NX4.0.0.

void	SetThickness (const char *thickness)
	Created in NX4.0.0.

void	SetThicknessSide (NXOpen::Features::SheetMetal::TabBuilder::ThicknessSideOptions flag)
	Sets the sweep direction flag of tab Created in NX4.0.0.

NXOpen::Features::SketchFeature *	Sketch ()
	Returns the sketch of tab Created in NX4.0.0.

NXOpen::Expression *	Thickness ()
	Returns the thickness of tab Created in NX4.0.0.

NXOpen::Features::SheetMetal::TabBuilder::ThicknessSideOptions	ThicknessSide ()
	Returns the sweep direction flag of tab Created in NX4.0.0.

int	ValidateBuilderData ()
	Verify whether the builder data is valid for creating a Tab or not.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Tab feature builder.

To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateTabFeatureBuilder

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::TabBuilder::SectionSideOptions

This enum represents the side of the section that the dimple punches material.

The "left" option represents the side to the left of a person who is walking along the section in the direction of its curves when the section normal is pointing up. The "right" option represents the person's right hand side. This interpretation is the same regardless of whether the section is open or closed. The "right" side at any point along the section can also be represented by the vector resulting from the cross product of the curve tangent (of the section curve at that point) and the section normal. The "left" side is the opposite.

Enumerator:

SectionSideOptionsLeft	Side pointed to by the inverse of the tangent cross normal vector.
SectionSideOptionsRight	Side pointed to by the tangent cross normal vector.

enum NXOpen::Features::SheetMetal::TabBuilder::ThicknessSideOptions

This enum represents the extent direction for the Tab.

Enumerator:

ThicknessSideOptionsSectionNormalSide	Material created on the side of the section normal.
ThicknessSideOptionsSectionReverseNormalSide	Material created on the side opposite to that of the section normal.
