Represents a NormalCutout feature builder. More...

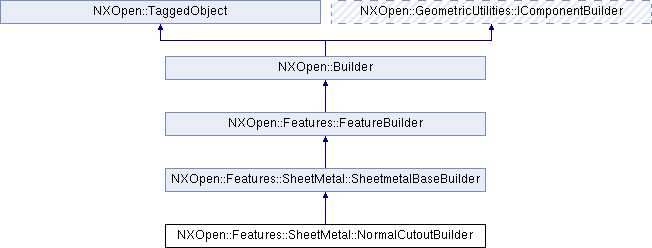

Inheritance diagram for NXOpen::Features::SheetMetal::NormalCutoutBuilder:

Public Types
enum	CutTypeOptions { CutTypeOptionsThicknessCut, CutTypeOptionsMidPlaneCut }
	This enum represents the cut type for the normal cutout. More...

enum	DepthSideOptions { DepthSideOptionsSectionNormalSide, DepthSideOptionsSectionReverseNormalSide, DepthSideOptionsSymmetric }
	This enum represents the depth direction for the normal cutout. More...

enum	DepthTypeOptions { DepthTypeOptionsFinite, DepthTypeOptionsFromTo, DepthTypeOptionsThroughNext, DepthTypeOptionsThroughAll }
	This enum represents the depth type for the normal cutout. More...

enum	SectionSideOptions { SectionSideOptionsLeft, SectionSideOptionsRight }
	This enum represents the side of the section that the normal cutout removes material. More...

enum	TypeOptions { TypeOptionsSketchType, TypeOptionsNonPlanarCurveType }
	Represents the type of the normal cutout - sketch type OR 3D-curve type. More...

Public Member Functions
NXOpen::Features::SheetMetal::NormalCutoutBuilder::CutTypeOptions	CutType ()
	Returns the cut type for the normal cutout.

NXOpen::Expression *	Depth ()
	Returns the depth of the cutout.

NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthSideOptions	DepthSide ()
	Returns the depth side for the normal cutout.

NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptions	DepthType ()
	Returns the depth type for the normal cutout.

NXOpen::ISurface *	From ()
	Returns the face or datum plane from which the cutout begins.

NXOpen::Section *	Section ()
	Returns the section used by the normal cutout.

NXOpen::Features::SheetMetal::NormalCutoutBuilder::SectionSideOptions	SectionSide ()
	Returns the side of the section that the normal cutout removes material.

void	SetCutType (NXOpen::Features::SheetMetal::NormalCutoutBuilder::CutTypeOptions cutType)
	Sets the cut type for the normal cutout.

void	SetDepth (const NXString &depth)
	Created in NX4.0.0.

void	SetDepth (const char *depth)
	Created in NX4.0.0.

void	SetDepthSide (NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthSideOptions depthSide)
	Sets the depth side for the normal cutout.

void	SetDepthType (NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptions type)
	Sets the depth type for the normal cutout.

void	SetFrom (NXOpen::ISurface *ffrom)
	Sets the face or datum plane from which the cutout begins.

void	SetSection (NXOpen::Section *section)
	Sets the section used by the normal cutout.

void	SetSectionSide (NXOpen::Features::SheetMetal::NormalCutoutBuilder::SectionSideOptions sectionSide)
	Sets the side of the section that the normal cutout removes material.

void	SetSketch (NXOpen::Features::SketchFeature *sketch)
	Sets the internal sketch used by the normal cutout, if it exists.

void	SetTo (NXOpen::ISurface *to)
	Sets the face or datum plane at which the cutout ends.

void	SetType (NXOpen::Features::SheetMetal::NormalCutoutBuilder::TypeOptions type)
	Sets the type for the normal cutout.

NXOpen::Features::SketchFeature *	Sketch ()
	Returns the internal sketch used by the normal cutout, if it exists.

NXOpen::ISurface *	To ()
	Returns the face or datum plane at which the cutout ends.

NXOpen::Features::SheetMetal::NormalCutoutBuilder::TypeOptions	Type ()
	Returns the type for the normal cutout.

int	ValidateBuilderData ()
	Verify that the builder data is valid for creating a normal cutout.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a NormalCutout feature builder.

To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateNormalCutoutFeatureBuilder

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::NormalCutoutBuilder::CutTypeOptions

This enum represents the cut type for the normal cutout.

Enumerator:

CutTypeOptionsThicknessCut	thickness cut
CutTypeOptionsMidPlaneCut	mid plane cut

enum NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthSideOptions

This enum represents the depth direction for the normal cutout.

Not used if the normal cutout is from-to.

Enumerator:

DepthSideOptionsSectionNormalSide

Material removed on the side of the section normal.

DepthSideOptionsSectionReverseNormalSide

Material removed on the side opposite to that of the section normal.

DepthSideOptionsSymmetric

Material removed in both directions equally.

Only applies when the depth type is Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptionsFinite .

enum NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptions

This enum represents the depth type for the normal cutout.

Enumerator:

DepthTypeOptionsFinite	Finite.
DepthTypeOptionsFromTo	From To.
DepthTypeOptionsThroughNext	Though Next.
DepthTypeOptionsThroughAll	Through All.

enum NXOpen::Features::SheetMetal::NormalCutoutBuilder::SectionSideOptions

This enum represents the side of the section that the normal cutout removes material.

The "left" option represents the side to the left of a person who is walking along the section in the direction of its curves when the section normal is pointing up. The "right" option represents the person's right hand side. This interpretation is the same regardless of whether the section is open or closed. The "right" side at any point along the section can also be represented by the vector resulting from the cross product of the curve tangent (of the section curve at that point) and the section normal. The "left" side is the opposite.

Enumerator:

SectionSideOptionsLeft	Side pointed to by the inverse of the tangent cross normal vector.
SectionSideOptionsRight	Side pointed to by the tangent cross normal vector.

enum NXOpen::Features::SheetMetal::NormalCutoutBuilder::TypeOptions

Represents the type of the normal cutout - sketch type OR 3D-curve type.

Enumerator:

TypeOptionsSketchType	Sketch type normal cutout.
TypeOptionsNonPlanarCurveType	3D curves type normal cutout

Member Function Documentation

NXOpen::Features::SheetMetal::NormalCutoutBuilder::CutTypeOptions NXOpen::Features::SheetMetal::NormalCutoutBuilder::CutType ( )

Returns the cut type for the normal cutout.

The options are in Features::SheetMetal::NormalCutoutBuilder::CutTypeOptions .

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::NormalCutoutBuilder::Depth ( )

Returns the depth of the cutout.

Only applies when the depth type is Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptionsFinite .
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthSideOptions NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthSide ( )

Returns the depth side for the normal cutout.

The options are in Features::SheetMetal::NormalCutoutBuilder::DepthSideOptions .

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptions NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthType ( )

Returns the depth type for the normal cutout.

The options are in Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptions .

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::ISurface* NXOpen::Features::SheetMetal::NormalCutoutBuilder::From ( )

Returns the face or datum plane from which the cutout begins.

This is only applicable if the depth type is Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptionsFromTo
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Section* NXOpen::Features::SheetMetal::NormalCutoutBuilder::Section ( )

Returns the section used by the normal cutout.

It can be open or closed.
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::NormalCutoutBuilder::SectionSideOptions NXOpen::Features::SheetMetal::NormalCutoutBuilder::SectionSide ( )

Returns the side of the section that the normal cutout removes material.

The options are in Features::SheetMetal::NormalCutoutBuilder::SectionSideOptions .

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

void NXOpen::Features::SheetMetal::NormalCutoutBuilder::SetCutType ( NXOpen::Features::SheetMetal::NormalCutoutBuilder::CutTypeOptions cutType )

Sets the cut type for the normal cutout.

The options are in Features::SheetMetal::NormalCutoutBuilder::CutTypeOptions .

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

cutType cut type

void NXOpen::Features::SheetMetal::NormalCutoutBuilder::SetDepth ( const NXString & depth )

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

depth NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::NormalCutoutBuilder::SetDepth ( const char * depth )

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

depth NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::NormalCutoutBuilder::SetDepthSide ( NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthSideOptions depthSide )

Sets the depth side for the normal cutout.

The options are in Features::SheetMetal::NormalCutoutBuilder::DepthSideOptions .

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

depthSide depth side

void NXOpen::Features::SheetMetal::NormalCutoutBuilder::SetDepthType ( NXOpen::Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptions type )

Sets the depth type for the normal cutout.

The options are in Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptions .

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

type type

void NXOpen::Features::SheetMetal::NormalCutoutBuilder::SetFrom ( NXOpen::ISurface * ffrom )

Sets the face or datum plane from which the cutout begins.

This is only applicable if the depth type is Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptionsFromTo
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

ffrom From face or datum plane

void NXOpen::Features::SheetMetal::NormalCutoutBuilder::SetSection ( NXOpen::Section * section )

Sets the section used by the normal cutout.

It can be open or closed.
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

section section

void NXOpen::Features::SheetMetal::NormalCutoutBuilder::SetSectionSide ( NXOpen::Features::SheetMetal::NormalCutoutBuilder::SectionSideOptions sectionSide )

Sets the side of the section that the normal cutout removes material.

The options are in Features::SheetMetal::NormalCutoutBuilder::SectionSideOptions .

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

sectionSide section side

void NXOpen::Features::SheetMetal::NormalCutoutBuilder::SetSketch ( NXOpen::Features::SketchFeature * sketch )

Sets the internal sketch used by the normal cutout, if it exists.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

sketch sketch

void NXOpen::Features::SheetMetal::NormalCutoutBuilder::SetTo ( NXOpen::ISurface * to )

Sets the face or datum plane at which the cutout ends.

This is only applicable if the depth type is Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptionsFromTo
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

to	To face or datum plane

void NXOpen::Features::SheetMetal::NormalCutoutBuilder::SetType ( NXOpen::Features::SheetMetal::NormalCutoutBuilder::TypeOptions type )

Sets the type for the normal cutout.

The options are in Features::SheetMetal::NormalCutoutBuilder::TypeOptions .

Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

type type

NXOpen::Features::SketchFeature* NXOpen::Features::SheetMetal::NormalCutoutBuilder::Sketch ( )

Returns the internal sketch used by the normal cutout, if it exists.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::ISurface* NXOpen::Features::SheetMetal::NormalCutoutBuilder::To ( )

Returns the face or datum plane at which the cutout ends.

This is only applicable if the depth type is Features::SheetMetal::NormalCutoutBuilder::DepthTypeOptionsFromTo
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::NormalCutoutBuilder::TypeOptions NXOpen::Features::SheetMetal::NormalCutoutBuilder::Type ( )

Returns the type for the normal cutout.

The options are in Features::SheetMetal::NormalCutoutBuilder::TypeOptions .

Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

int NXOpen::Features::SheetMetal::NormalCutoutBuilder::ValidateBuilderData ( )

Verify that the builder data is valid for creating a normal cutout.

        <br>
            If the builder data is valid, a value of 0 is returned.
        <br>
    @return  data validity flag (zero is valid, non-zero is invalid).

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

The documentation for this class was generated from the following file:

Features_SheetMetal_NormalCutoutBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
