Represents a Lofted Flange feature builder. More...

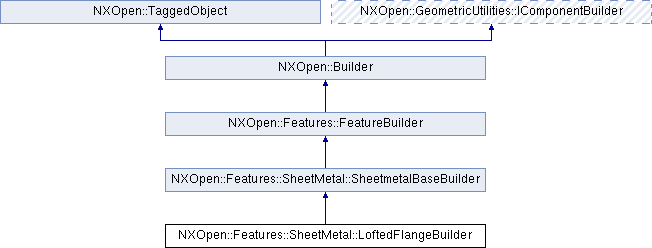

Inheritance diagram for NXOpen::Features::SheetMetal::LoftedFlangeBuilder:

Public Types
enum	SectionSideOptions { SectionSideOptionsLeft, SectionSideOptionsRight }
	This enum represents the side of the section that the lofted flange creates thickness. More...

Public Member Functions
NXOpen::Features::SheetMetal::BendOptions *	BendOptions ()
	Returns the bend options object.

NXOpen::Section *	EndSection ()
	Returns the end section of the lofted flange.The section profile should be open looped.

NXOpen::Point3d	EndSectionPoint ()
	Returns the start/end point of the end section.It can be start/end point of the section profile.

NXOpen::Features::SketchFeature *	EndSketch ()
	Returns the end section sketch as slave.

NXOpen::Expression *	GetThickness ()
	The thickness of base lofted flange.Applicable only for Base lofted flange.

NXOpen::Expression *	IndexMarkLength ()
	Returns the index mark length Get the index mark length expression If use segmented bends is set to true the only the index mark length value is used for dividing the bend even though a value is set Index mark length value only gets reflected in flat pattern view Created in NX6.0.0.

bool	IsSecondary ()
	Returns the type of lofted flange feature - base lofted flange/secondary lofted flange.

int	NumberOfBendSegments ()
	Returns the number of bend segments Get and set the number of bend segments If use segmented bends is set to true then only the number of bend segments value is used for dividing the bend even though a value is set Created in NX6.0.0.

void	SetEndSection (NXOpen::Section *endSection)
	Sets the end section of the lofted flange.The section profile should be open looped.

void	SetEndSectionPoint (const NXOpen::Point3d &point)
	Sets the start/end point of the end section.It can be start/end point of the section profile.

void	SetEndSketch (NXOpen::Features::SketchFeature *slaveEndSketch)
	Sets the end section sketch as slave.

void	SetNumberOfBendSegments (int numberOfBendSegments)
	Sets the number of bend segments Get and set the number of bend segments If use segmented bends is set to true then only the number of bend segments value is used for dividing the bend even though a value is set Created in NX6.0.0.

void	SetSecondary (bool isSecondary)
	Sets the type of lofted flange feature - base lofted flange/secondary lofted flange.

void	SetStartSection (NXOpen::Section *startSection)
	Sets the start section of the lofted flange.

void	SetStartSectionPoint (const NXOpen::Point3d &point)
	Sets the start/end point of the start section.It can be start/end point of the section profile.

void	SetStartSketch (NXOpen::Features::SketchFeature *slaveStartSketch)
	Sets the start section sketch as slave.

void	SetThickness (const NXString &thickness)
	The thickness of base lofted flange.Applicable only for Base lofted flange.

void	SetThickness (const char *thickness)
	The thickness of base lofted flange.Applicable only for Base lofted flange.

void	SetThicknessSide (NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SectionSideOptions thickSide)
	Sets the thickness side of base lofted flange.

void	SetUseSegmentedBends (bool useMultiSegmentBends)
	Sets the use multi segment bends Set use_segmented_bends to true or false and get the same If use multi segment bends is set to true then lofted flange bend face is gets divided as per the number bend segments mentioned by the user Created in NX6.0.0.

NXOpen::Section *	StartSection ()
	Returns the start section of the lofted flange.

NXOpen::Point3d	StartSectionPoint ()
	Returns the start/end point of the start section.It can be start/end point of the section profile.

NXOpen::Features::SketchFeature *	StartSketch ()
	Returns the start section sketch as slave.

NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SectionSideOptions	ThicknessSide ()
	Returns the thickness side of base lofted flange.

bool	UseSegmentedBends ()
	Returns the use multi segment bends Set use_segmented_bends to true or false and get the same If use multi segment bends is set to true then lofted flange bend face is gets divided as per the number bend segments mentioned by the user Created in NX6.0.0.

int	ValidateBuilderData ()
	Verify user data validity.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Lofted Flange feature builder.

To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateLoftedFlangeFeatureBuilder
Default values.

Property

Value

IndexMarkLength.Value

5 (millimeters part), 0.5 (inches part)

NumberOfBendSegments

0

UseSegmentedBends

0

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SectionSideOptions

This enum represents the side of the section that the lofted flange creates thickness.

The "left" option represents the side to the left of a person who is walking along the section in the direction of its curves when the section normal is pointing up. The "right" option represents the person's right hand side. This interpretation is the same regardless of whether the section is open or closed. The "right" side at any point along the section can also be represented by the vector resulting from the cross product of the curve tangent (of the section curve at that point) and the section normal. The "left" side is the opposite.

Enumerator:

SectionSideOptionsLeft	Side pointed to by the inverse of the tangent cross normal vector.
SectionSideOptionsRight	Side pointed to by the tangent cross normal vector.

Member Function Documentation

NXOpen::Features::SheetMetal::BendOptions* NXOpen::Features::SheetMetal::LoftedFlangeBuilder::BendOptions ( )

Returns the bend options object.

   Get the bend options object which is created while creating builder. Then set values to parameters of
   bend options object(like bend radius, bend relief type etc.) using set methods of bend options object.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Section* NXOpen::Features::SheetMetal::LoftedFlangeBuilder::EndSection ( )

Returns the end section of the lofted flange.The section profile should be open looped.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Point3d NXOpen::Features::SheetMetal::LoftedFlangeBuilder::EndSectionPoint ( )

Returns the start/end point of the end section.It can be start/end point of the section profile.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SketchFeature* NXOpen::Features::SheetMetal::LoftedFlangeBuilder::EndSketch ( )

Returns the end section sketch as slave.

  Set the sketch which is used to create end section.
  This is only used when the section is created from sketch. If the section is created
  from edges or if the end sketch is not required to be slave, set the value as NULL .

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::LoftedFlangeBuilder::GetThickness ( )

The thickness of base lofted flange.Applicable only for Base lofted flange.

Ignored for a Secondary Lofted Flange.

Returns: Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::LoftedFlangeBuilder::IndexMarkLength ( )

Returns the index mark length Get the index mark length expression If use segmented bends is set to true the only the index mark length value is used for dividing the bend even though a value is set Index mark length value only gets reflected in flat pattern view
Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::SheetMetal::LoftedFlangeBuilder::IsSecondary ( )

Returns the type of lofted flange feature - base lofted flange/secondary lofted flange.

Specify false for base lofted flanges and true for secondary lofted flanges.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

int NXOpen::Features::SheetMetal::LoftedFlangeBuilder::NumberOfBendSegments ( )

Returns the number of bend segments Get and set the number of bend segments If use segmented bends is set to true then only the number of bend segments value is used for dividing the bend even though a value is set
Created in NX6.0.0.

License requirements : None

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetEndSection ( NXOpen::Section * endSection )

Sets the end section of the lofted flange.The section profile should be open looped.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

endSection end section

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetEndSectionPoint ( const NXOpen::Point3d & point )

Sets the start/end point of the end section.It can be start/end point of the section profile.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

point point

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetEndSketch ( NXOpen::Features::SketchFeature * slaveEndSketch )

Sets the end section sketch as slave.

  Set the sketch which is used to create end section.
  This is only used when the section is created from sketch. If the section is created
  from edges or if the end sketch is not required to be slave, set the value as NULL .

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

slaveEndSketch slave end sketch

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetNumberOfBendSegments ( int numberOfBendSegments )

Sets the number of bend segments Get and set the number of bend segments If use segmented bends is set to true then only the number of bend segments value is used for dividing the bend even though a value is set
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

numberOfBendSegments numberofbendsegments

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetSecondary ( bool isSecondary )

Sets the type of lofted flange feature - base lofted flange/secondary lofted flange.

Specify false for base lofted flanges and true for secondary lofted flanges.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

isSecondary is secondary

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetStartSection ( NXOpen::Section * startSection )

Sets the start section of the lofted flange.

The section profile should be open looped.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

startSection start section

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetStartSectionPoint ( const NXOpen::Point3d & point )

Sets the start/end point of the start section.It can be start/end point of the section profile.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

point point

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetStartSketch ( NXOpen::Features::SketchFeature * slaveStartSketch )

Sets the start section sketch as slave.

  Set the sketch which is used to create start section.
  This is only used when the section is created from sketch. If the section is created
  from edges or start sketch is not required to be slave, set slave sketch as NULL.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

slaveStartSketch slave start sketch

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetThickness ( const NXString & thickness )

The thickness of base lofted flange.Applicable only for Base lofted flange.

Ignored for a Secondary Lofted Flange.
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

thickness NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetThickness ( const char * thickness )

The thickness of base lofted flange.Applicable only for Base lofted flange.

Ignored for a Secondary Lofted Flange.
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

thickness NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetThicknessSide ( NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SectionSideOptions thickSide )

Sets the thickness side of base lofted flange.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

thickSide thick side

void NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SetUseSegmentedBends ( bool useMultiSegmentBends )

Sets the use multi segment bends Set use_segmented_bends to true or false and get the same If use multi segment bends is set to true then lofted flange bend face is gets divided as per the number bend segments mentioned by the user
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal")

Parameters

useMultiSegmentBends usemultisegmentbends

NXOpen::Section* NXOpen::Features::SheetMetal::LoftedFlangeBuilder::StartSection ( )

Returns the start section of the lofted flange.

The section profile should be open looped.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Point3d NXOpen::Features::SheetMetal::LoftedFlangeBuilder::StartSectionPoint ( )

Returns the start/end point of the start section.It can be start/end point of the section profile.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SketchFeature* NXOpen::Features::SheetMetal::LoftedFlangeBuilder::StartSketch ( )

Returns the start section sketch as slave.

  Set the sketch which is used to create start section.
  This is only used when the section is created from sketch. If the section is created
  from edges or start sketch is not required to be slave, set slave sketch as NULL.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::LoftedFlangeBuilder::SectionSideOptions NXOpen::Features::SheetMetal::LoftedFlangeBuilder::ThicknessSide ( )

Returns the thickness side of base lofted flange.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

bool NXOpen::Features::SheetMetal::LoftedFlangeBuilder::UseSegmentedBends ( )

Returns the use multi segment bends Set use_segmented_bends to true or false and get the same If use multi segment bends is set to true then lofted flange bend face is gets divided as per the number bend segments mentioned by the user
Created in NX6.0.0.

License requirements : None

int NXOpen::Features::SheetMetal::LoftedFlangeBuilder::ValidateBuilderData ( )

Verify user data validity.

   If the data is valid, returned value should be 0.

    @return  Data Validity Flag.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

The documentation for this class was generated from the following file:

Features_SheetMetal_LoftedFlangeBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
