This is the feature builder for the convert to sheetmetal feature. More...

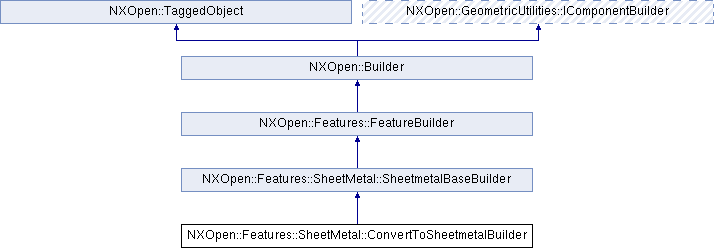

Inheritance diagram for NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder:

Public Types
enum	BendReliefTypeOptions { BendReliefTypeOptionsNone, BendReliefTypeOptionsSquare, BendReliefTypeOptionsRound }
	This enum represents the bend relief type. More...

Public Member Functions
NXOpen::Face *	BaseFace ()
	Returns the base face from which the thickness of the part is determined.

NXOpen::Expression *	BendReliefDepth ()
	Returns the bend relief depth.

NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::BendReliefTypeOptions	BendReliefType ()
	Returns the bend relief type.

NXOpen::Expression *	BendReliefWidth ()
	Returns the bend relief width.

std::vector< NXOpen::Edge * >	GetRipEdges ()
	Gets the array of edges selected for ripping while converting to sheetmetal.

bool	MaintainZeroBendRadius ()
	Returns the option for Maintain zero bend radius.

NXOpen::Section *	RipSection ()
	Returns the section containing curves that need to be ripped while converting to sheetmetal.

void	SetBaseFace (NXOpen::Face *baseFace)
	Sets the base face from which the thickness of the part is determined.

void	SetBendReliefDepth (const NXString &bendReliefDepth)
	Created in NX4.0.0.

void	SetBendReliefDepth (const char *bendReliefDepth)
	Created in NX4.0.0.

void	SetBendReliefType (NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::BendReliefTypeOptions bendReliefType)
	Sets the bend relief type.

void	SetBendReliefWidth (const NXString &bendReliefWidth)
	Created in NX4.0.0.

void	SetBendReliefWidth (const char *bendReliefWidth)
	Created in NX4.0.0.

void	SetMaintainZeroBendRadius (bool maintainZeroBendRadius)
	Sets the option for Maintain zero bend radius.

void	SetRipEdges (const std::vector< NXOpen::Edge * > &ripEdges)
	Sets the array of edges that need to be ripped while converting to sheetmetal.

void	SetRipSection (NXOpen::Section *section)
	Sets the section containing curves that need to be ripped while converting to sheetmetal.

void	SetSketch (NXOpen::Features::SketchFeature *sketch)
	Sets the internal sketch (used to specify rip curves), if it exists.

NXOpen::Features::SketchFeature *	Sketch ()
	Returns the internal sketch (used to specify rip curves), if it exists.

int	ValidateBuilderData ()
	Verify that the builder data is valid for feature creation.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is the feature builder for the convert to sheetmetal feature.

To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateConvertToSheetmetalFeatureBuilder

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::BendReliefTypeOptions

This enum represents the bend relief type.

Enumerator:

BendReliefTypeOptionsNone	none
BendReliefTypeOptionsSquare	square
BendReliefTypeOptionsRound	round

Member Function Documentation

NXOpen::Face* NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::BaseFace ( )

Returns the base face from which the thickness of the part is determined.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

NXOpen::Expression* NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::BendReliefDepth ( )

Returns the bend relief depth.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::BendReliefTypeOptions NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::BendReliefType ( )

Returns the bend relief type.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

NXOpen::Expression* NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::BendReliefWidth ( )

Returns the bend relief width.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

std::vector<NXOpen::Edge *> NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::GetRipEdges ( )

Gets the array of edges selected for ripping while converting to sheetmetal.

    @return

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

bool NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::MaintainZeroBendRadius ( )

Returns the option for Maintain zero bend radius.

If the option is set to true, a tiny 0.02 mm radius bend will be created on inside sharp edge (for the features created in NX8 or later releases); else the radius value from NXSM Preferences will be used.

Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Section* NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::RipSection ( )

Returns the section containing curves that need to be ripped while converting to sheetmetal.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

void NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::SetBaseFace ( NXOpen::Face * baseFace )

Sets the base face from which the thickness of the part is determined.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

Parameters

baseFace base face

void NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::SetBendReliefDepth ( const NXString & bendReliefDepth )

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

Parameters

bendReliefDepth NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::SetBendReliefDepth ( const char * bendReliefDepth )

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

Parameters

bendReliefDepth NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::SetBendReliefType ( NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::BendReliefTypeOptions bendReliefType )

Sets the bend relief type.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

Parameters

bendReliefType bend relief type

void NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::SetBendReliefWidth ( const NXString & bendReliefWidth )

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

Parameters

bendReliefWidth NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::SetBendReliefWidth ( const char * bendReliefWidth )

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

Parameters

bendReliefWidth NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::SetMaintainZeroBendRadius ( bool maintainZeroBendRadius )

Sets the option for Maintain zero bend radius.

If the option is set to true, a tiny 0.02 mm radius bend will be created on inside sharp edge (for the features created in NX8 or later releases); else the radius value from NXSM Preferences will be used.

Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

maintainZeroBendRadius maintain zero bend radius

void NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::SetRipEdges ( const std::vector< NXOpen::Edge * > & ripEdges )

Sets the array of edges that need to be ripped while converting to sheetmetal.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

Parameters

ripEdges rip edges

void NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::SetRipSection ( NXOpen::Section * section )

Sets the section containing curves that need to be ripped while converting to sheetmetal.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

Parameters

section section

void NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::SetSketch ( NXOpen::Features::SketchFeature * sketch )

Sets the internal sketch (used to specify rip curves), if it exists.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

Parameters

sketch sketch

NXOpen::Features::SketchFeature* NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::Sketch ( )

Returns the internal sketch (used to specify rip curves), if it exists.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

int NXOpen::Features::SheetMetal::ConvertToSheetmetalBuilder::ValidateBuilderData ( )

Verify that the builder data is valid for feature creation.

        <br>
            If the builder data is valid, it returns a value of 0.
        <br>
    @return  data validity flag (0 - valid, 1 - invalid)

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB") OR nx_ship_detail ("Ship Detail Design")

The documentation for this class was generated from the following file:

Features_SheetMetal_ConvertToSheetmetalBuilder.hxx
