Represents a Contour Flange feature builder. More...

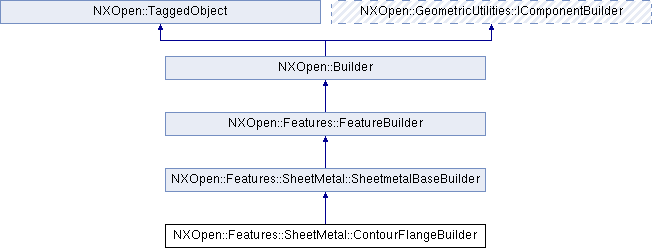

Inheritance diagram for NXOpen::Features::SheetMetal::ContourFlangeBuilder:

Public Types
enum	SectionSideOptions { SectionSideOptionsLeft, SectionSideOptionsRight }
	This enum represents the side of the section in which material is created. More...

enum	SweepSideOptions { SweepSideOptionsSectionNormalSide, SweepSideOptionsSectionReverseNormalSide }
	This enum represents the side in which the contour flange will be swept. More...

enum	SweepTypeOptions { SweepTypeOptionsFinite, SweepTypeOptionsSymmetric, SweepTypeOptionsToEnd, SweepTypeOptionsChain }
	This enum represents the sweep type of the contour flange. More...

Public Member Functions
NXOpen::Features::SheetMetal::BendOptions *	BendOptions ()
	Returns the bend options Created in NX4.0.0.

NXOpen::Section *	EdgeChain ()
	Returns the section having chain edges.

NXOpen::Expression *	GetSweepDistance ()
	THE projection distance of contour flange.

NXOpen::Expression *	GetThickness ()
	THE thickness of contour flange.

bool	IsSecondary ()
	Returns the contour flange type.

NXOpen::Features::SheetMetal::MiterOptions *	MiterOptions ()
	Returns the miter options Created in NX4.0.0.

NXOpen::Section *	Section ()
	Returns the section of contour flange Created in NX4.0.0.

void	SetEdgeChain (NXOpen::Section *edgeChain)
	Sets the section having chain edges.

void	SetSecondary (bool isSecondary)
	Sets the contour flange type.

void	SetSection (NXOpen::Section *section)
	Sets the section of contour flange Created in NX4.0.0.

void	SetSketch (NXOpen::Features::SketchFeature *sketch)
	Sets the sketch Created in NX4.0.0.

void	SetSweepDistance (const NXString &sweepDistance)
	Created in NX4.0.0.

void	SetSweepDistance (const char *sweepDistance)
	Created in NX4.0.0.

void	SetSweepSide (NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepSideOptions sweepSide)
	Sets the projection direction of contour flange Created in NX4.0.0.

void	SetSweepType (NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepTypeOptions sweepType)
	Sets the projection side of contour flange Created in NX4.0.0.

void	SetThickness (const NXString &thickness)
	Created in NX4.0.0.

void	SetThickness (const char *thickness)
	Created in NX4.0.0.

void	SetThicknessSide (NXOpen::Features::SheetMetal::ContourFlangeBuilder::SectionSideOptions sectionSide)
	Sets the thickness side of contour flange Created in NX4.0.0.

NXOpen::Features::SketchFeature *	Sketch ()
	Returns the sketch Created in NX4.0.0.

NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepSideOptions	SweepSide ()
	Returns the projection direction of contour flange Created in NX4.0.0.

NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepTypeOptions	SweepType ()
	Returns the projection side of contour flange Created in NX4.0.0.

NXOpen::Features::SheetMetal::ContourFlangeBuilder::SectionSideOptions	ThicknessSide ()
	Returns the thickness side of contour flange Created in NX4.0.0.

int	ValidateBuilderData ()
	Verify whether the builder data is valid for creating a Contour Flange or not.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Contour Flange feature builder.

To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateContourFlangeFeatureBuilder

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::ContourFlangeBuilder::SectionSideOptions

This enum represents the side of the section in which material is created.

The "left" option represents the side to the left of a person who is walking along the section in the direction of its curves when the section normal is pointing up. The "right" option represents the person's right hand side. This interpretation is the same regardless of whether the section is open or closed. The "right" side at any point along the section can also be represented by the vector resulting from the cross product of the curve tangent (of the section curve at that point) and the section normal. The "left" side is the opposite.

Enumerator:

SectionSideOptionsLeft	left
SectionSideOptionsRight	right

enum NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepSideOptions

This enum represents the side in which the contour flange will be swept.

Enumerator:

SweepSideOptionsSectionNormalSide	section normal side
SweepSideOptionsSectionReverseNormalSide	section reverse normal side

enum NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepTypeOptions

This enum represents the sweep type of the contour flange.

Enumerator:

SweepTypeOptionsFinite	finite
SweepTypeOptionsSymmetric	symmetric
SweepTypeOptionsToEnd	to end
SweepTypeOptionsChain	chain

Member Function Documentation

NXOpen::Features::SheetMetal::BendOptions* NXOpen::Features::SheetMetal::ContourFlangeBuilder::BendOptions ( )

Returns the bend options
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Section* NXOpen::Features::SheetMetal::ContourFlangeBuilder::EdgeChain ( )

Returns the section having chain edges.

Created in NX5.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::ContourFlangeBuilder::GetSweepDistance ( )

THE projection distance of contour flange.

Returns: Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::ContourFlangeBuilder::GetThickness ( )

THE thickness of contour flange.

Returns: Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

bool NXOpen::Features::SheetMetal::ContourFlangeBuilder::IsSecondary ( )

Returns the contour flange type.

Created in NX5.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::MiterOptions* NXOpen::Features::SheetMetal::ContourFlangeBuilder::MiterOptions ( )

Returns the miter options
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Section* NXOpen::Features::SheetMetal::ContourFlangeBuilder::Section ( )

Returns the section of contour flange
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

void NXOpen::Features::SheetMetal::ContourFlangeBuilder::SetEdgeChain ( NXOpen::Section * edgeChain )

Sets the section having chain edges.

Created in NX5.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

edgeChain edge chain

void NXOpen::Features::SheetMetal::ContourFlangeBuilder::SetSecondary ( bool isSecondary )

Sets the contour flange type.

Created in NX5.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

isSecondary is secondary

void NXOpen::Features::SheetMetal::ContourFlangeBuilder::SetSection ( NXOpen::Section * section )

Sets the section of contour flange
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

section section

void NXOpen::Features::SheetMetal::ContourFlangeBuilder::SetSketch ( NXOpen::Features::SketchFeature * sketch )

Sets the sketch
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

sketch sketch

void NXOpen::Features::SheetMetal::ContourFlangeBuilder::SetSweepDistance ( const NXString & sweepDistance )

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

sweepDistance NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::ContourFlangeBuilder::SetSweepDistance ( const char * sweepDistance )

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

sweepDistance NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::ContourFlangeBuilder::SetSweepSide ( NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepSideOptions sweepSide )

Sets the projection direction of contour flange
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

sweepSide sweep side

void NXOpen::Features::SheetMetal::ContourFlangeBuilder::SetSweepType ( NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepTypeOptions sweepType )

Sets the projection side of contour flange
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

sweepType sweep type

void NXOpen::Features::SheetMetal::ContourFlangeBuilder::SetThickness ( const NXString & thickness )

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

thickness NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::ContourFlangeBuilder::SetThickness ( const char * thickness )

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

thickness NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::SheetMetal::ContourFlangeBuilder::SetThicknessSide ( NXOpen::Features::SheetMetal::ContourFlangeBuilder::SectionSideOptions sectionSide )

Sets the thickness side of contour flange
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

sectionSide section side

NXOpen::Features::SketchFeature* NXOpen::Features::SheetMetal::ContourFlangeBuilder::Sketch ( )

Returns the sketch
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepSideOptions NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepSide ( )

Returns the projection direction of contour flange
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepTypeOptions NXOpen::Features::SheetMetal::ContourFlangeBuilder::SweepType ( )

Returns the projection side of contour flange
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::ContourFlangeBuilder::SectionSideOptions NXOpen::Features::SheetMetal::ContourFlangeBuilder::ThicknessSide ( )

Returns the thickness side of contour flange
Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

int NXOpen::Features::SheetMetal::ContourFlangeBuilder::ValidateBuilderData ( )

Verify whether the builder data is valid for creating a Contour Flange or not.

        <br>
            If the Builder data is valid, returned value shall be 0

        <br>
    @return  Data Validity Flag.

Created in NX4.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

The documentation for this class was generated from the following file:

Features_SheetMetal_ContourFlangeBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
