Represents a Bend feature builder. More...

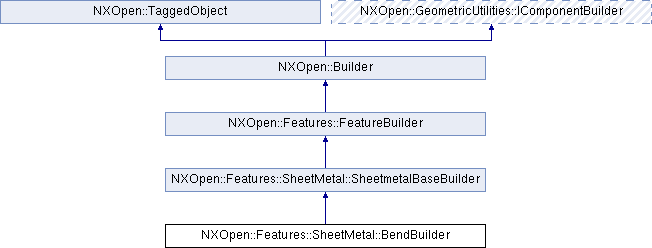

Inheritance diagram for NXOpen::Features::SheetMetal::BendBuilder:

Public Types
enum	BendDirectionOptions { BendDirectionOptionsSectionNormalSide, BendDirectionOptionsSectionReverseNormalSide }
	This enum represents the Bend Direction for Bend. More...

enum	BendLocationOptions { BendLocationOptionsOuterMoldLine, BendLocationOptionsCenterLine, BendLocationOptionsInnerMoldLine, BendLocationOptionsMaterialInside, BendLocationOptionsMaterialOutside }
	This enum represents the Bend Location (Material Side) for Bend. More...

enum	FixedSideOptions { FixedSideOptionsSectionSideLeft, FixedSideOptionsSectionSideRight }
	This enum represents the Fixed Side for Bend. More...

Public Member Functions
NXOpen::Features::SheetMetal::BendBuilder::BendLocationOptions	BendLocation ()
	Returns the Bend Location (Material Side) Created in NX5.0.0.

NXOpen::Features::SheetMetal::BendOptions *	BendOptions ()
	Returns the Bend Options Created in NX5.0.0.

NXOpen::Features::SheetMetal::BendBuilder::BendDirectionOptions	Direction ()
	Returns the Bend Direction Created in NX5.0.0.

bool	ExtendProfile ()
	Returns the Extend Option Created in NX5.0.0.

NXOpen::Features::SheetMetal::BendBuilder::FixedSideOptions	FixedSide ()
	Returns the Fixed Side Created in NX5.0.0.

NXOpen::Expression *	GetBendAngle ()
	Returns the Bend Angle.

NXOpen::Section *	Section ()
	Returns the Section Created in NX5.0.0.

void	SetBendAngle (const NXString &bendAngle)
	Sets the Bend Angle Created in NX5.0.0.

void	SetBendAngle (const char *bendAngle)
	Sets the Bend Angle Created in NX5.0.0.

void	SetBendLocation (NXOpen::Features::SheetMetal::BendBuilder::BendLocationOptions bendLocation)
	Sets the Bend Location (Material Side) Created in NX5.0.0.

void	SetDirection (NXOpen::Features::SheetMetal::BendBuilder::BendDirectionOptions direction)
	Sets the Bend Direction Created in NX5.0.0.

void	SetExtendProfile (bool extendOption)
	Sets the Extend Option Created in NX5.0.0.

void	SetFixedSide (NXOpen::Features::SheetMetal::BendBuilder::FixedSideOptions fixedSide)
	Sets the Fixed Side Created in NX5.0.0.

void	SetSection (NXOpen::Section *section)
	Sets the Section Created in NX5.0.0.

void	SetSketch (NXOpen::Features::SketchFeature *sketch)
	Sets the Sketch Created in NX5.0.0.

NXOpen::Features::SketchFeature *	Sketch ()
	Returns the Sketch Created in NX5.0.0.

int	ValidateBuilderData ()
	Verify whether the builder data is valid for creating bend or not.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Bend feature builder.

To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateBendFeatureBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::BendBuilder::BendDirectionOptions

This enum represents the Bend Direction for Bend.

Created in NX5.0.0.

Enumerator:

BendDirectionOptionsSectionNormalSide	Bend is created on the side of the section normal.
BendDirectionOptionsSectionReverseNormalSide	Bend is created on the side opposite to that of the section normal.

enum NXOpen::Features::SheetMetal::BendBuilder::BendLocationOptions

This enum represents the Bend Location (Material Side) for Bend.

Created in NX5.0.0.

Enumerator:

BendLocationOptionsOuterMoldLine	outer mold line
BendLocationOptionsCenterLine	center line
BendLocationOptionsInnerMoldLine	inner mold line
BendLocationOptionsMaterialInside	material inside
BendLocationOptionsMaterialOutside	material outside

enum NXOpen::Features::SheetMetal::BendBuilder::FixedSideOptions

This enum represents the Fixed Side for Bend.

Created in NX5.0.0.

Enumerator:

FixedSideOptionsSectionSideLeft	Side pointed to by the inverse of the tangent cross normal vector.
FixedSideOptionsSectionSideRight	Side pointed to by the tangent cross normal vector.

Member Function Documentation

NXOpen::Features::SheetMetal::BendBuilder::BendLocationOptions NXOpen::Features::SheetMetal::BendBuilder::BendLocation ( )

Returns the Bend Location (Material Side)
Created in NX5.0.0.
