Represents a @link Features::SheetMetal::AeroLighteningCutoutBuilder Features::SheetMetal::AeroLighteningCutoutBuilder@endlink
 <br> To create a new instance of this class, use @link Features::SheetMetal::AeroSheetmetalManager::CreateAeroLighteningCutoutBuilder  Features::SheetMetal::AeroSheetmetalManager::CreateAeroLighteningCutoutBuilder @endlink  <br>

Default values. More...

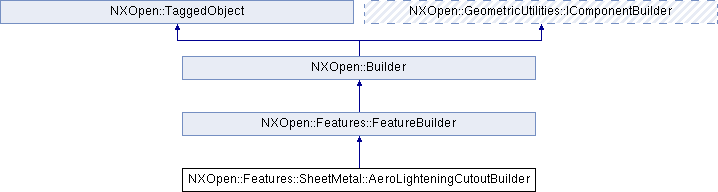

Inheritance diagram for NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder:

Public Types
enum	Types { TypesHole, TypesUserDefined }
	Represents the cutout type. More...

Public Member Functions
NXOpen::Expression *	Angle ()
	Returns the angle Created in NX5.0.0.

bool	CheckClearance ()
	Returns the check clearance Created in NX5.0.0.

NXOpen::Expression *	Clearance ()
	Returns the clearance Created in NX5.0.0.

NXOpen::Expression *	CornerRadius ()
	Returns the corner radius Created in NX5.0.0.

NXOpen::Section *	CutoutProfile ()
	Returns the cutout profile Created in NX5.0.0.

NXOpen::Expression *	Diameter ()
	Returns the diameter Created in NX5.0.0.

NXOpen::Expression *	DieRadius ()
	Returns the die radius Created in NX5.0.0.

std::vector< NXString >	GetStandards ()
	Returns the standard names.

NXOpen::Point *	HoleCenter ()
	Returns the hole center Created in NX5.0.0.

NXOpen::SelectFace *	HoleFace ()
	Returns the hole face Created in NX5.0.0.

NXOpen::Expression *	Length ()
	Returns the length Created in NX5.0.0.

bool	ReverseBendDirection ()
	Returns the reverse bend direction Created in NX5.0.0.

void	SetCheckClearance (bool checkClearance)
	Sets the check clearance Created in NX5.0.0.

void	SetHoleCenter (NXOpen::Point *holeCenter)
	Sets the hole center Created in NX5.0.0.

void	SetReverseBendDirection (bool reverseBendDirection)
	Sets the reverse bend direction Created in NX5.0.0.

void	SetStandardName (const NXString &standardName)
	Sets the standard name Created in NX5.0.0.

void	SetStandardName (const char *standardName)
	Sets the standard name Created in NX5.0.0.

void	SetType (NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::Types type)
	Sets the feature type Created in NX5.0.0.

NXString	StandardName ()
	Returns the standard name Created in NX5.0.0.

NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::Types	Type ()
	Returns the feature type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Features::SheetMetal::AeroLighteningCutoutBuilder Features::SheetMetal::AeroLighteningCutoutBuilder@endlink
 <br> To create a new instance of this class, use @link Features::SheetMetal::AeroSheetmetalManager::CreateAeroLighteningCutoutBuilder  Features::SheetMetal::AeroSheetmetalManager::CreateAeroLighteningCutoutBuilder @endlink  <br>

Default values.

Property

Value

Angle.Value

45

CheckClearance

true

Clearance.Value

5 (millimeters part), 0.12 (inches part)

Diameter.Value

102 (millimeters part), 2.6 (inches part)

DieRadius.Value

8 (millimeters part), 0.2 (inches part)

Length.Value

8 (millimeters part), 0.2 (inches part)

Type

UserDefined

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::Types

Represents the cutout type.

Enumerator:

TypesHole	hole
TypesUserDefined	user defined

Member Function Documentation

NXOpen::Expression* NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::Angle ( )

Returns the angle
Created in NX5.0.0.

License requirements : None

bool NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::CheckClearance ( )

Returns the check clearance
Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::Clearance ( )

Returns the clearance
Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::CornerRadius ( )

Returns the corner radius
Created in NX5.0.0.

License requirements : None

NXOpen::Section* NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::CutoutProfile ( )

Returns the cutout profile
Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::Diameter ( )

Returns the diameter
Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::DieRadius ( )

Returns the die radius
Created in NX5.0.0.

License requirements : None

std::vector<NXString> NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::GetStandards ( )

Returns the standard names.

Returns: Created in NX5.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::HoleCenter ( )

Returns the hole center
Created in NX5.0.0.

License requirements : None

NXOpen::SelectFace* NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::HoleFace ( )

Returns the hole face
Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::Length ( )

Returns the length
Created in NX5.0.0.

License requirements : None

bool NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::ReverseBendDirection ( )

Returns the reverse bend direction
Created in NX5.0.0.

License requirements : None

void NXOpen::Features::SheetMetal::AeroLighteningCutoutBuilder::SetCheckClearance ( bool checkClearance )

Sets the check clearance
Created in NX5.0.0.
